A software radio is a wireless communications device that performs all of its signal processing in portable, application level software. By simply running a different program, a software radio can become a cell phone, wireless LAN, cordless phones, garage door opener or walkie-talkie. The flexibility enabled by software radio allows for faster technology tracking, since standards upgrade are simple software downloads. Software radio is a multi-disciplinary systems effort, bringing together research in digital signal processing, communications, operating systems, software engineering and algorithms.

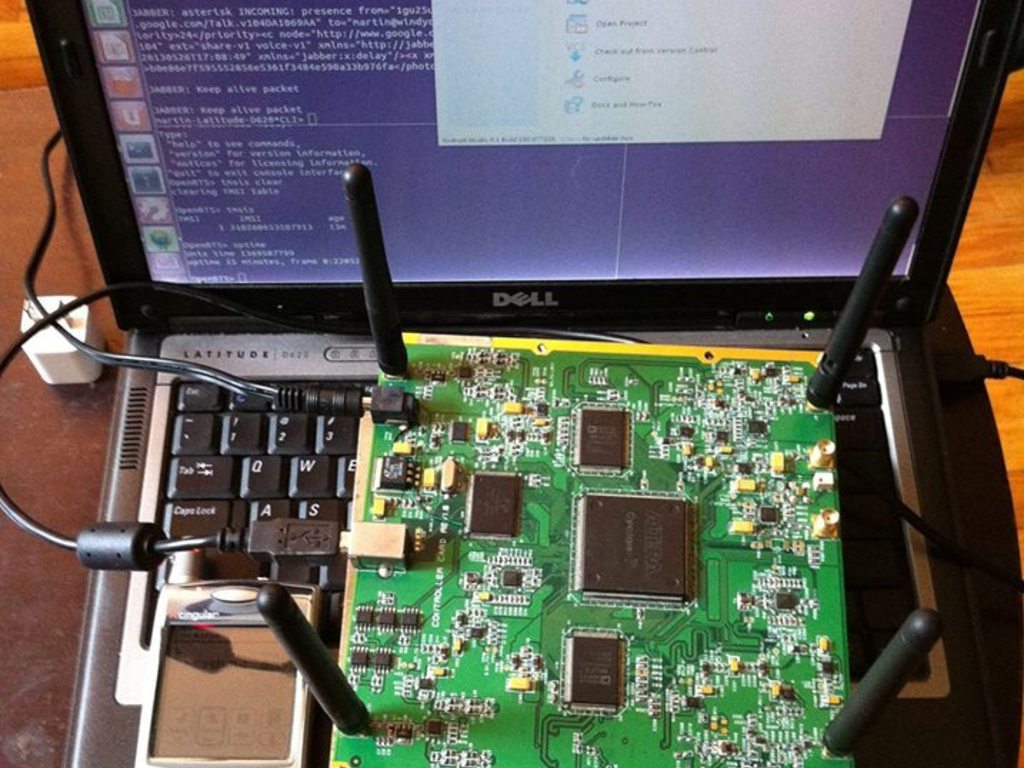

WindyCitySDR MIMO is a daughtercardless 2x2 full duplex SDR transceiver complete with RF and DAQ subsystems on a single board.
In radio, Multiple-Input and Multiple-Output, or MIMO (commonly pronounced my-moh or me-moh), is the use of multiple antennas at both the transmitter and receiver to improve communication performance. It is one of several forms of smart antenna technology.
Its architecture is designed for a true MIMO System. It meets the unique architecture required for MIMO systems which are not part of traditional MIMO hardware using common clock for RF subsystems where a continuous RF phase tracking is required. Coupled with these benefits, it hosts onboard RF transceiver subsystems capable of tuning frequencies from 400MHz to 4.4GHz. & will be distributed / manufactured out of Chicago, Illinois USA
Supports: Windows / Linux
8MHz Realtime-IQ Streaming to PC
50MHz RF Bandwidth
WindyCitySDR received this device in October of 2012 and in November 2012 swapped the 64Mhz Clock for a 52Mhz Clock and has been demonstrating it successfully at different Chicago Tech events ever since.
Altera Cyclone FPGA 12K
Cypress FX2 USB
***Quad 12-Bit 64 MSPS ADC
***( Backorder Est Avail: 2013-10-03)
Quad 14-bit 128 MSPS DAC
50MHz Lowpass filters for each channel at baseband
Dual 400MHz to 4.4GHz Quadrature Modulators with fine tuning resolution of 1Hz
Dual 400MHz to 4.4GHz Quadrature De-Modulators with fine tuning resolution of 1Hz
LNA’s, Power amplifiers and attenuaors
Receiver Sensitivity: -115dBm upto 3.8GHz and -95dBm upto 4.4GHz
MAX RF Output Power: 17dBm with upto 25dB Output power control
Receiver Sensitivity: -115dBm upto 3.8GHz and -95dBm upto 4.4GHz
Receiver Noise figure: 6-8 dB
AndroidSDRv1001 is a LiveDVD/USB image to support this SDR device without configuration nightmares and when connected to appropriate SDR hardware, allows for the creation of "Software Defined Radio GSM Mobile Phone Networks", for example.
This includes Android Studio 0.1.1 Build 130.687321 Environment, as well as contains:
Asterisk 1.8 http://www.asterisk.org/
GCC 4.6.3 gcc.gnu.org/
GNU Radio 3.4.2 + GRC http://www/gnuradio.org/
Java 1.7.0_21 www.java.com/
OpenBTS 2.8 www.openbts.org/
Ubuntu 12.04 LTS 32-bit http://releases.ubuntu.com/precise/
Pre-configured to work with Google Voice: just add your Google Voice Email Address & Password. https://www.google.com/voice
You should be able to boot off the LiveDVD / USB image and create an SDR GSM Network in under 10 minutes cleanly.
***UHD Driver needs to be implemented to get the GNU Radio versions 3.4.2 through 3.7 applications to function****
