Funded! This project was successfully funded on June 20, 2013.

Update #15

November SDK update and wireless power coils

49 comments
62 likes

We believe that a smartwatch can be so much more than just a secondary display for your smartphone.

Caller ID and notifications are compelling features for a smartwatch.  But a smartwatch which can run powerful watch apps—while merely sipping battery juice—is a generational leap forward.

This month we focused on enabling fitness apps using our dual-processor architecture.  And we received samples of our custom wireless power coils, clearing another milestone on the road to certification and production.

November SDK update

Sensing motion in all three dimensions simultaneously, AGENT's accelerometer can count steps for fitness apps, enable gesture control, track movement patterns during sleep and more.

Earlier this year we refined our dual-processor architecture: our power-efficient secondary processor can process sensor data while our powerful main processor sleeps.  Now we're leveraging this refined architecture, enabling developers to build watch apps which react to motion events without dramatically decreasing battery run-time.

A week ago we published the November update to our preview SDK.  This update enables access to the smartwatch's accelerometer for all watch apps.  It even includes an accelerometer emulator so that developers can start building and testing fitness and other motion-enabled apps right away.

For those developers who have already written apps for Windows 8.1 or Windows Phone: AGENT utilizes the same Windows.Devices.Sensors.Accelerometer object model you already know.

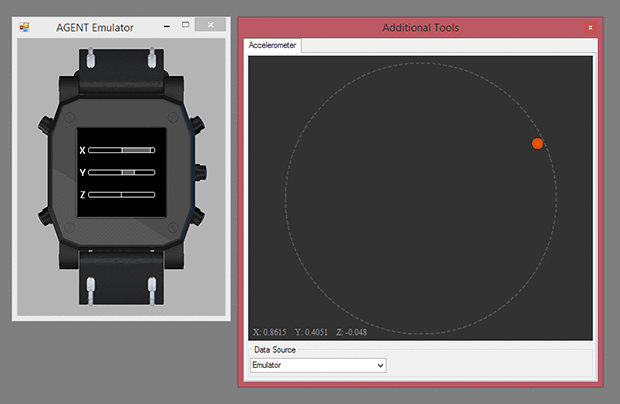

Accelerometer sample watch app and emulator
Accelerometer sample watch app and emulator

Preparing for our upcoming AGENT hackathons, we also introduced about a hundred software developers to the updated SDK during two interactive classes at the Microsoft MVP Summit.  A few dozen of our backers were in attendance, and backer Rob Chartier showed off his cool Z-Wave home automation watch app. We ran one of the accelerometer class projects on AGENT hardware, answered a lot of great deep dive technical questions, and had a lot of fun.

Simply put: our goal with the AGENT SDK, emulator and hackathons is to provide the world's best software development experience for a smartwatch—so that developers can build the world's best smartwatch apps.

Wireless power coils

As of the last update, our custom wireless charger coils had not yet arrived as scheduled.  We have been working closely with our wireless coil supplier and I'm happy to report that the first coil samples have now arrived.

Both of the custom wireless power coils (for charger and smartwatch) include centering magnets for easy alignment—and the charger coil's shield has integrated screw holes which help minimize the size of the charger's plastic shell.

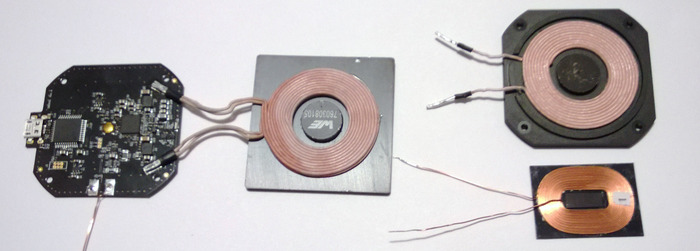

Here is a photo of our charger circuitry which we paired with an off-the-shelf power coil for preliminary testing (left side).  On the right side is our charger's custom transmitter coil (top right) and our smartwatch's custom receiver coil (bottom right).

AGENT's companion wireless charger is both a very small and a very powerful travel charger, compatible with any Qi-enabled device.

Next steps

With custom wireless power coils in hand, we are now ready for Qi pre-certification testing for both the charger and the smartwatch internals.  We will be conducting those tests in December and sharing the results with our backers.

For the smartwatch itself, the final two milestones before certification are the custom backlight and the custom watch case.  We received a second, updated backlight last week, and our supplier is now much closer to meeting our specifications.  We expect to clear that milestone very soon.  As soon as the smartwatch's inner assembly is complete with backlight, our watch case manufacturer will double-check all measurements and we can finalize the watch case molds.

With those production watch cases in hand, we will be able to move forward with official Qi, FCC, IC and CE certifications.  Once we pass the regulatory tests, we can immediately begin production.  And once we receive official notice of FCC certification, we can start shipping out rewards.

Waiting for custom coils and backlights is not fun since they are prerequisites for certification.  We have been pushing hard to keep the production timeline close to our initial estimated schedule, and we will continue to expedite the overall process with our custom parts suppliers and certification test houses.

Together with you, we are building cutting-edge hardware; I'm confident that the end result will be a smartwatch we can be very proud of.  We are so grateful for all of our awesome backers.  And we are grateful for your patience as we clear these last few milestones together and push the AGENT Smartwatch onto the assembly line.

Thank you as always for your support,

- Chris
