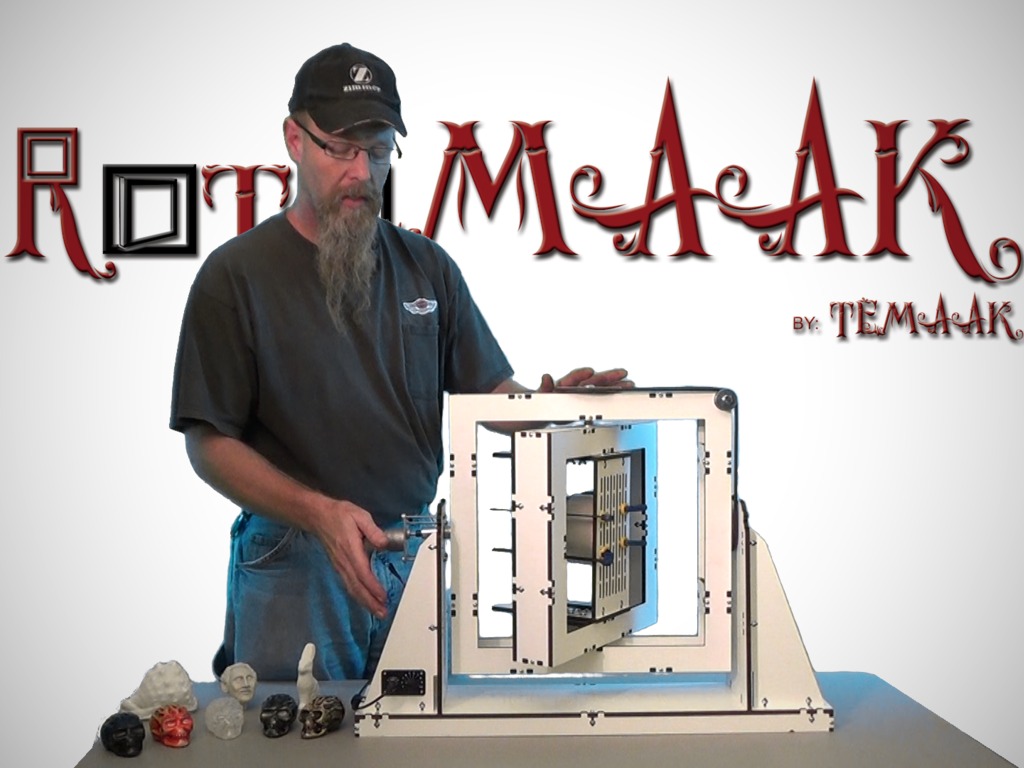

The RotoMAAK

Rotational Casting, also known as Rotocasting or Hollow Casting, is a molding process for creating many kinds of items, mostly hollow in form and typically made of plastic. The RotoMAAK rotocaster was born out of the desire to have a process by which Makers could scale up production of parts using rotational casting technology when 3D printing a small production run becomes cost and time prohibitive.

HOW DOES IT WORK?

The RotoMAAK rotational caster consists of a hollow mold and a rotational device that spins the mold in a uniform motion. The hollow mold is filled with a charge or shot weight of air cure resin. It is then inserted into the RotoMAAK where it is slowly rotated (usually around two perpendicular axes) causing the liquid resin to uniformly disperse and stick to the walls of the mold where it slowly cures over time into the shape of the part. In order to maintain an even thickness throughout the part, the mold continues to rotate at all times during casting phase and curing phase. The continuous rotation of the mold also avoids sagging or and part deformation.

The rotocasting process was applied to plastics in the 1940's, but in its early years was rarely used due to a slow process and restriction to a small number of plastics. Over the past two decades, improvements in process control and developments with air cure resin and plastic powders have resulted in a significant increase in its usage for part production.

OUR INNOVATION:

The RotoMAAK rotational casting machine allows the hobbyist to experiment with different casting materials and mold creation for production scale-up of parts to meet customer needs. With the popularity of DIY 3D printing, you now have the ability to create a 3D object in a relatively short amount of time compared to the traditional prototyping or one off manufacturing processes. 3D Printing allows you to create one part faster than traditional processes, but not reproduce it as quickly as mass manufacturing technologies. With rotational casting, you have more options to reproduce many identical parts from a successful print. Additionally it is not limited to 3D printed molds (NO 3D Printer required!), you can create a mold from almost any part and in turn reproduce multiple replicas of that item.

- TeMaak

ADVANTAGES

One of the major advantages of rotocasting a hollow part is the savings in materials and weight. If a part's function does not require it to be solid, why cast it solid and waste materials? Instead of using pounds of material to cast a solid piece, you can cast it hollow with ounces of resin, which in turn yields a big cost savings in time and material.

The RotoMAAK also controls the rotation of the mold to ensure a uniform wall thickness that rotating a mold by hand cannot achieve. Some air cure resins,especially the clear varieties, have a cure time of several hours instead of 6-10 minutes. Evenly rotating a mold for hours would prove to be impossible by hand, and a rotational machine like this will allow you to rotational cast clear bottles, glasses, etc. for amazing special effects.

MARKET

First we were looking at ways to increase the speed of reproducing 3D printed parts, either by using a mold that was 3D printed and cast directly from that, or by 3D printing your part and creating a silicon mold from that. However, after talking to many people at Maker Faires, other Makers and hobbyists in the community, and others with manufacturing experience and creative tendencies, we have identified even more niches and applications for this technology than we first envisioned. Many different people: doll makers, artists, model makers, action figure enthusiasts, can go from clay original to silicon mold to producing and selling limited edition reproductions. Candy makers can make custom and personalized hollow chocolate figures, even people making R2-D2 replicas with hollow parts that have been cost prohibitive to have machined. Custom bike builders can even rotational cast specialty/themed turn signal lenses.

The possibilities are endless! Rotational molding parts with the RotoMAAK can save you time and money, and is a bridge between one off part production and the cost of injection molding.

YOUR SUPPORT

We need your support so that we can purchase larger quantities of parts at a time (thereby bringing down cost), in addition to the creation of assembly instructions, how to videos, and shipping kits and assembled machines.

MACHINE SPECS

  • Motor speed: variable to 14 rpm
  • Voltage: 12v dc gear drive motor with planetary gear reduction
  • All pivot points and axes have 608 bearing for long smooth life
  • Precision Laser Cut parts
  • Mold Max size Capacity: 10" x 10" x 10"

VIDEO TESTIMONIALS FROM GLOBALLY KNOWN MAKERS

 **SKULL BUSINESS CARD HOLDER REWARD**

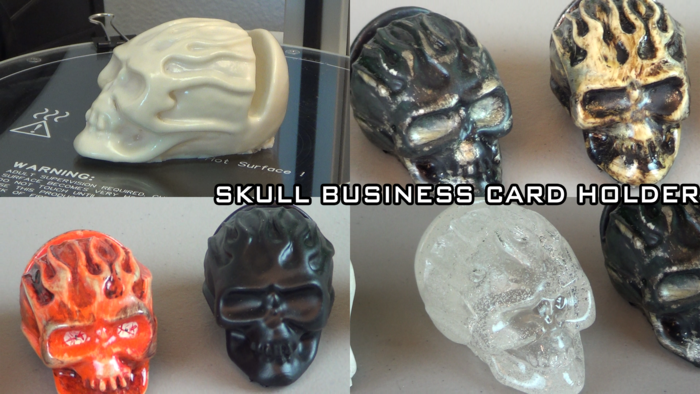

The Skull Business Card Holder!
The Skull Business Card Holder!

ROTATIONAL MOLDED EXAMPLES

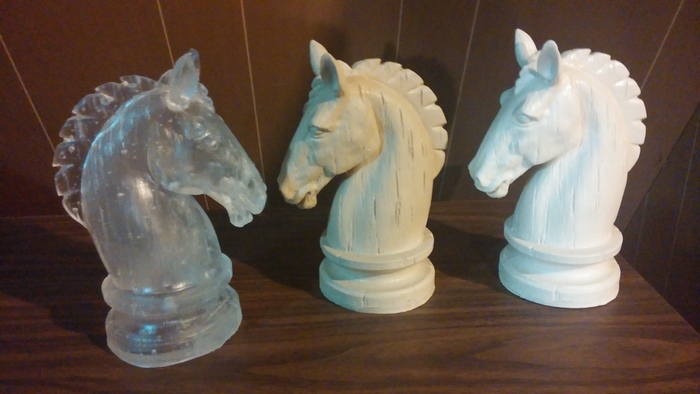

All of the above horse heads were cast from a wood carving.
All of the above horse heads were cast from a wood carving.

The WHITE HORSE HEAD is cast SOLID. 22oz of resin. COST = $7.70

 The BEIGE and CLEAR HORSE HEAD were hollow cast in the RotoMAAK. 6.4 oz of resin COST = $2.25

A difference of $5.45 and 15.6 oz of resin! Multiply that times 10 copies = savings of $50.45!

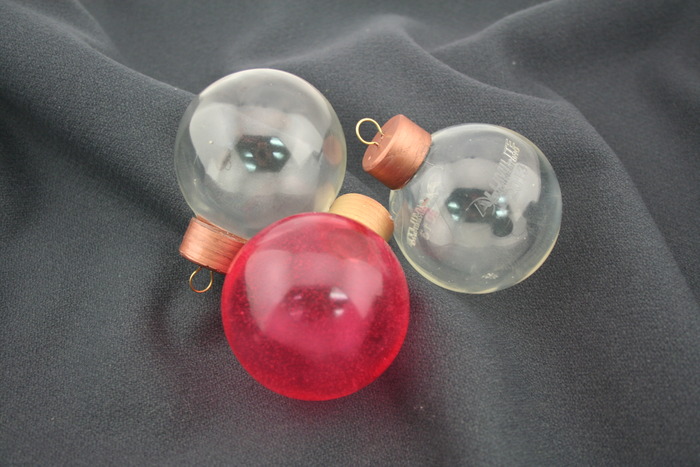

Hollow Resin Ornaments
Hollow Resin Ornaments

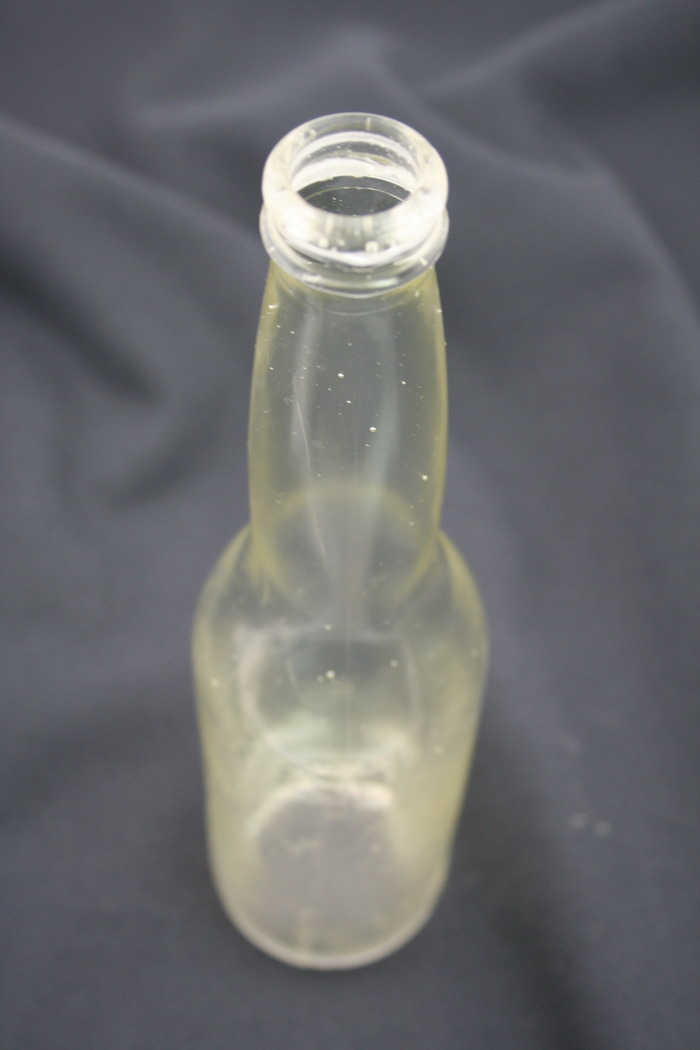

Clear Resin Bottle
Clear Resin Bottle

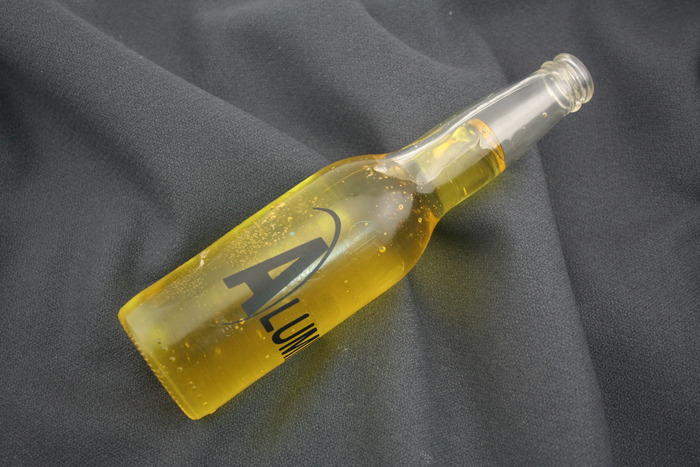

Clear Resin Bottle with Yellow Resin Effect
Clear Resin Bottle with Yellow Resin Effect

THE PROTOTYPING PROCESS TIMELINE

5-1-13 Initial Laser Cut Design with Squiggle Cuts and temporary motor setup. No control knob
