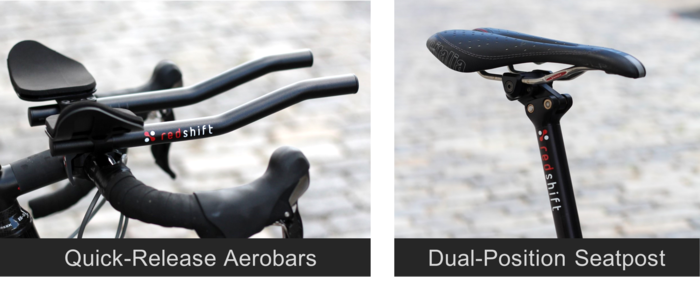

Quick-Release Aerobars + Dual-Position Seatpost: Switch back and forth on-the-fly between a road position and an aero position.

About this project

Thanks to everyone who supported the project. If you missed the Kickstarter you can still get the Switch Aero System at www.redshiftsports.com/kickstarter.

"Thanks to Redshift Sports, triathletes can have their cake and then ride it off in either the aero or road position." - BikeRumor

"Upstart company Redshift Sports promises to add that same capability to nearly any road bike with its new Switch Aero system, while making the conversion much easier, too." - BikeRadar

Get the Most Out of Your Road Bike

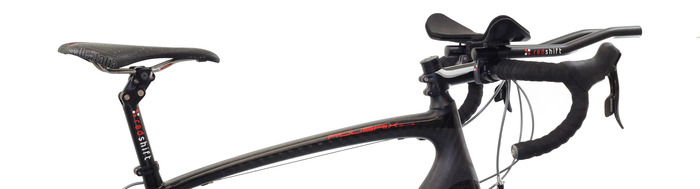

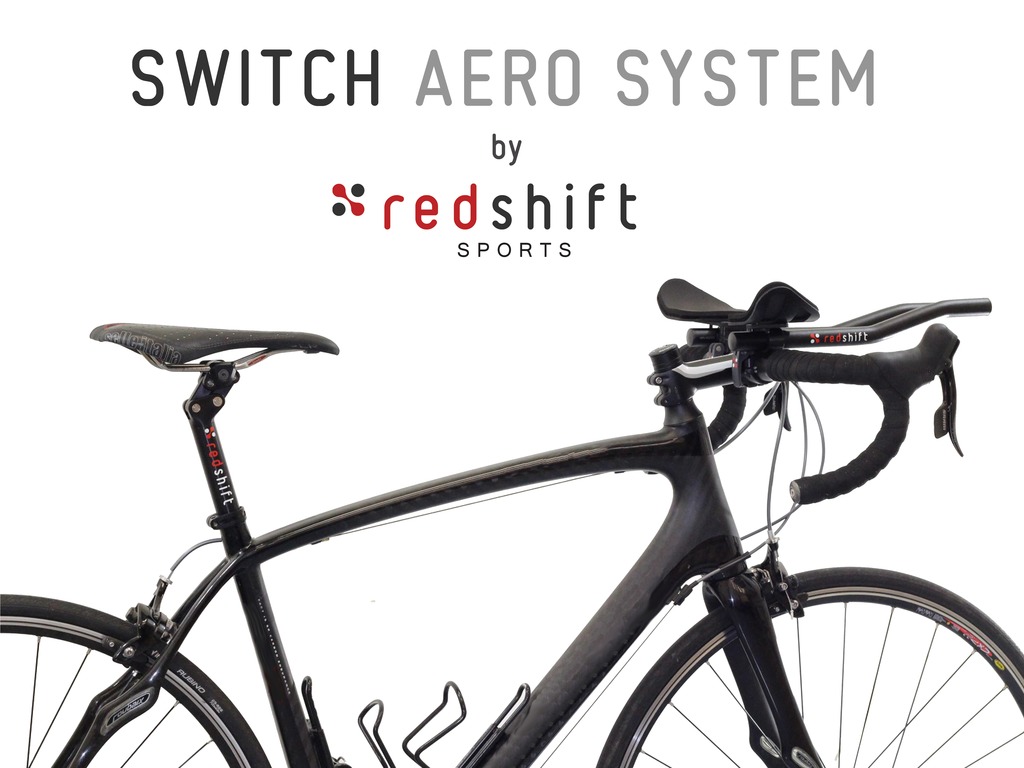

The Switch Aero System lets you get the most out of your road bike. The system’s Quick-Release Aerobars and Dual-Position Seatpost allow you to transition on-the-fly between your normal road position and a true aero position, without even slowing down. The system is perfect for cyclists, triathletes, or anyone looking for a comfortable and aerodynamic alternate riding position.

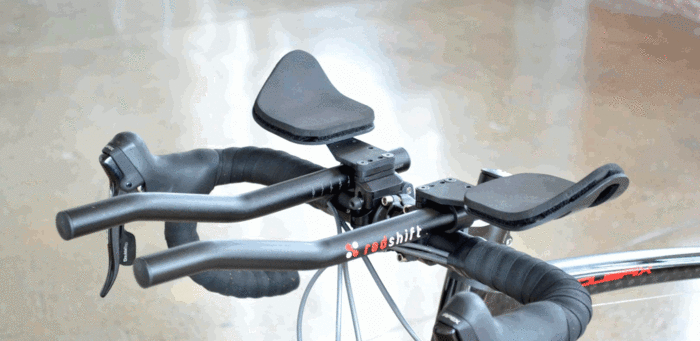

The Switch Aerobars are different than any other clip-on aerobars. They have a patent-pending quick-release mechanism that lets you attach or remove them in seconds without using tools – since there’s no time-consuming setup or breakdown, you can choose the perfect setup every time you head out the door.

It takes more than a set of aerobars to achieve a proper aero position. The Switch Dual-Position Seatpost lets you move the saddle forward on-the-fly, replicating the steeper seat tube angle of a tri bike. The steeper geometry opens up your hip angle and maintains proper leg extension, letting you ride more comfortably and efficiently in the aero position.

The Switch Aero System gives you the flexibility to choose the best setup for every part of every ride. If you’re going out for a group ride, you can leave the aerobars at home and ride a pure road bike. But if you’re racing in a triathlon or doing a charity ride, you can throw the aerobars on and choose the best position for every climb, flat, and descent.


Why is an aero position so important?

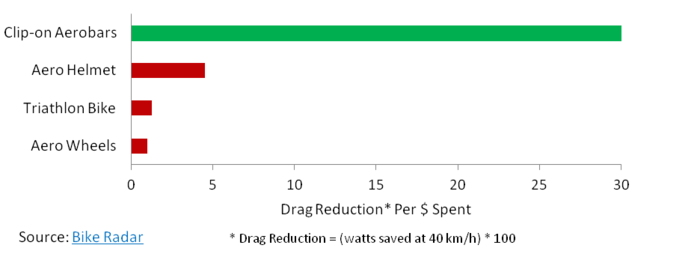

When riding at speed, more than 75% of your energy goes to overcoming wind resistance, and the vast majority of that resistance is caused by your body. The single most cost-effective way to reduce drag is to improve your body position on the bike. Using the Switch Aero System on your road bike can save you more than 3 minutes during an Olympic distance triathlon, and more than 13 minutes during an Ironman-length race!


Benefits

  • Versatility – get the speed and efficiency of a tri bike without giving up the climbing, maneuverability, and comfort of a road bike. Choose the best position for every part of every ride.
  • Speed – hammer the flats in the aero position and spin up the climbs in the road position. Ride faster on every part of the course.
  • Simplicity – switch between the road and aero positions without even slowing down. Attach or remove the aerobars in seconds – no tools are required, and they’ll be in the exact same position every time you attach them.
  • Comfort – relieve pressure on your hands and wrists by switching to an alternate position. Stay fresher longer.
  • Fit – dial in a perfect fit in both the road and aero positions. The aerobars and seatpost offer incredible adjustability to fit any rider.
  • Safety – carve down a winding descent or weave through traffic. The road position gives you the maneuverability and visibility you need in demanding situations. The aerobars also have a built-in safety latch that prevents accidental release.


Switch Quick-Release Aerobars

The Switch Aerobars mount to standard road handlebars (25.4, 26.0, and 31.8mm) using two small handlebar clamps. These clamps are the only parts that remain on the bike when you remove the aerobars. In order for the clamps to mount securely to the handlebar you must have 22mm (7/8in) of full diameter handlebar on either side of the stem. If you have any questions about bike compatibility contact us.

The Switch Aerobars are incredibly adjustable: the extensions and armrests can be adjusted independently to dial in a perfect aero fit. In addition, aerobar backers will have a choice of three different aluminum extension shapes (L-bend, S-bend, and straight) or they can choose to upgrade to carbon available in two shapes (L-bend and S-bend).

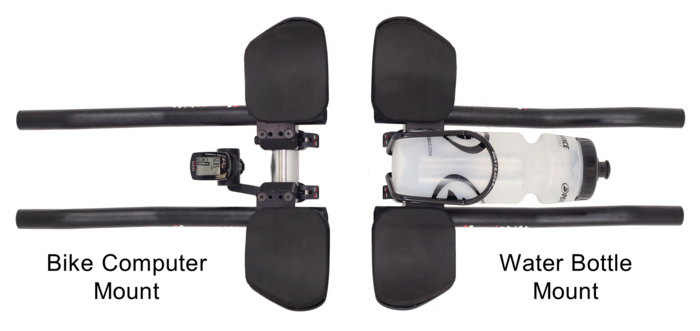

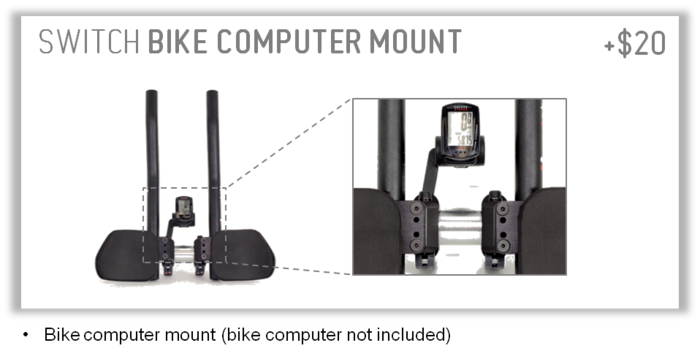

We’re also offering two accessories that integrate seamlessly with the Switch Aerobars: a water bottle mount and a bike computer mount. The water bottle mount places your bottle between the aerobars to minimize drag and maximize accessibility. The computer mount integrates with the base handlebar clamp so that your computer stays with the bike even when you remove the aerobars.


Switch Dual-Position Seatpost

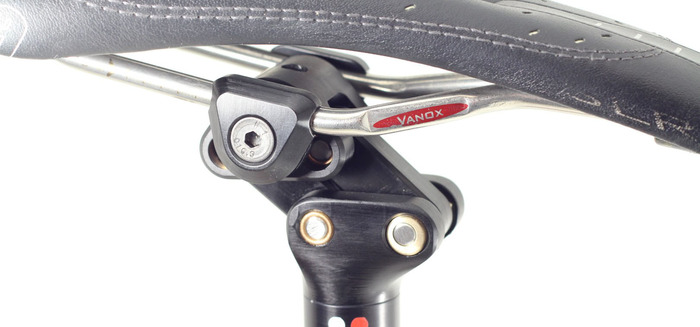

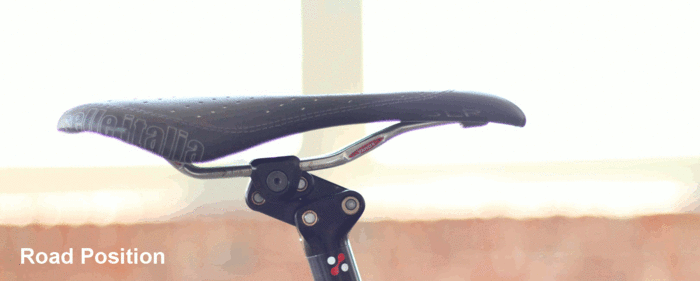

The patent-pending Dual-Position Seatpost lets you switch your saddle on-the-fly between a normal road position and an aero position that's similar to the setup of a tri bike. The steeper effective seat tube angle opens up your hip angle and maintains proper leg extension, letting you ride more comfortably and efficiently in the aero position. The seatpost is stable in both positions – a spring-loaded stop holds it securely in place until you decide to change positions.

The seatpost will fit bikes with seat tube diameters between 27.2 and 31.6mm (the vast majority of bikes), and saddles with standard 7mm diameter rails (the vast majority of saddles).

The Switch Seatpost includes all the same adjustability found in a standard seatpost. And since some riders prefer more forward saddle tilt while riding in an aero position, the seatpost includes an additional adjustment that tilts the saddle forward by up to five degrees when you move from the road to the aero position.

Both the aerobars and seatpost are made from aerospace-grade 6061-T6 aluminum. The weight of the aerobars is comparable to existing clip-on aerobars, and the seatpost is only ~60g (1/8 lb) heavier than a typical road bike seatpost.


Rewards

Funding

The seatposts and aerobars shown are pre-production prototypes that we used to validate and refine the design. Now we're ready to transition into large-volume production, but in order to do that, we need to buy the expensive tooling required to produce the components. Your support will help us purchase extrusion dies, injection molds, and machining fixtures. These tools will allow us to produce a consistent, high-quality product at a great value for our backers!


Production Schedule

Following the Kickstarter campaign, we’ll get final quotes from our manufacturers and then kick off the production process. Below is our estimated timeline – don’t worry, we will provide lots more details after the campaign, and of course we will post the latest information as we get it. We can’t wait to get these products on your bike!

  • Early July: Kickstarter campaign finishes
  • Late July: Place initial production order
  • Early August: Ship out t-shirts, water bottles, and bags
  • Mid August: Receive and evaluate production samples
  • Mid/Late September: Fulfill orders!


About Us

Redshift Sports was founded by Erik de Brun, Stephen Ahnert and Scott Poff. We’re mechanical engineers who also happen to love cycling, triathlons, and basically anything that gets us outdoors. We also have a small engineering consulting company where we help clients through all steps of the design process from initial concept to final design and manufacturing. Our team has worked on projects ranging from baby strollers to humanitarian landmine clearance equipment, and just about everything in between. We have partnered with manufacturers using the latest machining, molding and forging techniques. We love working on exciting projects and bringing new ideas to life!

Thank you for your support!

We'd love to hear from you. If you have a question, check out the FAQ. If you don't find the answer, or if you just want to provide feedback, please post a comment or contact us.

Risks and challenges

We have extensive experience with the design and manufacturing of all types of products. Our goal is to get the Switch Aero System manufactured on schedule and into your hands as soon as possible. To that end, we have taken steps to ensure that potential risks are managed properly.

QUALITY
We have worked hard to design a great product and want to make sure that all of our production parts are of the highest quality. We have carefully selected our manufacturing partners based on their proven track record with cycling products as well as a quality review of actual parts they have produced.

SCHEDULE
Over the years, we have taken numerous products through the manufacturing process, so we know how long each part of the process actually takes. Our experiences have also taught us how best to manage the efforts to minimize delays. We are in close contact with our manufacturing partners regarding their schedule to ensure that our timeline is appropriate.

MANUFACTURABILITY
All prototypes are not created equal – many are made using techniques that would be impossible to use in manufacturing. Our final prototypes were designed for manufacturing from the start. In fact, we've already created production drawings and received quotes from all of our manufacturers.

Learn about accountability on Kickstarter

FAQ

  • We designed the Switch Seatpost to maintain constant bottom-bracket to saddle height in both positions. Because of the geometry of a road bike, this means the seat has to move up and forward to maintain the correct riding position. So it is slightly higher (relative to the ground) in the forward position.

    Last updated:
  • The Switch Aero System is legal for use during competition in the vast majority of triathlons. We're currently trying to determine whether the seatpost is legal for use during draft-legal triathlons (which are currently very uncommon except at the professional level). We are also investigating whether the seatpost is legal for cycling events such as time trials.

    Last updated:
  • We specifically chose the angles of the four-bar linkage so that the saddle will be completely stable in both positions. If you're in the seated position, you have to actively lift your body weight in order to move the saddle in either direction. The seatpost also has a built-in spring loaded stop that clicks firmly into both positions, so if you're riding out of the saddle, the seatpost stays securely in place, even when riding over rough roads.

    Last updated:
  • We're using industry "standard" 22.2mm diameter extensions, so if you already have a set of aero extensions, it's likely that you can use them with the Switch Aero Bars.

    Last updated:
  • In the road position, the seatpost has 16mm of rearward offset (distance between the seatpost centerline and the saddle clamp centerline), similar to most road seatposts. The seatpost travels 50mm between the road and aero positions, resulting in an aero position that has 34mm of forward offset.

    Last updated:
  • Unfortunately, if the portion of the seatpost that goes into the bike frame is not round, you won't be able to fit the Switch Seatpost on your bike. We're considering some future products that will let non-round seatpost owners get the same advantages of the Switch Seatpost. Stay tuned!

    Last updated:

Rewards

  • You selected
    Pledge $25 or more

    22 backers

    REDSHIFT FAN: Cheer us on with a Redshift drawstring gear bag and water bottle.

    Estimated delivery:
    Only ships to: United States
  • You selected
    Pledge $50 or more

    23 backers

    REDSHIFT SUPPORTER: Show your support with a Redshift technical t-shirt and drawstring gear bag.

    Estimated delivery:
    Only ships to: United States
  • You selected
    Pledge $109 or more

    22 backers

    EARLY BIRD SWITCH SEATPOST: Be one of the first to get a Switch Seatpost. Ships with a Redshift drawstring gear bag. Free shipping within the US.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $109 or more

    25 backers All gone!

    EARLY BIRD SWITCH AEROBARS: Be one of the first to get a set of Switch Aerobars. Ships with a Redshift drawstring gear bag. Free shipping within the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $125 or more

    10 backers

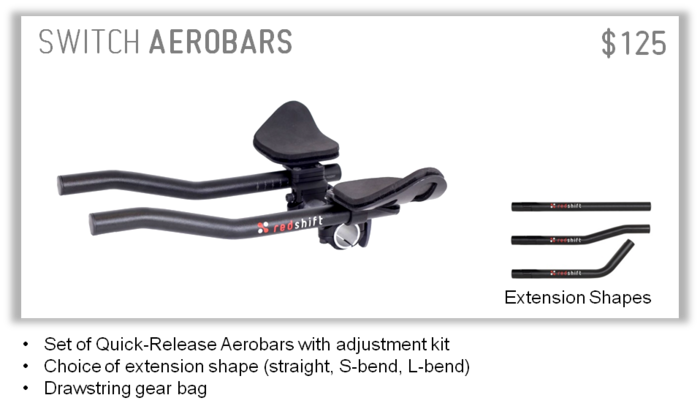

    SWITCH AEROBARS: A set of Switch Aerobars. Ships with a Redshift drawstring gear bag. Free shipping within the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $125 or more

    1 backer

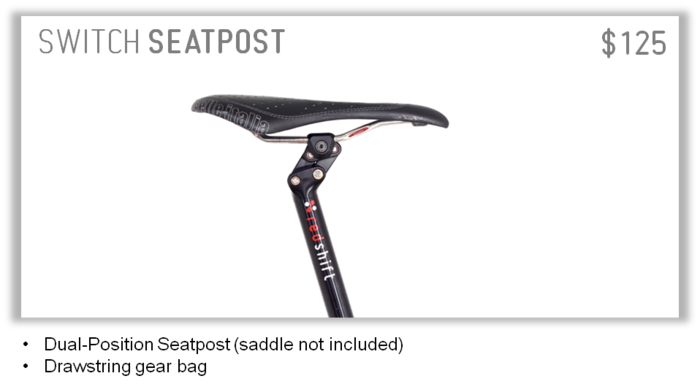

    SWITCH SEATPOST: A Switch Seatpost. Ships with a Redshift drawstring gear bag. Free shipping within the US.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $190 or more

    3 backers

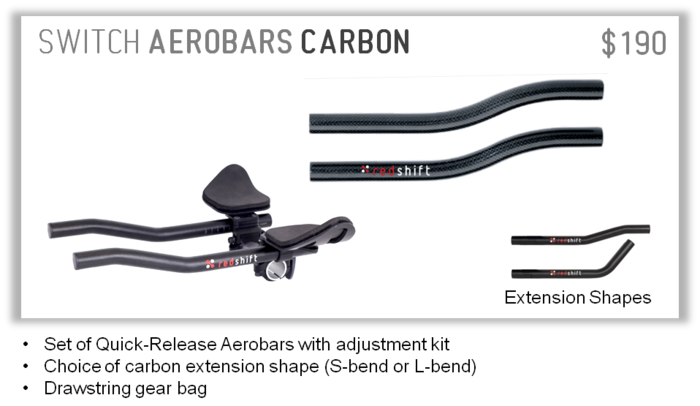

    SWITCH AEROBARS CARBON: A set of Switch Aerobars with lightweight high-strength carbon extensions. Ships with a Redshift drawstring gear bag. Free shipping within the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $199 or more

    25 backers All gone!

    EARLY BIRD SWITCH AERO SYSTEM: A set of Switch Aerobars and a Switch Seatpost. Ships with a Redshift drawstring gear bag. Free shipping in the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $225 or more

    46 backers

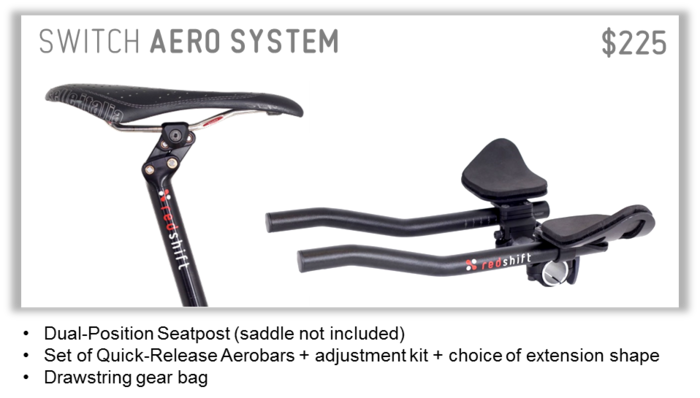

    SWITCH AERO SYSTEM: A set of Switch Aerobars and a Switch Seatpost. Ships with a Redshift drawstring gear bag. Free shipping in the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $229 or more

    25 backers All gone!

    EARLY BIRD SWITCH DELUXE: A set of Switch Aerobars, a Switch Seatpost, a Redshift water bottle mount, and a Redshift bike computer mount. Ships with a Redshift drawstring gear bag. Free shipping in the US.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $255 or more

    28 backers

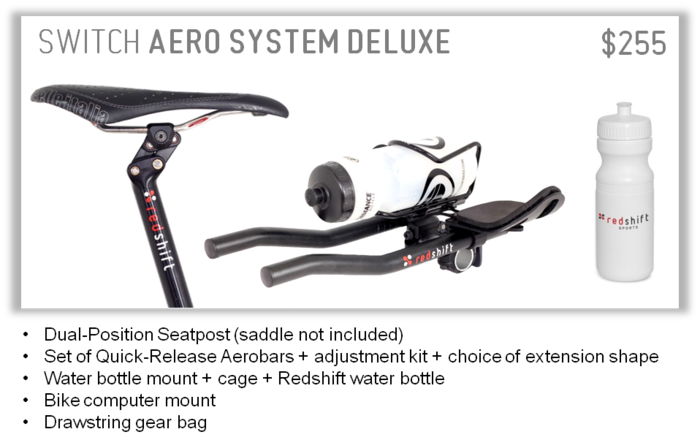

    SWITCH DELUXE: A set of Switch Aerobars, a Switch Seatpost, a Redshift water bottle mount, and a Redshift bike computer mount. Ships with a Redshift drawstring gear bag. Free shipping in the US.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $290 or more

    6 backers

    SWITCH AERO SYSTEM CARBON: A set of Switch Aerobars with lightweight high-strength carbon extensions and a Switch Seatpost. Ships with a Redshift drawstring gear bag. Free shipping in the US. Add $20 for computer mount & $25 for water bottle mount.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $319 or more

    3 backers

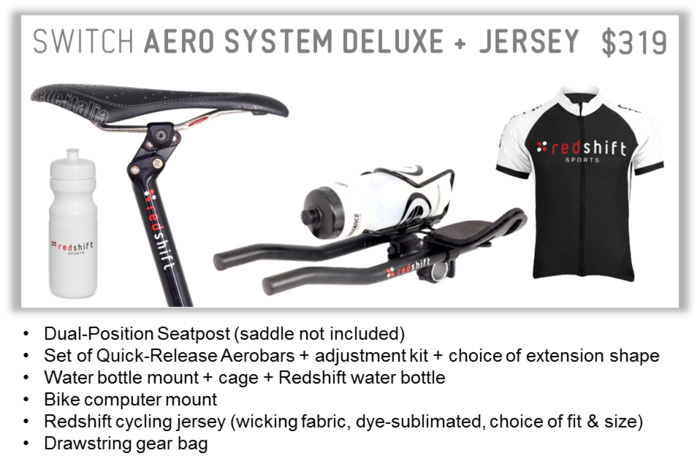

    SWITCH DELUXE + JERSEY: A set of Switch Aerobars, Switch Seatpost, Redshift cycling jersey, water bottle mount, and bike computer mount. Ships with a Redshift drawstring gear bag. Free shipping in the US.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $320 or more

    16 backers

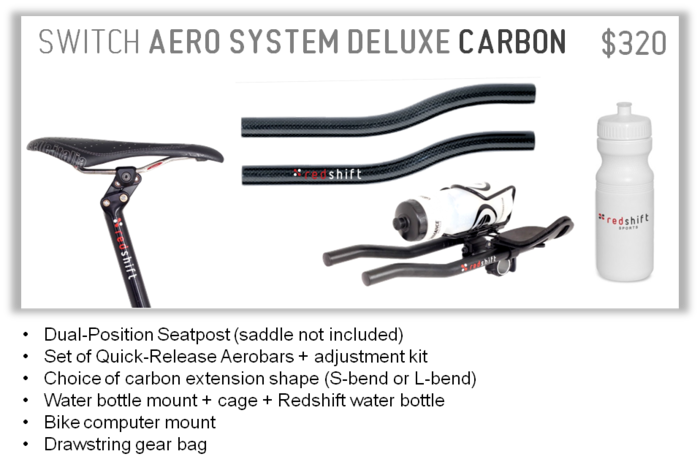

    SWITCH DELUXE CARBON: A set of Switch Aerobars with lightweight high-strength carbon extensions, a Switch Seatpost, a Redshift water bottle mount, and a Redshift bike computer mount. Ships with a Redshift drawstring gear bag. Free shipping in the US.
