High Speed Water Drop Photography Kit allows you to photograph amazing water drop collisions. Read more

130
backers
$22,583
pledged of $10,500 goal
0
seconds to go

Funded!

This project was successfully funded on November 12, 2013.

High Speed Water Drop Photography Kit allows you to photograph amazing water drop collisions.

About this project

Why?

Water drop photography is both an art and a form of technology. It requires a lot of patience but it is really rewarding when you are experienced with it. However, in order to capture precise moment of collision, just an eye dropper is not enough. This is where this project comes in -- synchronizing all events in a controlled way.

What is it?

This High Speed Water Drop Photography Kit (WDK for short) is an easy to use and powerful tool for those who want to capture moments of liquid drop collisions, experienced or new comers!

WDK consists of controller with remote control, solenoid valve, water subsystem, and frame support subsystem.

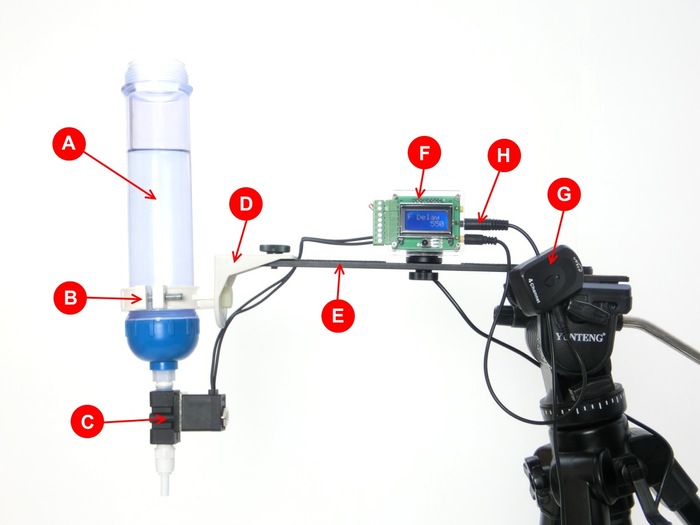

Illustration of Setup
Illustration of Setup
  • A -- Water bottle (water subsystem)
  • B -- clamp for water bottle (frame support subsystem)
  • C -- Solenoid valve (2P025 type)
  • D -- right angle bracket with M10 screw connecting clamp and bracket. (frame support subsystem)
  • E -- anodized aluminum bar (black) (frame support subsystem)
  • F -- three channels controller (along with remote controls makes up of controller subsystem)
  • G -- PT-04 wireless transmitter (optional, NOT included in this project)
  • H -- camera extension cable and camera release cable (please specify what camera you have), it is INCLUDED.

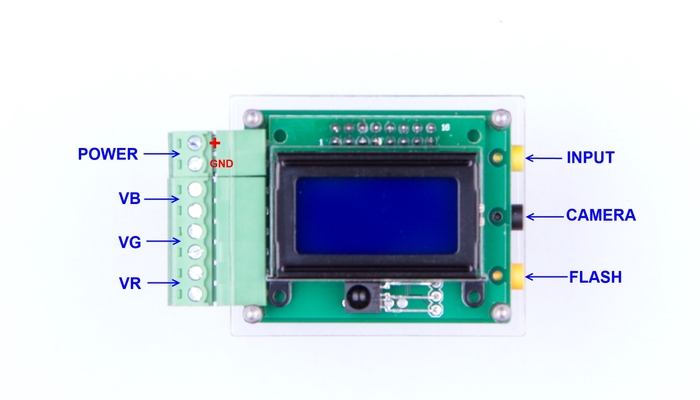

Controller
Controller

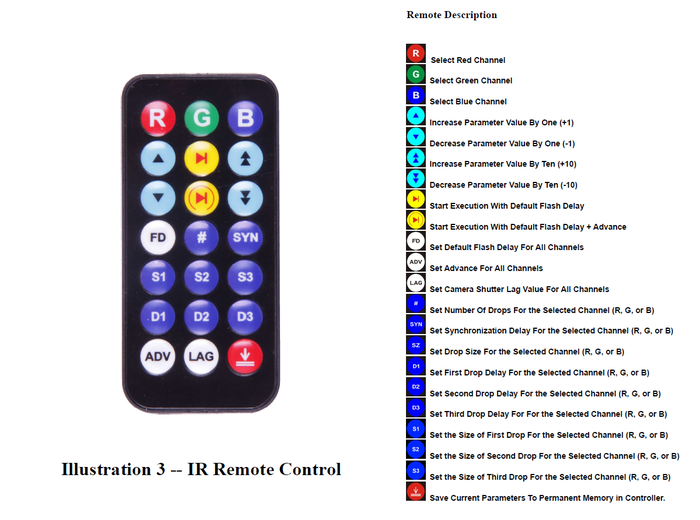

Remote Control
Remote Control

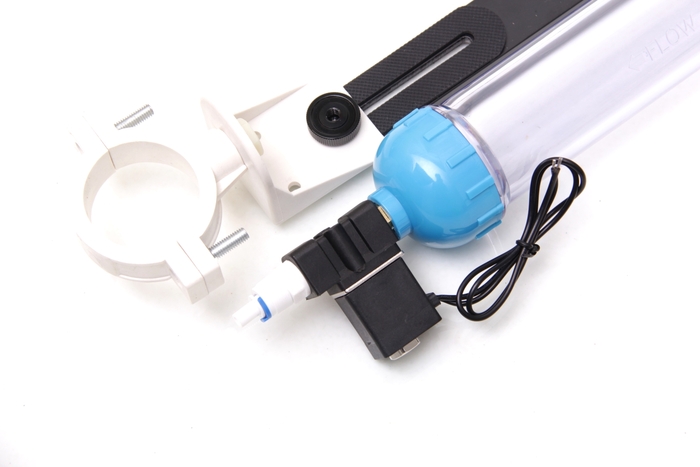

Water Subsystem
Water Subsystem

How does it work?

Basically, when user presses the EXEC button on remote control, WDK controller starts two timelines. One timeline is the water drop release sequence -- open the solenoid valve and let water to flow, after predetermined time, ie, drop size, WDK controller closes the valve and wait for predetermined amount of time to start next drop sequence if there is any.

Another timeline is the camera and flash control timeline -- WDK controller will wait predetermined amount of time (Flash Delay) until it reaches the time to release camera (which is connected via camera release port) and then trigger the flash.

The flash and camera timeline is the dominate timeline that can terminate the water drop timeline when it reaches the end.

So, bascially, WDK controller will control both the water drops, camera, and flashes to synchronize all of the events upon receiving an IR signal from remote control, in the hand of user.

Some In-Depth Analysis of Water Drop Splash

It sounds simple, but there are much more to it, it is not just openning and closing valves and tripping camera and flashes, but also engineering a good performance system. Yes, engineering!

To be able to create a good engineering solution, understand it first. For those who are really curious about water drop collision, here are some more experiments we did during development of this kit.

Understanding some basic behavior is important. This video shows both how precise the controller is and how a crown is formed with single drop. In particular, this video is done with series of images captured using this kit, it is a bit choppy because I did not wait for the water to settle.

Another key research is the so called "stray" drops. And this slow motion video show how a single drop becomes two -- in "dropper" community, the second one is called stray drop due to, I believe, gravity. It can be clearly seen that with larger drop size (ie, valve kept open for longer time), it is pulled apart by gravity and becomes two.

Lighting and Lighting setup can make or break an image. This picture below shows how lighting setup can affect outcome. The image on the left is lit by two flashes one is triggered by wireless trigger and the other is triggered optically by the first. It shows significant double exposure because the two flashes are not triggered simultaneously, even by small amount. The right image is lit by three flashes, one is triggered by wireless trigger but does not contribute to exposure because it is pointing away and placed far away. The other contributing flashes are triggered optically. The result is clean solid image.

Comparison of Lighting
Comparison of Lighting

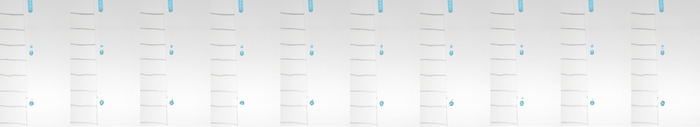

Precison and consistency is important. The image below shows drop precision test during R&D. Ten pair of drops were dropped and they were captured in the mid air consecutively. As you can see, in contrast with background marker, these ten pairs are almost at the same positiion, they line up nicely. What this means is consistency of overall system -- controller, solenoid valve and nozzle operating in concert.

Drop Precision Test
Drop Precision Test

For more information like this, please download the manual, it has more in details (see download link below).

So Why (again)?

Some might ask: if everything is automated by the controller, what fun is there? Well, water drop photography is more than just synchronizing all the event, it is also about crafty experience: what additive to add to water, how much additive should be added, at what point of collision should be captured, any air blower to move the collision . . . zillions of possibilities.

And this is why there are communicties of the so called "droppers". And anytime you get into one of these communitiy, you will be amazed how much ideas you will get.

Manual

English manual (27 pages in PDF format) is available for anyone who want to read more about WDK in details. This document not only contains technical specifications, jargons and terminology, but also offer some basic tips on how to get started quickly. I believe these tips are valuable, even for experienced users.

To download or view the document, here is the link http://www.docdroid.net/415v/wdk-manual.pdf.html (for some reason, sometimes, I could not click on it directly, but a copy and paste of that link will get you to the document)

Why This Project (again and again)?

I started doing water drop photography since 2005 with a simple laser detection circuit that I built and an eye dropper. At the time, I was not aware of any existing systems and when I was aware of them, they are out of my reach -- too expensive.

Another reason, well, too complicated to use.

So I finally got time to build the very first version of water drop controller a couple of years ago, but after a while I found it hard to use because in order to change a parameter, I have to flip through menus to get to it.

Another dangerous aspect of that controller is all the wires connected to the controller -- when things get tangled up, it is not a good idea to hold it and play with it. I once pulled down the whole water system and made a mess in my living room.

Then I designed another system with Arduino platform and use PC to control it so that I can sit at my desk, but still it would require a PC and clicking through the menu is not good idea.

One more thing about water drop photography: it is kind of tiring when you shoot thousands of pictures in a session, I'd rather sit on couch than holding a controller with wires connected to it.

So, this project was born -- one push of a button leads you to the right parameter and adjust it, best of all, no physical contact with setup. After ironing out some of minor issues, I am very happy with it and decided to offer it to all (potential) "droppers".

Now, I can sit on a stool next to my camera . . . and shooting splashes for hours. Why on a stool? The wife would not let me shoot a session in living room after the mess I made with previous design, it is either a stool or couch to sleep in . . .

Here are some key improvements over my old menu based system:

  • Once setup is complete, no physical contact with controller and camera.
  • One button access to parameters, no more flipping through levels of menus.
  • Easy adjustment of values
  • One button of execution of a shot!
  • Three channels of high power ports -- this means much more possibilities.

Specifications

Here are some important specifications, for details, please download the manual:

  • It can control up to three separate solenoid valves (or any other devices, such as a fan to blow air, etc)
  • Max power supply voltage is 24V
  • Each solenoid driving port is protected from accidental short circuit by a thermal fuse (PTC).
  • Max current allowed to drive EACH solenoid valve is 1A, it is purposedly limited by a thermal fuse (PTC) individually because most valves used will have less current requirement.
  • Max flash trigger voltage is 12V, this is IMPORTANT, please check your flash manual before connecting to it.
  • Power supply (for those who purchased the option with it) is rated 12V 2A with 110-220V input.
  • The input port is a standard 5V TTL with pull-up resistors
  • Remote control uses standard CR-2025 button cell type battery
  • It can control both camera and flash
  • Other details, please read manual.

Where Is This Project At?

In terms of progress:  this project has reached pre-production stage -- many kits (made with very expensive small run order) have been sent to end (some are paying) users for testing. It is very stable and does what it does well.

The remote control is very sensitive, I could control it from about 3 meters (9ft) away with fresh battery. Surprisingly, one remote control was used for tens thousands of shots and its battery is still good, though its control range is a bit less at about 1.5 meter (4.5ft), still good enough to sit on my stool . . .

The solenoid valve selected is 2P025 type after experimenting with many different type of valves during R&D stage. It is rather precise when it comes to dropping water drops -- it can be observed in the video where ten shots were shown and there is almost no positional difference as seen in video.

All parts are sourced with credible suppliers with enough production capabilties, even with custom orders.

In terms of location:  I am currently in Shenzhen, China! This gives me tremendous advantage in terms of PCB fabrication, sourcing parts, manufacturing, and dealing with production issues if any. Yes, I am where all manufacturing will happen and I do speak their language!

Overall, this project is ready for production. Your support will be greatly appreciated and it will help me to bring it to market. Let WDK handle the mundane tasks of synchronizing all events and leave all the creative part to you.

Further Customization

Because the controller has the capability of controlling up to three solenoid valves, there are endless possibility. The stock configuration and water system might be limiting in this sense. Building a large setup is very possible.

In case that you intend to do customization, and because it is not known what solenoid valve you have, the pledge for controller is highly recommended so that you do not waste money on the bottles, supporting systems.

How Funds Will Be Used

When ordering from a factory with all qualifications/certificates and at lower price, normally there will be a minimum order requirement. Currently, this requirement is well over our reach even for the first production run of assembled board. This is where your support comes in: 100% of the funds to secure first run of production will be from this KickStarter funding campaign!

Production Timeline

When and if the funding goal is met, the following will be executed simultaneously:

  • First production run of assembled boards, it takes about two weeks based on our experience with our assembly vendor. Since we have ordered small runs from them, all issues have been resolved, we are fairly confident that shipment will start THREE weeks after funding goal is met.
  • For Early Birds pledges, there are still some small run production left, so shipment will start immediately after funding deadline. If there are more Early Bird pledges than what we have left, more will be ordered using small run production to fullfill it, though very expensive, we will keep our promise.
  • 1000 remote controls will be ordered as they are custom made and must be ordered in thousands. It takes about two weeks. However, during design and development stage, there are still about 900+ remotes left. This makes Early Bird shipments as early as possible.
  • 500 laser machined front and back acrylic cover will be ordered as they are sourced from a nearby city (Guangdong) and must order in 500s. It takes them about one day to fullfill an order of 500. These can be ordered as shipment goes out.
  • The solenoid valve is not sourced locally (Shenzhen, China) but because it is a widely used pneumatic parts for precision control of industrial automation, it can be ordered as shipment goes out.
  • All other parts are sourced locally and easily availabe in Shenzhen, China, so all of them are ordered in small batches as shipment goes out.

Pledge Rewards:

Early Bird pledge are those pledges made in October (assuming this project goes live in early to mid October). We have some small run boards and remote controls left during R&D stage, so as soon as the funding goal is met, we can get all other parts ready and ship them in first couple of days (if not too many of Early Bird pledges)

If number of Early Bird pledges exceeds what we have, as more pledges are coming, we will order more small run production boards, though a lot more expensive, we intend to keep our promise.

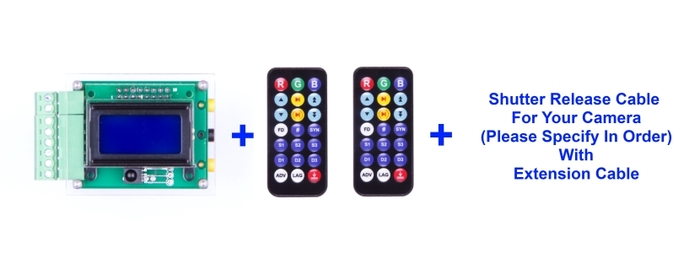

Early Bird Reward for $99 -- controller with two remote controls (without CR2025 battery) plus camera release cable for you camera and extension cable for it. So please specify your camera model when pledging.

Basic Controller
Basic Controller

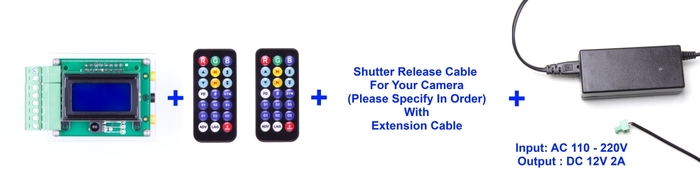

Early Bird Reward for $129 -- controller with two remote controls (without CR2025 battery) plus camera release cable for you camera and extension cable for it. So please specify your camera model when pledging. In addtion, a 12V 2A power supply. For power supply, please specify the plug type -- US, EU or UK type .

Basic Controller + Power Supply
Basic Controller + Power Supply

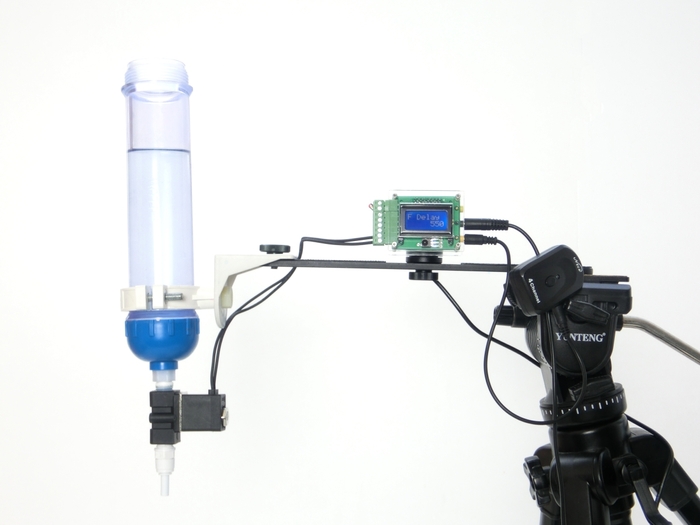

Early Bird Reward for $149 -- it has everything (except the wireless trigger and the tripod) needed to setup a single valve system -- controller with remote (no battery), solenoid valve, nozzles, water subsystem, frame support subsystem.

Complete Set (less wireless trigger and tripod)
Complete Set (less wireless trigger and tripod)

Regular Reward for $129 -- controller with two remote controls (without CR2025 battery) plus camera release cable for you camera and extension cable for it. So please specify your camera model when pledging.

Basic Controller
Basic Controller

Regular Reward for $149 -- controller with two remote controls (without CR2025 battery) plus camera release cable for you camera and extension cable for it. So please specify your camera model when pledging. In addtion, a 12V 2A power supply. For power supply, please specify the plug type -- US, EU or UK type.

Basic Controller + Power Supply
Basic Controller + Power Supply

Regular Rewards for $186 -- it has everything (except the wireless trigger and the tripod) needed to setup a single valve system -- controller with remote (no battery), solenoid valve, nozzles, water subsystem, frame support subsystem.

Complete Set (less wireless trigger and tripod)
Complete Set (less wireless trigger and tripod)

How To Choose Which Pledge:

I am pretty sure I am going to run into some of you "droppers" here. So the controller and/or controller with power supply option are designed for you who already have a system but want to be lazy with remote or upgrade to three valves system

For those new comers, a complete system is recommended as it is pretty hard to find all the parts in your local hardware or plumbing store. And it is probably cheaper getting the whole set.

Of course, if you are an abtious new comer who want to build your own pool (yupp, some "droppers" build large catching tray system of their own), you can choose the controller only pledge.

Shipping & Custom Duty

All pledges will be shipped from Shenzhen China directly to reduce cost. All shipments will be registered mail with tracking number.

Many rewards do not exceed custom duty threshold for many countries, but please check with your country custom for details. Remember, most custom thresholds are based on CIF (cost, insurance, and freight), so please include shipping cost in the total.

Important note: currently, it seems most of carriers do not like batteries of any kind. So the remote control is stripped of standard button cell CR2025 battery. This mean, you have to purchase it in your local store.

Packaging

There will be NO colorful packing boxes for this. One reason is to reduce potential production risk because they must be custom ordered. Another reason is to reduce cost and personally, I do not see value in those colorful boxes at all.

But all components will be wrapped with enough bubble wraps and foams to protect it from hazardous shipping conditions. It has been proven successful for our user testing shipments all over the world.

Side Note

Though living in Shenzhen, China gives me great advantage, there is one thing that bugs me the most -- inability to access FaceBook, Twitter, Youtube, blogspot, etc. So please execuse me not responding to facebook, twitter or other social media (I do have account but not able to access them freely). If you have WEIBO, a Chinese version of Twitter of sort, however, drop me a line @美吉客自做

However, I do have Flickr account and it is here:

http://www.flickr.com/photos/60552763@N00/

Many images will be posted there and shared with anyone who are interesed in water drop photography.

Risks and challenges

This project has NO plastic injection/molding part which normally could go very wrong if not communicated right between parties involved. So this is a big help in terms of potential production risks.

Not having colorful packing boxes also help to reduce potential risk because these must be custom ordered with LARGE quantities.

All parts in this project have been carefully thought out and selected in terms of availability and quality. All suppliers have CAD/specification file for custom parts (PCB fabrication, acrylic covers, camera release extension cable), and these parts have been ordered in small quantities during R&D stage, so most of the potential glitches were ironed out already.

As the saying goes, never say never.

It is possible that a new staff from a supplier could not locate our files and delay our shipment. To resolve this issue, we simply sent those files over again.

It is also possible, as I have experienced before, that during PCB assembly production, WRONG parts are soldered on the board, even if that board was made by the same supplier before for small run. That means manual correction (if only one or two) or re-run of production.

The above are actual experiences I encounterd when dealing with supplier in Shenzhen (or China or anywhere in the world for that matter -- communication is key), but I have learned and am prepared. Good thing about larger orders is that you get to visit factory in person, so you can watch over any mistakes, and I am in Shenzhen and actually I love to visit factory floors to see things get made.

Not sure why KickStarter does not have a section for shipping risks, but if there are too many orders, shipping them all in timely manner could pose potential risk due to temporary staff shortage. This would, in turn, affect overall satisfactory when scaling up the production, a problem for many small firms.

Another shipping risk is the delay/damage caused by carrier. The busy holiday season is coming, so there will be tons of packages in the mail, it is NOT going to be like normal.

Learn about accountability on Kickstarter

FAQ

  • This kit is very precise in doing drops. You can check out a picture in the description. So no need for an IR gate/detector to synchronize drops.

    Last updated:
  • Most of modern DSLR are supported as long as it has manual control over shutter speed and shutter can be tripped electronically. This includes most of Canon, Nikon, Sony, Olympus DSLRs.

    For other cameras, as long as it has manual control over shutter speed and a way to control flash, The camera flash port (or hotshoe) can be used to trigger whole drop process via INPUT port of the device via some cable and adapter, it is just a bit inconvenient.

    But you can still adjust all values of parameters with the remote control and some actually likes to use camera to trigger the whole process (vs using the remote)

    Last updated:
  • Yes, you can do sound with it. Simply set number of drops to zero for all channels (or simply do not connect any valves, for that matter), connect a sound sensor accessory (being tested now but not included in the kit) and you can capture balloon poppings, etc.

    By same token, you can connect a laser sensor (already finished and possiblely included if we can reach a stretch goal of 200%) and you can capture object falling, etc.

    More pictures will come with this regards.

    Last updated:
  • I started water drop photography with simple laser interruption device and an eye dropper, I got some very good crowns with milk. It was not that easy but rewarding. But that was back in 2005

    Now there is an eBook titled "Ultimate Guide to Water Drop Photography" available on the Liquid Drop Art website by renowned water drop photographer Corrie White. I bought this book and it has a of information, techniques, equipment selections, etc that I did not know.

    Last updated:
  • Three valve system is a bit different from single one:

    1. nozzles needs to be aligned so that water drop fall along the same path to collide.
    2. supporting mechanics will be different, it must be strong, so single valve setup is not enough.
    3. valve might have to be separated from bottle for easy alignment, so soft tubes must be used.

    Having said above, a three valve system reward will be added soon (by Oct 18th) that will have three valves, three water containers (the bottle in setup picture), three set of soft tubes, three set of connectors for soft tube and valves, and of course, controllers, remotes, power supplies, etc. But backers must build their own frame, which many serious "droppers" routinely do.

    Last updated:
  • Many advanced "droppers" want to have water drops of different colors. This is not possible with single valve system (however, single valve system can have pseudo two color setup -- color in the bottle and catching tray can be different, but they mix after a while).

    Currently, I do not have a reasonable supporting scheme to do three valves system, so only those necessary components (controller, bottle, soft tube, valve, and barbed connector) are offered in three valve reward. It is up to backers' creativity and imagination to create such system, there are a lot of such system out there on the internet.

    Last updated:
  • There are two reasons:

    First of all, it is a form of compensation because the battery inside the remote (a standard CR2025 button cell battery) could not be shipped due to shipping restrictions and backers have to buy it themselves. So to make it up for backers, two remotes will be included.

    Secondly, I myself always misplace my TV remote and I think two will be better off than one.

    Last updated:
  • To be able to make it much more pleasant experience for my backers, I intend to use quality shipping company -- USPS and DHL for all shipments.

    Durng pilot run of this project, I have shipped more than ten units to worldwide and I have used different shipping methods -- via Hong Kong Post, USPS, DHL, RoyalMail. Only USPS and DHL proivdes daily tracking information and delivery is fast. The other two services do not and are slow (packages takes up to one month and one tester still waiting for it since September 13th, 2013)

    So the winners are USPS (to US) and DHL to other parts of world.

    For US backers, I have direct access to USPS (United States Postal Services) via my shipping agency. When the package is handed to USPS in Hong Kong (by my shipping angency), it will be entered into USPS system and within a day or two, it can be tracked at www.usps.com website on DAILY basis! One US user got delivery in 4 days (more than lucky, but true). Normaly it takes about two weeks, maybe more during holiday seasons.

    USPS charges based on actual weight (or maybe small 0.1kg step) and even cheaper than Hong Kong Post. It also seems package clears US custom much faster, hence relatively faster delivery.

    To other part of the world, DHL is a winner because it provides daily tracking information and relatively fast (however, just got warning from my shipping agency that DHL has some delay now as of Oct-20th 2013). However it costs much more.

    DHL charges not only by weight, but also by volume. The complete single valve system weigh about 1.5kg, but since it has larger volume, it will be charged as if it were 3kg package.

    DHL also has minimum weight requirement, starting 0.5kg in steps of 0.5kg, ie if something weigh 1.2kg, it will be treated as 1.5kg package.

    DHL requires a lot of paper work, ie, handling cost. Three paper works must be filed, one by hand and the other two can be computer printout.

    So US backers do have much more advantage over backers in other part of the world in shipping, but on average, DHL is faster than USPS, so that is the trade-off

    Of course, US backer can choose DHL, too, to get it faster (on average), just pay DHL rate and leave me a note.

    The most important thing is the daily tracking ability so that I can tell backers where the package is.

    Last updated:
  • I think I have confuse some backers but here is an explanation:

    The "identical" rewards are time limited -- one for pledges made before Nov 1st and one for pledges made after Nov 1st, the descriptions are identical.

    This is my first project at KS, so I did not know you can add rewards and mark them as sold out, otherwise, I would have added those rewards after Nov 1st. I was hoping to remind people who pledge after Nov 1st to choose regular rewards. But looks like it is not needed as I can mark early bird reward as sold out because it seems I can mark those early bird rewards as "sold out"

    The reason behind this time limited rewards is to allow potential backers to benefit from those early bird reward level, not rushing into pledgeing because of limited quantity (well, initially, there were no limit on early bird reward, now it has but way beyond expectation). Backes can take time to read manual, think about it carefully.

    But I do need to mark the early bird reward as sold out because I need time to manufacturer boards to meet the demand. It takes about two weeks, hence the limit.

    So on Nov 1st, all early bird rewards will be marked as sold out and they will not be available, only regular ones are.

    Last updated:
  • It seems that Kickstarter has a tool, Survey, for project creators to collect information from backers. I will send out this survey the last day. Please respond to it in time so that I can mail things out.

    Last updated:

Rewards

  • You selected
    Pledge $1 or more

    13 backers

    A set of 15 images captured using this project in TIFF format. These images were used in our Kickstarter video. A link will be provided to download it via in our thank you email.

    Estimated delivery:
  • You selected
    Pledge $99 or more

    4 backers All gone!

    Eary Bird Reward: The main controller with two remote controls (without CR2025 button cell battery due to shipping restriction). This reward does not include power supply.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $129 or more

    1 backer All gone!

    Eary Bird Reward: The main controller with two remote controls (without CR2025 button cell battery due to shipping restriction) and with 12V 2A power supply. Please specify power plug type, e.g. US, UK, or EURO

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $129 or more

    0 backers

    The main controller with two remote controls (without CR2025 button cell battery due to shipping restriction). This reward does not include power supply.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $149 or more

    73 backers All gone!

    Eary Bird Reward: Complete single valve system without tripod. Please see description for details. Again, CR-2025 button cell type battery is NOT included for the remote control due to shipping restrictions.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $149 or more

    1 backer

    The main controller with two remote controls (without CR2025 button cell battery due to shipping restriction) and with 12V 2A power supply. Please specify power plug type, e.g. US, UK, or EURO

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $186 or more

    15 backers

    Complete single valve system without tripod. Please see description for details. Again, CR-2025 button cell type battery is NOT included for the remote control due to shipping restrictions.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $259 or more

    10 backers All gone!

    In addition to the Reward #8 (three valves system) this reward includes support system for one valve (aluminum bar, right angle bracket, valve to bottle connector)

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $284 or more

    2 backers Limited (8 left of 10)

    Reward #8: Three valves system that includes: main controller with two remotes, one 12V 2A power supply, three valves, three bottles with two end caps each (blue object), three one meter long soft tubes (about 3+ ft long), six barbed plastic connectors to connect soft tube to valve and bottle.

    Again, the standard CR2025 battery is NOT included due to shipping restrictions, but it can be found easily at your local stores.

    Please see details about it in our project update #1

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $294 or more

    9 backers

    In addition to the Reward #8 (three valves system) this reward includes support system for one valve (aluminum bar, right angle bracket, valve to bottle connector). Early bird version of this reward is sold out, this is the regulart version.

    Estimated delivery:
    Ships anywhere in the world

Funding period

- (30 days)
