The smallest, coolest, and easiest music mixer available. An unbeatable party gadget. Works with all phones, tablets and notebooks.

The smallest, coolest, and easiest music mixer available. An unbeatable party gadget. Works with all phones, tablets and notebooks. Read more
311
backers
$20,071
pledged of $30,000 goal

About this project

soundtrack: D-Rashid & Blasterjaxx - Reborn

We all know that house parties often end up being the best nights out. You, your friends and their awesome music make these kind of parties better than any other get-together. That said, full-on DJ gear is not always available and more often than not, prepared playlists don't do the job. The night usually ends in friends lining up to play their favorite tunes from their own music device, resulting in a rather obnoxious mix of music, abrupt silences and the notorious crackling of the audio cable.

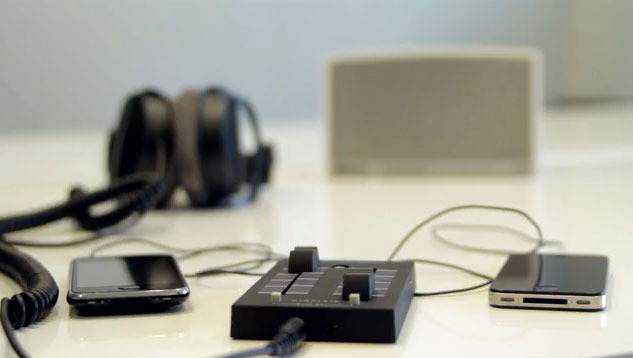

Pepperdecks Djoclate II
Pepperdecks Djoclate II

We figured out a way to give each party, be it simple get-togethers, office drinks or celebrations of any kind, the musical experience they deserve. We thought it should be an easy-to-use device that will give you and your friends the ability to amp up the playlist! That's why we designed the Djoclate: a pocket sized music mixer that is small enough to bring to any event. It gives us all the power of mixing music from multiple devices in one seamless track. No more awkward silences...

Pepperdecks Djoclate II includes a Bluetooth sender
Pepperdecks Djoclate II includes a Bluetooth sender

After almost a year of developing in 2010, we came up with the design of our first Djoclate: a small simple and easy-to-use music mixer with two inputs, one output, two full size faders and a bass kill function. Struck by its awesomeness we decided to launch the Djoclate last December. Soon it was available throughout Europe. It was received with great enthusiasm and people loved it like we did.

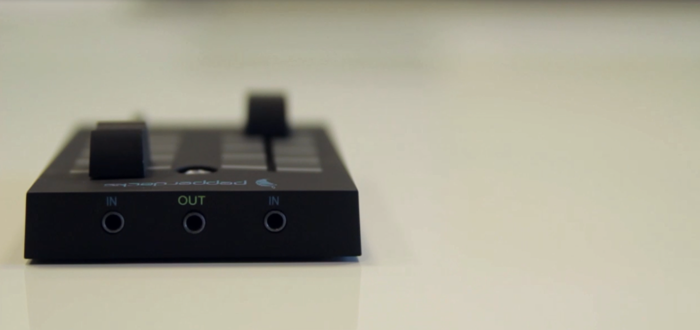

Djoclate II: 2 inputs and 1 output (3.5 jack cable)
Djoclate II: 2 inputs and 1 output (3.5 jack cable)

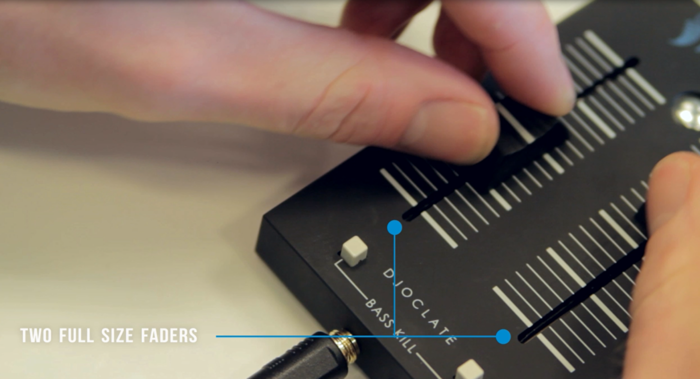

Djoclate II: 2 Full-size professional faders
Djoclate II: 2 Full-size professional faders

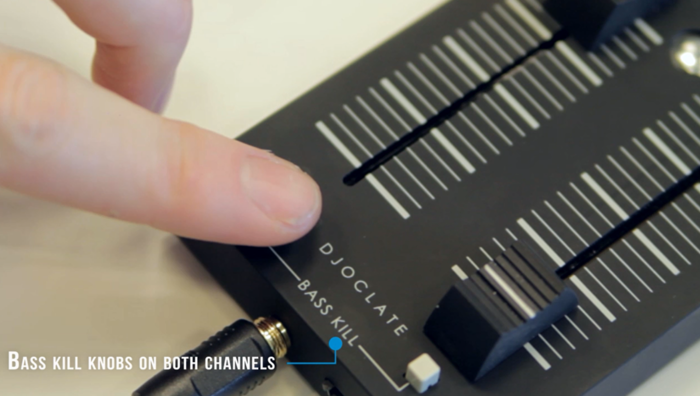

Djoclate II: Bass-kill knobs on both channels
Djoclate II: Bass-kill knobs on both channels
Djoclate II: A nonskid base
Djoclate II: A nonskid base
Djoclate II: Real pocket size dimensions
Djoclate II: Real pocket size dimensions

All new products come with a learning curve. We received a lot of amazing feedback from our fans and even from some professional DJs to improve our product. For example many people suggested adding a pre-listening (monitor) function to our product. This is a feature that will enable the user to select the next song and pre-listen to it before it's brought into the mix.

With your pledge we want to bring the second version of the Djoclate on the market!

A device that will have an extra feature but that maintains the simplicity of our first product. We will add the pre-listening function. Therefore the Djoclate II will have an additional output for a headset, with a switch to coordinate between the two tracks playing. The pre-listening function makes it possible to pre-listen to both input channels: either separately or both of them mixed together.

Djoclate II: extra features
Djoclate II: extra features

In addition, the Djoclate II will be equipped with a Bluetooth transmitter in order for the mixer to connect wirelessly to your Bluetooth speaker or sound system. You can place your Pepperdecks Djoclate-set anywhere in the room! Even when you are not mixing, you can just use the Djoclate as a Bluetooth sender. Furthermore the Djoclate will feature a build-in pre-amp to ensure the sound quality.

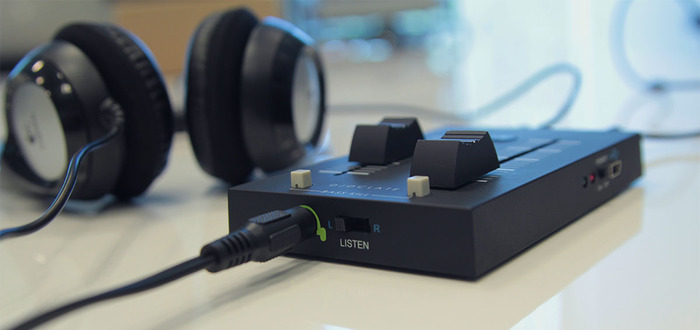

Prototype Djoclate II: Pre-listening feature
Prototype Djoclate II: Pre-listening feature
Prototype Djoclate II: Bluetooth sender for the output signal
Prototype Djoclate II: Bluetooth sender for the output signal

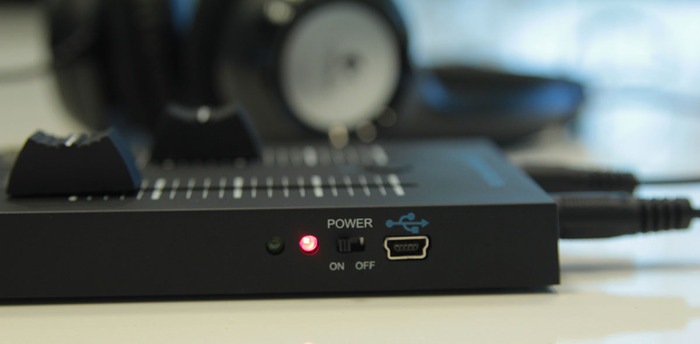

Prototype Djoclate II: recharge by using USB
Prototype Djoclate II: recharge by using USB

All the features:

To summarize, the Djoclate II wil have:

  • Two full size faders, switch from one channel to the other to make smooth transitions.
  • Bass kill knobs on both channels, ease your transitions by temporarily killing the base and create loudness ('hands-in-the-air') effect by switching it back on.
  • Two inputs, one output to the stereo and one output for your headphones, connect any music player with a 3.5mm jack connection.
  • Separate volume controller for your headphones.
  • No battery or external power needed; just recharge your Djoclate by mini-USB cable.
  • Pre-listening or monitor function, listen to your tracks before you bring them into the mix, choose the channel you want to pre-listen to with the channel switch.
  • Equiped with Bluetooth transmitter, which enables you to connect the output signal to any Bluetooth receiving speaker or sound system.
  • Included: 2x 3.5mm jack cables (70cm) to connect the music players to the Djoclate and 1x mini-USB cable to charge the Djoclate.

Specs of the Bluetooth transmitter

BM21AVD01 is a compact, highly integrated, ultra-low cost, CMOS single-chip RF +
baseband module for Bluetooth v3.0+EDR (Enhanced Data Rate) 2.4GHz audio
transmitter applications. BM21AVD01 is fully compliant with Bluetooth specification and completely backward-compatible with BT1.1, 1.2, 2.0 or 2.1 systems.

Our goal. Our offer.

People love the product for its simplicity and usability and we greatly appreciated all the feedback we got from both our users and professional DJs. We would love to be able to realize this amazing project. In order to do that we do need your backing to kickstart our project. We need USD 30,000 to produce the first order of the Djoclate II.

We expect the suggested retail price for the Djoclate II will be $89,=

For all you backers - first users of our new product - the price will be $65. For early birds even $45!

Our offer: Djoclate II + Pocket Pouch + 2 x 3.5 jack cable
Our offer: Djoclate II + Pocket Pouch + 2 x 3.5 jack cable

Djoclate II? Nope, we are crowdsourcing the name!

It's too easy to call the second version of our product the Djoclate II. Now that we let the crowd realize our new product, we think it's also up to the crowd to come up with the name. If you back us and you have a good suggestion for a name (Djoclate ________), leave it as a comment! The best suggestion will be honoured with a free Djoclate II and with that suggestion being the definite name, printed on each and every Djoclate _____________.

From Idea till Today

April 2011 - Queensday (Dutch national holiday). Maarten was spinning songs at a house party from his mobile phone and a friend asked to play another song from her phone. While switching the phones, people on the dance floor, confronted with a sudden silence, gave them an annoyed look. The idea was born.

May 2011 – Desired functionality was defined. Father of a friend of ours, Ruud, was asked to build a first functional prototype of the mixer. Friend and designer Sven was asked to turn the sketch into a photorealistic 3D render of which we made a mock-up of carton and Styrofoam to get a feel for the right dimensions.

First functional prototype of the Djoclate I
First functional prototype of the Djoclate I

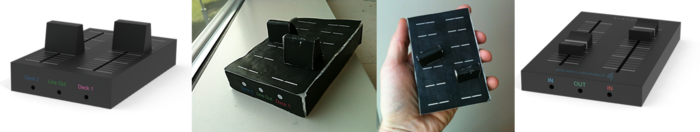

Tuning the looks and dimensions to make it real pocket size
Tuning the looks and dimensions to make it real pocket size

June 2011 - The search for a reliable manufacturing partner started online. At first we only found manufacturers that wanted to sell us their own products. Then a manufacturer in Taiwan got hooked on our idea. After doing some research we learned that this company manufactures high quality consumer electronics for several reputable international brands. Weekly emails and Skype sessions with their Research and Development (R&D) department resulted in the final Djoclate I with robust and sleek design and equipped with hardware that worked how we imagined it.

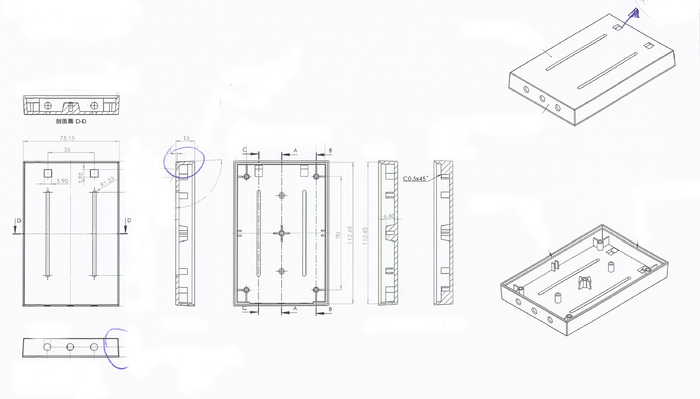

Final technical drawings for production of the Djoclate I
Final technical drawings for production of the Djoclate I

April 2012 – The first 5 prototypes of the Djoclate I were delivered. We were so happy to see our product for real for the first time! And we liked the result. We brought our product everywhere to show it to people. And they loved the product.

Prototype of the Djoclate I in full action!
Prototype of the Djoclate I in full action!

Summer 2012 – After designing the packaging, and recording an awesome promo video starring all our friends, it was time to reach out to potential resellers. Once again people were as enthusiastic as we were. At this point we were 100% percent sure we wanted to launch this product.

September 2012 – We invested our own money to purchase the mold (for the casing) and to order the first batch of products.

November 2012 – The batch arrived in The Netherlands.

First batch arrives in The Netherlands and is forwarded to consumers and retailers
First batch arrives in The Netherlands and is forwarded to consumers and retailers

December 2012 – We delivered the first products to the resellers and to people that pre-ordered their mixer on our website. We sold 50 Djoclates during an in-store promotion in a major department store, just before Christmas.

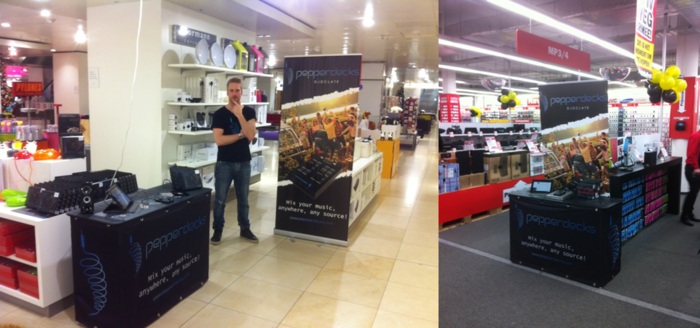

The Djoclate was instantly listed at two major chains where we promoted the product ourselves
The Djoclate was instantly listed at two major chains where we promoted the product ourselves

Spring 2013 –  Soon after the first sales we got some good feedback. One feature request kept coming back: the pre-listening feature. We started thinking about an extended version of the Djoclate. During the redesign and R&D we decided that a boost of the output volume level and a Bluetooth transmitter, to connect to your sound system wirelessly, would make the new Djoclate complete. We asked Ruud and Maarten's father Dick to extend the current Djoclate with these three features.

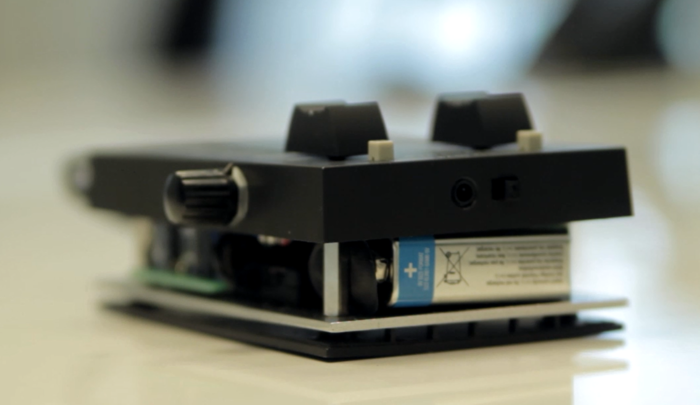

First working prototype of the Djoclate II
First working prototype of the Djoclate II

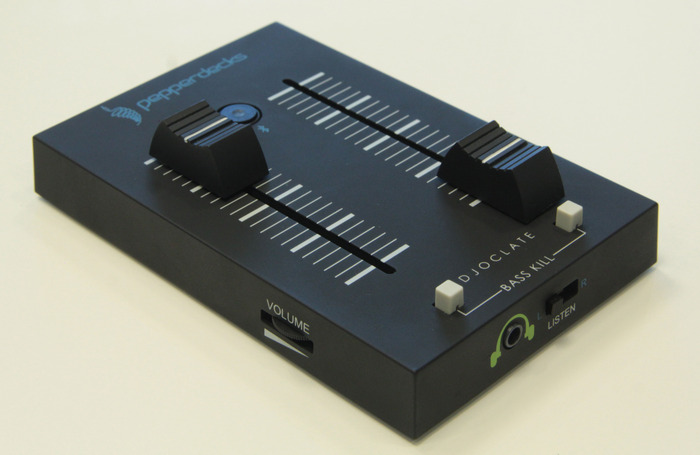

Second working prototype of the Djoclate II
Second working prototype of the Djoclate II

The new specifications and electronic scheme were shared with our manufacturer, who investigated the components to be added and the modifications of the mold needed to produce the Djoclate II. We had several discussions about the placement of the features. Together with our manufacturer we decided where the features would be placed, keeping user friendliness in mind.

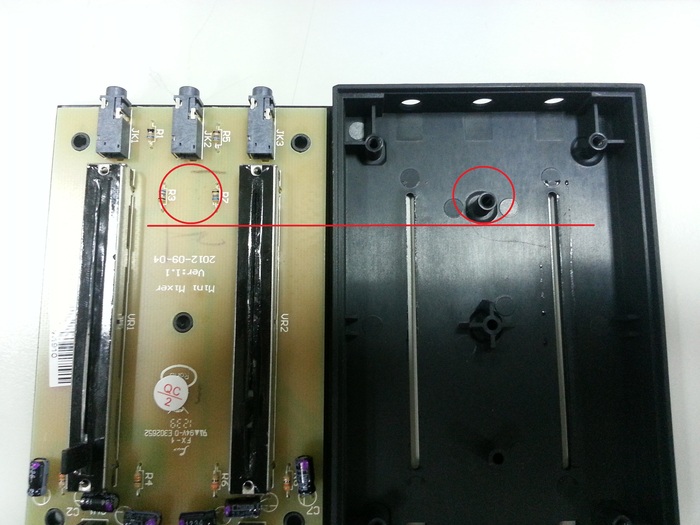

Discussion about the placement of the BT button
Discussion about the placement of the BT button

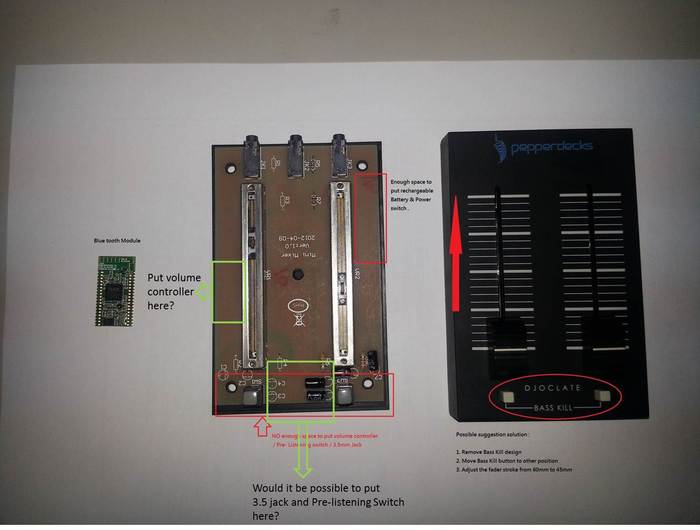

Discussing the placement of the other features
Discussing the placement of the other features

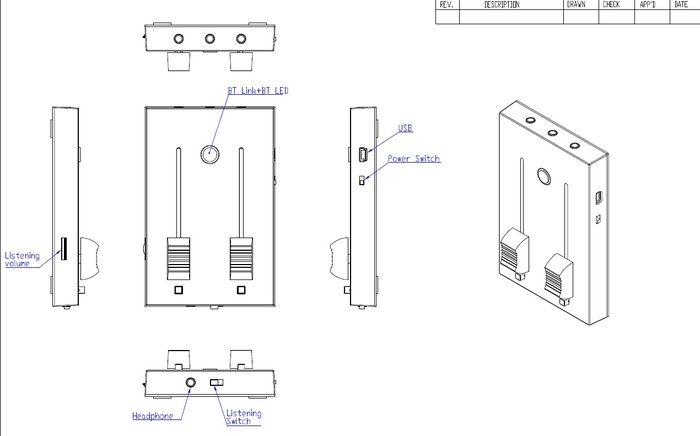

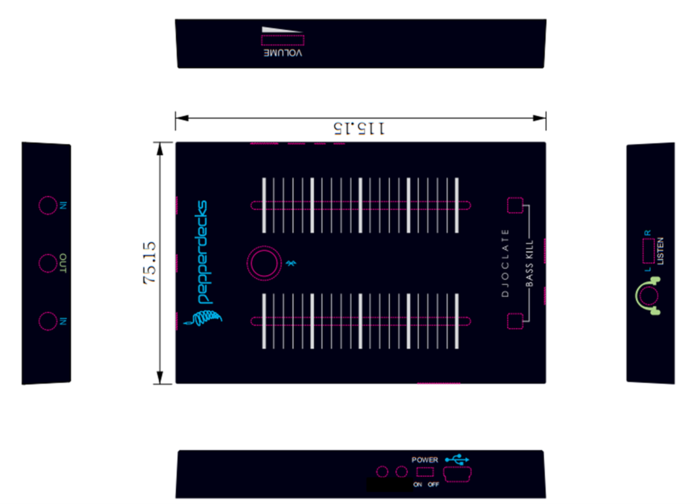

Finalized technical drawing of the Djoclate II
Finalized technical drawing of the Djoclate II

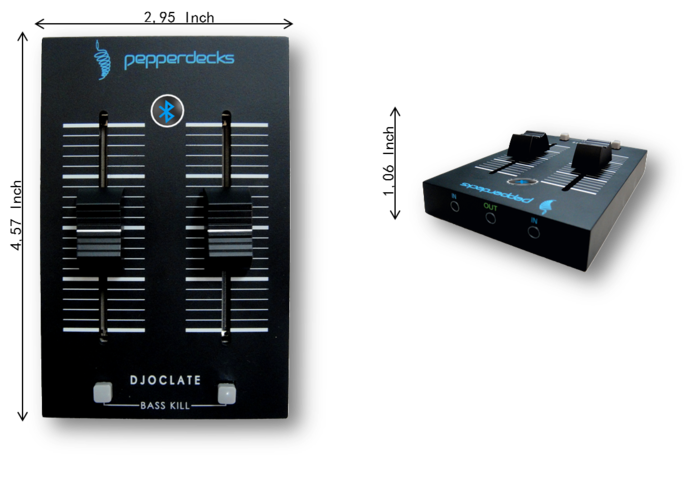

Finalized design of the Djoclate II
Finalized design of the Djoclate II

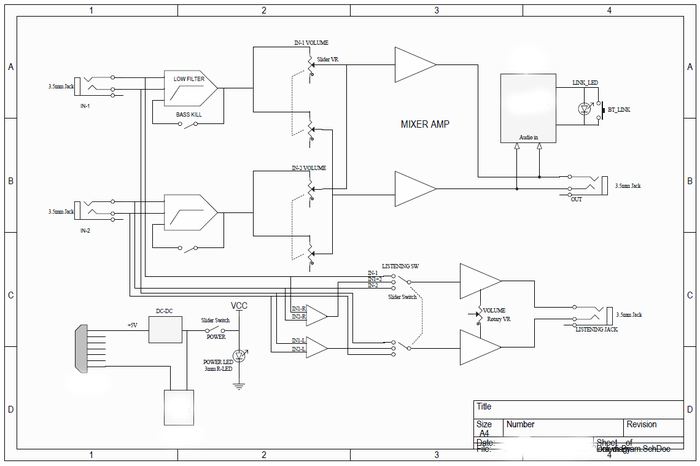

Finalized technical description of the Djoclate II
Finalized technical description of the Djoclate II

April 2013 – Now costs for modification of the production tools and the costs for ordering the first batch of Djoclates II are formally agreed on with the manufacturer. However we need capital to place the order. We contacted Reinout van Santen, a previous colleague of Maarten de Jong, and Miguel Rojas to discuss collaboration on a crowdfunding project on Kickstarter. They are in!

June/July – Kickstarter campaign

August – After a successful Kickstarter campaign we will take the next steps:

  • We give our manufacturer in Taiwan the go to modify the mold. Confirmed lead time 2 weeks;
  • According to the amount pledged, we order the batch of Djoclate II;
  • Our manufacturer starts production;
  • Up to 12.000 units can be produced within the confirmed lead time of 2.5 months;
  • Mid-October, products are shipped to New York and to Amsterdam. Confirmed maximum lead time 6 weeks;
  • Import and customs formalities. Estimated (based on experience) lead time 1 week;
  • January 2014: preparing and sending out all parcels. Our partners in New York, Miguel Rojas and Reinout van Santen, will take care of all parcels to the backers in the US. The team in Amsterdam will take care of the parcels for all other backers, in the EU and elsewhere. Estimated lead time 2 weeks.


The Team

Though the team is still small and everyone is involved in nearly everything, yet tasks have been divided over the team. Co-founder Maarten Smit, working full time for Pepperdecks, is responsible for sales, marketing and logistics/fulfillment. Co-founder Maarten de Jong, two ‘Pepperdecks days’ a week, coordinates R&D and finance. Melissa Dasdores, doing a full time internship, greatly supports the founders on marketing and communication.

Designing

Our friend Sven Meuleman designed the product based on our sketches. He brought our ideas to life with his great 3D visuals.

R&D The Netherlands

Ruud van Kan is the father of a good friend and is a very skillful electronics engineer. He volunteered in building the electrical circuits and prototypes, together with Dick de Jong, Maarten's dad.

Logistics and fulfillment USA

In respect to the Kickstarter project, Miguel Rojas and Reinout van Santen, both based in New York, are asked to be responsible for shipping the rewards to all the backers in the USA.

Our Manufacturer in Taiwan

Our manufacturer has been in the audio equipment production for over 20 years and works with large international brands. They have their own R&D department, a full assembly line and testing facilities. Our manufacturer is a full-service supplier. Hence, they deliver us a finished, packed and ready-to-sell product.

We work closely together with Anna and Matt. They know exactly what can and what cannot be done in terms of design, production and lead times. Thanks to them we have found a way to modify the mold of the Djoclate I in order to produce the Djoclate II.

Risks and challenges

Product development, production and finally shipping the products to the customers, all comes with challenges. Luckily we have been through the whole process before, with our previous product, the first Djoclate, which is now widely available in Europe.

The product development - a thorough collaboration between the team in The Netherlands and our trusted manufacturer in Taiwan - is done: we have a working and ready-to-produce prototype. Modifications of the production tools, such as the mould, that are needed to build the second version of the Djoclate, are defined and formally agreed with the manufacturer.

As soon as the target amount of 30k USD is reached on Kickstarter, we request our manufacturer to start production. From experience on the previous product, we estimate that it takes 2.5 months to produce. Nevertheless delays are possible. Another two months are needed to ship the products to New York and to Amsterdam, including one week for customs and import formalities. Our partners in New York, Miguel Rojas and Reinout van Santen, will take care of sending out all parcels to the backers in the US. The team in Amsterdam will take care that all other backers, in the EU and elsewhere outside of the US, get their orders. We have set the delivery date to January 2014.

Learn about accountability on Kickstarter

FAQ

  • Since we ship from New York and Amsterdam, shipping costs in the USA and the Netherlands, are $0. Shipping to other EU countries requires you to add $8 to the reward yourself. For example add $8 to the $45 reward and plegde a total of $53. For the rest of the world choose the option 'ship outside US' then the $17 shipping costs will automatically be added to your pledge.

    Last updated:
  • In order to fill in your mailing address without the automated $17 shipping costs you have to choose the option 'shipping to the US' and afterwards fill in your own Dutch address and we will make sure the Djoclate II will get to your home.

    Last updated:
  • In order to fill in your mailing address without the automated $17 shipping costs you have to choose the option 'shipping to the US' and afterwards fill in your own address. However make sure you do pledge an additional $8 to cover your shipping costs and then we will make sure your Djoclate II will be shipped to your home.

    Last updated:
  • Based on our experience with the Djoclate I that doesn't require a battery, we concluded that you need power to maintain great sound quality. Therefore, the Djoclate II has a pre-amplifier build in that gives you the experience you need when you are rocking a party.

    Last updated:
  • When the battery of the Djoclate II is empty you will not be able to use it. However when you plug the Djoclate to a power source with the USB cable you can use it right away, as long as it is plugged in, untill it is charged again.

    Last updated:
