A new LED lightbulb that is the most energy efficient on the planet. The NanoLight takes energy efficient lighting to the next level.

NanoLight – the world’s most Energy Efficient Light Bulb

Why use any old lightbulb when there’s the NanoLight! Using only 12 watts of electricity, the NanoLight generates over 1600 lumens, equivalent to a 100W incandescent lightbulb.

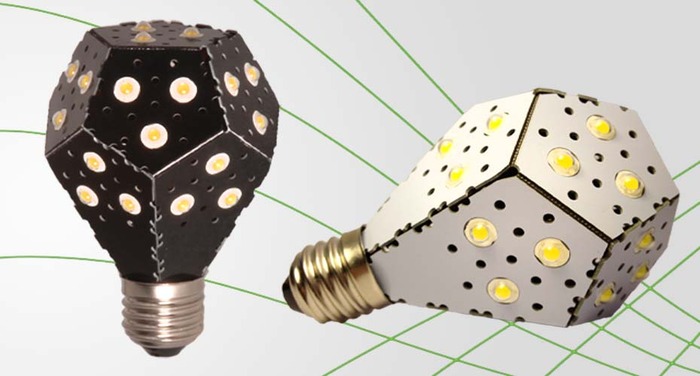

12W NanoLight (100W Equivalent) White
12W NanoLight (100W Equivalent) White

There are plenty of 20-60W Equivalent LED light bulbs in the market today, but the selection for 75-100W equivalents is still quite rare. To most light bulb manufacturers high efficiency and cost effective light bulb production is still uncharted territory.

The NanoLight takes energy efficient lighting to a whole new level by offering a lightbulb far more efficient than any existing LED bulb. It is a true breakthrough for LED Lighting technology.

CNET - "an early glimpse into the future of household LED lighting."

Geek.com - "definitely looks like no light bulb that anyone has ever seen before, but maybe that’s what it takes to usher in the future of lighting."

CBC news - "An eye-catching invention."

Toronto Star - "Toronto grads invent world’s most energy-efficient light bulb."

The Crowdfund Mafia - "We're doing backflips for the NanoLight! Product of the year."

NEW LEAF Design Reward Options!

As part of our mid-project update #5, we now have a NanoLight with a Leaf design as an optional add-on to the WHITE NanoLight.

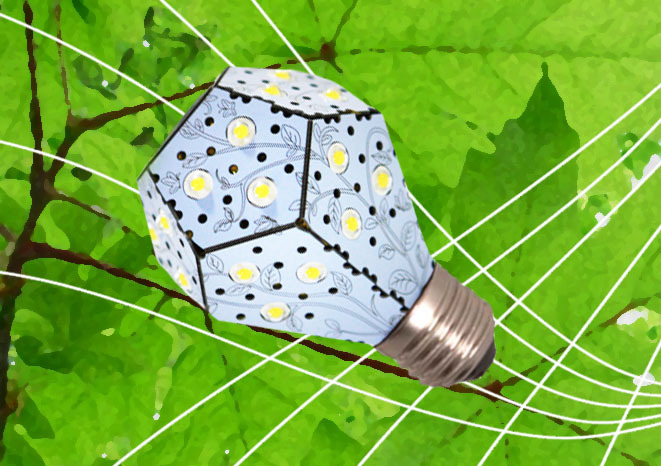

NanoLight with Leaf design lasered on the surface. (Optional)
NanoLight with Leaf design lasered on the surface. (Optional)

Omnidirectional Lightbulb.

Unlike other LED light bulbs, the NanoLight emulates the classic lightbulb and directs light in all directions. This allows for light to be distributed evenly, and provide the ultimate lighting experience.

Instant-On Capabilities.

Unlike compact fluorescent lights, the NanoLight achieves full brightness the instant it is turned on. The performance of the NanoLight is not affected by frequently turning on and off.

The Coolest Light Bulb.

Our energy efficient design allows for very little energy lost due to heat. You will never burn your hand when you touch the NanoLight.

Safe for use in an Enclosed Fixture!

Most LED light bulbs or CFL’s have a problem of overheating within a fully enclosed fixture, which causes the LEDs to start failing well before their expected lifetime. The reason for this is that these fixtures do not allow for sufficient air flow, thus trapping the heat inside and overheating the bulbs. We cannot claim that the NanoLight will work in absolutely all enclosures, but we can say that the NanoLight emits less than half the heat energy as compared to other LED bubs or CFLs. The chance of overheating is far lessened. After receiving various question regarding fixtures, we realized that these bulbs are going to end up in all kinds of installations. Of course, we want to make sure that the customer gets a long life out of these bulbs so that they pay for themselves over the long run. As a result,we are happy to announce that we have added overheat protection as a standard feature of every bulb. If the bulb gets too hot for whatever reason, it will automatically dim itself to prevent damage or shortened life.


Ultra Bright and Energy Efficient!

Your environmentally friendly home can now be brighter and more energy efficient than ever before. For the amount of energy that it uses, the NanoLight produces more light visible to the human eye than any other white light bulb available on the market.

The brightness of a bulb is measured in lumens; which is a measure of the total visible light emitted by a source. Below is a comparison of the amount of lumens per watt the NanoLight provides compared to other light bulbs on the market.

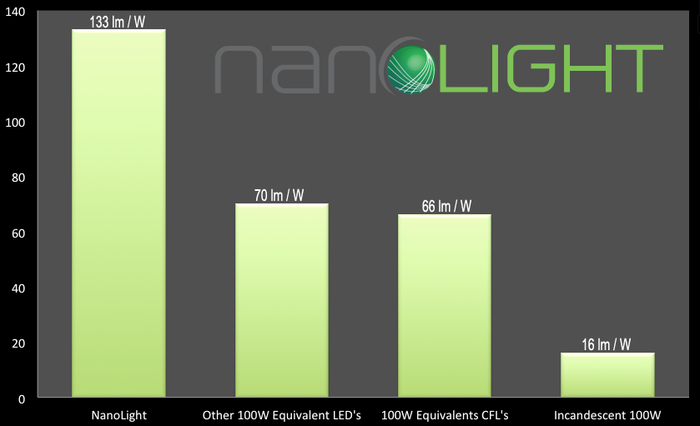

Lumens per Watt Comparison Chart
Lumens per Watt Comparison Chart

The NanoLight operates at 133 lumens per watt which is about 200% better than other light bulbs available on the market!

How will the NanoLight benefit you?

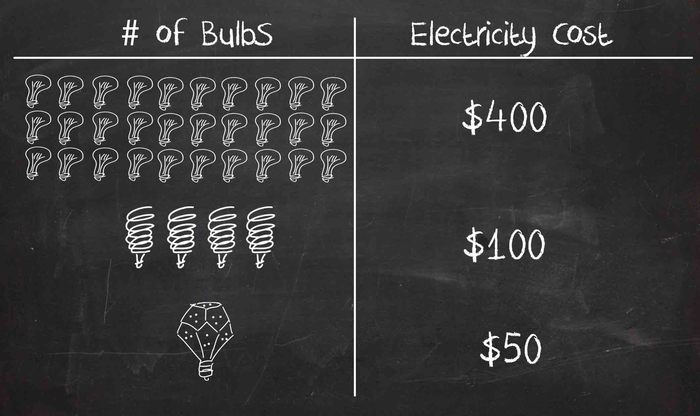

Be the first to get a NanoLight and start saving today! Within its lifetime, the NanoLight will pay for itself, cut electricity bills, and save CO2 emissions all while providing bright beautiful lighting for all your needs.

So what are you waiting for? Illuminate your world with the NanoLight, and start saving today!

Based on 30,000 hrs of usage and an electricity rate of $0.14/kWhr. Electricity Cost may vary depending on location.
Based on 30,000 hrs of usage and an electricity rate of $0.14/kWhr. Electricity Cost may vary depending on location.

Rewards

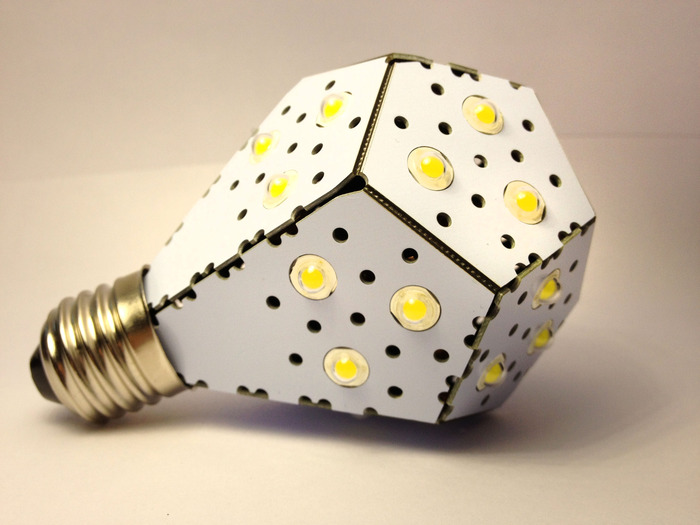

1. 10W NanoLight (75W-Equivalent). This is our cost effective 75W replacement bulb.

10W NanoLight - 75W Equivalent
10W NanoLight - 75W Equivalent

Available in Black or White.

  • Brightness: 1200 Lumens.
  • Estimated yearly energy cost: $1.53 (Based on 3 hrs/day, $0.14/KWh; Costs depend on rates and use)
  • Life: 25-30 years (based on 3hrs/day)
  • Light appearance: 3500K (neutral white with some warmth)
  • Energy Used: 10W
  • Efficiency: 120 Lumens per Watt
  • Uses 87% less energy compared to a standard incandescent light bulb and 50% less energy than a typical compact fluorescent bulb with the same light output.

2. 12W NanoLight (100W-Equivalent). Recommended. This is a true breakthrough in LED technology and is currently the most energy efficient light bulb available in the market.

12W NanoLight (100W Equivalent)
12W NanoLight (100W Equivalent)

Available in Black or White

  • Brightness: 1600 Lumens.
  • Estimated yearly energy cost: $1.84 (Based on 3 hrs/day, $0.14/KWh; Costs depend on rates and use)
  • Life: 25-30 years (based on 3hrs/day)
  • Light appearance: 3500k (neutral white with some warmth)
  • Energy Used: 12W
  • Efficiency: 133 Lumens per Watt
  • Uses 88% less energy compared to a standard incandescent light bulb and 50% less energy than a typical compact fluorescent bulb with the same light output.

3. 12W NanoLight (Producing over 1800 Lumens!)

  • Brightness: 1800 Lumens.
  • Estimated yearly energy cost: $1.84 (Based on 3hrs/day, $0.14/KWh; Costs depend on rates and use)
  • Life: 25-30 years (based on 3hrs/day)
  • Light appearance: 3500k (neutral white with some warmth)
  • Energy Used: 12W
  • Efficiency: 150 Lumens per Watt

Global Compatibility

  • The NanoLight comes in either 200V-240V AC (Europe / Asia Pacific) or 120V AC (North America) to support all countries.
  • Mercury-free construction for environmental friendliness.

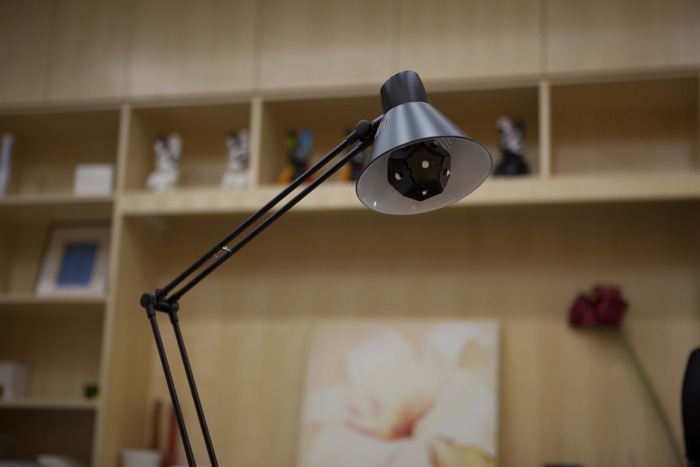

  • Looks and works great in a variety of different light fixtures. (i.e. table lamps, ceiling / bathroom lights, etc)
  • Standard E26/E27 base

Test Evidence

The NanoLight has been extensively tested using professional lighting test equipment at two independent testing facilities in order to ensure brightness distribution, sufficient luminous output, and color temperature. The light output meets or exceeds 1600 lumens for the 12W version and 1200 lumens for the 10W version. The power consumption has been verified using two independent professional grade power meters.

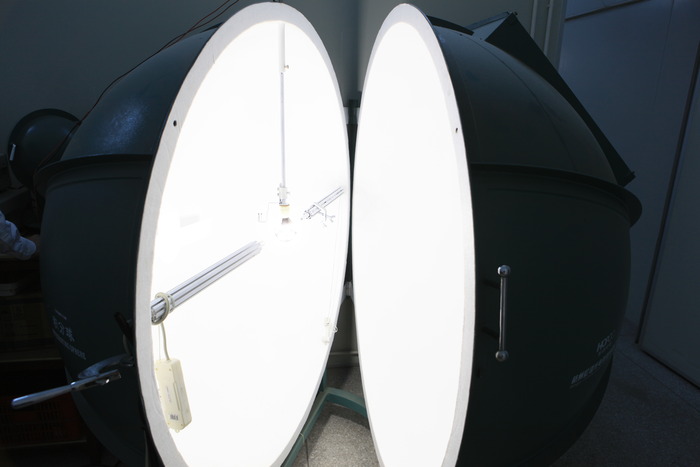

Integrating Sphere used to measure lumens output
Integrating Sphere used to measure lumens output

Manufacturing Plan

The electronic components used within the NanoLight will be procured from distributors that stock well known brands of electronic components. The LED chip (die) is manufactured in Korea.

Electronic components are mounted onto the PCB (Printed Circuit Board) using mostly SMT (Surface Mount Technology). First, the board goes through the pick and place machine where a robot places individual components in predefined positions. Second, the populated circuit board goes through an oven that melts the solder paste and permanently secures the components.

An intermediate testing stage and quality control step is done at this point to ensure that the circuit functions correctly and that no visual defects are found. The final step is to assemble the circuit board into the shape of a light bulb and secure on the screw base.

After final assembly, each light bulb is put through functional testing. Testing will be separated into two phases; one to ensure circuit functionality and the other to ensure brightness / power consumption. Quality control is the most critical part of our manufacturing process as it is our way of ensuring that we deliver a high quality product.

Packaging

Risks and challenges Learn about accountability on Kickstarter

As with any project, there are inherent risks and challenges. We've gotten through the sourcing, design, prototyping, and testing stages. We have hand-built an initial batch of 10 light bulbs to perform a variety of electrical, heat output, light output and stress tests. For the upcoming stages of our project, there are several challenges that we still face.

1. Sourcing: To bring costs down, we are sourcing several of the components in China. To ensure quality, it is essential to form solid working relationships with vendors that have a history of good business and high manufacturing standards. Often, it is challenging to find such vendors but we are spending the time searching, communicating, and visiting these factories in China. We hope to form relationships with a couple of venders for every component so that we always have a failsafe in case one vendor cannot deliver. Further, we are spending the time to perform a lot of our own scientific tests on the provided samples in order to ensure that the supply of parts for our product meets the specifications and meets our high standard.

2. Unconventional printed circuit board: So far, we have manually assembled the few light bulbs that we made. This includes hand soldering all electronic parts and LEDs. For larger production, this is impractical and needs to be done by machine. Although machine assembly of electronic circuit boards is a tried and true method that has been around for decades, we are doing a few things out of the norm. Our printed circuit board has a very complex shape that may complicate the machine assembly process. Further, the LEDs are mounted in an unconventional way and require a low temperature soldering process. Although we believe that all the kinks can be ironed out, we fully expect there may be complications along the way to allow for robot setup and programming.

3. Outsourcing the manual assembly steps: We have access to a large assembly factory with workers that will be able to help us with the bulk of the manual work required. The manual tasks are simple, but some training will be required. Several quality control steps will need to be implemented along the production process. Overall, the main challenge will be to customize our own manufacturing process and introduce a testing procedure. In this way, we will be able to deliver the NanoLight with confidence of high quality and reliability while maintaining an affordable price.

4. Manufacturing consistency: the few samples that we have made by hand show to work reliably and are able to withstand normal use. We have been testing them for several months. However, only when a larger set of samples is made will we be able to find inconsistencies in the manufacturing. These may show up as a few failed bulbs with electrical problems, or ones with structural defects, or any range of unforeseen problems. Although the QC process should prevent any defective products from shipping to the customer, we need to ensure that the defect rate is low so that the production is economical. Adjustments in manufacturing may be necessary along the way to solve problems.

FAQ

  • The initial models of the NanoLight are not dimmable, however due to popular demand, we have started working on a prototype that is dimmable.

    Feel free to pledge for a regular NanoLight now, within the next few weeks, we will be showing you a demo of our Dimmable NanoLight.

    Last updated:
  • The NanoLight is slightly larger than a incandescent light bulb but smaller than equivalent CFL lights. Exact measurements are:

    110mm Tall (including the base) x 77mm Wide (at the widest point)

    4.3" Tall x 3" Wide

    Last updated:
  • At the moment, we can only offer the NanoLight with the Edison fitting. Due to the great numbers of backers/orders, our small team will focus our priority in the mass production and therefore do not wish to add anymore elements at the moment.

    However, we plan to introduce the bayonet fitting as soon as we get the first deliveries on their way! Rest-assured!

    Last updated:
  • Yes, absolutely! The NanoLight was designed to operate under different country standards. We tried our best to introduce a new product that could be used in as many countries as possible.

    Last updated:
  • Yes! International shipping costs are included in the rewards. Have no worries!

    Last updated:
  • The NanoLight weighs 85g.

    From the samples we have seen, a leading brand CFL (100W equivalent) weighs about 150g.

    Last updated:
  • There is always a trade off between efficiency and CRI.

    For the moment, NanoLight's CRI is about 70 and we are working to increase this factor as much as we can WITHOUT decreasing the efficiency.

    Last updated:
  • Yes! We have added an over temperature protection circuit to our NanoLight which allows it to work in a fully enclosed fixture.

    Most LED light bulbs or CFL’s have a problem of overheating within a fully enclosed fixture, which causes the LEDs to start failing well before their expected lifetime. The reason for this is that these fixtures do not allow for sufficient air flow, thus trapping the heat inside and overheating the bulbs. We cannot claim that the NanoLight will work in absolutely all enclosures, but we can say that the NanoLight emits less than half the heat energy as compared to other LED bubs or CFLs. The chance of overheating is far lessened. After receiving various question regarding fixtures, we realized that these bulbs are going to end up in all kinds of installations. Of course, we want to make sure that the customer gets a long life out of these bulbs so that they pay for themselves over the long run. As a result,we are happy to announce that we have added overheat protection as a standard feature of every bulb. If the bulb gets too hot for whatever reason, it will automatically dim itself to prevent damage or shortened life.

    Last updated:
