QuNexus is a vividly illuminated keyboard that is both fun for beginners and a must have for modern musicians.
QuNexus is a vividly illuminated keyboard that is both fun for beginners and a must have for modern musicians.
230 backers pledged $45,556 to help bring this project to life.

QuNexus CV/MIDI Routing and Conversion examples configured using the Editor

Video segment 1: Shows Keyboard + MIDI Expander to Control Voltage

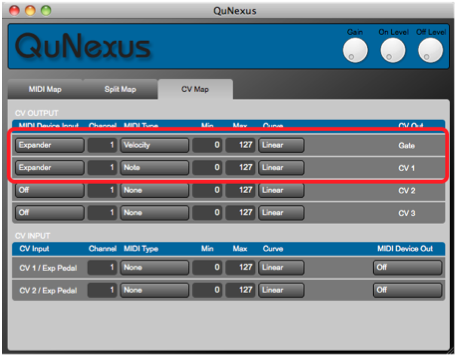

Convert MIDI Keyboard (Alesis Micron) to CV with KMI MIDI Expander: Alesis Micron MIDI Cable to Expander to QuNexus to Oberheim SEM’s CV/Gate In:

Video 2: Ableton Live to Control Voltage and Gate via USB

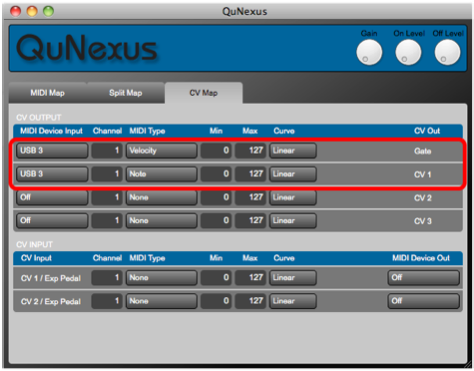

Converting Ableton Live tracks to Control Voltages: Ableton Live controlling an Oberheim SEM using Gate and CV1 (of three) 16 bit CVs:

Video 3: Control Voltage from Hardware Synth to Ableton Live

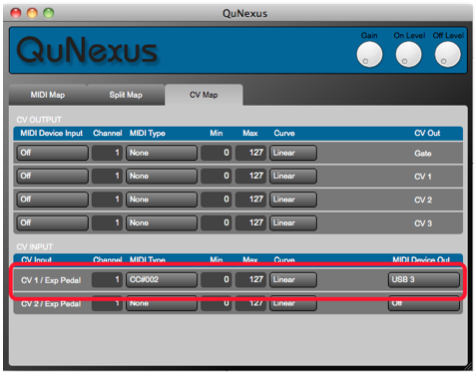

Converting Hardware Control Voltages to Software music applications: Oberheim SEM LFO Control Voltage to QuNexus CV In 1 to USB, controlling Ableton Live:

Video segment 4: Ableton Live to Multiple Hardware Synth CVs and Gates

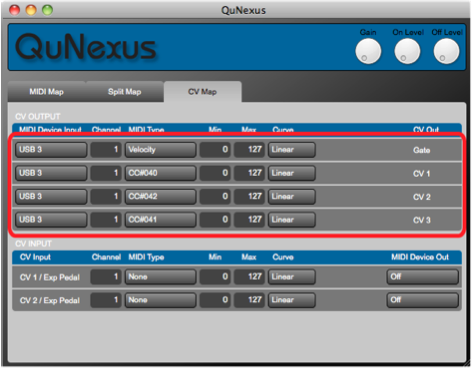

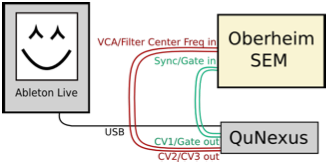

Converting Software Control Messages to Hardware Control Voltages: 3 Ableton Live Continuous Controllers to USB to 3 QuNexus CV Outs and Gate to Oberheim SEM VCO2 Sync, Filter Center Frequency, and VCA:
