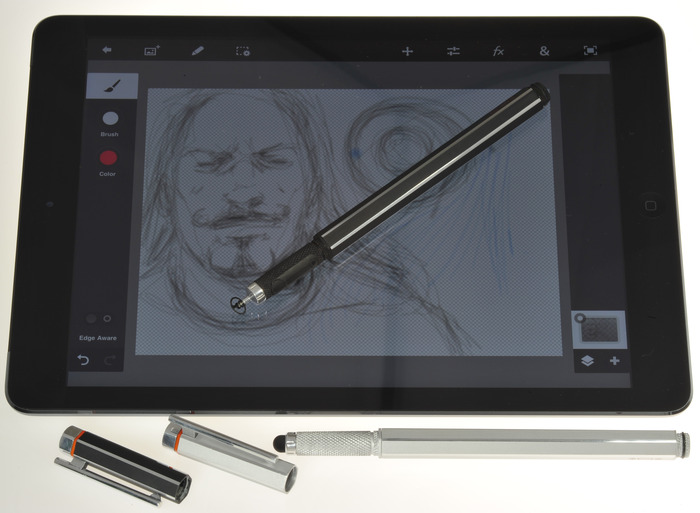

YuFu is the world's finest digital art and writing instrument. Reliable and precise, a stylus that you will be proud to own.

YuFu Kickstarter Campaign has ended. Thanks to our backers, the YuFu is now available for pre-order at yufustylus.com and will be shipping in April 2014.

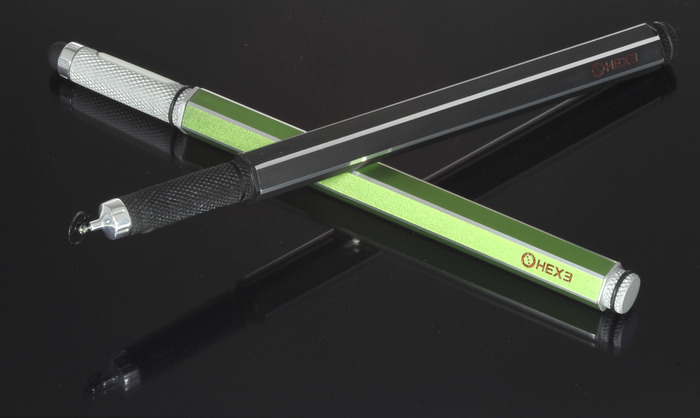

Introducing the YuFu Stylus.
Mi Fu was a renowned Chinese painter, poet and calligrapher of the Song Dynasty. We have named our stylus after Mi Fu to honour his skills, but the stylus is for you - hence the name YuFu.

The YuFu is not just for artists though, we are building a range of quality tools ideally suited to all digital writing and drawing tasks. But just as non artists will enjoy using a perfect pencil, so too will they find enjoyment with the perfect stylus.

Our YuFu project will create 3 different models.
The Yufu Pro for serious artists and perfectionists
The YuFu Focus for advanced note taking and sketching
The YuFu for notes and sketching on all tablets
For a full explanation see the details below.

Your choice of features and your choice of color!
Your choice of features and your choice of color!

Stretch Goal #1..... ACHIEVED! If we can hit $100,000 everybody wins! We'll create a new microfiber tip (6mm), and all backers will receive one! Microfiber tips glide smoothly over glass and are completely silent .
Stretch Goal #2..... ACHIEVED! If we hit $130,000 we'll create a Windows 8 Tablet driver so you you can use the YuFu on the new Windows 8 Tablets, even the larger ones that are coming out soon - as long as they support Bluetooth LE.

What Can The YuFu Do For You?

Digital art requires control over the flow of your "ink" and as with all art, quality tools. Many modern artists have chosen the iPad as their medium, and combined it with brilliant Apps like Procreate to shape their art. The YuFu is designed to work perfectly with all of the best Art, Note Taking, Ideation and Animation Apps, as well as to work with all Tablets that support BluetoothLE.

The YuFu is the worlds first ultra fine pressure sensitive stylus and the worlds first stylus to include the sensors required for proper palm rejection and pen angle.

Vary the pressure - vary the line width or opacity
Vary the pressure - vary the line width or opacity

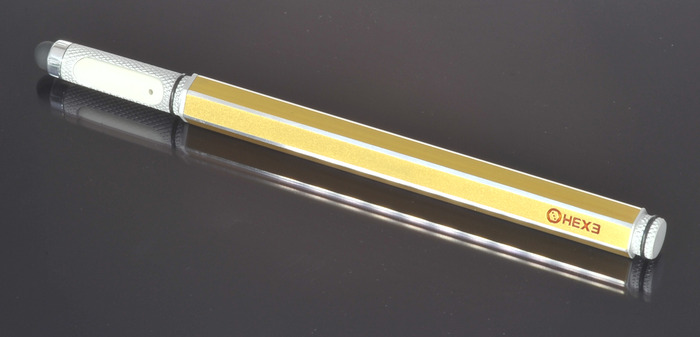

The YuFu has an elegant slim design similar to the mechanical pencils you might have grown up using. It has the worlds finest tip, and the body of the stylus is only 1mm thicker than an old school wooden pencil. It's packed with electronics to deliver the features needed for today's capacitance screens.

It has a comfortable knurled grip for effortless use, and a hard wearing full metal construction that will last a lifetime. The tips are easily changed. You have the choice of a precision Teflon tip, fine rubber and a brush for painting.

NOTE - for YuFu Pro backers--------------------------------->>>>>>>>>>>>
You will get 1 ultrafine tip on your stylus. You will also get one ultrafine tip spare.
If you add $15, you will get a case and you can also choose any 3 extra tips from: brush, rubber, Teflon or even extra ultrafine tips.

For digital artists and for people that like nice things!
For digital artists and for people that like nice things!

GIFT CARD: Give Your Friend a YuFu!

Give a gift so advanced it's from the future!

All Backers can download a printable gift card to give to a friend or family member before the holidays. We'll ship the YuFu stylus to your nominated giftee address in April or May (depending on the reward you select)

YuFu Pro

    The YuFu Pro is a pressure sensitive ultrafine stylus - with extra features such as tap or shake to erase, tilt angle and palm rejection - the most advanced available.

  • 4048 levels pressure sensitivity that can be calibrated and adjusted to different curves.
  • Gyro sensor, so integrated Apps will know the pen angle.
  • Optional gestures! Double tap or shake to undo, or even multi tap to change tools. (see video)
  • Ultrafine 1.9mm tip, plus interchangeable tips to suit your inking or artistic style
  • Bluetooth Low Energy for use with iPad 3 and above and iPad mini.
  • Pressure sensor works with all screens - yes, even the iPad Mini and Air.
  • Pressure sensor is under your finger tip, so 150% more accurate line & dot rendition and easily bypassed for fixed width lines when sketching.
  • Precision machined cap and body with a perfect finish.
  • Cap to protect the power button and tips
  • Knurled grip with textured rubber switch and pressure pad for effortless use

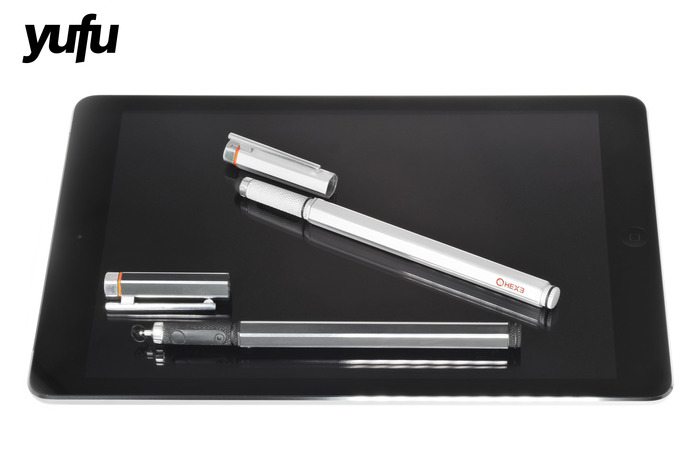

YuFu is available in 3 versions, all have interchangeable tips and caps.
YuFu is available in 3 versions, all have interchangeable tips and caps.

YuFu Focus

The YuFu Focus is for everybody who uses a tablet for notes or drawing, but doesn't need the incredible features found on the YuFu Pro. The YuFu Focus has pressure sensitivity but no gyro or additional sensors..

  • 64 levels of pressure sensitivity
  • ultrafine tip.
  • Precision machined cap and body with a perfect finish.
  • Knurled grip for effortless use
  • Multiple interchangeable tips to suit your inking or artistic style
  • Hard wearing full metal construction that will last a lifetime.
  • Cap to protect the tips
  • Spare tip storage inside stylus

YuFu

The YuFu stylus is for everybody who uses a tablet for notes or drawing, but doesn't need pressure sensitivity or an ultrafine fine tip. It works without batteries on any capacitance screen.

  • Precision machined cap and body with a perfect finish.
  • Knurled grip for effortless use
  • Multiple interchangeable tips to suit your inking or artistic style
  • Hard wearing full metal construction that will last a lifetime.
  • Cap to protect the tips
  • Spare tip storage inside stylus

THE WORLDS BEST APPS

We've worked hard for 2 years building developer support for our Pressure Sensitive Stylus SDK. And we now have over 40 Developers who have integrated with it for the JaJa Stylus. The YuFu works with our internal test Apps. Over the next few months we will complete updates to our latest SDK and publish it for these fantastic Devs to integrate with their Apps. So by the time we ship, we're hopeful that most Apps will support the YuFu Link. The basic code is done, we now need to bug test and distribute it. Currently none of the Apps can support the YuFu until the SDK is complete.

Only the YuFu Pro and Focus need App Support. The basic YuFu will work with all tablets, phones and Apps.

You'll get a fantastic product with support from all of the Apps you could need. If you don't see your favourite listed - just ask and we'll do our best to get it added.

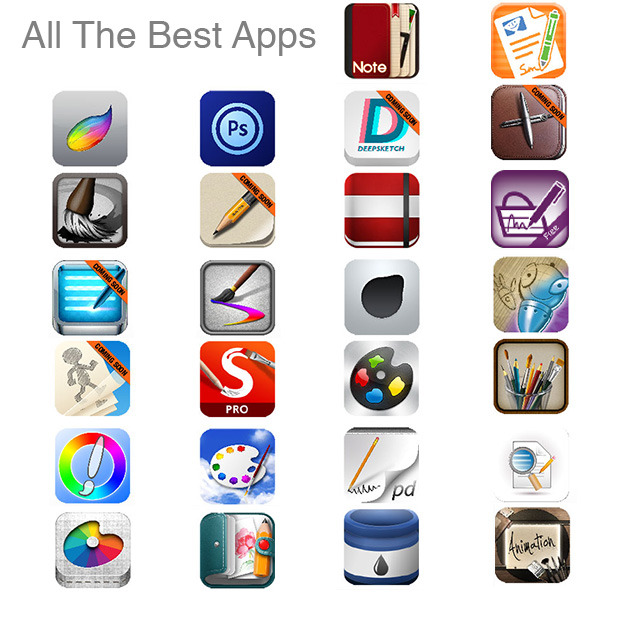

These Apps Currently Support the HEX3 SDK
These Apps Currently Support the HEX3 SDK

COMPONENTS

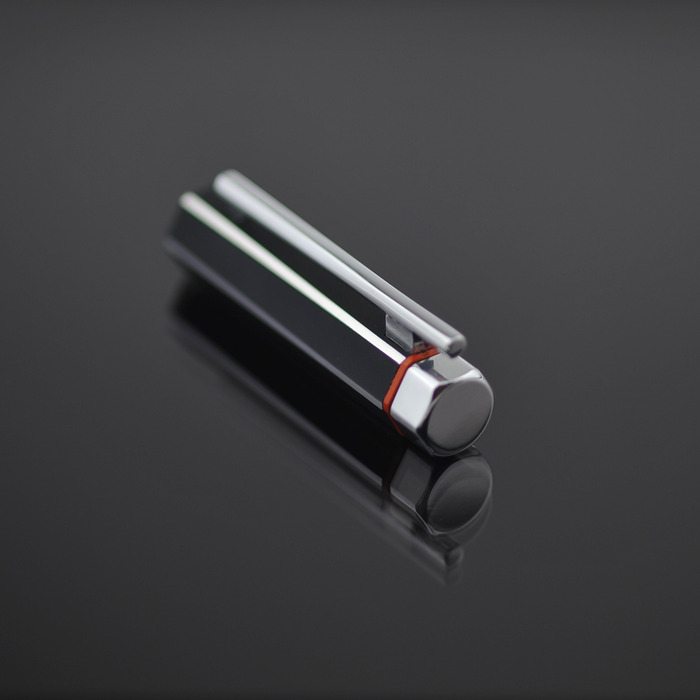

Metalwork & Cap
Here's an exploded view, so you can see all the different parts - fine tolerances and beautiful details make this a joy to use. The cap has a lightly spring loaded clip, it slides onto the pen and automatically positions itself to align the edges. The cap can be posted to the opposite end easily. The Knurled grip is smoothed for a good grip whilst remaining comfortable even after hours of use.

PCB & Electronics
The PCB on the Pro includes a gyro, accelerometer, magnetic compass, force sensor and Bluetooth Low Energy chips. Basically the integrated Apps will know exactly where your pen is in the 3D space, and can do proper palm rejection and tilt calculations. The firmware can be updated from within our App and you can even make changes to how you want the pressure curve to respond, or configure the buttons and sensors to effect your work. the default settings will suit most people.

Battery
The very low power requirement of Bluetooth LE means we can use a small battery and it will last for weeks. Many people have asked us for a slim pressure sensitive stylus. We wanted something that was as close to an old school pencil as possible - not a fat kids toy. So we chose the AAAA battery - easily available from Amazon for as little as 87cents.

TeamOur team is led by Jon Atherton. We have 2 industrial designers, who work directly with Jon. Our electronics engineer is hired to complete projects as required, the firmware is designed by Jon and written by our software engineers, the manufacturing design of the PCB is handled by staff at our factory. Our business management is handled in USA and Hong Kong. Our SDK and internal App development is supervised by Jon and handled by the team at Mercury - they have worked with us for many years, and their work includes the SDK for JaJa and AppTag.

Tips
As you can see in the picture below, we have all your requirements covered. From water color artists who love the unique feel of a fine sable brush to animators who sketch with charcoal or a 6B... Or even students sketching or note-taking. We have selected digital materials to answer your needs - the YuFu really is the stylus for everyone!

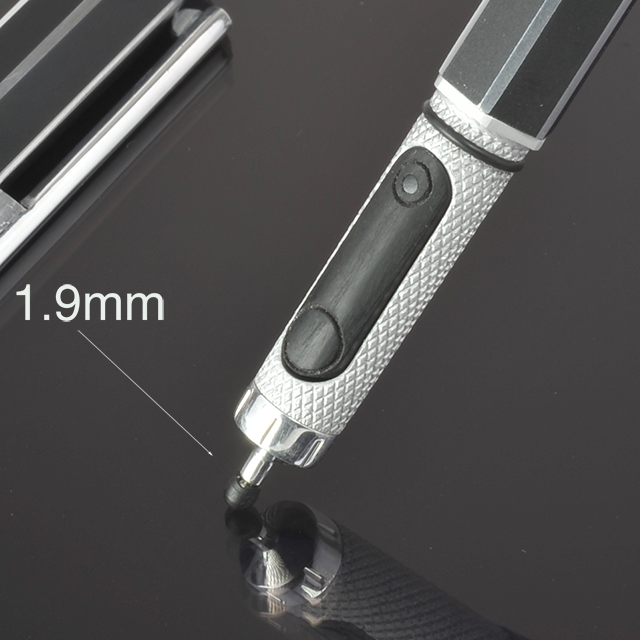

YuFu Pro Ultrafine 1.9mm tip
YuFu Pro Ultrafine 1.9mm tip
Please remember, these are prototypes and quality will be even better in mass production.
Please remember, these are prototypes and quality will be even better in mass production.

Protective Case
We have a protective case available for the YuFu. It will hold spare tips and a spare battery plus protect the finish of your stylus. The design of YuFu and it's cap mean that you don't always need a case, but to protect your investment the case is perfect, and it will keep your tips and batteries together. Pictures of actual item coming soon, it's a hard shell injection moulded plastic, below is a drawing to show what it will look like.

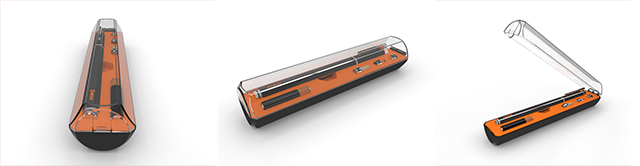

YuFu Protective Case
YuFu Protective Case

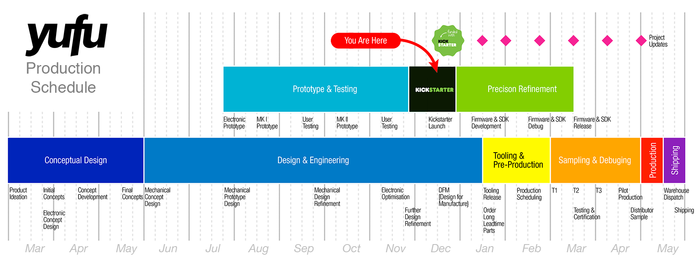

Production Schedule

Click for a larger image
Click for a larger image

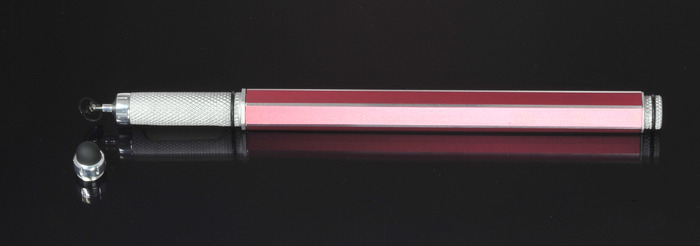

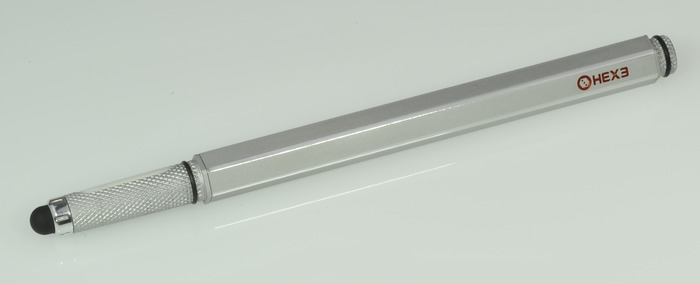

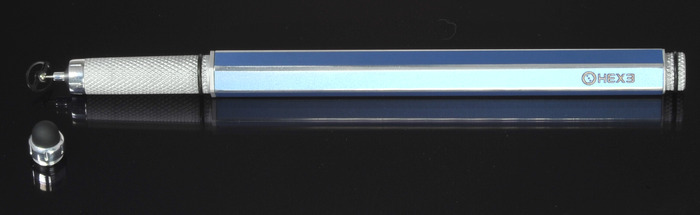

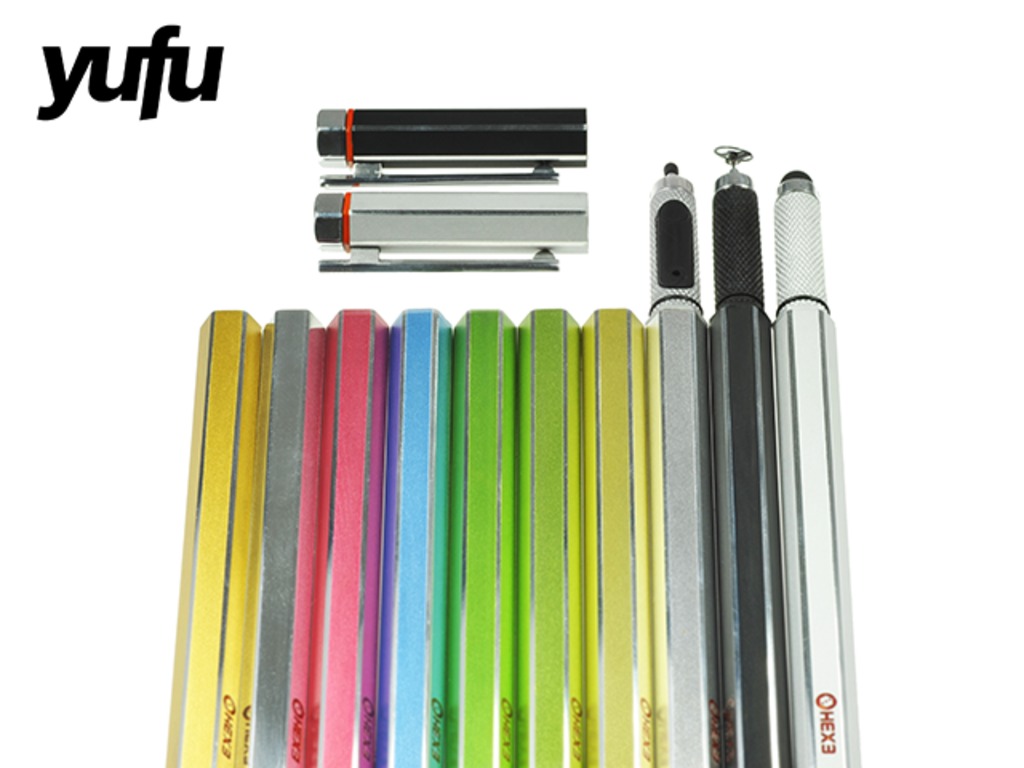

Color Range

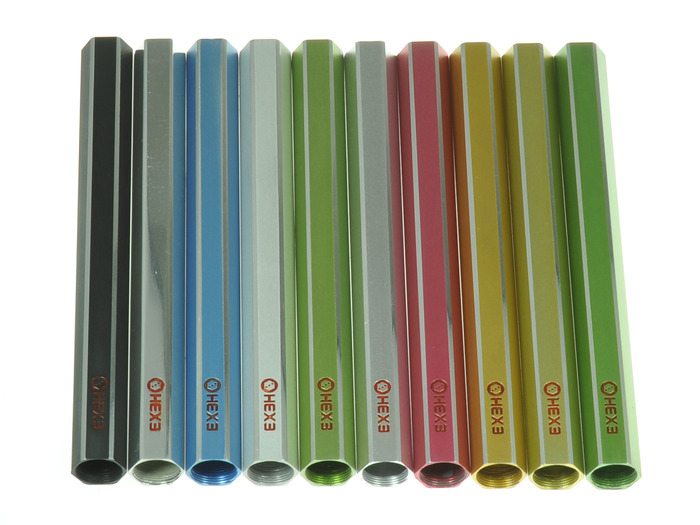

color range
color range

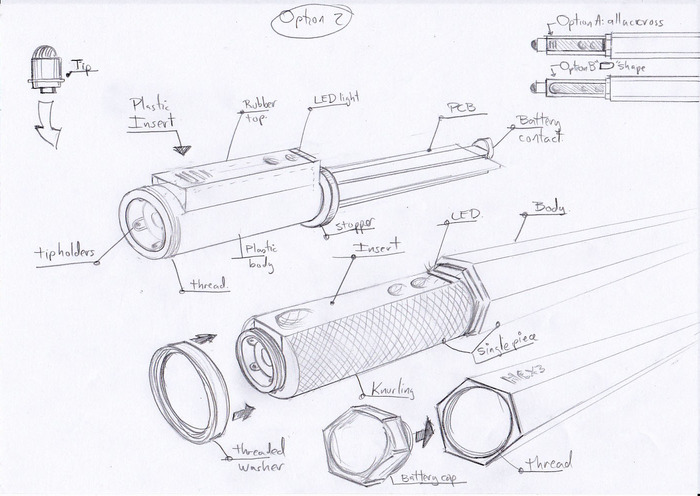

Early Stylus Concepts - a lot has been refined!
Early Stylus Concepts - a lot has been refined!

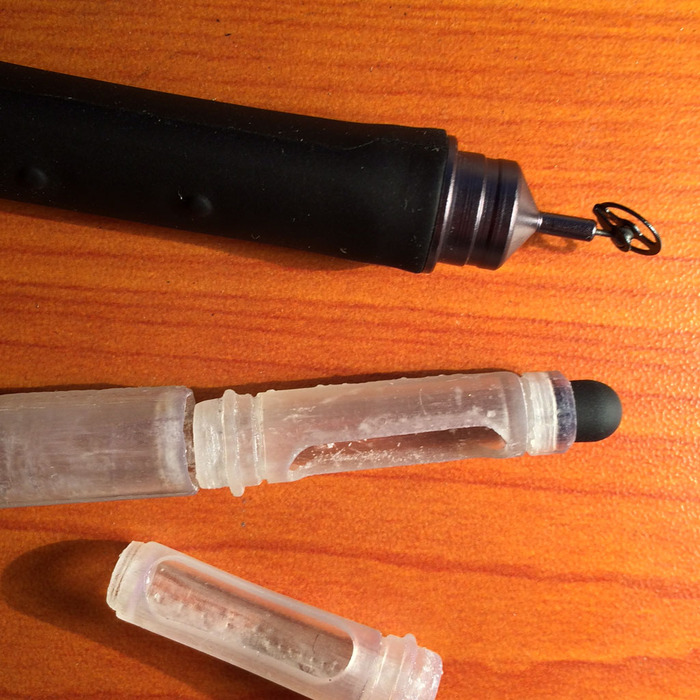

Early 3D print of the yufu grip compared to a JaJa, we needed to test the grip size for comfort and function before going to aluminium prototypes - we used the form printer (this was my first form print, it didn't turn out so great! It's all good now)
Early 3D print of the yufu grip compared to a JaJa, we needed to test the grip size for comfort and function before going to aluminium prototypes - we used the form printer (this was my first form print, it didn't turn out so great! It's all good now)

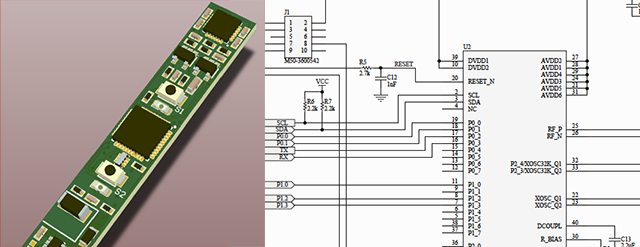

The electronics are an important part of our design, we have hired a bluetooth specialist to assist us with the electronics and firmware. Further engineering is underway at our factory. You can see a 3D image of the PCB and part of the schematics. There a
The electronics are an important part of our design, we have hired a bluetooth specialist to assist us with the electronics and firmware. Further engineering is underway at our factory. You can see a 3D image of the PCB and part of the schematics. There a

Risks and challenges Learn about accountability on Kickstarter

Project Risks:

1. Design. We have completed a full design program including multiple rounds of prototyping to ensure our product not only looks great but also has excellent functionality and mechanical design.

2. Electronics. The PCB design is complete, and operational. There are some minor adjustments required for an integrated force sensor and power switch, and also the power LED. We also need to perform full testing of the fine point tip in production. Both of these will be tweaked in the T1 unit - ie after tooling is complete. In combination with electronics enhancements and an update to the JaJa SDK we will have full support by the time the YuFu ships.

3. Manufacturing partner. We have identified a strong manufacturing partner. assuming we are successful we'll travel to meet with them and finalise the manufacturing schedule in the 3 weeks following the completion of the Kickstarter completion. We also have strong relationships with other factories if required.

4. Distribution. We currently work with one of the larger 3PL companies and we utilise warehouses in Hong Kong, UK, and 2 in the USA - LA and PA. We do not consider distribution a risk, although managing the flow of product doesn't always run smoothly, we understand what is required.

5. There are always unforeseen circumstances, but we do not think that this project is very high risk. We have working units and have the experience to deliver.

FAQ

  • In the Art Set you get:
    1. YuFu Pro with 2 ultrafine tips
    2. The case with 3 spare tips - teflon, brush and 6mm rubber
    3. A basic YuFu with a 6mm rubber and a Teflon tip.

    You will get to choose colors when we send out the shipping questionnaire.

    Last updated:
  • The basic YuFu will work on ALL tablets phones etc.

    The Pro and the Focus will work on any Android tablet that supports Bluetooth 4 (bluetooth LE) **when App developers update their Apps with our SDK** Not all Android tablets have BTLE.

    Android is a tough one for Art Apps. We released an Android SDK with the JaJa and have been working with Android developers for 2 years - after all that time there are only a few Apps that work with the JaJa stylus.
    I'm not going to comment on the merits of Android vs iPad ;-) - but it is hard to get developers on board for some reason. That said we have Developers working on the Apps for JaJa now and they will update for YuFu, but there are only a few that have been released.

    We will certainly modify our SDK to work with Android, but it is definitely up to the developers to integrate it.

    Last updated:
  • The basic YuFu will work on ALL tablets phones etc.

    On Windows devices with BluetoothLE, we are still considering if we have demand and the budget to support Windows - the campaign is off to a great start, but we need to see how it goes into week 2. If we see demand for Windows support and also can raise enough funds, we will probably commit to a Windows driver for newer Windows tablets.

    Check back at the end of week 2 or perhaps back us for $1 to receive updates.

    Last updated:
  • A couple of weeks after the conclusion of the campaign we will send a survey to get your shipping address and preferred colors.
    We will also release a nice color comparison guide so you know what your selected colors will look like.
    Addresses - don't worry if your current Amazon account has a different address to where you want your YuFu shipped - we will rely on the address that we collect from our survey at the conclusion of the campaign.

    Last updated:
