Help fund the production of a Custom Laser Scanning System to make 3D Scanning available for everyone!

They say 2013 is supposed to be the year of 3D printing. With your help, we'll make it the year of 3D scanning as well!

What is Moedls?

A cost effective laser based 3D scanner. Benefits include:

  • designed to be portable, but can be used in a desktop environment
  • designed to work with mobile devices, video cameras, SLR's and/or point and shoot cameras that have lockable/adjustable exposure settings and can capture decent video
  • powerful desktop and mobile based processing with STL and PLY export, watertight, and fully compatible with all known 3d printers
  • includes: lasers, rotating platform, mobile device stand (with tripod mount), mobile app, and PC/Mac desktop apps
  • designed to scan objects as small as a few inches tall to 30+ inches tall, with optimal resolution for any given object size

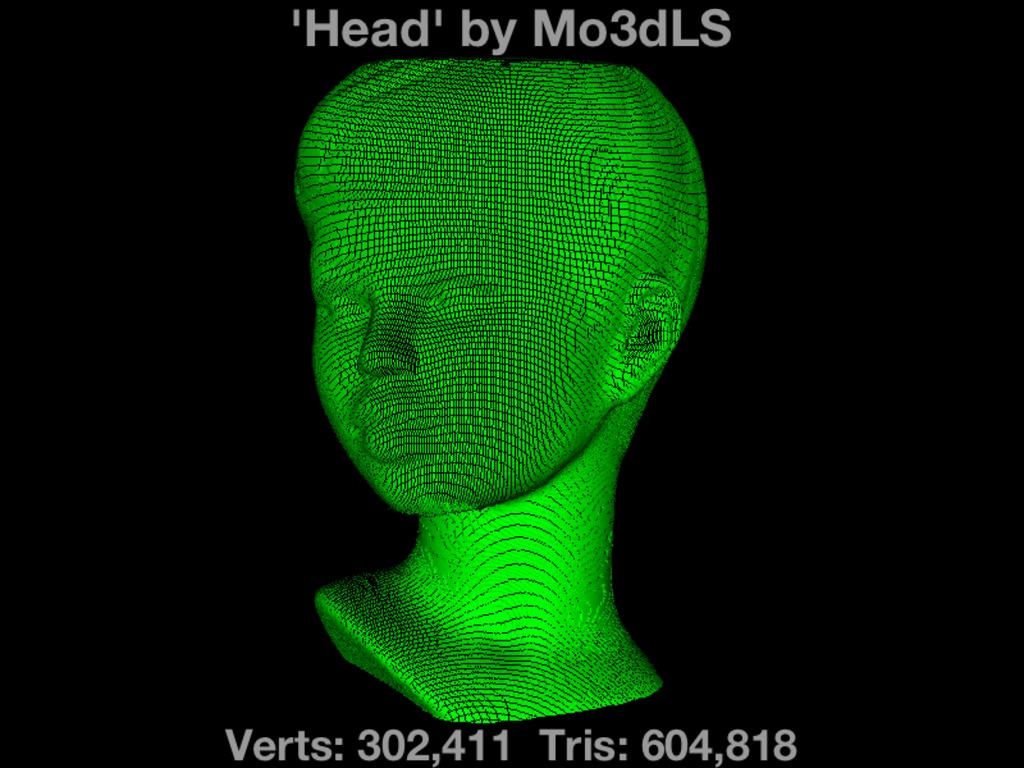

You can see an example of a plaster head turned into a 3d model in the above video.

Get a high resolution laser based mobile 3D scanner for as little as $199!  See listings on right panel for details about each reward level.

Hardware for Scanning

Moedls produces the best results when you have the best hardware:

1) A slow, level, perfectly consistently rotating platform that rotates through 360 degrees in 40-60 seconds.

2) A laser that has consistent thickness through the line without bleeding, as close to 100% vertical as possible, and is held as still as possible during the scan.

3) A mobile device with a good quality camera and a holder for your mobile device that will keep your mobile device in position while pressing various buttons on the screen.

4) An easy way and accurate way to get the angle measurement mentioned above.

During development of the Moedls app, that hardware proved incredibly difficult to find, and I ended up wasting a lot of money buying hardware that seemed like it should work, but didn't.

The Solution: The Moedls Hardware Platform

The Moedls Hardware Platform is a hardware project consisting of a number of custom designed and built parts. The first is a custom built rotating platform designed to be as smooth spinning as a vinyl turntable, with guide markers for aligning the camera and laser, and a built-in easy and accurate angle measurement:

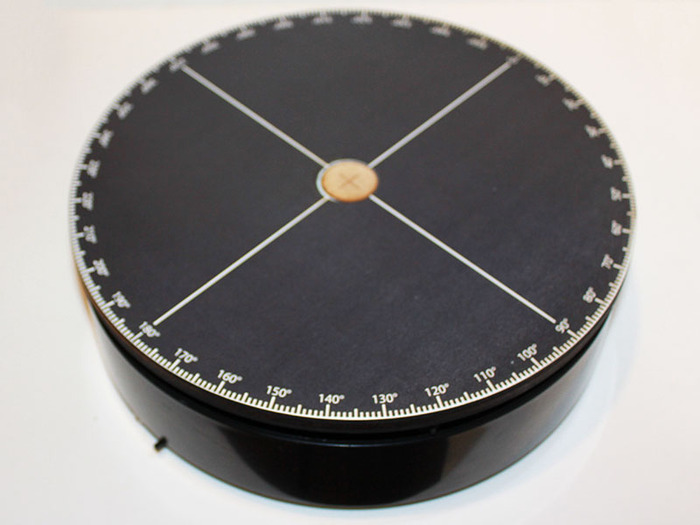

Moedls Rotating Platform Prototype
Moedls Rotating Platform Prototype

The prototype shown above is 10" wide plastic with some MDF parts, but the final version is 9" wide anodized aluminum with a non-reflective reversible top. (The opposite side is solid black.)

The Moedls Rotating platform comes with an external power supply and switch so you won't accidentally jostle the platform out of alignment when you turn it on or off.

Each laser comes in a custom enclosure with a 2.1mm power plug (as well as an external 2-AA battery power supply with on/off switch) so that turning it on/off won't change your laser alignment. The laser enclosure also has a standard tripod mount underneath.  Here's a picture of the prototype laser enclosure and power supply with switch:

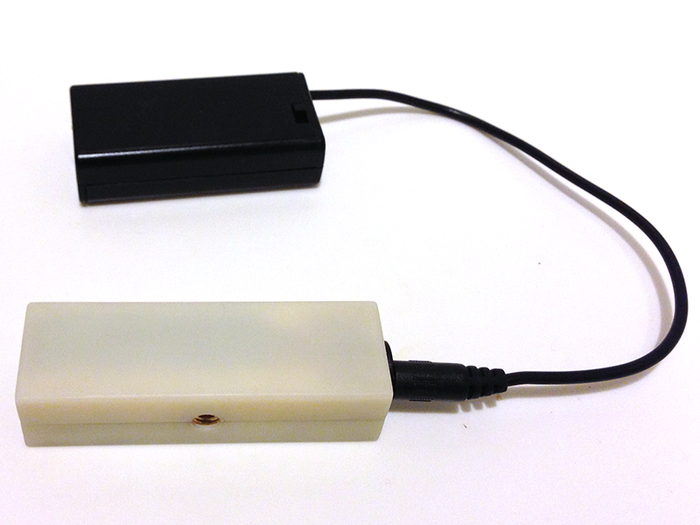

Moedls Laser, enclosure, and power supply.
Moedls Laser, enclosure, and power supply.

The final laser enclosures will be black.

I've designed a custom mobile device holder (for devices between 2 and 4 inches wide) that grips your device tightly so it stays aligned with the platform, and comes with a standard tripod mount underneath as well.

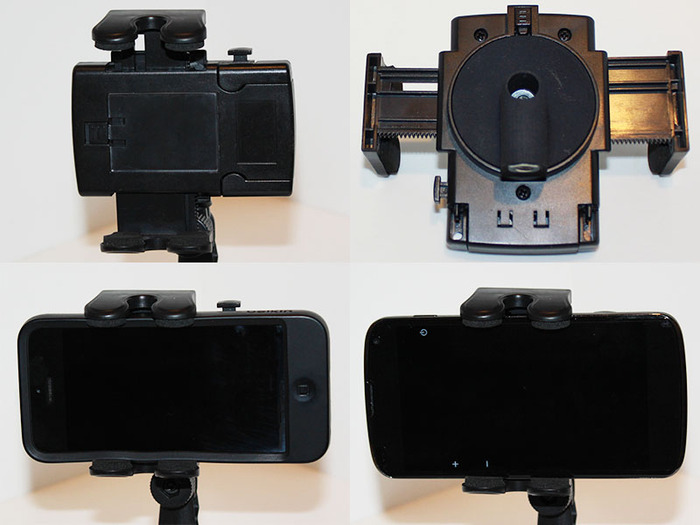

Moedls Mobile Phone Holder
Moedls Mobile Phone Holder

Since you'll want to adjust the camera position to the size of the object you're scanning, I've also custom designed a suction cup tripod mount with specially designed arms to make adjusting the laser and device to their best angles and positions easy.  Here's the current prototype (final version will be made of plastic since the weight of the metal makes the suction cup less efficient):

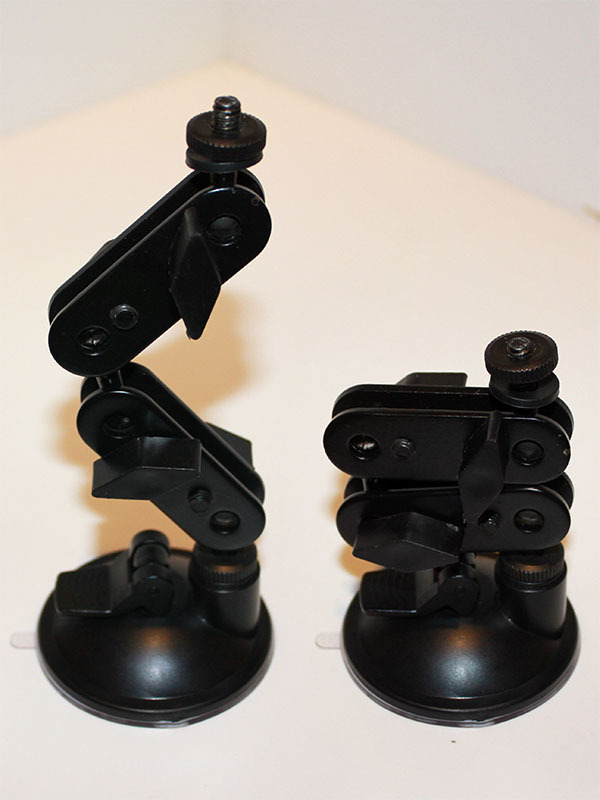

Moedls Suction Cup Tripod Mount Prototype
Moedls Suction Cup Tripod Mount Prototype

Current Status:

All the prototypes are working well, and I've been tweaking the designs with the help of my manufacturer.  Unfortunately, I'm almost to the point where large deposits are needed to build the molds, (almost $20k altogether) and this is where I need your help.  I definitely can't do it without backers!

Once the molds are made, the factories still require MOQ's (Minimum Order Quantity) for each part, and this is what really drives up the goal amount, since I can't make a single complete unit without making a whole bunch of them.

With your help, we can make the Moedls Hardware Platform a reality!

The Reward Levels

There are 3 basic reward levels, with a limited 'Early backer/shipper' version and a regular version.  The only differences between the 3 basic reward levels is the number, color and quality of the lasers; green lasers are more expensive than the red lasers, and the Pro lenses cost much more the standard lenses to produce, and that is reflected in the reward amount.

Every $50 and up reward level will also receive a zombie shooter cup, made from a scan of the head you see in the video, with the top of the head hollowed out. (Brains not included!)

Risks and challenges Learn about accountability on Kickstarter

I've already overcome the biggest challenge, in writing the Moedls app and proving the software concept, prototyping the parts, and finding manufacturers to build the final prototypes and go into production.

The only real challenge left is in tweaking the final prototypes, producing packaging, and coordinating the production schedule with the various manufacturers. To overcome this, I've established a relationship with one of the manufacturers to receive the various pieces, fix obvious issues, forward prototypes to me for evaluation, and help with the packaging design. When production begins, they'll package them individually, and send them to me in batches.

Since I'll need to sell quite a few to reach my goal, I've partnered with a small fulfillment company to make sure everything ships out smoothly.

I've set reward deadlines based on worst case scenario instead of best case, so that should minimize the possibility of shipping later than specified.

FAQ

  • With laser scanners, accuracy is determined by the smoothness of rotation, the laser line thickness, the device's camera sensor, and distance from the object.

    By custom designing a very slowly rotating platform, we can build in stability using bearings around the outside of the top disc, and a belt drive to smooth out any motor jerkiness.

    We have excellent control over the laser, and I've found a supplier that can produce custom lasers with excellent stability, very little bleed, and excellent line intensity uniformity. I've chosen power levels for the red and green lasers that result in very similar brightness, which lets us do dual-laser scanning without one of the lasers washing out the other.

    The bad news here is the camera sensor is totally out of our control. The good news is that they're already quite good, and getting better, so as you upgrade your mobile device, your scans will get better and better.

    The last factor is the distance. You get much more detail when you take a picture of an object from 12 inches away than you do from 24 inches away. Since any laser scanner uses a camera's sensors, you get much the same effect here as well. I've made the lasers and mobile device holder separate from the platform for just this reason, so you can get as close in or as far away as you need to scan various sized objects at their optimal resolution.

    The Advanced and Pro solutions differ only in the lens used to split the laser into a line, (the pro lenses are more expensive than the lasers themselves!) and that's covered in another faq.
