About

BLEasy is a BLE (Bluetooth Low Energy) bridge for your Arduino System. It contains two type of modules which work together when pairing up.

BLEasy Host connects to the Arduino main board and BLEasy Slave connects to your shields. The main board and shields will then be connected wirelessly with each other through BLEasy.

BLEasy
BLEasy

Wires gave us headache and they also limit the size of our Arduino system. There are some BLE bridge or modules that may solve this problem, but we still find them not flexible and not easy enough to use.

Hence we decided to make BLEasy, which aims to be the best BLE bridge you can found on the market.

Wireless

BLEasy replaces wires and cable between different boards in your Arduino System.

Easy to Use

Using BLEasy will be so simple that you will feel as if you are just working on a wired system.

BLEasy will come with Arduino codes that help you handle ALL difficulties in developing coding for wireless applications.

Only simple modification on your Arduino codes is needed to make use of BLEasy!

Simple Modification
Simple Modification

No Smartphone / PC Needed

BLEasy is different from other BLE shields in the market, which usually need a non-Arduino host such as a smartphone or PC. No app or PC software programming is needed!

No MCU Programming Needed

Unlike universal BLE modules on the market, BLEasy doesn't require any programming on the MCU.

Only Arduino programming is needed, which means you can make use of the resources on Arudino community and build you system easily and quickly.

Real BLE Bridge for Arduino

BLEasy works as a pair: BLEasy Host and BLEasy Slave.

BLEasy Host connects the Arduino main board and add BLE capability to it. BLEasy Slave connects to the shields. The Arduino main board can then connects to the shield wirelessly through BLEasy.

On-the-Air Modification

Our BLEasy codes handle the communication between BLEasy Host and BLEasy Slave.

All programming is done on BLEasy Host side, in Arduino language. BLEasy Slave doesn't need any programming You can modify the function of BLEasy Slave, and the shields connected to it, without connecting it to the PC.

BLEasy Host with Arduino UNO
BLEasy Host with Arduino UNO
BLEasy Slave with Shields
BLEasy Slave with Shields

BLEasy consists of BLEasy Host and BLEasy Slave, each of which has two variants that suit different needs.

BLEasy Host

• Turn your Arduino main board into a BLE host.

• Simple connection to Arduino main board with UART.

• On-board Level Shifter to ensure proper communication in different operating voltage on BLEasy Host and Arduino main boards.

• Tiny

• DIP package, compatible with bread boards.

• Able to connect with up to 8 BLEasy Slave simultaneously.

BLEasy Host Variants:

BLEasy Host

• Standard Edition.

• Uses thin chip antenna with 2dBi gain

BLEasy Host-EXT

• External Antenna Edition

• Uses standard SMA connector for external antennae

• Include a 2dBi 2.4GHz antenna. Exchangeable with antennae with higher gain.

Note: For the reward, backer can freely choose BLEasy Host or BLEasy Host-EXT (or any combination if the reward contains more than one BLEasy Host).

BLEasy Slave

• Add BLE wireless capability to your shields.

• I/Os can be freely assigned as UART, I2C, SPI, AD, GPIO (One channel each for UART, I2C & SPI). More than one shield with different/same protocols can be connected to BLEasy-Slave simultaneously.

• Selectable power modes for different applications:

   ~ Normal Mode

   ~ Performance Mode for higher data rate but higher power consumption

• Low Power Consumption

Using "8" to number different BLEasy Slave easily
Using "8" to number different BLEasy Slave easily

BLEasy Slave Variants:

BLEasy Slave Flex

• Uses thin chip antenna with 2dBi gain

• 5 I/Os that can be freely assigned with different functions.

• A battery holder that accepts CR2032 or two CR2016 coin cells as power input. The battery holder part can be removed if needed for a smaller board.

• On-board adjustable LDO

• Variable output voltages: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V (It’s suggested to use two CR2016 for 2.8V above output.)

 project video thumbnail
Replay with sound
Play with
sound

BLEasy Slave Core

• Uses standard SMA connector for external antennae

• Include a 2dBi 2.4GHz antenna. Exchangeable with antennae with higher gain.

• 25 I/Os that can be freely assigned with different functions.

• Directly input 1.8V to 3.3V

• Can be used with BLEasy EVB (details in the “BLEasy Accessories” section)

Note: For the reward, backer can freely choose BLEasy Slave Flex or BLEasy Slave Core (or any combination if the reward contains more than one BLEasy Slave).

Note: The PCBs shown above are prototypes. They were soldered by hand. The final product which you will get will be assembled by SMT machines to ensure the best quality.

• Add BLE function to both Arduino main boards and shields.

   ~ BLE Host can also be programmed in Arduino format, making things easier, more customizable and flexible!

• Flexible usage!

   ~The I/Os in BLEasy-Slave can be freely assigned as UART, I2C, SPI, AD, GPIO. (One channel each for UART, I2C & SPI)

• Selectable Power Modes

   ~ Choose suitable mode for different power consumption and wireless data rate according to the application.

   ~ Different modes can work at the same time when multiple BLEasy Slave are connected.

• No datasheet reading!

   ~ BLEasy is easy to use. Our codes do everything for you. You will be programming as if you are working on a wired system.

• Only easy modification is needed on your previous projects to use BLEasy

• No difficult hardware design needed!

   ~ Wireless hardware design is usually difficult and costly. We do it for you and make sure that its wireless performance to be the best.

• Low Power Consumption due to BLE technology.

Common Specification

• Wireless Protocol: Bluetooth Low Energy (BLE)

• Wireless Connection Range: at least 10m

• Pre-programmed with BLEasy firmware

• Include Arduino codes for easy access to all functions

BLEasy Host and BLEasy Host-EXT Specification

• Communication Protocol with Arduino main boards: UART

• Input Voltage: 5V/3.3V

• Operating Voltage: 3.3V

• Chip Antenna Gain (BLEasy Host): 2dBi

• External Antenna Gain (BLEasy Host-EXT): 2dBi

• External Antenna Connector Type (BLEasy Host-EXT): SMA

• Size (BLEasy Host): 28 x 21 mm

• Size (BLEasy Host-EXT): 30.5 x 21 mm

• Pin Configuration:

BLEasy Host Pin Configuration
BLEasy Host Pin Configuration
BLEasy Host-EXT Pin Configuration
BLEasy Host-EXT Pin Configuration

BLEasy Slave Flex Specification

• On-board LDO Output Voltages: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V

• Direct Input Voltage: 5-12V

• Coin Cell Used (for Vout 1.8V, 2.5V): 1 x CR2032/CR2025/CR2016

• Coin Cell Used (for all Vout values): 2 x CR2016

• Chip Antenna Gain: 2dBi

• Detachable Coin Cell Part

• Size: 48 x 23.5 mm

• Size without Coin Cell Part: 30 x 23.5 mm

• Pin Configuration:

BLEasy Slave Flex Pin Configuration
BLEasy Slave Flex Pin Configuration

BLEasy Slave Flex Specification

• Input Voltage: 1.8 to 3.3V

• External Antenna Gain: 2dBi

• External Antenna Connector Type: SMA

• Size: 43 x 21 mm

• Pin Configuration:

BLEasy Slave Core Pin Configuration
BLEasy Slave Core Pin Configuration

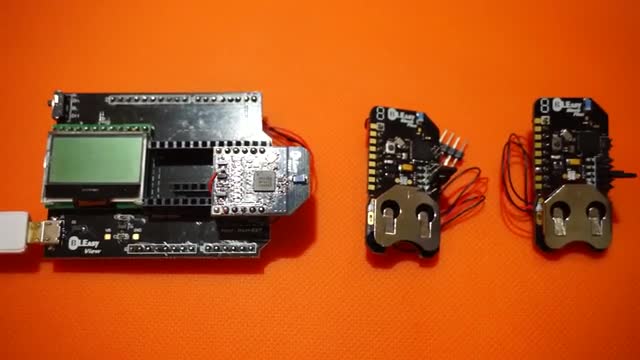

BLEasy View

• Dedicated LCD Display

• Display the Bluetooth MAC address for BLEasy Slave Flex or BLEasy Slave Core without using a smartphone or bluetooth dongles.

• Display the signal strength between BLEasy Host and BLEasy Slave.

• Adaptor to Arduino UNO with BLEasy Host or BLEasy Host-EXT.

• Accept external power through USB connector

  ~ Able to display signal strength or BT Mac Address, as mentioned above, without Arduino UNO.

 project video thumbnail
Replay with sound
Play with
sound

BLEasy EVB

• Evaluation board used with BLEasy Slave Core.

• Buttons, switches and LEDs on board.

• Free 2.54mm pitched pads for simple system building.

• On board adjustable LDO.

• Power Input: DC Jack, micro-USB, CR2032 Coin Battery.

BLEasy EVB with BLEasy Slave Core
BLEasy EVB with BLEasy Slave Core

We have built an Arduino library for BLEasy. You just need to call for simple commands to make your shields work wirelessly with the Arduino main boards.

All Arudino Codes for BLEasy will be open source.

Note:

• You can choose any variants of BLEasy Host and BLEasy Slave for your rewards!!

• e.g. Professional Pack: 1 x BLEasy Host, 1 x BLEasy Host-EXT, 10 x BLEasy Slave Flex, 6 x BLEasy Slave Core

• The default options are BLEasy Host and BLEasy Slave Flex if backers show no preferences on rewards.

• Backer of Start Pack Lite may need to use a smartphone or bluetooth dongle to check for the bluetooth MAC address.

The above are the final PCB designs after being modified for several times. Several versions were made and tested to find out the designs for the best wireless performance and user-friendliness.

First Version BLEasy
First Version BLEasy
Making Prototypes
Making Prototypes

We have worked on Arduino codes that can basically work as wanted. We will keep working on it to make it more user friendly and efficient.

Before Funding

We have done PCB design for all models.

We have made workable prototypes for all models.

All functions have been tested and work in order.

During Funding

We are now fine tuning the program routine for BLE communication and user friendliness. And like how GestureR SHIELD ULTRA was born last time, we will also listen to any good advices from you guys to make BLEasy the best.

We are keeping good contact with the supplier and aim to shorten the lead time of the rewards.

After Funding

We will quickly order all the parts needed for all rewards. (~ Start of November 2014)

We will contact our co-operative factory and arrange manufacturing while we are waiting for the materials, which may have a lead time of 2 months. (~ Mid of November 2015)

Start Production (~ Start of January 2015)

After getting the manufacturing done, we will instantly start to ship the rewards. (Should start shipping around Mid to End of Feburary 2015)

Note: Exact delivery date depends on the lead time of the materials. We will try our best to fight for the shortest possible lead time with the suppliers.

Grabo Team is a collaborative team dedicated to the area of Electronic Engineering. GestureR was another successful project on Kickstarter by the Grabo Team.

Two core members of the Grabo Team:

Jonathan Yip, WingPui

  • Has worked in the R&D field for over 6 years.
  • Possesses expertise in Software and Firmware Programming.
  • Is equipped with experience in Sensor Applications.

Sammel Tung

  • Has worked in R&D field for over 9 years.
  • Possesses expertise in Hardware Design and Production Management.
  • Has established friendly networks with factories in China.
  • Possesses the ability to ensure production to be completed on schedule while keeping the quality up to standard.

Risks and challenges

Before building the working prototypes as shown in this page, we have done several modifications on the PCB design to make it final. Several versions were made and tested to find out the designs for the best wireless performance and user-friendliness.

We will keep testing the prototypes and make sure there are no errors before manufacturing.

The lead time for some of the components is quite long. We will keep in touch with the suppliers to make sure the components be delivered as soon as possible.

There is always risk in manufacturing, especially for wireless products. We will maintain good contact with our long-term co-operating factories. We will make sure the manufacturing process is smooth and every BLEasy you receive will be of the best quality.
