FIBERwave is a full scale carbon fiber pavilion designed and built by students in the College of Architecture at IIT.

Chicago, IL Architecture
Share this project

About this project

FIBERwave PAVILION

Carbon_Lab is a student based design research studio within the College of Architecture at the Illinois Institute of Technology devoted to the study of performative and adaptive physical fabrication. Our studio’s current focus is engaged in working with composite fiber materials, specifically carbon fiber, and utilizing their unique properties within architectural design.

Why Carbon Fiber?

Carbon fiber material is a flexible and malleable cloth that can be cut with scissors and easily formed and fit over three dimensional molds. When coated and cured with an epoxy resin, it can become hard as steel. Layers and layers can be added to enhance strength, giving the designer great control over structural properties while remaining incredibly light weight. Carbon fiber’s amazing adaptive qualities have already been extensively utilized within the automotive and aerospace industries.

It’s time architects join the game.

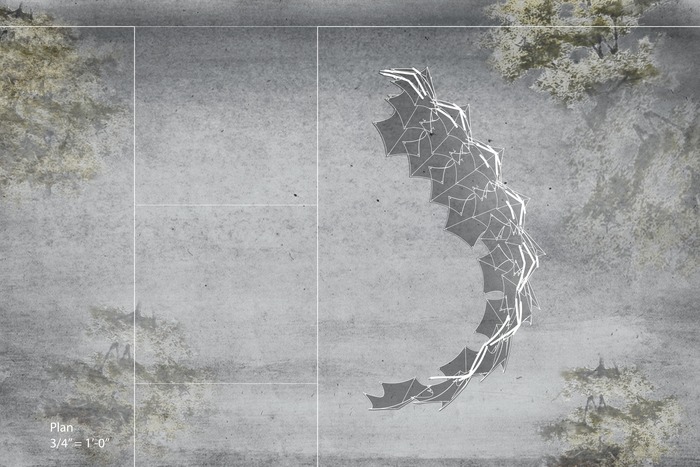

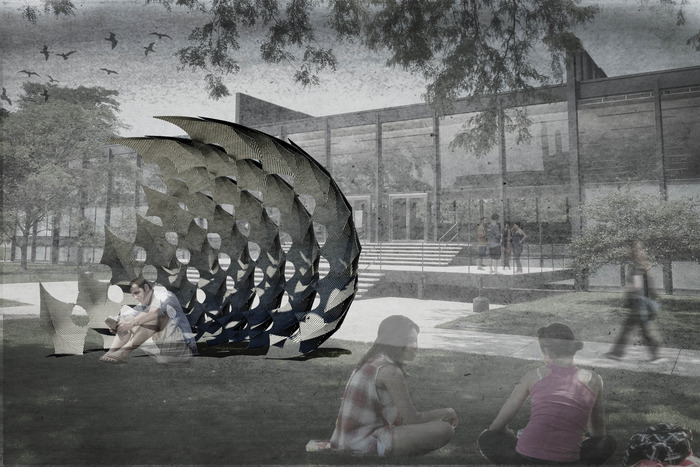

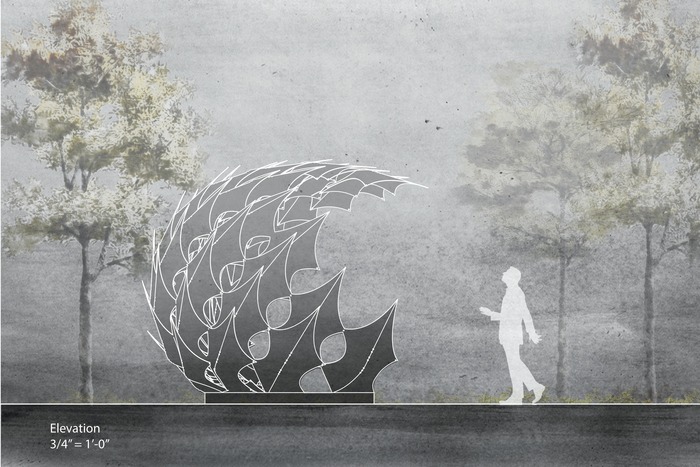

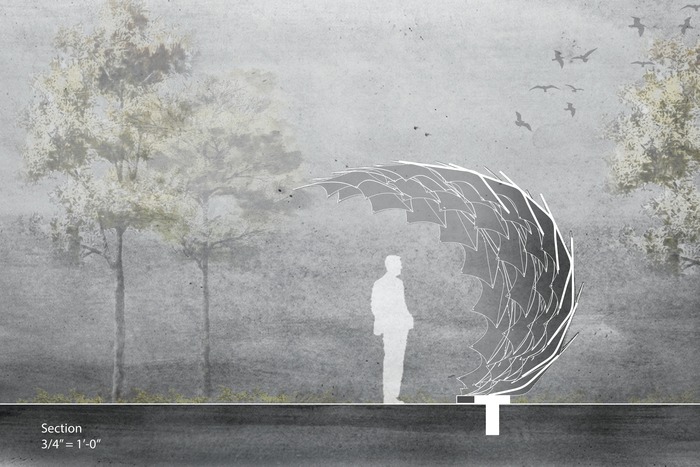

Through the fabrication of a full scale carbon fiber pavilion, our goal is to showcase the great potential composite materials can bring to architectural expression. The pavilion design is comprised of one geometric unit ‘the shell’ repeated over fifty times. The shell connects laterally at two points to another shell on either side with metal rings, creating flexible rows. The rows are then connected vertically by another set of rings. A specific pattern of row length and vertical connections creates a curving wavelike structure, we call it FIBERwave. Tension cables running through the connected shells give the structure its shape. The nature of the ring connection and the shell geometry allows the pavilion to undulate and morph. When the tension cables are pulled tight the shells interlock and press against each other, opening the pavilion to its fullest height. When the cables are loosened, the structure relaxes and closes. FIBERwave in this sense is an adaptive, parametric model designed to change and react to its environment over time.

FIBERwave is an adaptive model.

Carbon_Lab aims to challenge static processes within design practice and culture. We hope to explore new materials and inspire innovative procedures that push the boundaries of parametric thinking and produce meaningful and high performance results. Our intent is to become an expert resource in working with composites. Doing so requires a high level of digital modeling, fabrication, craft skills and attention to detail. A few of the exciting reasons for exploring the possibilities of composites within architecture are their ability to build lightweight, dynamic and easily variable strength structures.

For more information:

Visit our blog: http://fiberwavepavilion.com

Follow us on our Facebook: https://www.facebook.com/IITFIBERwave

Incentives:

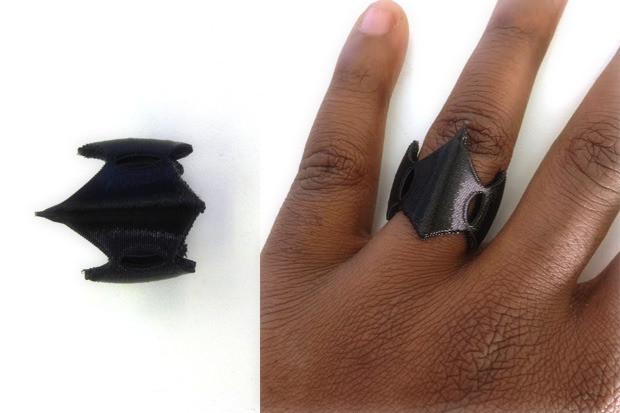

3D Printed Ring
3D Printed Ring

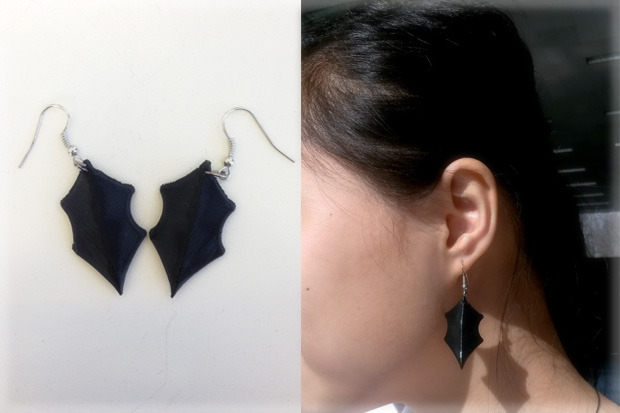

3D Printed Earrings
3D Printed Earrings

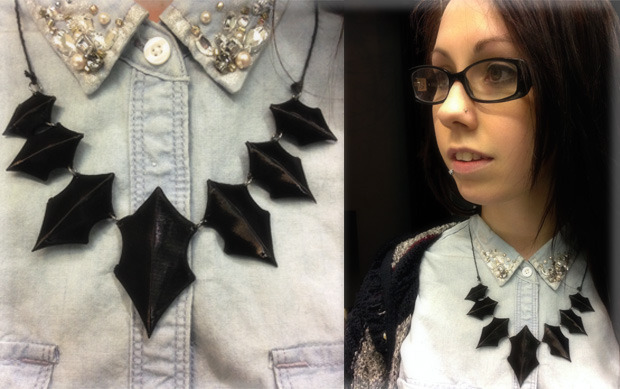

3D Printed Necklace
3D Printed Necklace
T-Shirt
T-Shirt

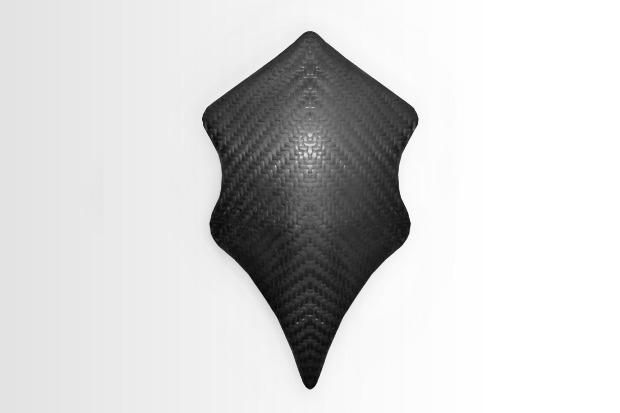

1/6 scale carbon fiber shell replica
1/6 scale carbon fiber shell replica

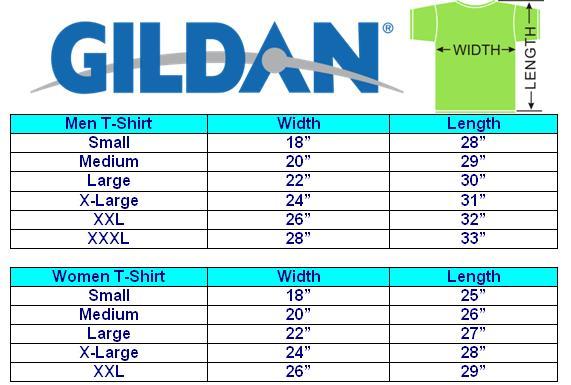

T-Shirt Size Chart
T-Shirt Size Chart
Ring Size Chart
Ring Size Chart


Risks and challenges

Working with composite materials raises many challenges including: material capabilities, IIT fabrication equipment size and cost among others. These challenges have driven an intensive trial and error series of experimentations striving to develop the best processes for generating composite fiber forms economically and efficiently.

With over a semester of experience working with carbon fiber as a performative material our team has developed a proven fabrication process. If fully funded, we are confident we will complete our full scale FIBERwave pavilion.
