A hackable, Arduino™ compatible, good looking robot that will transform the way you learn, play and experiment with mobile machines and a perfect starting point for any aspiring evil genius intent on building an open-source robot army.

We are Creative Robotics Ltd, a little company that makes creative products for robot builders, and we have been working on a robot kit to go with our totally unique HUB-ee™ wheel hub motors.

HUB-ee™ wheels are designed to make robotics a bit easier by wrapping up all the features you need for a robots wheel – motor, gears, sensors and electronics – inside the wheel hub. You can get HUB-ee™ wheels from cool places like sparkfun.org, robotshop or Technobots and build your own platforms, but we thought it would be even better to create our own complete system. After a lot of sketching and designing we are proud to present LEO, the hackable, Arduino™ compatible, great looking robot that will transform the way you learn, play and experiment with mobile machines. LEO is a perfect starting point for any aspiring evil genius intent on building an open-source robot army.

LEO – Flexible, expandable, open source fun

LEO is based around the ATMega32U4 and comes pre-loaded with a USB bootloader so you can use the Arduino™ IDE to program the robot. We called it LEO for two reasons, the processor and core electronics are derived from the Leonardo board, and because Lions are cool!

Flexible

LEO is the product of over a decade of design experience in building autonomous robots, experience that also inspired the creation of our HUB-ee™ wheels. Unlike most small robotic platforms on the market LEO can be reconfigured from simple symmetrical two wheel drive to four wheel drive in a matter of minutes and comes with a pair of modular tactile bumpers at each end for basic obstacle detection.

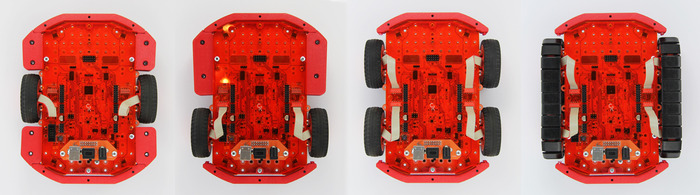

Wheels of fortune: Centre drive, rear drive, skid steering and tank tracks.
Wheels of fortune: Centre drive, rear drive, skid steering and tank tracks.
's video poster
Play

LEO comes with 12 analogue inputs, up to 18 digital inputs, two of which support hardware PWM, an I2C and Serial port, plus the front and rear bumpers, motor current sensors and wheel encoders. A comprehensive software library gives you access to the IO ports as well as interrupt driven, full resolution wheel encoders, PID speed control and interrupt driven bumpers.

Expandable

You can add expansion boards to LEO using our dual ‘Hood’ stacking system. Hoods are a bit like shields, you can use them to add functionality like extra processors, manual controls, sensors and wireless radios – we call them hoods because LEO is a vehicle (and cars have hoods), and also to differentiate them from the shield system. LEO can have two different types of hood at the same time, one for general analog and digital I/O and a second just for serial and I2C communications. This allows you to fit LEO with a Bluetooth, zigbee or Wifi module without interfering with the general purpose I/O.

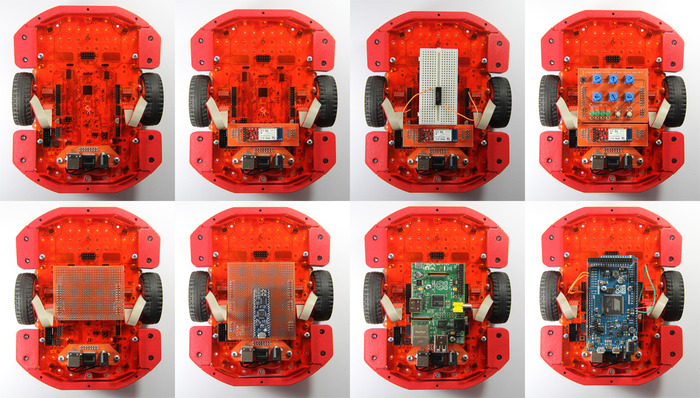

Hoodies (From top left to bottom right) Plain old LEO, Bluetooth Comm Hood, BT Comm Hood plus Breadboard, BT Comm Hood plus RoboRacer Hood, Standard Proto Hood, MBED DIPCortex ARM Hood, Raspberry Pi, Arduino Due.
Hoodies (From top left to bottom right) Plain old LEO, Bluetooth Comm Hood, BT Comm Hood plus Breadboard, BT Comm Hood plus RoboRacer Hood, Standard Proto Hood, MBED DIPCortex ARM Hood, Raspberry Pi, Arduino Due.

 As well as operating as a standalone robot you can also use LEO as a base for a more sophisticated controller like the Raspberry Pi or you can fit a WiFi, bluetooth or Zigbee module for control via WiFi or Smartphone. We have included an Arduino robot compatible connector on the PCB so you can retro-fit the top layer of the official Arduino robot onto LEO and take advantage of the more sophisticated drive configurations and wheel encoder feedback that our HUB-ee™ wheels offer. LEO also comes with a laser cut protective cover sporting a range of mounting holes for the Raspberry Pi, Beaglebone™, standard Arduino™ and the Due/MEGA boards.

Open Source

Leo is an open source robot project, all the PCB schematic design files, CAD files for the bumper and caster wheel will be available for download under the creative commons attribution sharealike license. Software libraries will be available on GitHub.

Fun

LEO is designed to be hacked, customised and generally messed around with. The flexible yet simple design combined with our HUB-ee™ wheels opens up a new world of creative possibilities for experimental robot builders and tinkerers

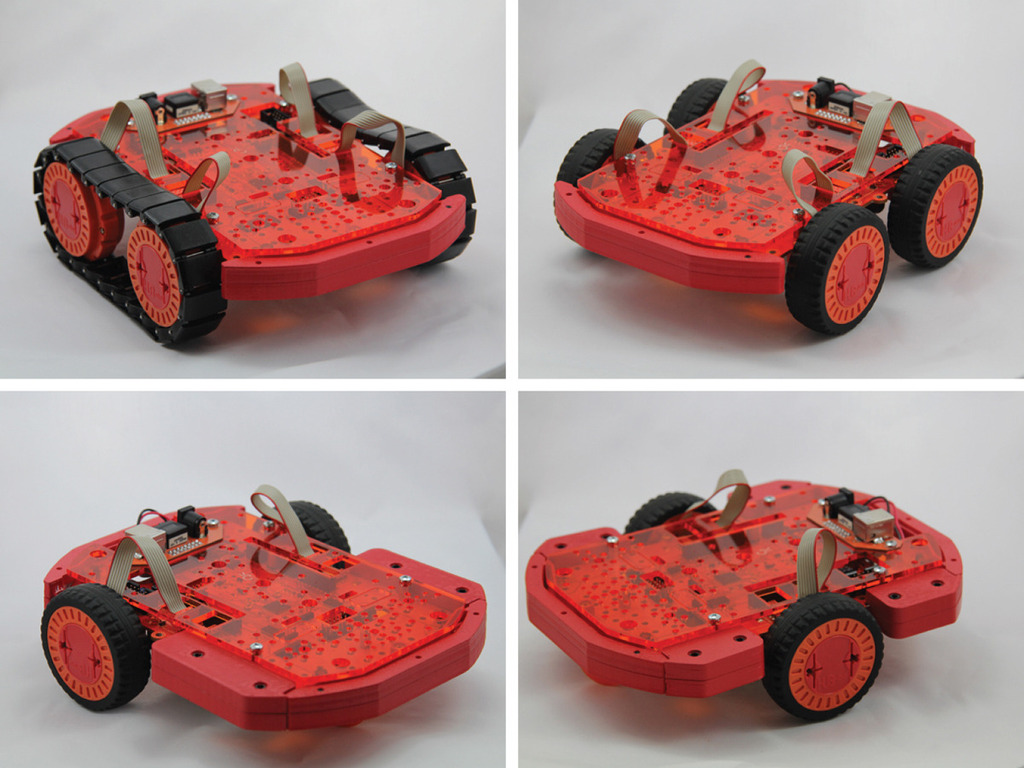

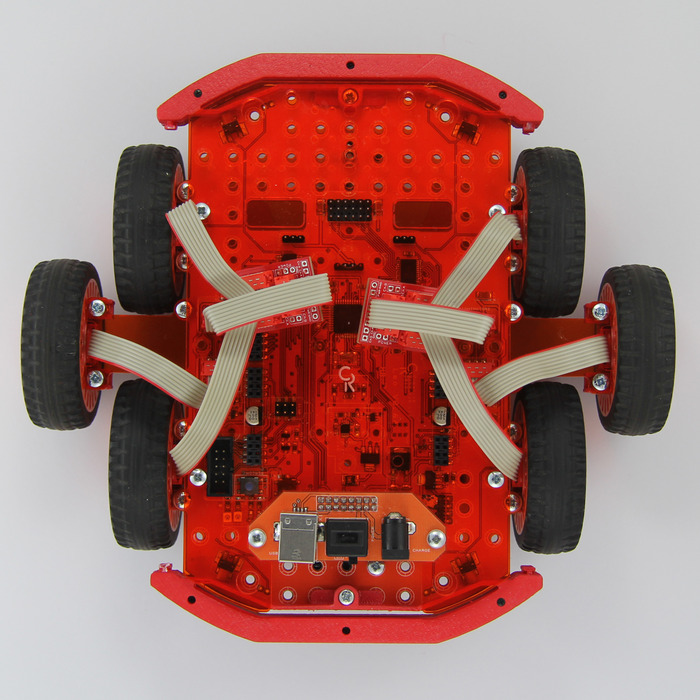

Silly wheel drive - for when four wheels just aren't enough
Silly wheel drive - for when four wheels just aren't enough

The specifications

Here is a rundown of the specifications:

  • ATMega 32U4 processor (With Arduino™ IDE compatible bootloader)
  • 12 digital I/O pins via an I2C port expander:
  • Configurable pull up/down and interrupt capable
  • 6 digital I/O directly connected to the ATMega 32U4:
  • 2 PWM capable pins
  • 4 external interrupt capable pins
  • USART and I2C Serial ports
  • 12 Analog inputs
  • User programmable button
  • "COMM Hood" and "IO Hood" expansion system for general purpose and communication add on boards
  • Dual, four wheel and tracked configurations
  • Front and rear tactile bumpers
  • Dual HUB-ee™ motor plus slave motor connections
  • Dual wheel quadrature encoder reading (128 counts per revolution)
  • Dual motor current feedback
  • Automatic motor disable when powered by USB
  • Comprehensive firmware supporting encoders, external IO, PID Speed control and serial command set
  • Arduino™ robot compatible connector and mounting holes

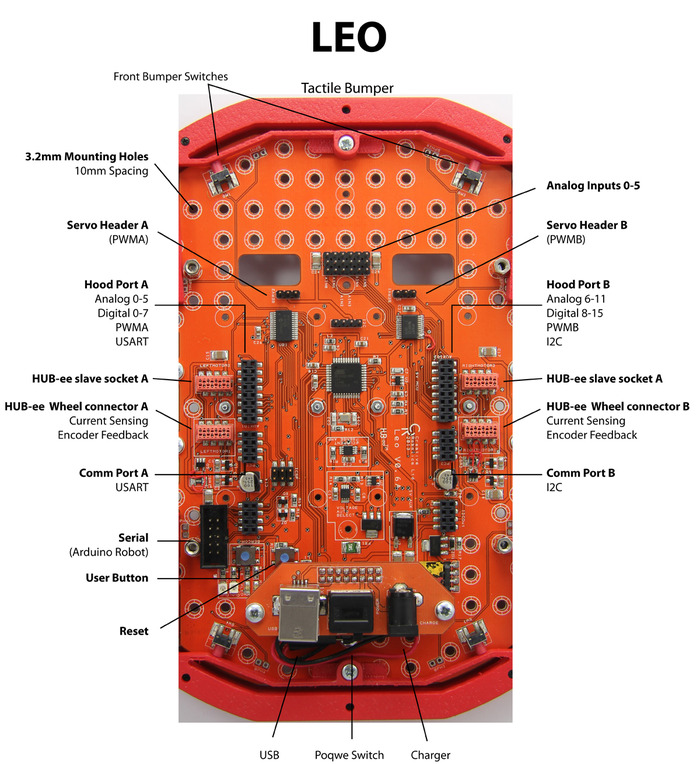

Map of LEO
Map of LEO

Power

Leo will run from 6-12v, and would normally run from 7.2V if you use rechargeable AA batteries or 9V if you use non-rechargeable ones. We will NOT be supplying it with batteries – mainly because it helps reduce the shipping costs and avoids the hassle of complying with import export regulations on chemical batteries.

It has a charger socket so you can plug in a battery charger suitable for AA NiMh cells. We also included an auxiliary power regulator on the PCB that delivers 5V at up to 3 Amps, ideal for any power hungry peripherals you might want to add.

Upgrades

Leo is designed for experimenters and tinkerers. It includes two headers for standard hobby servos which can be used to create pan/tilt systems for mounting sensors or for experimenting with more advances steering using servos or 'Mars rover' style rocker suspension. We even made sure that the battery holders on the LEO pcb can be located in several positions so you can play around with the weight distribution and make room for floor sensors and suspension systems. The expansion hood system can be used to add extra functionality and, in addition to the Bluetooth Comm hood available with some rewards.

The following hoods and other extras will be available when LEO goes on sale:

  • WiFi Comm Hood
  • General Prototyping Hood
  • Button and dial Hood (User buttons and analog controls) • Line follower kit.
  • MBed DIPCortex compatible prototyping Hood
  • Arduino Pro-Mini compatible prototyping Hood
  • Raspberry Pi serial converter
  • Tank Tracks (These are currently available from many on-line stores)

We are working on a few exciting mechanical extras for more sophisticated drive systems such as servo steering and rocker suspension. We will be introducing a growing range of extras like this so you can enhance and expand the possibilities for learning and fun with LEO.

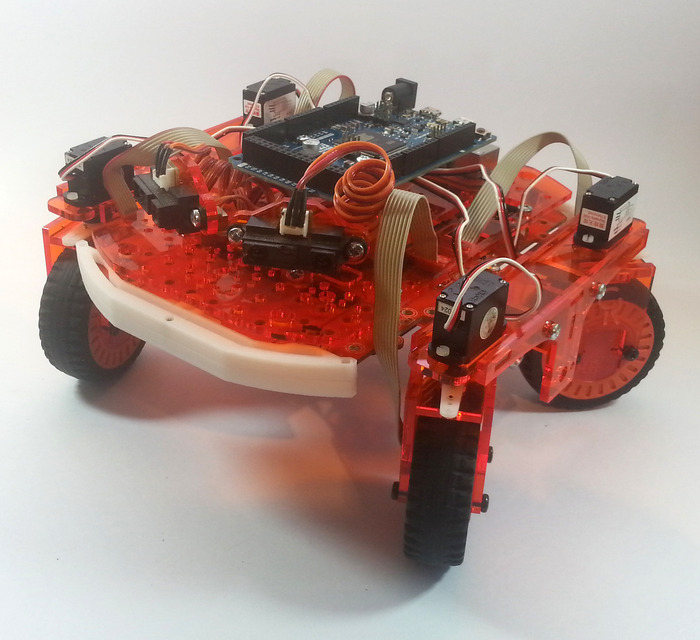

LEO fitted with our experimental ‘Mars Rover’ style rocker suspension and servo steering.
LEO fitted with our experimental ‘Mars Rover’ style rocker suspension and servo steering.

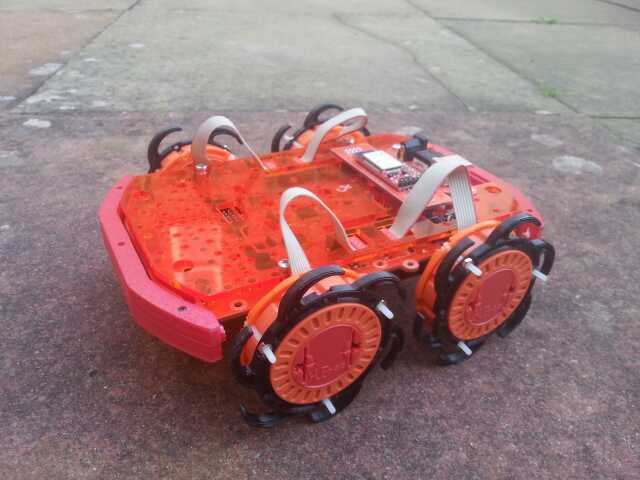

Whegtastic! A set of Whegs made on a 3D printer. CAD files will be available for anyone who wants to print their own.
Whegtastic! A set of Whegs made on a 3D printer. CAD files will be available for anyone who wants to print their own.
Rollerbot - Make your robot omnidirectional with a mecanum wheel add-on for HUB-ee wheels. These are currently in the design stage. (This is a CAD rendering but it is not part of any reward)
Rollerbot - Make your robot omnidirectional with a mecanum wheel add-on for HUB-ee wheels. These are currently in the design stage. (This is a CAD rendering but it is not part of any reward)

Pledges and Rewards

The standard “Token of support” pledges come with a big thank you on our website plus a discount of between 5 and 15% if you decide to buy LEO or any other creative robotics products direct from our on-line store after the campaign ends (the discount can be used once)

Because LEO is designed to customised, expanded and generally hacked for pleasure, for education and whatever other evil genius purpose you have in mind, all pledges for actual hardware come with a 10% discount on any subsequent purchase of add-ons or spare parts for LEO, or any other creative robotics products when bought direct from our on-line store (As above, the discount can be used once)

For those of you who have already bought some of our HUB-ee™ wheels we have a basic pledge for the robot PCB and a set of plastic parts (bumpers and caster wheel) but without any HUB-ee™ wheels.

For those wanting a complete robot the most economical option is a two wheeled LEO, or for a little extra you get all four wheels. The various robot options are also available as pledges with a Bluetooth comm hood included – The Bluetooth hood uses the Microchip (formerly Roving Networks) RN41 bluetooth module and gives you up to 100M range.

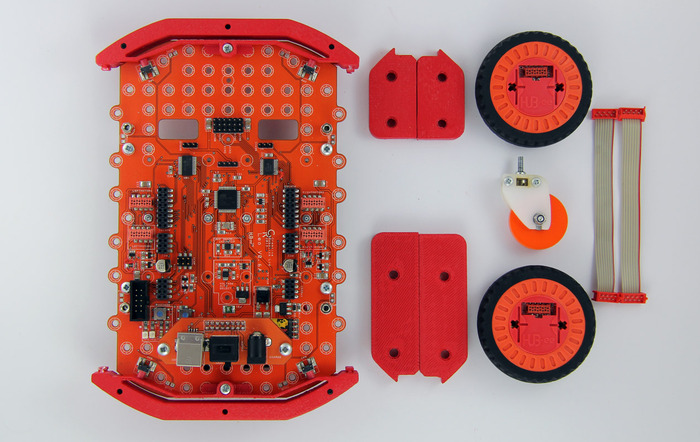

Two wheel Kit
Two wheel Kit

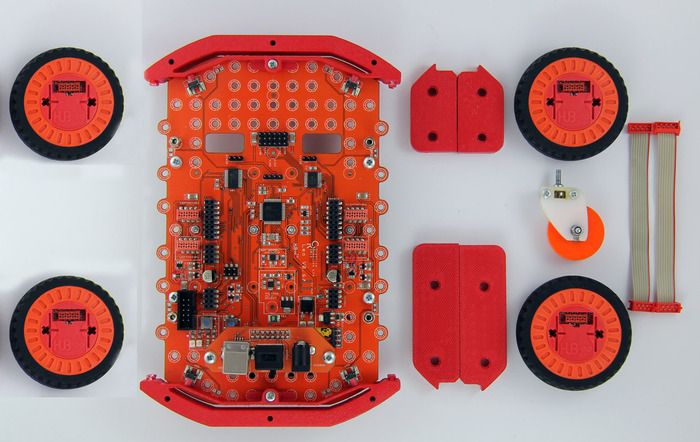

Four Wheel Kit
Four Wheel Kit

An education pack pledge is also available for those wanting to use LEO in teaching, research or workshops. You get six robots, each with four wheels.

For those wanting to burn a little more cash we have a ‘custom robot’ rewards. You get four wheels, prototyping and Bluetooth hoods PLUS we let you customise the PCB silkscreen – You can have your name or any other (non defamatory or offensive) text included on the silkscreen and your own choice of silkscreen and solder resist colours.

Timeline and Production

Once we get funded we have allocated six weeks to do any final PCB design tweaks and get prototypes for testing (this is assuming we have any modifications to make based on feedback by backers) It will also take about eight weeks to get the tooling for the bumpers and caster made up, verified and shipped to the UK, so we actually allow two and a half months because, as we found out with our HUB-ee wheels, things can and do go wrong. The PCB fabrication and assembly process should take less than two months and would happen in parallel with the plastic tooling, then we have to package everything up and start shipping orders ... Sooo, based on previous experience (which has included disappearing shipments, Chinese factories closing for holidays, or going bust and our tooling going AWOL in Shenzhen!) we expect to start shipping four months after the campaign ends, and would be sad and disappointed (not to mention apologetic) if it actually took five.

1. April 2014: Successful campaign end

2. May 2014 Final PCB design sign off and production of test equipment.

3. June 2014 Injection moult tooling sign off.

4. July 2014 Production boards arrive, tooling arrives

5. August 2014 Assembly, testing and packing for shipping to backers.

The LEO PCB’s will be assembled in the UK. The plastic parts will be handled through our expert partners PDC Ltd, who will get them made in China through one of their accredited tooling manufacturers, we will then get them shipped back to the UK where the parts will be produced. The final products will be assembled and tested here at Creative Robotics HQ in Stratford Upon Avon, in the west Midlands, just outside Birmingham.

Shipping

Shipping is included for the UK and an additional £2.00 is added to non UK orders for shipping to the USA, Canada and the EU. We will ship anywhere on the surface of the planet but it may incur an extra charge.

If you pledge and want shipping outside the USA, Canada and the EU please be aware that you may have to pay for any extra shipping charges.

If we get enough pledges from the same country then we can bulk ship to a fulfilment company in the area and you might not have to pay anything extra (But we cannot guarantee that yet)

Stretch Goals

These may change as the campaign moves forward, we have plenty of ideas for enhancements to the basic design, but we aren’t in the habit of making promises until we know we can make it work.

£75,000.00 Smartphone app – we will get our act together and write a proper smartphone app to control LEO via Bluetooth and slip a free prototyping hood in with every robot.

£150,000.00 Everyone gets a free prototyping hood (you can even choose between plain, or one designed for an Arduino Pro-Mini or MBed module) and we will add a whole extra tool for new injection moulded parts like pan tilt servo mounts.
