Redefining expectations with the first low cost large build area (15x15x15) consumer 3D printer. Change is here; accept nothing less. Read more

Houston, TX 3D Printing
Share this project
1,208
backers
$373,916
pledged of $100,000 goal
0
seconds to go

Funded!

This project was successfully funded on August 7, 2014.

Redefining expectations with the first low cost large build area (15x15x15) consumer 3D printer. Change is here; accept nothing less.

Houston, TX 3D Printing
Share this project

About this project

cob·ble    verb   /ˈkäbəl/

:roughly assemble or put together something from available parts or elements.

's video poster
Play

Everything's Bigger In Texas

And the Cobblebot is no exception! But bigger doesn't have to mean more expensive.  Cobblebot is not only one of the lowest cost consumer 3D printers, but it also has one of the largest print areas of any consumer 3D printer available today. With Cobblebot, you can print objects up to 15" x 15" x 15"!

's video poster
Play

We Can Do Better

That's what we told ourselves when we set out to design Cobblebot. And that is exactly what we did. Cobblebot is a professional quality, reliable, and consistent 3D printer.  Cobblebot produces high quality prints which allow consumers to really experience and benefit from what 3D printing has to offer.

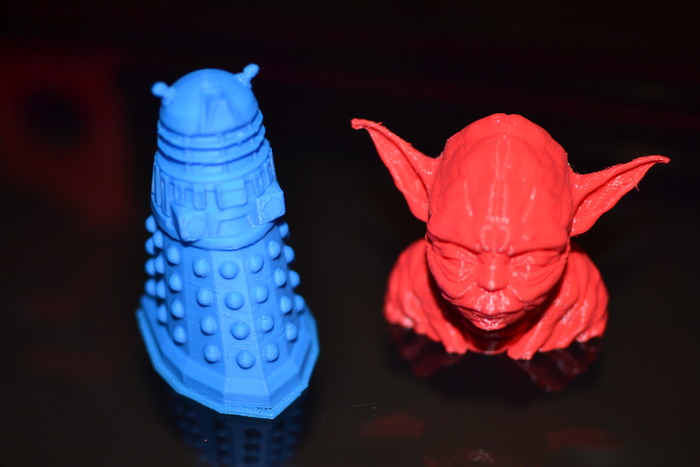

Both Printed @ 150mm/Sec and .2 LH on Cobblebot
Both Printed @ 150mm/Sec and .2 LH on Cobblebot

We Can Make It Affordable

With your help we can bring this work horse of a printer to everyone at the market shaking price of $299. To put that into perspective, our prototypes of Cobblebot cost $1,000+ to build and printers currently on the market with similar build area (+/- 3" all axes) have an average price tag of $3,716.57.

How are we able to get the cost this low?  One of our team members is a business attorney with extensive connections in the manufacturing world and has negotiated rock bottom prices from all of our suppliers.  And that negotiated price keeps falling based on the quantity we order - This is where stretch goals come in - each stretch goal is based on the amount of orders necessary to get the next lower price from our suppliers.  The savings is then shared with everyone with the STRETCH GOAL items (heated bed, filtration case, stepper drivers, etc..)

Help us bring Cobblebot to everyone at an affordable price!

You Can Customize It

Customization is one of the basic tenants of Cobblebot. We don't believe that consumers should be restricted to the color scheme we think looks best, so we've decided to allow our backers to fully customize the color scheme of their Cobblebot!

The following color customizations are available:

Aluminum Extrusions:

Black (Default) - Anodized Black Aluminum
Silver - Polished Silvery Finish
Other - We may be able to add other colors to aluminum extrusions before the Kickstarter project is over - stay tuned for updates!

Plates/Brackets/Connectors/Wheels/Pulleys/Gantries (everything you see in red on our prototypes):

Black, Red, Dark Red, Yellow, Silver, Grey, White, Purple, Light Blue, Blue, Orange, Natural, Green, Army Green, Pink, or Gold. (more colors may be added, stay tuned for updates!)

You can either choose a single color or mix and match - We'll tell you the exact number of pieces and show you where they go and you tell us what color you want them to be on your Cobblebot!

Personal or Business Use

Whether you are looking to put your creativity to work and bring your ideas to life or to start a business, Cobblebot can help you get there. Our large build area (15" x 15" x 15"), fast print speeds (150mm - 250mm / sec), and low cost ($299) makes Cobblebot a market changing consumer 3D printer that can be used for business or personal use.

You dream it, let Cobblebot make it!

Something Unique

One of the unique things about Cobblebot is that it has a completely stationary print area - you heard it, the print bed doesn't move - not up and down, not forward and backwards - it just sits there and provides a solid stable building platform.  We have found that this stationary printing bed has reduced the issues of non-sticking prints significantly.

To do this Cobblebot was designed in a unique way in that all of its axes are connected.  The "Z" Axis holds the "X" Axis and the "X" axis holds the "Y" axis.   This print literally builds straight up with all axes connected.

Material & Filament

Because we're using an all metal hotend that can safely be set to a temperature of 400C, your choice of printing materials is vast!:

ABS, PLA, Nylon, Polycarbonate, Flexible Filament, LayWood, PVA, HDPE.  It is possible that other filaments could be used, but only the above have been tested and confirmed to work.

Assembly And Calibration

Cobblebot can be assembled in 2 hours or less and calibrated in minutes.  It has been constructed as fast as 30 minutes (one of its designers) and as long as 1 hour 58 minutes (12 year old daughter of a team member). You can follow our detailed written instructions (with pictures) or follow along with our video build guide.

Little to no calibration maintenance required. Several prototypes have printed for over 1000 hours without recalibration.

The Final Push

Cobblebot is already a completely functional consumer 3D printer.  But we are still working to improve a few things before we bring it to market.  Many of the parts are being melded into a single piece for increased strength, ease of construction, and simply because it is more aesthetically pleasing. It is highly likely, but not guaranteed, that a few of the parts will allow us to increase the print area one inch on the X and one inch on the Y giving consumers an even larger print area!

All parts will be finalized by the end of July and the injection molds will be ordered come August.  That brings us to an important fact: that all plastic parts will be injection molded so that we provide rock solid and smooth, finished looking parts for everyone.  All parts in the pictures and videos were 3D printed - that's the great thing about 3D printing, it allows you to prototype your designs!  If Cobblebot is such a great printer, why don't we print the parts you ask?  We would love to actually!  But in the quantity we will need for this Kickstarter, it's actually cheaper and takes a lot less time to have the parts injection molded.  So to keep our cost low and provide Cobblebots' to our backers in a timely fashion we have decided to go this route.

The primary improvement that we are still working on is the extruder/hotend combo. Initially, we were going to use readily available solutions - a modified version of the old reliable Greg Wade extruder with either an E3D or Hexagon hotend (this is why you will see these items in some of our videos/pictures).  But ultimately we came back to what we told ourselves when we started this undertaking:  We can do better.

And so we've designed our own extruder and all metal hotend that we plan to release with Cobblebot.  We are extremely close to finishing this task and will have it completed in time to start shipping everyone their Cobblebot per the reward schedule and starting with the Super Early Bird backers, in October.

What The Future Holds

We already have future plans for improvements of Cobblebot and because of it's scalable design, everyone will be able to easily upgrade their Cobblebot with all of our future upgrades!

Cheap Price, Not Cheap Hardware

You might be getting a Cobblebot for a cheap price, but we didn't skimp on the hardware.  You won't find any of these cheap things in a Cobblebot:

  • Smooth rods and cheap bearings
  • Steppers motors so weak they can barely do the job
  • Tiny little LCDs

We use 76 Oz. Nema 17s (x5) - More power than you'll ever need:

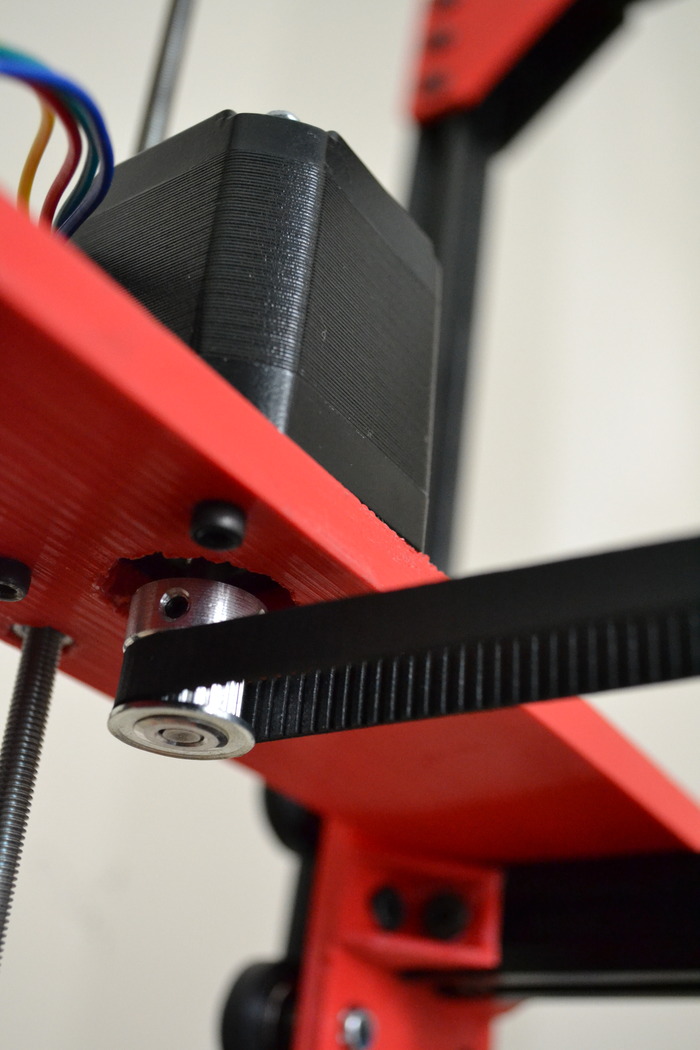

76oz. Nema 17 Stepper Motor used on Cobblebot!
76oz. Nema 17 Stepper Motor used on Cobblebot!

Small build size high quality power  supply:

12V 30A Power Supply for Cobblebot
12V 30A Power Supply for Cobblebot

Linear Rails & Solid Wheels (vs. smooth rods and cheap bearings):

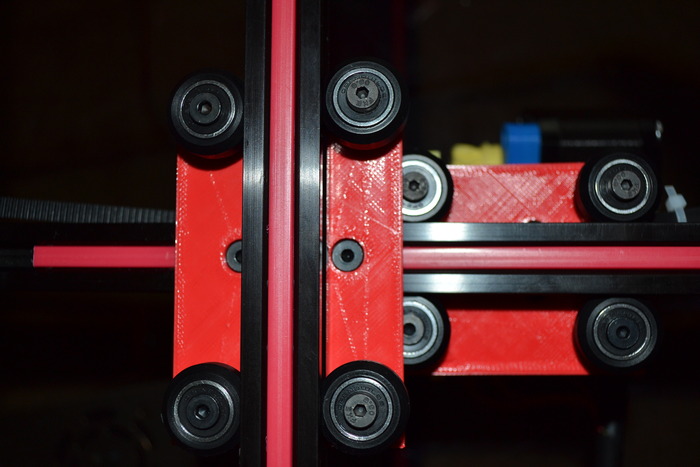

Linear Rails / Solid Wheels on Cobblebot
Linear Rails / Solid Wheels on Cobblebot

All metal hotend so that you can print in the largest variety of filaments:

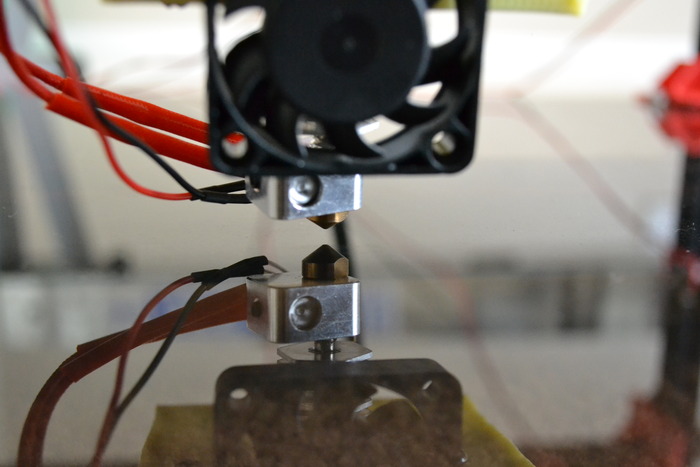

All Metal Hotend for Cobblebot
All Metal Hotend for Cobblebot

Large LCD's:

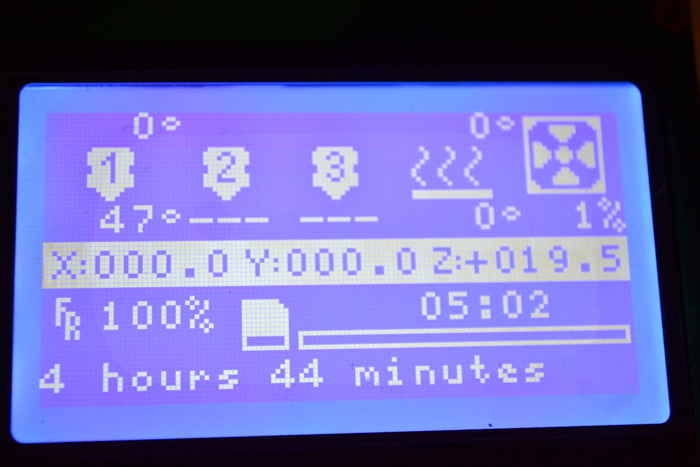

Cobblebot LCD (Time shows the length of a print that just finished - Top numbers 2 & 3 will show temp. for additional hotends when upgraded with them)
Cobblebot LCD (Time shows the length of a print that just finished - Top numbers 2 & 3 will show temp. for additional hotends when upgraded with them)

Technical Specifications

  • Physical Dimensions: 24" x 20" x 20" (609mm x 508mm x 508mm)

  • Build/Print Dimensions: 15" x 15" x 15" (381mm x 381mm x 381mm) (3,375 cubic inches)

  • Layer Height: 50-350 micron

  • Print Speed: Current Max for High Quality prints - 150mm / sec;       Absolute Max - 250mm / Sec

  • Weight: roughly 17 lb (7.7 kg).

  • Compatibility: Windows, Mac, or Linux.

  • Connections: USB & SD Card.

  • Materials supported: ABS, PLA, Nylon, Polycarbonate, Flexible Filament, LayWood, PVA, HDPE.

  • Hotend: All Metal. User Chooses Nozzle Size: .35mm, .4mm (recommended), or .5mm; User chooses Filament Size: 1.75mm or 3.0mm

  • Power Supply: 12V 30A - Proper power supply for your country will be shipped with printer.

  • Stepper Motors (x5):  76  oz. Nema 17's

  • Electronics:  Ramps 1.4 & Arduino MEGA 2560 (Most supported and widely used 3D printer boards)

  • LCD: Included.

  • SD Card Slot: Included

  • Stepper Drivers: A4988 (Default - Allows 1/16 stepping); DRV8825 (Stretch Goal -  Allows 1/32 stepping - also extremely QUIET)

  • Heated Bed: Stretch Goal - 15x15 heatbeds are expensive - but in bulk we can make it happen for everyone.

  • Filtration Case: Stretch goal.

Reward Tier Upgrade the Beast ($799 & $999 reward tiers) include: Heat Bed & Enclosure as standard features.

Production Timeline

Stretch Goals

Risks and challenges

While certainly every project comes with its own unique risks and challenges, all of the big risks and challenges for this project have already been overcome since it started one year ago and the project is currently about 95% complete. The hard development work is already done and the team is 100% invested in its completion over the next few months.

So what risks and challenges are left? Since we've already secured contracts with our vendors, we don't see a lot in the way of risk (other than risk of loss of time and capital that the current team has already invested in this project). We would say that the primary risk/challenge left deals with logistics. While we are extremely hopeful that everyone will love our amazing 3D printer and make this one of the most successful 3D printers to get "Kickstarted" ... we really have no idea how many people will back us, it could be 350 or it could be 35,000 - The more backers the more demand that is placed on both our part vendors and our on assembly team - and while we would do everything to prevent it from occurring, it does increase the chance of shipment delays. Other than the potential for delays (Which we see as highly unlikely - our part vendors are extremely reliable), we don't see much else in the way of challenges.

Learn about accountability on Kickstarter

FAQ

  • Q. Do you ship internationally?
    A. Absolutely. We will ship a Cobblebot anywhere in the world that we aren't restricted by law from shipping to. We are currently unaware of any restrictions that would prevent us from shipping anywhere. However, in the instance that we find ourselves under such a legal restriction, 100% of your pledge would be refunded.

    Q. How much is shipping going to cost?
    A. We wish we had a better answer for you and hope to have one in the next few weeks, but currently this is where we stand on shipping:

    We have two assembly and shipping locations in the world:

    1) Houston, Texas, USA
    2) Hong Kong

    We have not finalized the best method of shipping everyone their Cobblebot in the safest, least damaging way yet and so we don't know what the final package dimensions will be. Additionally, since we are changing some of the parts the actual weight is not yet finalized either (but should be around its current 17 lbs +- 2-3). Since these are the two most important factors in determining shipping, any number we gave would have just been guess work. People could end up getting charged more than their shipping cost (bad for them) or less for it (bad for us). Offering 3D printers at these price points really just leaves little room for guess work, we hope everyone understands.

    Once the final weight and package dimensions are determined we will be able to check to see what the cheapest shipping option is to your location (shipping from Hong Kong will be the cheapest method for MOST people). By default we'll ship via the cheapest method possible, but we'll be getting shipping quotes on expedited shipping options as well for those who want the fastest shipping. Once we have shipping quotes we will provide everyone with their options and you can choose which shipping method you want. The basic rule we go by on shipping is this: Our shipping cost is your shipping cost - there is no markup like many vendors do to make extra money on shipping.

    SHIPPING UPDATE 07/24/2014

    READ FIRST

    ***DO NOT INCREASE YOUR PLEDGES TO COVER SHIPPING***
    *Collection of these costs will be done at a different point in time when prices are locked in.*

    The following is the most recent update we have received from our logistics company. The following applies ONLY to Cobblebot KITS - NOT fully assembled rewards. We have received no updates concerning shipping for fully assembled Cobblebots.

    Based on our current weight, package dimensions, and number of backers our logistics company has given us a preliminary quote - This is NOT GUARANTEED pricing at this time - we do not currently have locked in rates. This is meant only to give our backers an idea of what to expect. Changes in weight, dimensions, number of backers, and/or other logistics factors can easily change these prices. Doubling the number of our backers can easily lower these rates.

    US Backers - Estimated between $35 - $50 (Shipping from Houston, TX)
    EU Backers - Estimated between $75 - $100 (Shipping from Hong Kong)

    We have not been given any estimates concerning shipping to other parts of the world - but were generally informed that the rates would be similar to the shipping to countries in the EU.

    As we receive more information we will update the shipping FAQ, so please stay tuned.

    Thanks everyone for backing Cobblebot!

    Last updated:
  • For individuals who wish to receive more than one Cobblebot:

    Since there is such a large demand for multiple Cobblebot printers - we will add additional reward tiers that include multiple printers. If you change to one of these reward tiers, you will also be changing your estimated delivery date to that of the new reward tier.

    If you do not wish to change your current reward tier to a multi-Cobblebot reward tier, you may simply change your pledge amount to reflect the total cost of the Cobblebot printers you wish to receive and send us a PM to let us know what reward tiers you are pledging for. The number of available rewards that we have set for each reward tier is based around the number we can reasonably deliver by the associated delivery date(s). Therefore, you may only pledge additional money for reward tiers that still have availability (So you can't pledge additional money and say it's for the "Super Early Bird Adopter" reward tier if there is not currently any available rewards at that tier). After receiving your PM, we will make the necessary changes to the number of available rewards at the reward tier you chose.

    Additionally, it is against Kickstarter rules to offer more than 10 of one reward to a backer, so keep that in mind when making your pledge.

    Last updated:
  • Q: Will you be offering the opportunity to upgrade to a heat bed and or dual extrusion even if you don't hit the stretches?

    A: Yes, we will be offering the ability to add upgrades such as a heat bed, dual extrusion, and many other upgrades. Please keep an eye on the FAQ and we will add information on what all upgrades we will be offering and at what price. We are still working out the pricing for upgrades and hope to have that information soon.

    UPGRADE UPDATE 07/24/2014

    READ FIRST

    ***DO NOT INCREASE YOUR PLEDGES TO COVER UPGRADES***
    *Collection of these costs will be done at a different point in time when prices are locked in.*

    Wifi Enabled with ASTROPRINT - This is a hardware and software upgrade specifically for Cobblebot. To learn more about AstroPrint, please see 3DAGOGO's successful Kickstarter @ https://www.kickstarter.com/projects/306530051/astroprinttm-wireless-3d-printing-software… | USA Supporters: $125 / International Supporters: $125 + $10 S/H | AstroPrint will ship separately from Cobblebot.
    Dual Extruder / Hotend - $95
    Filtered Enclosure - $145
    15"x15" Heat Bed + Additional Power Supply & Control - Given the power consumption of the massive heat bed it will be powered by its own power supply and have its own digital display / Control panel - $150

    Last updated:
  • Proprietary Software: None

    Firmware: Marlin

    Software Compatibility: All open source software such as Ponerface/Slic3r, Cura, etc.. is compatible with Cobblebot. Additionally, software like AstroPrint is compatible and can add the "wireless" feature to your Cobblebot.

    Last updated:
