Introducing the CINEIK IR13 camera rail & shoulder support system.Solid, lightweight, portable,100% interchangeable design.Affordable !

Naples, FL Design
Share this project

About this project

Please Read - US domestic shipping is already included and Items will be shipped through USPS.

All international product pledges please add an extra $20 for the IR13 - 1,   $22 IR13 - 2  &  $23 IR13 - 3  &  $48 for the IR13 - SR  or  $49 IR13 - SR x2 systems (please see our picture pricing chart). Shipping Priority Mail International you won't be able to track your package or add insurance (not available).  The only extra option for shipping priority international is Certificate of Mailing (which is a notification email stating the shipment has been shipped), this is included already.

If you would like to track and add insurance to your package (not available in some countries), please contact us for all IR13 systems ( sorry USPS only offers one size international shipping box that can be tracked & insured ).

Please make sure you pick the correct shipping method to avoid a longer estimated time arrival. (Current shipping charges provided are to date and may change depending on shipping carrier. The backer is responsible for any incurring charges).

--------------------------------------------------------------------------------------

     A camera has a short life expectancy this day and age.  We continually upgrade or buy new making the jump more expensive from setup to setup.  Keeping that in mind when designing this system,  you'll have the advantage of upgrading the system anytime at a very affordable price.  If the project is funded, you can expect many more accessories & upgrades.

Introducing the Cineik IR13 rail support systems & IR13 - SR shoulder rig. The IR13 is the first interchangeable multi axis adjustment system.  The system can be adjusted in X, X+, Y, Y+ & Z axis, making it very easy to fine tune.   The system can be assembled or disassembled in minutes to custom fit the camera operator needs.  Our IR13 standard 15mm signature red threaded rails allows a wide variety of accessories to be attached.

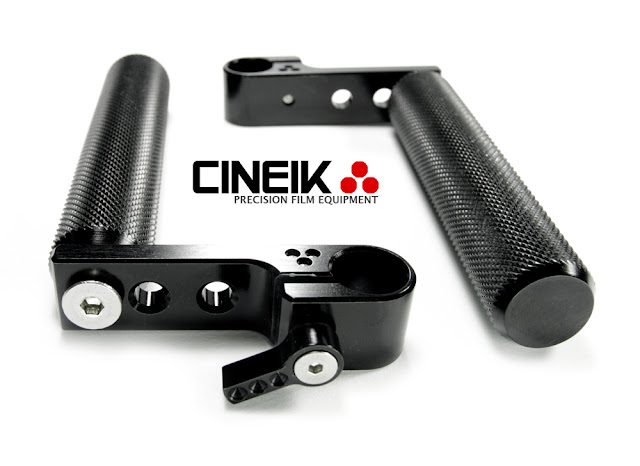

Our IR13 - SR stage 1 shoulder rig can be configured in many ways and also features our all metal knurled single arm hand grips.  The hand grips can be mounted upright / upside down or as a single grip system with a max recommended load of 13lbs - 15lbs.  The shoulder plate can be offset and the rail pushed forward to fit an eye loupe very quickly.

The system can be purchased in a few different assemblies, starting from our simple base line IR13 - 1 system (run and gun) all the way up to our IR13 - 3 studio complete and the IR13 - SR stage 1 shoulder rig.   The IR13 & IR13 - SR system is lightweight, solid, tripod mountable, and very affordable.   Whether you're a Cinematographer/Videographer or Photographer the Cineik IR13 railing systems & shoulder rig will support your work flow.  Note all pieces will be sold individually at a later time for an additional cost so nobody is left out if you're wanting to upgrade at a later time.

 Testing the water here on Kickstarter with our latest project the Cineik hot shoe handle and with the amazing support we have received on this product, we've decided to offer our new railing & shoulder support system to you first!   We've been designing this system for over a year and would like to offer it at a more affordable cost than our projected introductory price.   If we have enough support from backers here we can buy our supplies in bulk and offer the Cineik IR13 rail support system starting at $99 & up and the IR13 - SR at $359.   All pledges include US domestic flat rate shipping, international backers please see our pricing chart.  The follow focus/camera's are not included.

.

What is the Cineik IR13 ?

What does it do ?

The Cineik IR13 (interchangeable rail support system) allows the camera operator to add more accessories that require the space (accessories like a follow focus, external monitor, shoulder plate, railing grips, teleprompter, articulating arm, external mics, matte box and much more).  The IR13 will allow the camera operator to evenly & quickly adjust the systems weight for a "balanced" setup.

A balanced setup will not only add support & accessories to your camera, but aid in leveling a shot & most important preventing offset weight that could lead to injury.  The Cineik IR13 series will fit any camera that supports a 1/4-20" thread.  All IR13 series systems are interchangeable and tripod mountable.  With our signature red threaded rails, you can quickly change the length to attach other accessories. The IR13 can be transformed from a run & gun style setup to a pro setup in just a few twists and turns.

.

Fabrication

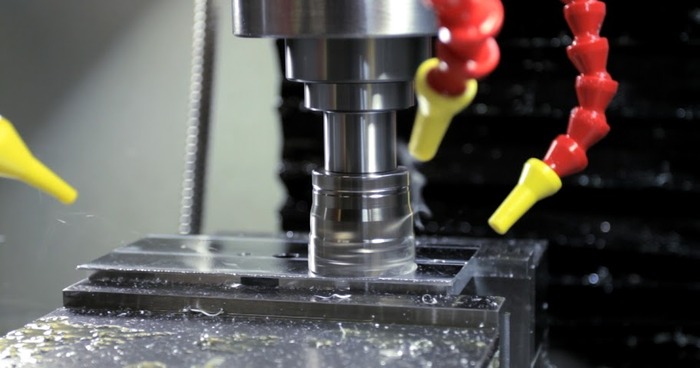

The CINEIK IR13 system is CNC machined from a high strength 6061-T6 aluminum and machined to tolerance.  The product is tumbled for 2 - 3 days for the best surface quality possible.  The Cineik IR13 series systems will be presented in a black and red (threaded rails) anodized finish (type II class 1 mil spec)..

Product Expectations - All products are machined within +/- .0005" - .001" tolerance and fully inspected before shipment.  Our products with threaded holes will have a tighter fit than normal tapped products.  We use form taps that "form" the metal vs cutting taps that leave a weaker wall structure, which are more prone to stripping, cracking, etc... Products with an anodized finish are within .0004" - .001" thick coating, UV protected and sealed with a nickel acetate.  All anodized products meet mil spec type II class 1 anodizing.

Packages / Rewards (pledge level kits)

With your pledge you'll be pre ordering a Cineik IR13 / shoulder support system helping us purchase everything needed in bulk keeping the price affordable (material, tooling, anodizing, labor, etc..).

Please Read - US domestic shipping is already included and Items will be shipped through USPS.

All international product pledges please add an extra $20 for the IR13 - 1, $22 IR13 - 2 & $23 IR13 - 3 & $48 for the IR13 - SR or $49 IR13 - SR x2 systems (please see our pricing chart). Shipping Priority Mail International you won't be able to track your package or add insurance (not available).  The only extra option for shipping priority international is Certificate of Mailing (which is a notification email stating the shipment has been shipped), this is included already.

If you would like to track and add insurance to your package (not available in some countries), please contact us for all IR13 systems ( sorry USPS only offers one size international shipping box that can be tracked & insured ).

Please make sure you pick the correct shipping method to avoid a longer estimated time arrival.    (Current shipping charges provided are to date and may change depending on shipping carrier. The backer is responsible for any incurring charges).

The IR13 can be purchased in a few different packages, please see our illustrated picture price chart for packages below.  Note all pieces will be sold at a later time for an additional cost so nobody is left out.

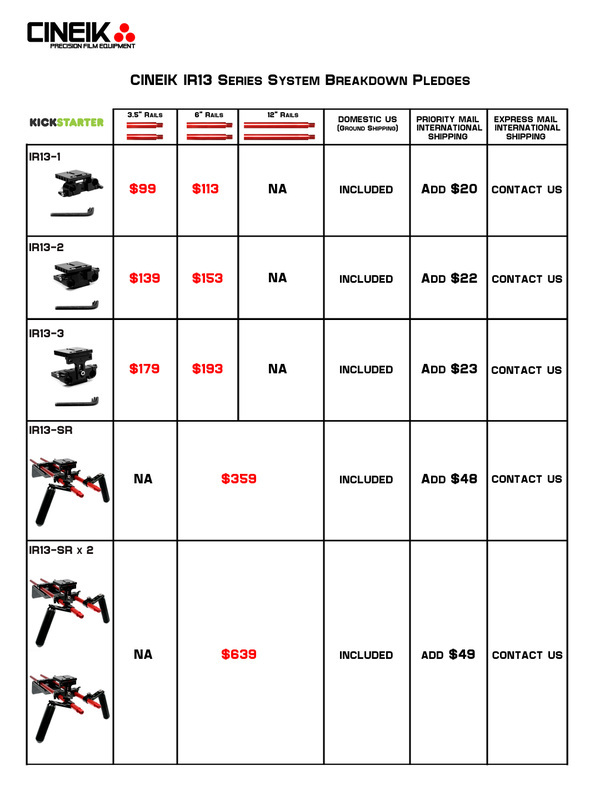

IR13 Series Pledge Prices Chart

________________________________________________________________

Introducing the Cineik IR13 Series System

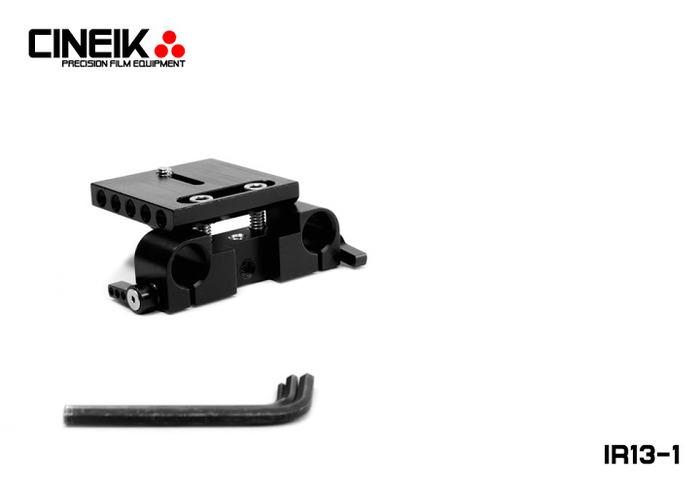

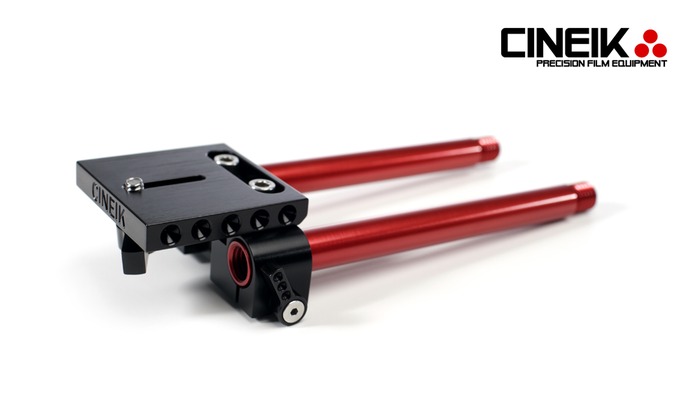

Cineik IR13 - 1 is our run & gun style system.  This system features  X & Y axis adjustment and can be mounted to a tripod. The system is extremely strong, lightweight and can be stored just about anywhere.

- Top plate

- 1x 1/4-20" camera mounting thumb knob & custom screw

- Rail Clamp

- 2x 8-32 thumb knobs

- A pair of our threaded custom rails

- Stainless steel hardware

- Adjusting allen keys

Domestic (USA)

 - 3.5" rail setup $99

 - 6" rail setup $113

International

 - 3.5" rail setup $119

 - 6" rail setup $133

.

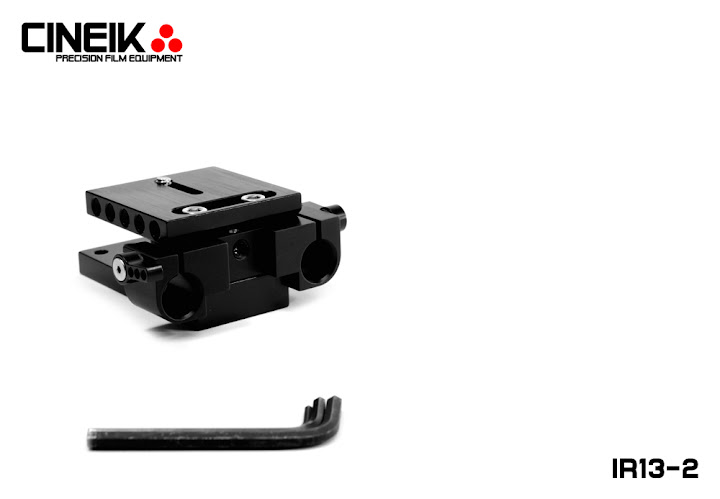

Cineik IR13 - 2 option offers the same as our IR13-1 system, but with an added base plate that features Y plus axis adjustment and 7 fully form threaded holes.  The base plate can be mounted to a tripod or any accessory that supports a 1/4-20" thread.  The top side of the base plate can be used as a small 1/4-20" accessory hub.  Mount an articulating arm, microphone, external monitor, matte box, etc...  The base plate can also be mounted forward or backwards to fit just about any mounting situation.

- Top plate

- 1x 1/4-20" camera mounting thumb knob & custom screw

- Rail clamp

- 2x 8-32 thumb knobs

- Bottom base plate with 7 threaded 1/4-20 holes

- A pair of our threaded custom rails

- Stainless steel hardware

- Adjusting allen keys

Domestic (USA)

 - 3.5" rail setup $139

 - 6" rail setup $153

International

 - 3.5" rail setup $161

 - 6" rail setup $175

.

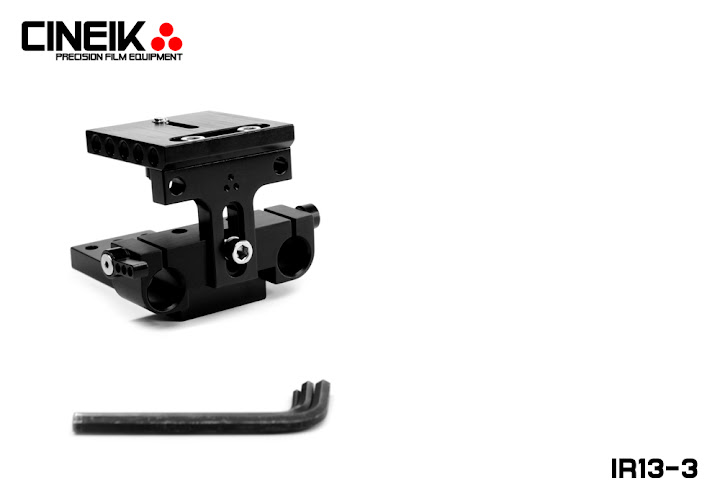

Cineik IR13 - 3 is our complete rail support system option.  The IR13 - 3 offers the same as the IR13 - 1 and IR13 - 2 system with the option of a rail height extension bar.  The rail height extension bar adds more flexibility to the system in the Z axis making easier to fit accessories that require the extra little bit of height.  With the complete IR13 - 3 system you'll have fully X, X+, Y, Y+,  &  Z adjustable setup to fine tune your rig.

- Top plate

- 1x 1/4-20" camera mounting thumb knob & custom screw

- Rail clamp

- 2x 8-32 thumb knobs

- Bottom base plate with 7 threaded 1/4-20 holes

- Rail height adjustment bar

- A pair of our threaded custom rails

- Stainless steel hardware

- Adjusting allen keys

Domestic (USA)

 - 3.5" rail setup $179

 - 6" rail setup $193

International

 - 3.5" rail setup $202

 - 6" rail setup $216

.

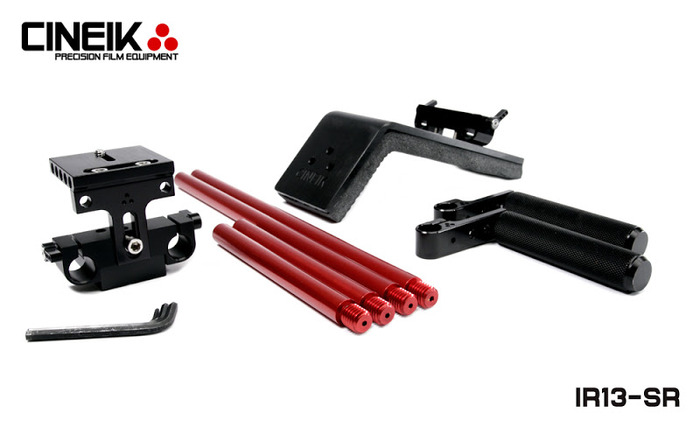

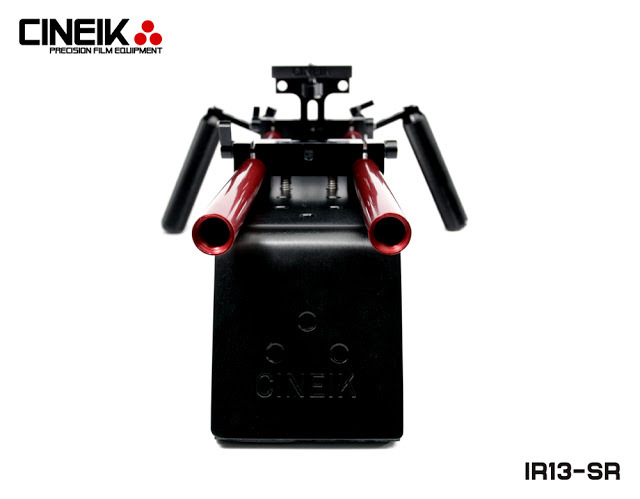

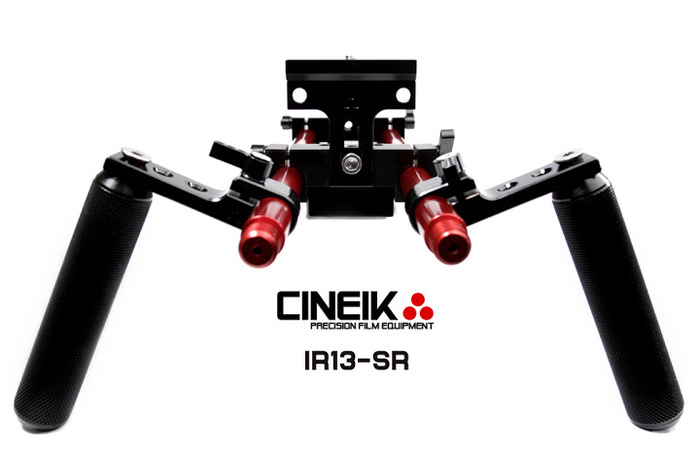

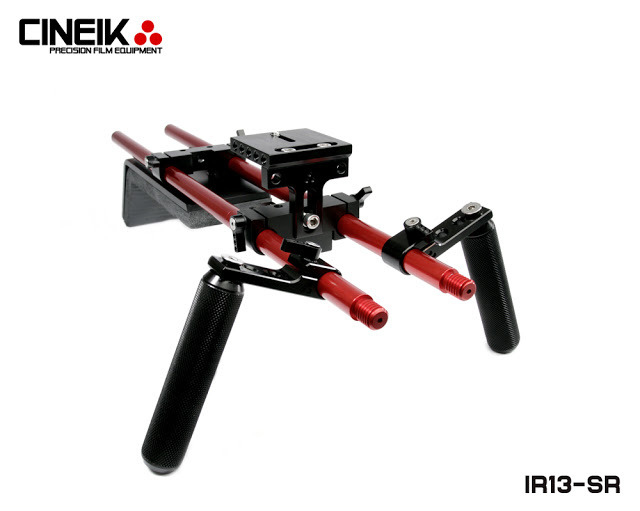

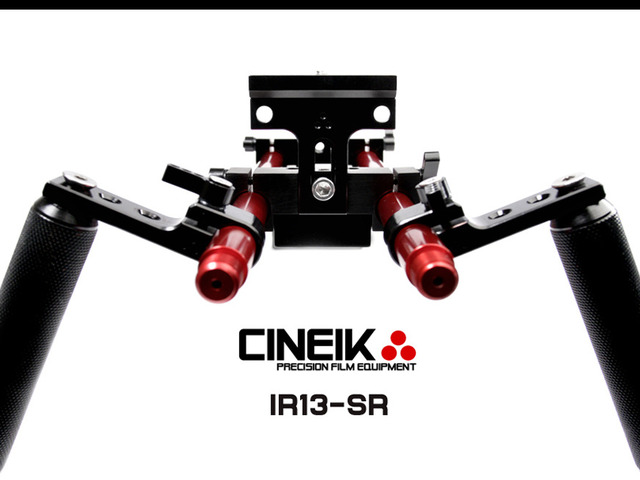

Cineik IR13 - SR features the IR13 - 3 rail support series plus our shoulder rig and diamond knurled handle grips + clamps.   With the IR13 - SR shoulder plate, grips and the IR13 - 3 X, Y and Z adjustments you can easily fine tune the balance of your shoulder system to better stabilize your shots and prevent offset weight that could lead to injury.  The shoulder plate can be mounted forward or backward to better support high or low end shooting.  The hand grips can be mounted upright / upside down or as a single grip system with a max recommended load of 13lbs - 15lbs. The shoulder plate can be offset and the rail pushed forward to fit an eye loupe very quickly.

- Top plate

- 1x 1/4-20" camera mounting thumb knob & custom screw

- Rail clamp

- 6x 8-32 thumb knobs

- Bottom base plate with 7 threaded 1/4-20 holes

- Rail height adjustment bar

- A pair of our signature threaded custom red rails in 6" & 12"

- Shoulder plate

- Knurled all metal hand grips & clamps

- Stainless steel hardware

- Adjusting allen keys

Domestic (USA)

 - 6" & 12" rail setup $359

International

  - 6" & 12" rail setup $407

.

.

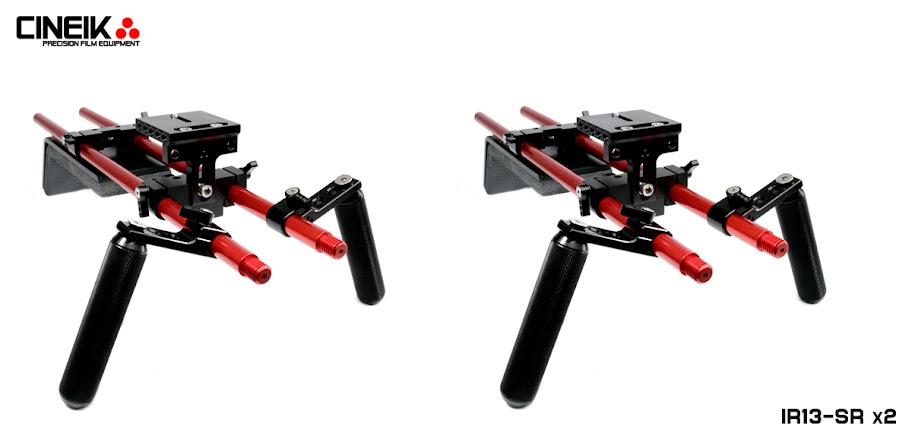

Cineik IR13 - SR x2 features two shoulder support systems with a savings of $80 off if you were to buy them individually.  This is the perfect solution if you own two camera's, business or if you and a friend want to split it.

- x2 Top plates

- x2 1x 1/4-20" camera mounting thumb knobs & custom screws

- x2 Rail clamps

- 12x 8-32 thumb knobs

- x2 Bottom base plate with 7 threaded 1/4-20 holes

- x2 Rail height adjustment bars

- Two pair of our signature threaded custom red rails in 6" & 12"

- x2 Shoulder plates

- Two pair of knurled all metal hand grips & clamps

- Stainless steel hardware

- Adjusting allen keys

Domestic (USA)

 - 6" & 12" rail setup $639

International

  - 6" & 12" rail setup $688

.
