Create GLOWING PLANTS using synthetic biology and Genome Compiler's software - the first step in creating sustainable natural lighting
Thank you to all of our backers for making the Glowing Plant Kickstarter campaign the success that it was. We are deeply appreciative of the trust and support you have shown us. You helped us put Synthetic Biology on the crowdfunding map, now it’s up to us to create and deliver the Glowing Plant.
Missed the Kickstarter campaign? You can still support the project with donations at our store, where some of the rewards remain available. We will update this store with other items like the open-source DNA parts we are synthesizing when they become available in late 2013. Donations at this store will count towards our stretch goals until the end of June.
As seen on:
What we are offering:
All backers from the USA who back the project with $40 or more will receive seeds to grow a glowing plant at home. Once we have the plant, it is just a matter of breeding enough offspring to grow seeds for all backers. You can expect around 50-100 small seeds in the packet.
***Update - We met our stretch goal. If you back the project at the $150 we will ship you a glowing rose as well when it's completed. Delivery will be 6-12 months after the delivery of the glowing plant***
For those outside the USA we are waiving additional international shipping charges to compensate for not being able to send you the seeds. If you get the book and write to us after the project we will also send you a vial of the DNA that way if it's legal in your country (your responsibility to check) and you can source the other ingredients (eg Agrobacterium) you can follow the instructions in the book and make your own plant.
* See Risks and Challenges section regarding release of seeds.
The team making this happen
Help Spread the Word about the Glowing Plant project:
·Follow us on twitter (http://twitter.com/glowingplant)
·Like us on Facebook (http://facebook.com/glowingplant)
·Email your friends our blog (http://www.glowingplant.com)
·Tweet about the project - click here for a sample tweet!
Please back the project and tell everyone know to help spread the word!
Thank You for Your Support - We Hope You'll Join Us in Making this Project Successful!

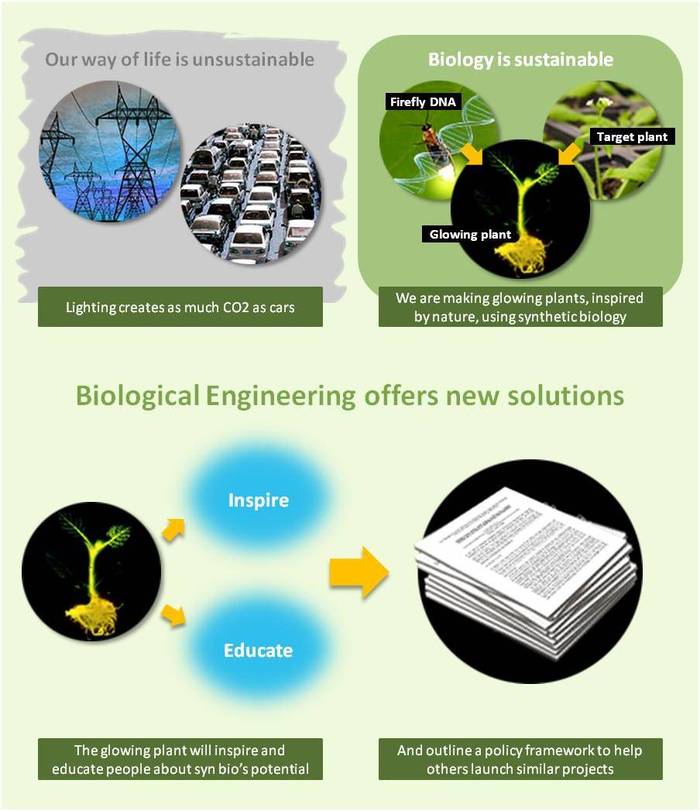

What is Synthetic Biology?
All living organisms contain an instruction set that determines what they look like and what they do. These instructions are encoded in the organisms’s DNA — long and complex strings of molecules embedded in every living cell. This is an organism’s genetic code (or “genome”).
Humans have been altering the genetic code of plants and animals for millennia, by selectively breeding individuals with desirable features. As biotechnologists have learned more about how to read and manipulate this code, they have begun to take genetic information associated with useful features from one organism, and add it into another one. This is the basis of genetic engineering, and has allowed researchers to speed up the process of developing new breeds of plants and animals.
More recently we have learnt how to make new sequences of DNA from scratch. By combining these techniques with the principles of modern engineering, scientists can now use computers and laboratory chemicals to design organisms that do new things.
This is the essence of synthetic biology and it’s potential is tremendous – we can use it to produce cheaper, more efficient biofuels, to excrete the precursors of medical drugs or create new plants which naturally glow.
Why do we need your help?
We’ve already invested our own time and money into the project developing the DNA designs, finding partners to help execute and investigating the legal ramifications but don’t have the financial resources to print the DNA and complete the transformations ourselves.
By backing this project you can help create the world’s first naturally glowing plant available to the public. Inspire others to become interested in synthetic biology and receive some awesome rewards in the process.
What will you use the funds for?

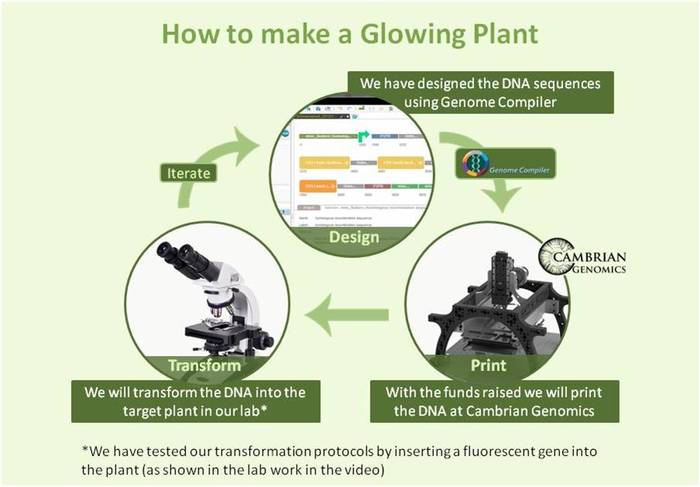

We are using Synthetic Biology techniques and Genome Compiler’s software to insert bioluminescence genes into Arabidopsis, a small flowering plant and member of the mustard family, to make a plant that visibly glows in the dark (it is inedible).
Funds raised will be used to print the DNA sequences we have designed using Genome Compiler and to transform the plants by inserting these sequences into the plant and then growing the resultant plant in the lab.
Printing DNA costs a minimum of 25 cents per base pair and our sequences are about 10,000 base pairs long. We plan to print a number of sequences so that we can test the results of trying different promoters – this will allow us to optimize the result. We will be printing our DNA with Cambrian Genomics who have developed a revolutionary laser printing system that massively reduces the cost of DNA synthesis.
Transforming the plant will initially be done using the Agrobacterium method. Our printed DNA will be inserted into a special type of bacteria which can insert its DNA into the plant. Flowers of the plant are then dipped into a solution containing the transformed bacteria. The bacteria injects our DNA into the cell nucleus of the flowers which pass it onto their seeds which we can grow until they glow! You can see this process in action in our video.
Once we have proven the designs work we will then insert the same gene sequence into the plant using a gene gun. This is more complicated, as there's a risk the gene sequence gets scrambled, but the result will be unregulated by the USDA and thus suitable for release.
Funds raised will also be used to support our work to develop an open policy framework for DIY Bio work involving recombinant DNA. This framework will provide guidelines to help others who are inspired by this project navigate the regulatory and social challenges inherent in community based synthetic biology. The framework will include recommendations for what kinds of projects are safe for DIY Bio enthusiasts and recommendations for the processes which should be put in place (such as getting experts to review the plans).

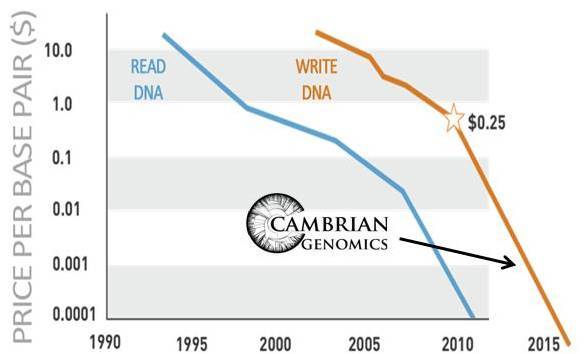

Recent advances in the field of synthetic biology, such as Genome Compiler’s software and Cambrian Genomics DNA printing hardware, have brought the cost and complexity of genetically engineering new organisms within reach of amateurs:
As the chart shows, the costs continue to fall, and within a few years thousands of DIY Bio enthusiasts will be using Citizen Science to inspire their own creations. We want to create a signature project which inspires them and demonstrates to the world what’s already possible with a little creativity and imagination.
Is this legal?
Yes it is! There are three federal agencies which regulate Genetically Modified organisms in the US, each with a different remit for public safety:
- USDA regulates plant and agriculture impact through APHIS and are the most relevant for our project. We've been in touch with them to understand and address their main concerns which are mainly related to the introduction of potential plant pests. After more than 15 years working with genetically engineered crops they have established a set of guidelines for what needs additional testing, and what doesn't. So long as we meet all their requirements we can safely release the plant. One of their inputs was that we should use the gene-gun technique to transform our plants, instead of Agrobacterium.
- EPA regulates new uses of pesticides - many GMO's introduce pesticide or herbicide resistance to their plants (either as a selection agent or as an intended outcome). We have elected not to do this, as we can use the glowing effect as a marker, so will not need to go through their testing procedures.
- FDA regulates food and feedstock implications and requires extensive testing to make sure the product is safe if this is the case. Because our plant is strictly ornamental and not for consumption by animals or humans we do not have to go through this testing.
We will continue to liaise with the federal agencies, especially APHIS, as the project develops to ensure we are compliant with the frameworks they have put in place to protect the public.
Is this safe?
The head of Genetics at Harvard Medical School, George Church, who works extensively on engineering biosafety described our project as 'as safe as it gets'. We are introducing non-pathogenic, non-toxic, well categorized genes to a model plant which is well understood by biologists and which will not survive very well in the environment.
In the lab we will comply with all NIH guidelines on recombinant DNA research. Our work is graded at Biosafety Level 1, which is the lowest level of risk.
What is Genome Compiler?
Genome Compiler is software, designed by Omri and his team, which allows a user to easily design genetic sequences and order them online. The software includes a large database of genetic parts and a beautiful interface so you can easily combine them to create your desired results.
What is Cambrian Genomics?
At Cambrian Genomics Austen and his team make the first commercial hardware/systems for laser printing DNA. Presently, researchers in academia and industry order or clone >$1b/year of DNA. Cambrian plans to deliver high quality sequence verified DNA to buyers in this existing/growing worldwide market.
What is Project Cyborg?
Currently being developed by the Bio/Nano/Programmable Group at Autodesk Research, Project Cyborg is a cloud-based meta-platform of design tools for programming matter across domains and scales. Project Cyborg provides elastic cloud-based computation in a web-based CAD shell for services such as modeling, simulation and multi-objective design optimization. Project Cyborg allows individuals or groups to create specialized design platforms specific for their domains, whatever their domains happen to be, from nanoparticle design to tissue engineering, to human-scale self-assembling manufacturing.
Who made your video?
The video was made by Rick Symonds, who is based on San Francisco. You can see more of his work and contact him at www.ricksymonds.com.
Video Music: "The March" by LIGHTS & MOTION Courtesy of Deep Elm Records www.deepelm.com/lightsandmotion
Where can I get more information?
Want to know more? Just give us a call +1-415-779-6333 or email antony at glowing plant dot com.
Risks and challenges Learn about accountability on Kickstarter
We are confident that we can deliver on the rewards we are offering backers. There are two main risks to the project:
We have put every care into the designs of the DNA but we may not get the glowing result we (and you) hope for. Biology is complicated and while we are confident of getting some glowing effect (it's been done before in a research lab) we may not get a strong effect as we (or you) want or it may be unreliable. We hope to have a plant which you can visibly see in the dark (like glow in the dark paint) but don't expect to replace your light bulbs with version 1.0. The more money we raise, the more we can refine our designs and the stronger the effect we will get so please tell all your friends about the project.
2) Emerging regulation
We have received written indication from USDA/APHIS that our plant will not require a permit. However this is a new field and it is possible that more restrictive regulations are implemented during the project that will require us to get a permit which would delay the release of the seeds or possibly block the release altogether.
The risk of this is very low for a number of reasons:
1) The plant we are using is not native to the United States and has few relatives, thus the risk of pollen crossing species is very small. This happens with things like corn which have wild relatives, our's don't. 2)Arabidopsis, our plant, self-pollinates. Wind and insect pollination are much higher risk behaviors 3)The genes in question impose a significant metabolic cost on the plant, and thus provide a selection disadvantage. Many engineered crops are designed to be more resilient and thus if there is cross-pollination they outperform the natives. Our plants do the exact opposite and even if there was cross-pollination they would under-perform other plants
If you want to geek out on the full growing conditions you can read about the plant here: http://abrc.osu.edu/seed-handling The main points are that temp should be around 22C (71F). Light should be bright but not direct sun, and less than 12 hours per day for the first 2 months. Soil should be kept moist but NOT soggy (specific frequency will depend on what stage the plant is at.). We will send full (non-technical) instructions on the best way to tend and care for the plant with the seeds. The plant should live initially for about 3-4 months but if you care well for it it will produce seeds which you can plant to produce more.
seconds to go
Pledge $5 or moreYou selected
You'll get a 2"x3" sticker showing the worlds first glowing plant to put on your phone or laptop! And if that's not enough, your name will be added to our website and book as a supporter.Estimated delivery:Add $2 USD to ship outside the US
Pledge $25 or moreYou selected
SUPPORTER - inspire others by showing off this snazzy t-shirtEstimated delivery:Add $10 USD to ship outside the US
Pledge $40 or moreYou selected
1000 backers All gone!

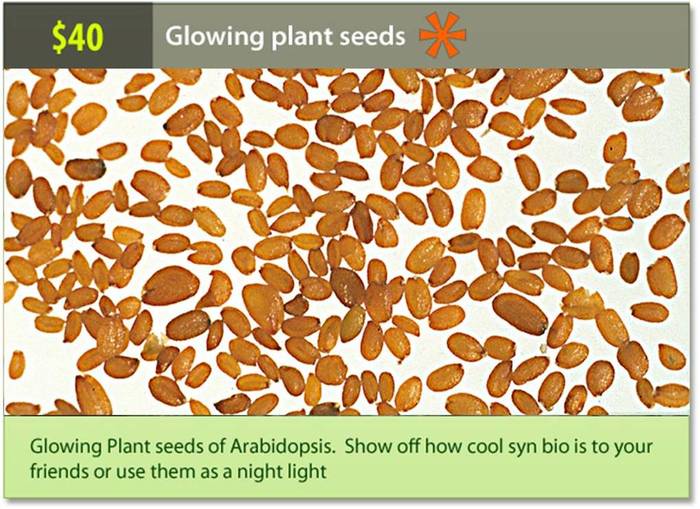

GLOWING PLANT SEEDS. Grow your own glowing plant at home, includes full instructions for how to tend and care for itEstimated delivery:Ships within the US only
Pledge $40 or moreYou selected
4699 backers Limited (301 left of 5000)
GLOWING PLANT SEEDS Batch II. Grow your own glowing plant at home, includes full instructions for how to tend and care for itEstimated delivery:Ships within the US only
Pledge $65 or moreYou selected
rootcupPLANTER - perfect for growing your Glowing Plant seeds. BONUS: Glowing plant seedsEstimated delivery:Ships within the US only
Pledge $65 or moreYou selected
199 backers Limited (1 left of 200)

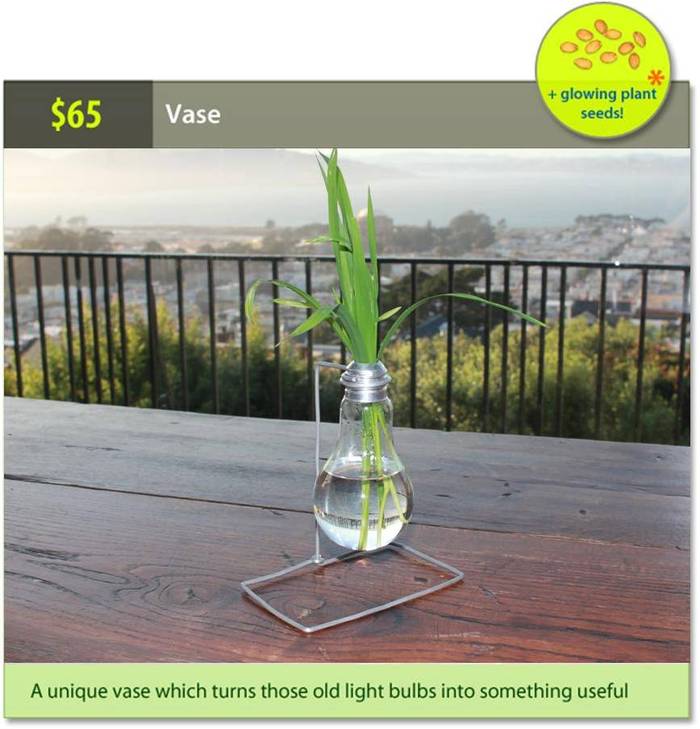

Recycled light bulb vase that you can show off to your friends BONUS: Glowing plant seedsEstimated delivery:
Pledge $80 or moreYou selected
277 backers Limited (223 left of 500)

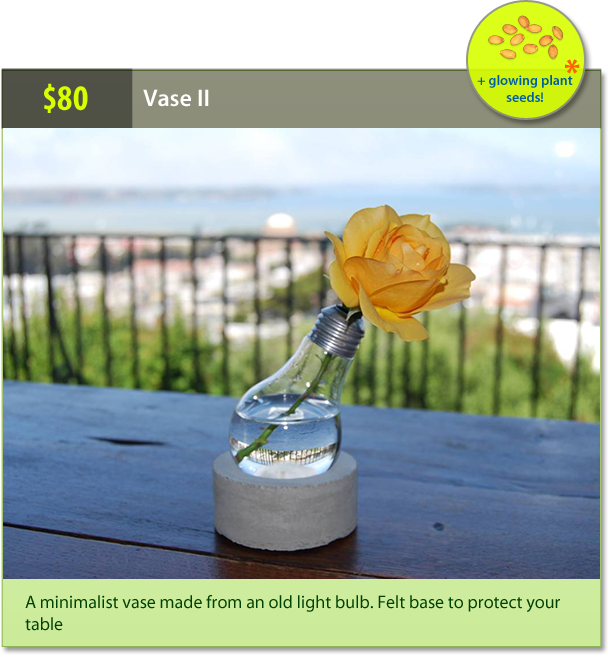

Vase II: A minimalist vase made from an old light bulb. BONUS: Glowing plant seedsEstimated delivery:
Pledge $90 or moreYou selected
INSPIRE YOURSELF: Beautiful printed photo book detailing the process for how we make the plant. BONUS: Glowing plant seedsEstimated delivery:
Pledge $120 or moreYou selected
100 backers All gone!
EARLY BIRD. Be the first to get an actual glowing plant.Estimated delivery:Ships within the US only
Pledge $150 or moreYou selected
GLOWING PLANT. We will grow and ship you an actual glowing arabidopsis plant. Use it as a nightlight or show your friends how cool synthetic biology isEstimated delivery:Ships within the US only
Pledge $250 or moreYou selected

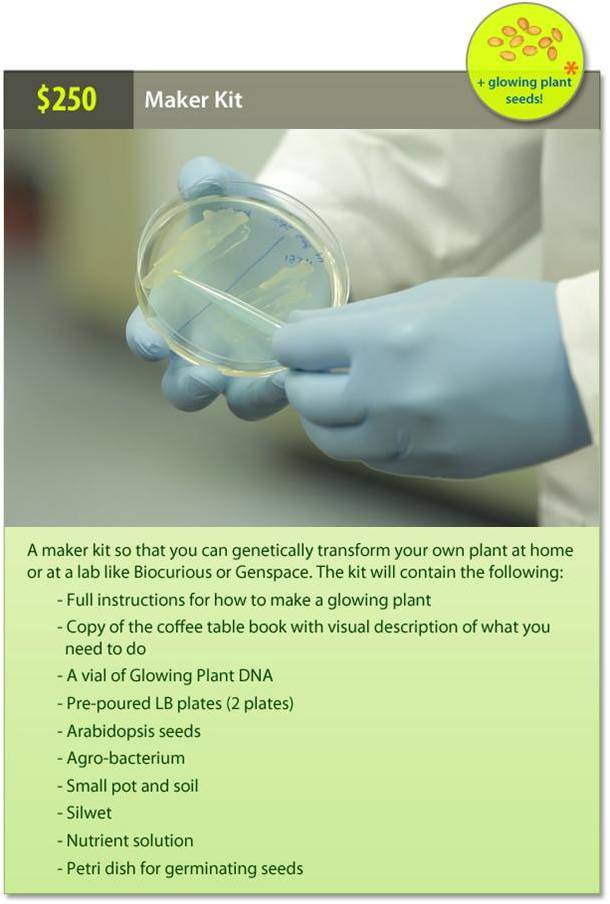

DIY MAKER KIT: A copy of the book, a full set of instructions and all the ingedients you need to transform your own plant at home, in your lab or at school. BONUS: Glowing plant seedsEstimated delivery:Ships within the US only
Pledge $500 or moreYou selected
BE CREATIVE: declare your love for someone or leave a message for your kids to decode in ten years time!! You will receive a vial containing a tweet size (140 characters) of your desired message printed in DNA! We will use Craig Venter's ASCII->DNA translation table to transform the message to DNA and send you a vial with 4ug of that synthesized DNA. BONUS: Glowing plant seedsEstimated delivery:
Pledge $5,000 or moreYou selected
2 backers Limited (8 left of 10)
TEACH A CLASS: One of the team members will come to visit you and spend a day teaching about the project. This includes a hands on workshop where you will get to transform your own plants, ingredients included for up to 10 groups of 3-4 students to do the transformation.Estimated delivery:Ships within the US only
Pledge $10,000 or moreYou selected
1 backer Limited (4 left of 5)
BE A PART OF HISTORY: Your name (or anything under 30 characters) will be written, in DNA, into the glowing plant genome!! As part of the DNA construct we will design and synthesize, we will add a watermark section using the same methods used by Craig Venter's team. We will add the names or any remarks from this group of backers in DNA to the final design and do PR around the messages - a unique opportunity to spread your message! BONUS: Glowing plant seedsEstimated delivery:
