Ultra low cost development platform for micro-robotics which can be easily assembled with through-hole components and a soldering iron.
Ultra low cost development platform for micro-robotics which can be easily assembled with through-hole components and a soldering iron.
709 backers pledged $24,553 to help bring this project to life.

About this project

Microprocessor about the cost and size of a pack of gum project video thumbnail
Replay with sound
Play with
sound

$24,553

709

Since November 2010 we have worked with enthusiasts interested in amateur robotics. We wanted to create a low cost platform for building small robots that is flexible enough to work with different form factors but powerful enough to drive sensors, motors, and relays.

Specifically, we need the kit to:

- Be easily assembled by a hobbyist
- Rugged and durable enough for real world applications (rockets, aquatics, competitive robots)
- Low cost using common components
- User serviceable with a soldering iron
- Small size and light weight for aerial vehicles

The purpose of this Kickstarter is to make a platform for future projects in the Robotics club which we will document and make open source for everyone to share.

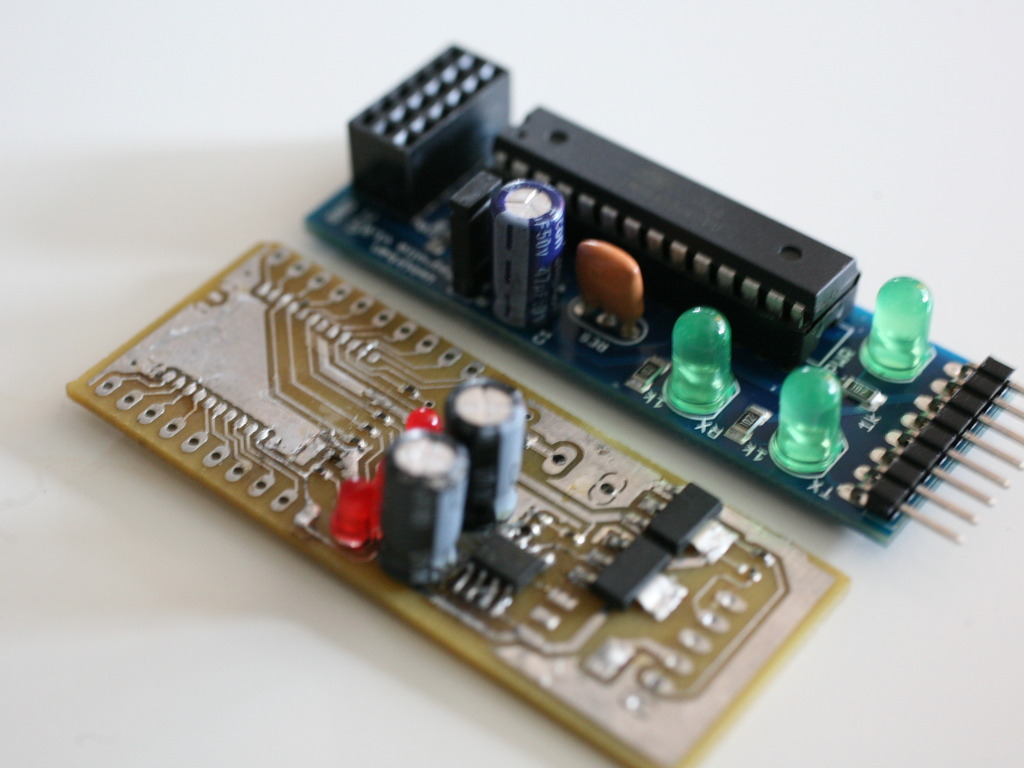

Features of the board

The board will regulate power from USB power or a battery pack so connecting it to a power source should be simple.

Six easily accessible ADC ports for analog input will give access to VCC, Ground, and an input.

Single Digital port for digital inputs.

LED access for visual feedback of data throughput and power.

Socket for ATMEL Atmega328 compatible with Arduino IDE. The microprocessor should be easily swapped out with others for field upgrades or if the chip gets fried.

Risks and challenges

Challenges for this project include revisions to make the board more user friendly and compatible with emerging technologies. Components will be evaluated for cost, compatibility, durability, and ease of integration.

First and foremost, we want the board to be very low cost and fairly user-upgradable. The board should be able to deal with a fair amount of tinkering without being clunky.

Being active in the Robotics club has shown that most entry level members like to tinker with LEDs first, then move on to sensor input, then gradually to fully autonomous units that function without being tethered to USB.

Once this Kickstarter is funded, we would like to build platforms off this board that can do more and more exciting things like communicating wirelessly with sensor arrays and mobile computing platforms, and to bring these technologies to our LA Robotics club members.

Learn about accountability on Kickstarter

FAQ

  • Yes, the board comes with an ATMEGA328 chip.

    Last updated:
  • The bottom row of pins at the far side of the board have 6 Analog I/O pins that you can set as INPUT or OUTPUT using pinMode, for example: pinMode(ledPin, OUTPUT);

    Last updated:
  • Regarding AdaFruit's FTDI Friend, theoretically it should work since the pins line up the same. We will purchase one and make sure they work, but for now, if you look at our schematic and read the labels on their pins they both line up except for an extra two on our board for the transmit and receive lights:

    http://www.weburban.com/store/Olive/Olive_Sch.pdf Let me know if you have any other questions.

    Last updated:
  • Yes, the board will be sent to you fully assembled.

    Last updated:
  • Yes, the project will be completely open source and we will be releasing the Schematic and Bill of Materials within the week. We will post details and links on this Kickstarter page.

    The board will be a foundation for some of the entry level seminars at LA Robotics Club if you're in the area and want to really get to know this simple board first hand.

    Last updated:
