About this project

THE INFINITY CLOCK:  is an All-Digital Analog Clock, with no moving parts.  Born of one of those epiphanies that come from everyday life  -specifically,  my wife -somewhat angrily - asking me if I knew what time it was.

As a high-tech, electronic counterpart of something that has been around for 100's of years, keeping with some of the standards that analog clocks have followed was paramount in the project.  You set the time with a knob, not buttons. There are "light chimes" on the hour, and every quarter-hour. They're round...

From there, I deviate from the norm.  I eliminated moving parts, any sounds, and those pesky solid hands.  And I made them DEEP. With The Infinity Clocks, and infinity mirrors in general, the "effect" of seeing dozens of times deeper than the thickness of the piece itself is no effect.

Creating these clocks has been a long and trying adventure.  I think about the programming and design constantly.  Designs come to me from all directions, and everywhere I look, I see something that inspires me to ponder "how does this fit into my plan?"

It's long been a dream to create one of the ideas that I've come up with, and this campaign will help me to realize that dream, and hopefully many others as well.

This is my journey:

Climbing the learning curve(s):

First, I needed to see if I could just buy such a thing.  After an exhaustive web-search for such a clock, I found that I was on my own to build one.

Aside from the obvious - mirrors, LEDs, something to hold them in position, and a case to make them look nice, I first needed something to control them.  Being that it was to be a stand-alone piece, I needed some kind of microprocessor chip and some programming.  I spent another week of research and:

I found The Arduino.

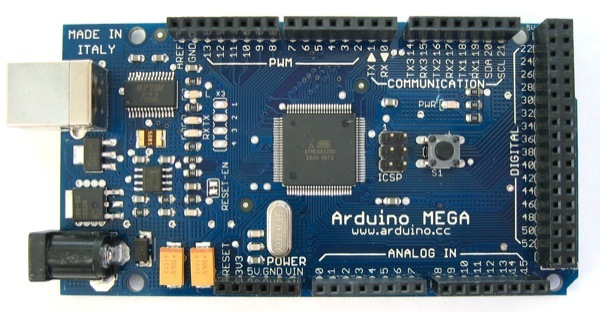

Arduino Mega
Arduino Mega

As an open-hardware, open-software microprocessor prototyping circuit board, the Arduino would be an ideal solution.  Now to learn how to use it...

Working part-time on this project, I learned how to make single LEDs blink and then multiples at different rates.  But using the 13 output ports on the Arduino, I was only able to control 13 LEDs.  Or so I thought...
After turning to the amazing Arduino fanbase:


Charlieplexing is a way to control many LEDs, using very few output pins. While it would work for some early prototypes and proof-of-concepts, it wasn't -by any measure- a final solution.  But it was a starting point.  I needed to create my own Charlieplexing network, as all the existing set-ups were aimed at LED Matrixes or LED Cubes.

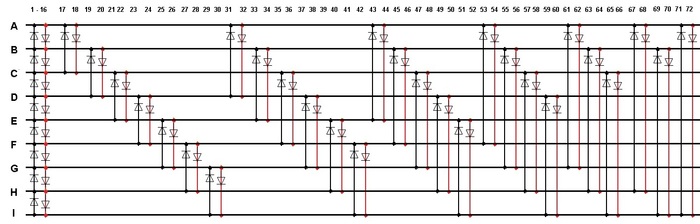

Charlieplexing diagram for 72 LEDs
Charlieplexing diagram for 72 LEDs

Now that I was able to control 60 LEDs (actually 72, but I only needed 60 for my clocks) it was time to take the next step.

I started making stuff:

I took my Arduino, 60 LEDs, my Charplieplexing diagram and some Matte-board (the stuff that photos get masked with when properly framed) and made my first proof-of-concept...  It didn't keep accurate time, but it did start to look like what I wanted it to.

This is my first functional proof-of-concept.  It showed me that my wiring and programming worked.  The 3 solidly-lit group of three LEDs at the ten-o'clock position is the "hours hand", the single solidly-lit LED just above the three o'clock position is showing 12 minutes as the "minutes hand", the faster-moving LED is seconds, and the 4 flashing LEDs shows 12,3,6,9 o'clock positions.


I bought a wall clock at a garage sale, and proceeded it take it apart. Using some mirrored window tint, and a 12" round mirror from the local arts & crafts chain, I made my first actual Proof-of-Concept Infinity Clock.

Taking control:

I concluded that it would be nice to be able to set the time on the clocks.  Thinking about how one sets the time on an analog clock, I determined that I needed to use a rotary encoder...  So I needed to learn HOW to interface a rotary encoder.  Below is my first successful rotary encoder test.  It is also the first time I gained accurate control of the LEDs I was going to use for the Color Infinity Clocks.

Class is over (or so I think),let's put it all together:

So I have the ability to address LEDs, to interface with a Human-Interface-Device, and to communicate with external circuit boards.
Let's make something that looks nice now...

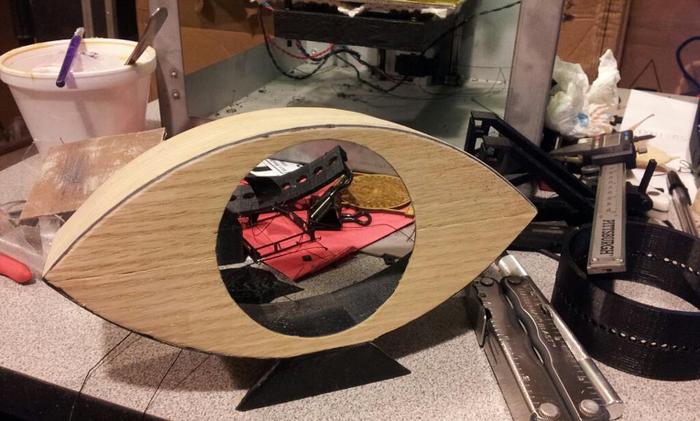

This is my first prototype - fully functional on the inside, and similar to what I would like to eventually produce.

This clock is in a high-speed test mode

Make it faster... better.

I knew I needed to make parts that were perfectly round, structurally sound, and had lots of holes.  Cardboard and a hole puncher wasn't quite the solution, so I started researching 3-D Printers.  While I could build one for about $800, I really didn't want to get too distracted with a machine that would need dozens of hours of assembly and tweaking. That's when I found Solidoodle, and their "plug-n-play" Solidoodle2 3D-Printer.  I bought their SD2 Pro model:

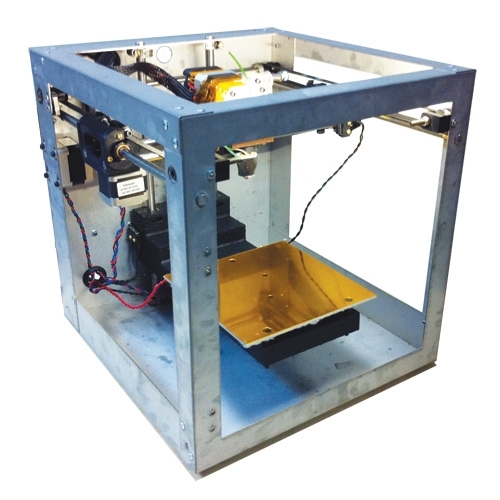

Solidoodle 2nd Generation 3D Printer
Solidoodle 2nd Generation 3D Printer

With a 8 week + lead time on all orders, I found myself having some time to learn some new tricks...

Class is back in session:

Adventures in 3D Modeling

Over the following months, rather than spin my wheels working on the physical aspects of my Infinity Clocks - only to have to change it all up again with whatever differences the 3D printing would cause, I decided to dive deeper into the programming as well as learning how to design 3-D models that I'd eventually be able to use with my upcoming 3D Printer. I went to town...

I learned how to use Google's Sketchup and realizing it's shortcomings for complicated internal parts, I also took on OpenSCAD - which is a scripting-based 3D modelling package.

I continued to learn better programming methods and refine my digital designs for another 2 months while I awaited delivery of my SD2 3D printer.  Again, school was out... (and again, so I thought)

3-D Printing is VERY COOL:

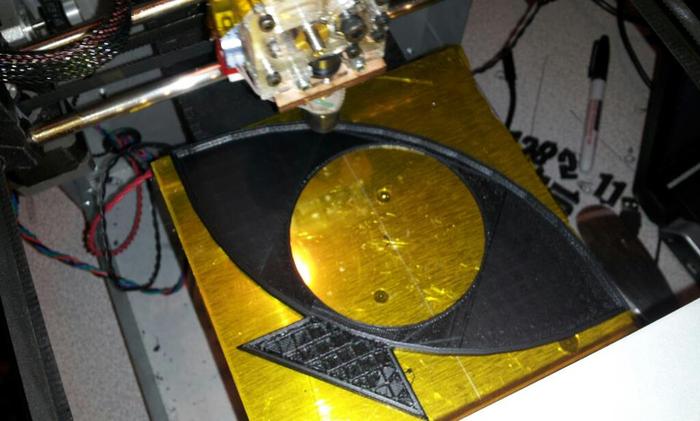

And one fine August afternoon, my new Solidoodle printer arrived! In less than an hour after cracking open the box, I was printing some calibration parts.  After about a hour of tweaking and testing, I started my first useful print.

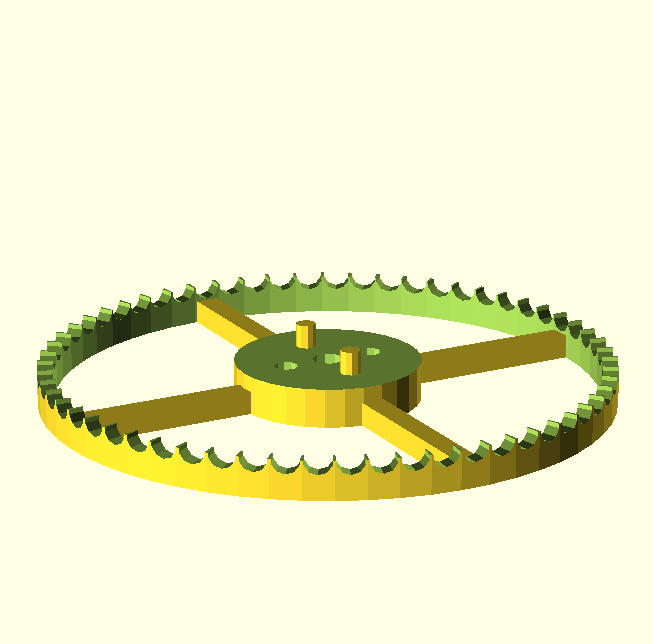

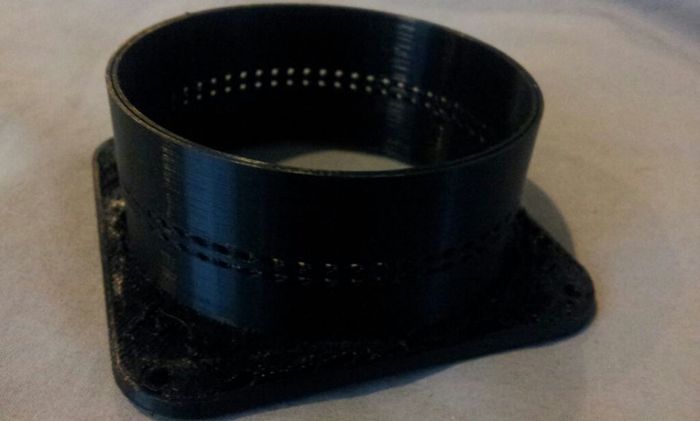

Clock Ring
Clock Ring

And scale models:

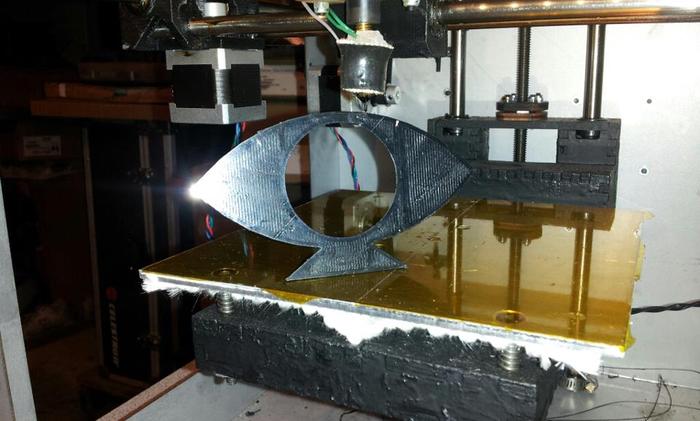

Followed by full size pieces:

Finding new ways to make them look different:

For the following few months, I went on making different designs, refining my 3D modeling and printing skills...  I also started making tools to help me work on my project:

Printed Circuit Board Vise
Printed Circuit Board Vise
One half of an LED jig - to hold LEDs in position while I bend and solder the leads
One half of an LED jig - to hold LEDs in position while I bend and solder the leads

I started working on some final designs, how to make things efficiently repeatable, and how to improve the overall results.  This led to the creation of a custom circuit board, designed specifically for my application.

ClocKore Circuit Board

Our ClocKore circuit board features an ATMega328 Microprocessor running at 16MHz, FOUR Texas Instruments TLC-5940 Sixteen-channel Pulse Width Modulation LED driver chips, SIXTY 3mm. LEDs, and multiple interfaces - ICSP (for low-level programming), FTDI (for Arduino IDE-based programming), THREE analog inputs, FOUR digital outputs, I2C port (for interfacing with the Real-Time Clock module), ONE RGB LED output, and a dedicated TLC-5940 extender output, for interfacing with our upcoming Infinity Pendulum board and other future enhancements.  All Sixty-Four output lines from the TLC-5940 chips are also broken out to headers, for connection to clock faces larger than 80 mm. - which is the diameter of the circle of LEDs

ClocKore in action

Eclipse Clock

Who is going to do all this assembly?

The 3D models are complete, as are the Laser Cutter files.  The clocks core programming is 98% complete, with just a few tweaks required based on the final construction dimensions. I will be doing the bulk of the high-tech work; soldering, microprocessor programming and running the Laser Cutter and 3D Printers.  My middle son, Zac will be also be doing some soldering as well as running the 3-d Printers and eventually, the Laser Cutter.  My oldest son, Alex will be our shipping, receiving and stock manager. My great friend Joe will be doing any wood work, additional cutting, and most of the final assembly. Aside from my son Zac, I have 6 other kids in my house ages 20 to 5 (plus my 10-month-old grandaughter, but she'll just drool on everything, so she stays home), and all of them will be helping out with polishing, packaging, kitting, labeling, shipping, clean-up, and so on.

How we're going to do it.

With newly-designed custom circuit boards, and 3-D printed & Laser-cut  parts, LiTime Clocks is on the bleeding-edge of micro-manufacturing technologies.  Turning to these emerging manufacturing technologies, we can keep our costs and thus our prices low, while retaining a high level of control and flexibility of the final product.   Accountability is key in the growth of a small company.

There are few things as valuable as a PLAN...

Day One: Let's get moving!

Starting at the moment of success with our Kickstarter Campaign, we will mobilize our resources to get into production. We currently have 3 available and appropriate workspaces, and all are perfectly suited to our production needs. After signing our lease on one of the spaces and going about the business of securing electricity, and other utilities, we'll start preparing to move all our existing manufacturing equipment (3D printers, soldering stations, wood shop tools, and testing stations) into the factory immediately.  We will pull the trigger on orders with Solidoodle, our plastics suppliers, and our laser cutter supplier.

Day Two - Six: Moving day

Over the following few days, all our existing equipment will find it's way to our new factory site.  We have loads of friends with trucks and free time to help the relocation efforts.  During this time, we will also be handling additional required tasks, such as running electrical and data lines, installing air-exhaust systems for sawdust and fumes, setting up our computer networks and servers, building shelves and workstations, and, perhaps the most important of all, cleaning the bathrooms.

We'll also start going about the business of setting up our "showroom" which will also double as our conference room AND our video studio.

Day Seven: THE conferences

With 4 main production leaders (plastics, woodworks, electronics, and shipping) and our other staff, a production planning meeting will be critical to starting up our production efforts.  Product and process training, methodology, and implementation will all be key topics.
A second meeting will be held later that day for our Customer Service team.  We will put into place reactive and success-driven Customer Support processes, to include technical support, order processing, and social media operations.

Day Eight: Break time

Teams are built, not born.  It's time to cement our teams together, over some nice summertime comfort foods and company-picnic-style games. We will also start our staff-recognition efforts with a contest for the 3 best recipies: appetizer/finger foods, main course foods, and desert/drink.  Of course we will post our favorites to our website, so you can not only enjoy what else we do, but also taste what we do...

Day Nine - Twelve: Make it your own by making your own.

With the processes planned, roles defined, and equipment in place, we will hold some mock-up workdays.  These workdays will not only ensure a smooth transition in operation for our staff, but also help build a sense of ownership in everyone's roles.  To do that, we will all be making some clocks for the entire staff to bring home.  Using the wealth of materials we already have on hand and the newly set-up equipment, everyone will have a chance to try their hands at their roles AND the roles handled by others.  Staffers will follow the process, starting from ordering on-line and then proceed to assist in building their clock through all phases of assembly.  In a slightly different twist, rather than taking their clocks home with them at the end of the day,  their clocks will be shipped to them - just like any other order would be - so they can share the excitement of getting a new toy and have a personal unveiling with their family and friends at home, just like our customers soon will.

Holding pattern: Until Kickstarter Funds arrive

Up to now, all steps taken have been funded with existing LiTime funds. Armed with steadfast planning and determination, our factory should be complete and our staff should be ready. With our Solidoodle 3D printers, we will get a jump on the 3D printing, as our core parts take over an hour each to print.  By this time, we should have received most  of our materials and any additional manufacturing equipment that we recently purchased should be up and running.  We'll start up the processes, and begin manufacturing with the materials available to us at that time.

The first 25 units, reserved for those special Kickstarter contributors, will be assembled in this phase...  This will give us the opportunity to add the touches that makes these limited editions unique. Then we have a few inspirational people that I wish to deliver some of our clocks to, and then we do have a few units that we plan to deliver to a few charities - it's always good to give something back.

Money in = money out : purchasing day

Upon availability of our Kickstarter funding, we will spring to action on purchasing all the required materials: Plastics, wood, circuit boards, electronic components, shipping boxes, and more...  there is a lot of "stuff" that goes into producing these clocks, and the major portion of this stuff is to be acquired locally and the balance of the requirements come from companies that have stellar reputations for shipping quickly.

At this time, we will also start up a Kickstarter-only contest.  We will post a photo of some of our materials or something else in our operations, and ask our contributors to fathom a guess about the picture; how much it weighed, how long it took us to stock it into our stockroom, or some other random fact.  The best/closest answer will win a currently undetermined prize - possibly an upgrade to a deluxe Color Infinity Clock or maybe their order will just arrive as TWINS!

Day TWENTY and on...  Let's get REAL!

By this time, we will have received all our materials and supplies.  We will have soft-started our manufacturing operations.  We will have built our teams and helped them fall madly in love with each other.

Now it's D-Day.  Laser cutters will be lasing and cutting.  3D printers will be printing in 3D.  Circuit boards will be baking.  Screws will be turned and LEDs will be lit.  Bugs (in the system, not actual insects) will be debugged. Most importantly, CLOCKS will be born! Over the next week, we will be carefully monitoring our operations to ensure a smooth start-up as well as to enhance and streamline our operations.

By day twenty-seven, we should have produced and shipped a few dozen of our first orders.  Being that each clock will need to be registered on-line for warranty purposes, we will seize the chance to ask for customer feedback on everything:  Product quality, fit and finish, shipping expediency and other aspects will be posed as questions for our clientele.  Criticism is constructive.

That's our production plan.
While parts of the plan may be somewhat unconventional for a manufacturing environment, I have seen the positive effects of team-building and mock operations in my work with hundreds of new and updating businesses, and I know that the benefits far outweigh the efforts.
I feel with our thought-out production plan, our key players, and a 55-gallon drum of determination, we'll have clocks flying out the door within 30 days of our Kickstarter Campaign meeting our goal.  Of course, we are open to feedback, and welcome any ideas that can help us in our mission.  Speak up, Kickstarters, we'll listen!
