Add on board to Raspberry pi that adds home automation. Use your existing home appliances at fraction of the cost. Read more

80
backers
$10,001
pledged of $15,000 goal
0
seconds to go

Funding Unsuccessful

This project's funding goal was not reached on August 13, 2014.

Add on board to Raspberry pi that adds home automation. Use your existing home appliances at fraction of the cost.

About this project

Pi-Home is a board that can be attached to a Raspberry pi  to add home automation features to your house with fraction of others cost and no monthly fee.

You can control those appliances/devices :

  • Infra red controlled devices like TV, DVD player, Audio Systems, Roku or any other infra red enabled device.
  • Z-wave RF enabled devices like thermostat, bulb adaptors, plug switches.
  • RF enabled Devices(315MHz /433MHz ) like AC Electrical Power Outlet Plug Switch, wireless Remote control lamp holder.
  • Zigbee enabled devices like ZHAC Zigbee ON/OFF lighting control module.

Old home Appliances that is not remote control enabled can use RF , ZWave plug switches to be controlled.

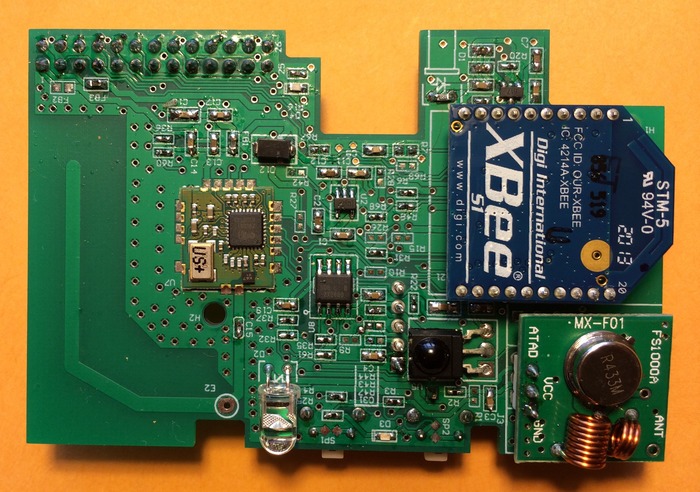

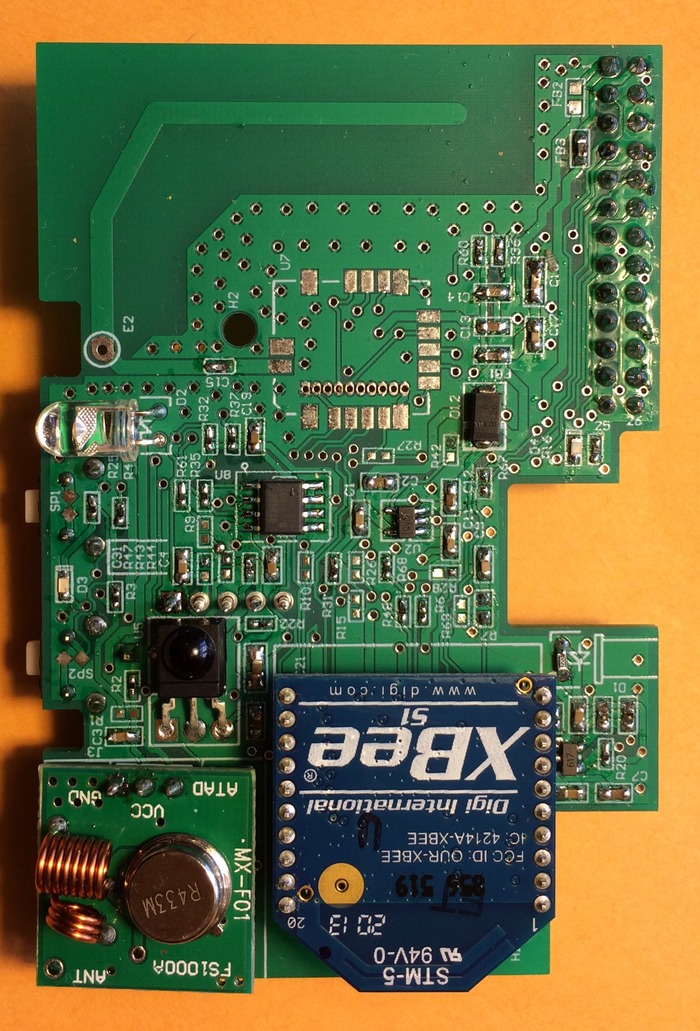

Pic A: IR + RF + ZWave + ZigBee
Pic A: IR + RF + ZWave + ZigBee
Pic B: RF+ IR
Pic B: RF+ IR
Pic C: IR + RF + Zwave
Pic C: IR + RF + Zwave
Pic D: RF+ IR + ZigBee
Pic D: RF+ IR + ZigBee

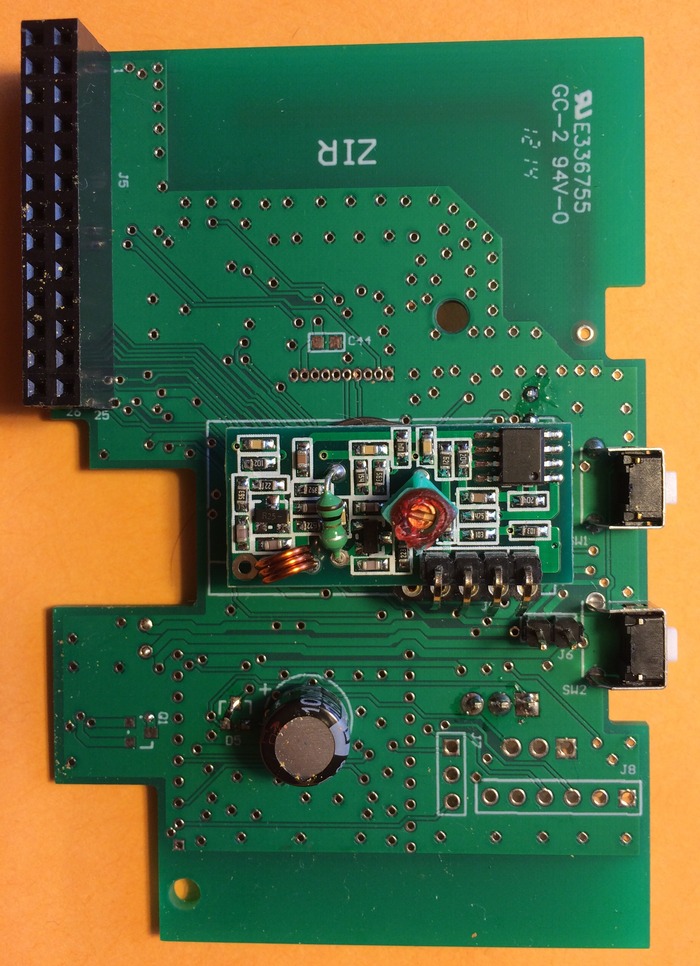

Lower view of PCB with 433/315 RF receiver
Lower view of PCB with 433/315 RF receiver

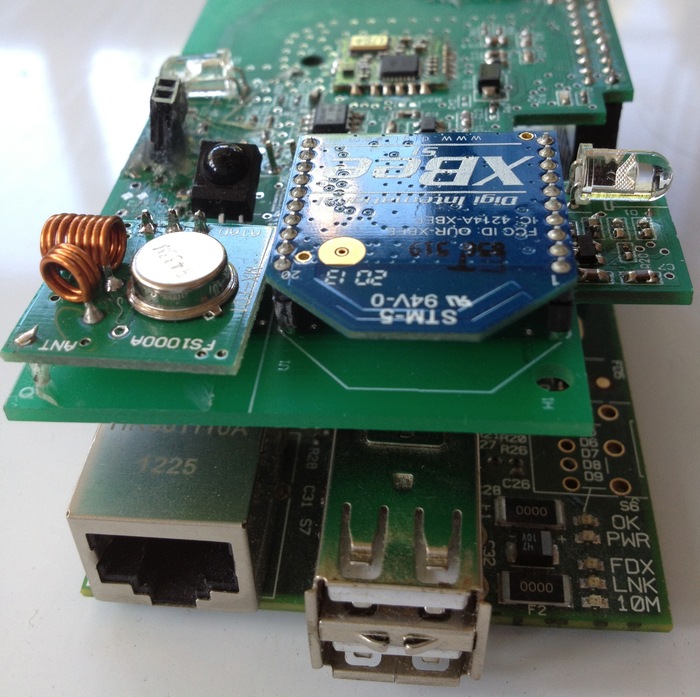

Pi-Home with different Raspberry board Models ( A, B, B+)

Pi-Home is most suited to Raspberry Model A as it will have the lowest hight that make it suitable to most off self cases, Model B and B+ will need the cases that have more hight.

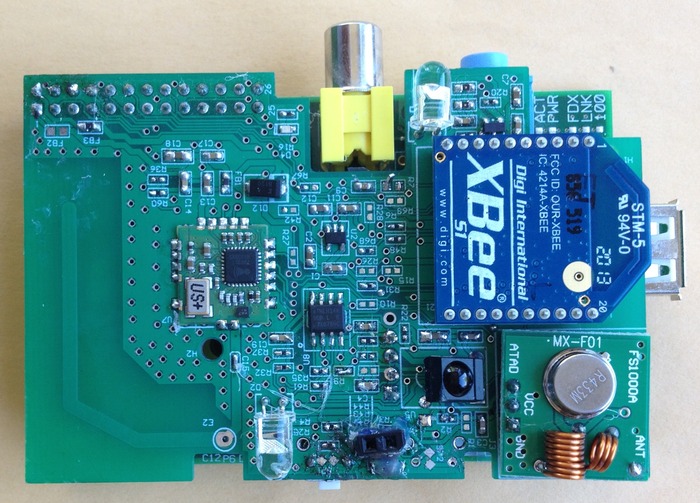

PiHome + Raspberry Model A
PiHome + Raspberry Model A
Pi-Home + Raspberry Model B
Pi-Home + Raspberry Model B

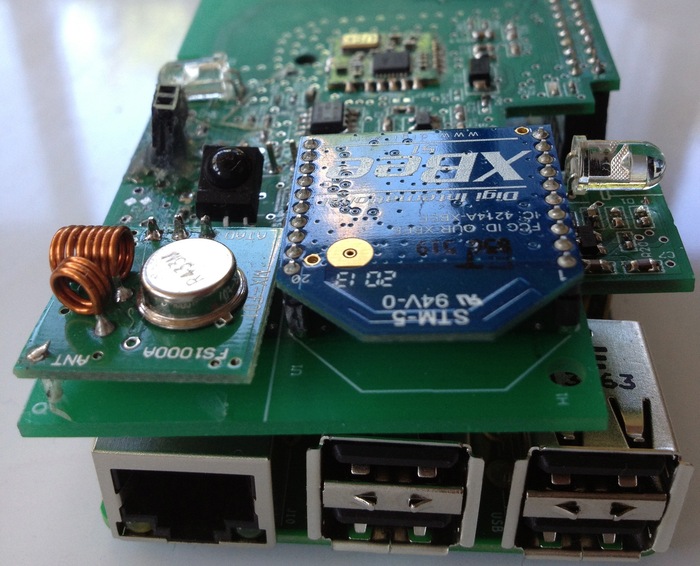

Pi-Home + Raspberry Model B+
Pi-Home + Raspberry Model B+

Software support:

Our board works with those open sources, that are pre-installed on our image :

1- Linux infrared control LIRC http://www.lirc.org A list of predefined remotes are in: http://lirc.sourceforge.net/remotes/ You still can add new IR remotes by learning through the IR receiver on board using irrecord .

2- Open Zwave http://www.openzwave.com

3- 433/315 Transmit & Receive This is our code and built is in C and the source is on the image.

4- Python-XBee https://code.google.com/p/python-xbee/

Backers will be capable to download the image from our web site and flash it to SD.

You can either use keyboard connected to raspberry pi, or use SSH remotely to send control command to the devices through command lines. Developers can add their own user interface for easy use, or they can use Web.py or similar to have a web-server control interface.

This board is also used in Maestro, a product that gives full control of your home appliances from the palm of your hand using iPhone, iPad, Android phone/tablet, or your laptop. You can even control those appliances from outside the house. Adding an IP camera you can even see your house remotely while controlling it. No downloads is needed, the application will be running from your browser. You can even use your voice to control your Appliances.

The first 100 backers will get accesses to download and try the Beta version of Maestro software for free, no development required.

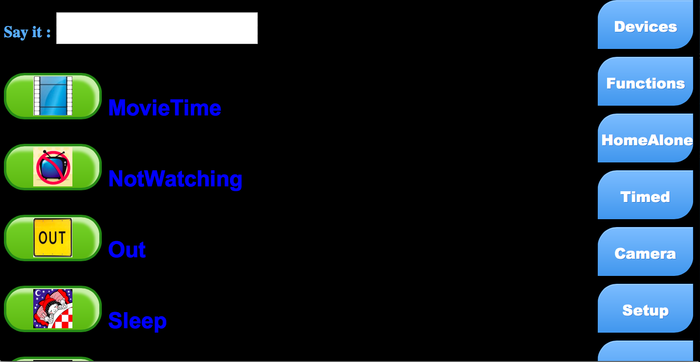

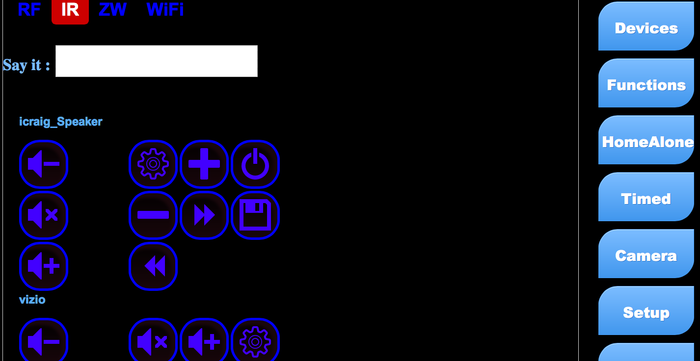

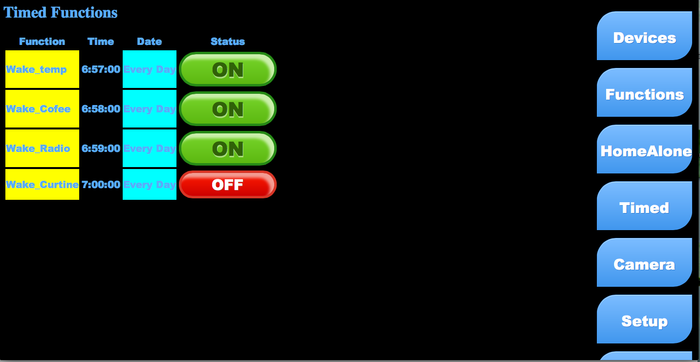

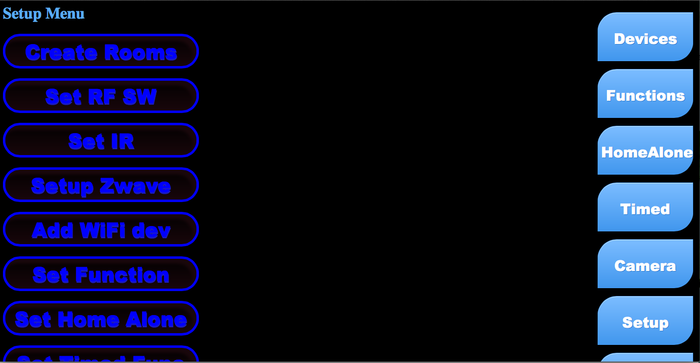

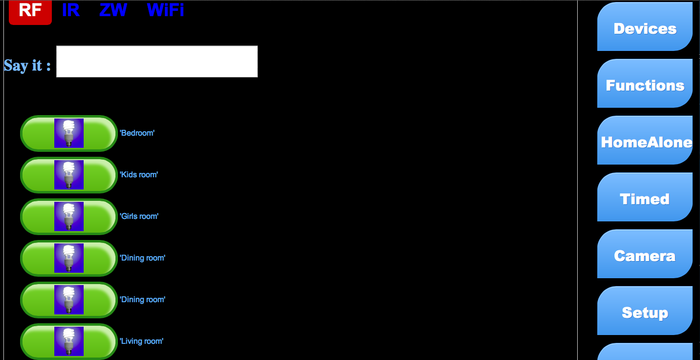

Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software
Screen shots from Maestro's software

Look who mentioned us in the Media:

Digital Journal
Digital Journal
SB Wire
SB Wire
Raspberrypi.org/Forms
Raspberrypi.org/Forms
Busy Byway
Busy Byway
ITS for Home
ITS for Home
pin it
pin it


Some of the devices controllable by Pi-Home (Click on picture for link) :

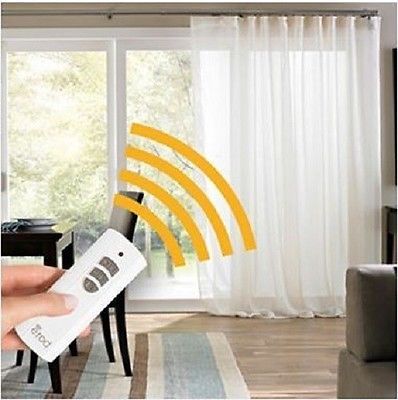

eRod Motorized Curtain
eRod Motorized Curtain

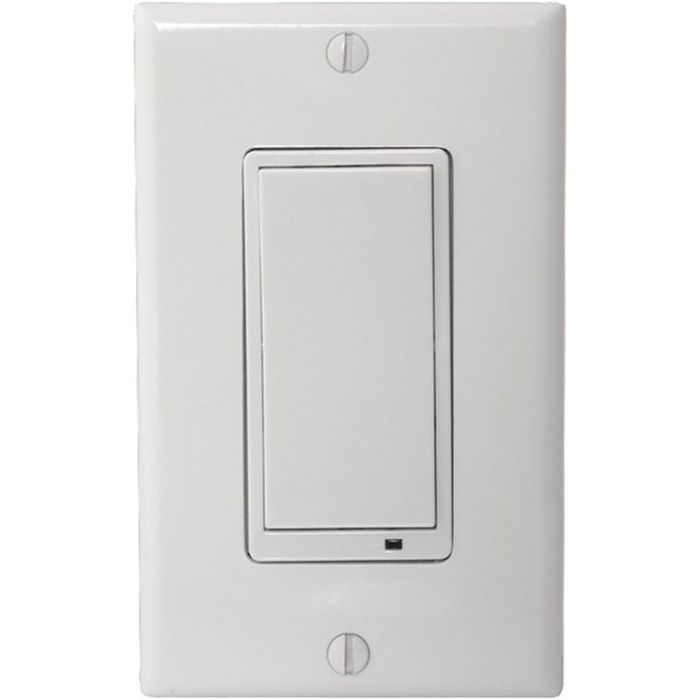

Z-WAVE 15-AMP WALL SWITCH
Z-WAVE 15-AMP WALL SWITCH

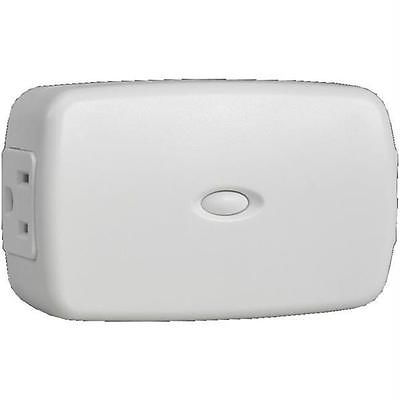

Z-wave 300-watt Plug-in Dimmer Switch
Z-wave 300-watt Plug-in Dimmer Switch

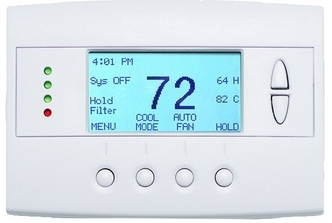

Trane Z-wave Thermostat
Trane Z-wave Thermostat

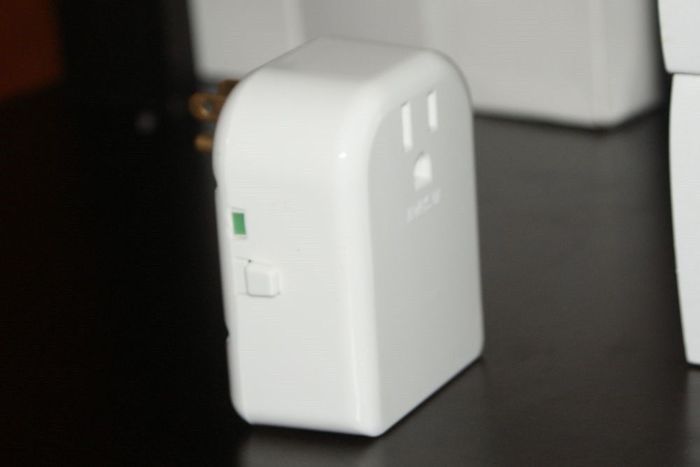

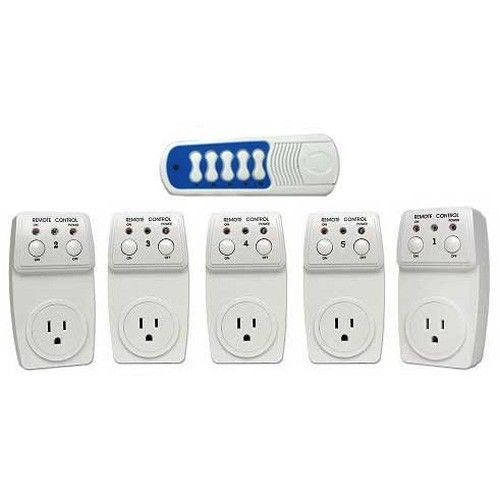

Remote Control AC Electrical Power Outlet Plug Switch
Remote Control AC Electrical Power Outlet Plug Switch
ZigBee Switch
ZigBee Switch

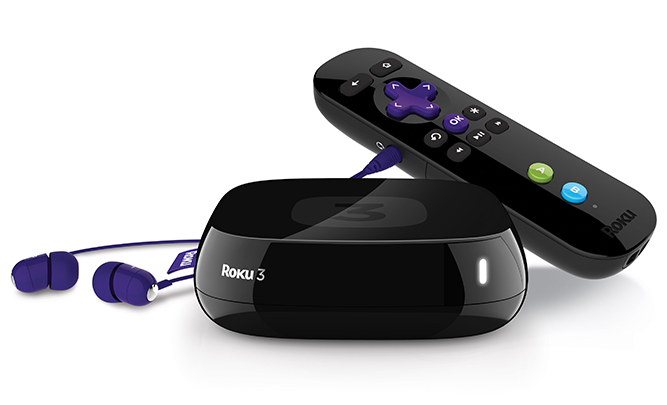

Most Roku models
Most Roku models

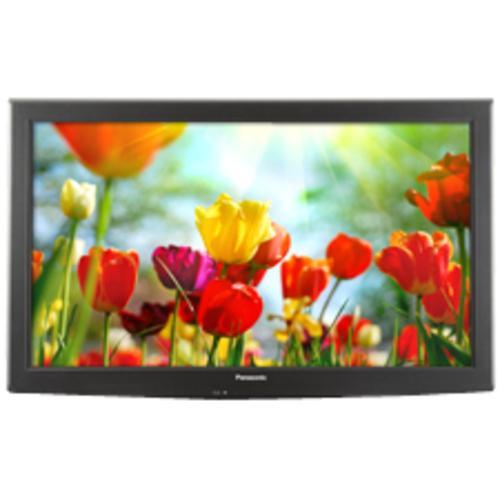

Most TV models
Most TV models
Audio systems that works with IR remote control
Audio systems that works with IR remote control


Pi-Home Story?

This is our second round on Kickstarter, from our first time we found that 78% of the backers were interested in the add on board and not the final product. So this time we concentrated our effort to the board, adding Zigbee to it as some backers request, changing the name from ZIR to Pi-Home to be more meaningful to it's function. Introducing only the add on board lowered our funding requirements.

Production Plan:

We have already finalized our Bill Of Material (BOM) and got our production quotes. We are not expecting any major road blocks on the design front, as we already have our working product and the final PCB is just a cleanup.

Risks and challenges

Our previous consumer electronics product designing experience will help in making this dream a reality.
We are planning to send the final PCB out for fabrication and buying all essential components for manufacturing, immediately once we hit our funding goal. We will keep our backers updated.

Cost: Everything is being done to bring the cost down on Pi-Home. Raspberry Pi board cost is fix and you can buy them online.
Schedule: Unforeseen events happen. But each of us has over 20 years of product designing and delivering the complete products experience. This should help reduce the chances of delays and minimize the likelihood of unforeseen issues. We have done the product designing with all these protocols and interfaces in the past on a number of different products. Pi-Home is combining all these interfaces on one board and in one product.
Other than some unforeseeable disaster, the biggest risk is if this project doesn't get funded. Please help spread the word about Pi-Home!

Learn about accountability on Kickstarter

FAQ

  • We can add this reward, but you can NOT use both simultaneously. In the current board in the picture there is a jumper you have to change it's position to choose which one to use. On the new board for KickStarters we can add an electronic switch that can be controlled through an I/O but still you can NOT use them simultaneously as both are connected to the same serial port that we have.
    So whoever backer that want this reward have to know that.

    Last updated:
  • We will only provide 2 zones for Zwave US and EU, due to our budget limitation.
    The US version will work for USA, Canada, Mexico.
    The EU version will work for all Europe.
    We don't have AU/Brazil or Japan version.

    Last updated:
  • We blocked any adding to cart on Inventca.com during Kickstarter campaign.
    In addition you will find in Kickstarter prices are much lower, as we are calculating price of board on a higher volume target.
    If the campaign fail to reach it's goal you will be capable to buy from our web site with the web site prices.

    Last updated:

Rewards

  • You selected
    $1 reward

    5 backers

    Name (First last) is mentioned as a backer on Inventca.com .

    Estimated delivery:
  • You selected
    $40 reward

    17 backers Limited (23 left of 40)

    Early Bird First option: This option would include one fully functional board with InfraRed(IR) and RF(433MHz/315MHz) capabilities (Transmitter and Receiver/learner).
    This board will control:
    1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control.
    2- RF 433/315MHz devices like power plugs & lamp plugs.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $45 reward

    1 backer Limited (99 left of 100)

    First option: This option would include one fully functional board with InfraRed(IR) and RF(433MHz/315MHz) capabilities (Transmitter and Receiver/learner). This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $52 reward

    29 backers Limited (1 left of 30)

    Early Bird Second option:
    Option1 plus ZWave capability.(A Zwave static controller is added to the PCB).

    This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZWave capabilities. (Transmitter and Receiver/learner).
    This board will control:
    1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control.
    2- RF 433/315MHz devices like power plugs & lamp plugs.
    3- Zwave enabled devices

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $57 reward

    2 backers Limited (98 left of 100)

    Second option: Option1 plus ZWave capability.(A Zwave static controller is added to the PCB). This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZWave capabilities. (Transmitter and Receiver/learner). This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs. 3- Zwave enabled devices

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $72 reward

    4 backers Limited (26 left of 30)

    Early Bird Option3:
    Option1 plus ZigBee capability. This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZigBee capabilities. (Transmitter and Receiver/learner). This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs. 3- ZigBee enabled devices.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $75 reward

    0 backers Limited (10 left of 10)

    This option would include one fully functional board with InfraRed(IR) and RF(433MHz/315MHz) capabilities (Transmitter and Receiver/learner).
    +
    5 X Wireless AC Electrical Power Outlet Plug Switch (As in picture)
    +
    Remote Control.

    This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs.

    Estimated delivery:
    Only ships to: United States
  • You selected
    $77 reward

    3 backers Limited (97 left of 100)

    Option3: Option1 plus ZigBee capability. This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZigBee capabilities. (Transmitter and Receiver/learner). This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs. 3- ZigBee enabled devices.

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $86 reward

    14 backers Limited (6 left of 20)

    Early bird Option 4: Option1 + Zwave + ZigBee capability.
    Please before ordering this look at the FAQ at the end of the page.
    This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZigBee capabilities. (Transmitter and Receiver/learner). This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs. 3- Zwave enabled devices 4- ZigBee enabled devices.
    Please note that Zigbee + Zwave can not be used simultaneously

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    $320 reward

    1 backer Limited (9 left of 10)

    Option1 plus ZWave capability.(A Zwave static controller is added to the PCB). This option would include one fully functional board with InfraRed(IR), RF(433MHz/315MHz) and ZWave capabilities. (Transmitter and Receiver/learner).
    + Z-Wave Thermostat
    + 3 x Z-wave 300-watt Plug-in Dimmer Switch

    This board will control: 1- IR devices like TV,DVD, Ruko, Audio systems, Air conditions, Curtain, and most device that had a remote control. 2- RF 433/315MHz devices like power plugs & lamp plugs. 3- Zwave enabled devices

    Estimated delivery:
    Only ships to: United States
