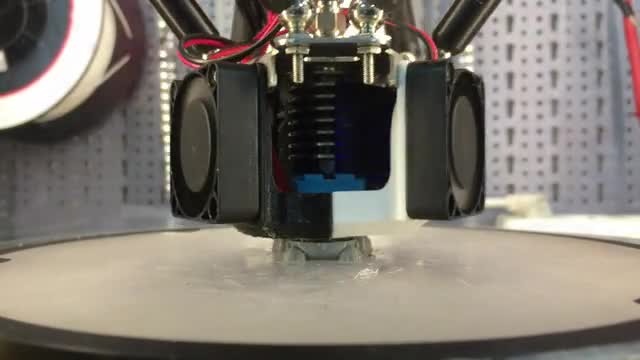

TRIUM DELTA 3D PRINTER V2.0 (Canceled) project video thumbnail
Replay with sound
Play with
sound
€14,030 pledged of €17,300 goal
backers
€14,030 pledged of €17,300 goal
backers

About

TRIUM3D 1.0/1.1
TRIUM3D 1.0/1.1

TRIUM 3D V1.1 AVAILABLE UNTIL THE CAMPAIGN END

Until the end of the campaign we are offering our low price range TRIUM3D V1.1.

What is TRIUM3D V1.1

This version is identical to the V1.0 version, with some improvements :

  • a glass windows on top of the aluminum bed : improved flatness
  • a BL Touch sensor for the auto bed leveling
  • a better quality electronics
  • includes the new magnetic rod system of the T3D V2.0

for more information about TRIUM3D V1.0/1.1 go to

TRIUM3D 1.0 KICKSTARTER PROJECT

With the experience gained since the first campaign and the feedback from our first backers, we improved our delta 3D printer to make it easier, faster and more reliable. We selected the best components available on the market and have first choice suppliers.

With a new automated calibration function and a new accurate auto bed leveling system, no more need to spend long times on setting up the printer!

We are proud to present you:



TRIUM3D V2.0 Prototype
TRIUM3D V2.0 Prototype



What makes TRIUM3D different ?

Whatever version you chose, you are ensured to get the best components available on the market. With a strong and unique full aluminum frame chassis, enjoy accurate and fast prints.

Our printers are equipped with all a printer need to have : heated bed, accurate hot end, auto bed leveling, magnetic end rod, lcd screen, SD card reader, bluetooth, ...

It's magnetic head attachment system allow you to change the head in no time. Experience mono color to multi-color printing, laser engraving, clay printing, light milling, ... and much more.

Being open source, and using an opened firmware, you can upgrade or customize it to infinite, alone or with our help!

BASE VERSION

Our base version is a fully equipped printer, if you are new to 3D printing this is the best choice for you. Its lower price doesn't make it worse than the higher priced version.

PREMIUM VERSION

Enjoy the power of a upgraded 32bits controller, print ABS easily with the full poly-carbonate enclosure with it's front door, increase your print speed and accuracy with linear rail motion and be amazed by your print with our integrated LED lighting.

This printer is the top delta printer you can get on the market, with only premium components, you are ready for mass production printing!

Linear Rail Motion System
Linear Rail Motion System

EXCLUSIVE VERSION

This is a premium version with only TOP BRAND available on the market. With components used on high end CNC machinery, your printer will never failed.

This is the printer for ENTHUSIASTS!

TOP BRAND
TOP BRAND



2 YEARS WARRANTY

We trust so much our printer that we offer a 2 years warranty on all components, even during the Kickstarter!

GROW WITH THE COMMUNITY

Join Trium3D community and help us improving the printer, adding new cool features and bringing it to the next level!

*full model was to big to be uploaded

DETAILED FEATURES

3 versions for all budgets...  but without sacrifice on quality.

Print characteristics

8bits controller:

min theoretical layer : 0.02mm
print speed : 7 200 mm/min max
travel speed : 7 200 mm/min max
print temperature (max) : 265 degC or 400+ with e3d v6
bed temperature (max) : 120 degC
nozzle sizes : 0.2 / 0.3 / 0.4 / ....

32bits controller:

min theoretical layer : 0.01mm
print speed : 10 000 mm/min +
travel speed : 10 000 mm/min +
print temperature (max) : 265 degC or 400+ with e3d v6
bed temperature (max) : 120 degC
nozzle sizes : 0.2 / 0.3 / 0.4 / ....

Build Volume
Build Volume



Common features :

  • Full custom aluminum frame, ultra rigid, composed of only 5 parts (top, bottom, 3x beams)
  • Protected main power components
  • Main power switch
  • USB port
  • 110V/220V C14 connector
  • Diamond head compatible (multi-color / multi materials print)
  • Flying extruder
  • Head redesign with integrated compact part cooling system
  • Printable diameter of 240mm (with enclosure on)
  • Printable diameter of 300mm (without enclosure)
  • Printable height of maximum 400mm
  • Quick connectors for external device (motors, head)
  • Autobed leveling by JohnSL with 3x FSR sensor with a dedicated microcontroller : signal filtering and auto calibration (if you add weight on top, the zero is done again automatically)
  • Extra flat safety borosilicate bed glass
  • Heated bed up to 120 degC
  • Hotend up to 265 degC
  • Magnetic rod system by Haydn Huntley
  • Case cooling
  • Printer size : 522mm x 522mm x 910mm
Base features :
  • IGUS sliding system
  • 8 bits motherboard : Arduino Mega Clone
  • RAMPS 1.4
  • Drivers DRV8825 Clone
  • 12V 360W power supply by Steady Power
  • 12V 120W heated bed
  • Motech motor 1.8° Nema 17
  • LCD2004 reprap discount
  • Mechanical end-stops
  • MK8 extruder
  • standalone spool holder in acrylic

Premium features :

  • Clone Linear rails
  • 32 bits motherboard : Arduino Due Clone
  • RADDS Original
  • Drivers DRV8825 Clone
  • Full Plexiglas cover with front door : reduces noise, improve ABS printing (keeps heat inside, avoid variations), increase safety (no direct access while printing)
  • LED lighting inside the printer
  • 12V 360W power supply by Steady Power
  • 12V 120W heated bed
  • Motech motor 1.8° Nema 17
  • LCD RADDS Original
  • RADDS Hall-e (contactless) end-stops
  • MK8 extruder
  • E-Mergin heatsink + Genuine E3D lite 6 hot end
  • hotend silicone thermal protection
  • Integrated aluminum spool holder (up to 4 spools)
Exclusive features :
  • HIWIN linear rails
  • 32 bits motherboard : Arduino Due Original
  • RADDS Original
  • Drivers RAPS 128 Original
  • Full Plexiglas cover with front door : reduces noise, improve ABS printing (keeps heat inside, avoid variations), increase safety (no direct access while printing)
  • LED lighting inside the printer
  • 24V power supply by Meanwell
  • 24V 200W heated bed
  • Motech motor 0.9° Nema 17
  • Viki 2 or TOUCH screen LCD
  • RADDS Hall-e (contactless) end-stops
  • Genuine E3D Titan extruder
  • E-Mergin heat-sink + Genuine E3D lite 6 hot end
  • Hot end silicone thermal protection
  • Integrated aluminum spool holder (up to 4 spools)

More details on :
https://emergin.net/comparative-t3dv2-0/





TRIUM3D V2.0 Exclusive Prototype
TRIUM3D V2.0 Exclusive Prototype





Flying E3D titan extruder
Flying E3D titan extruder







Panucatt Viki2 LCD screen
Panucatt Viki2 LCD screen



Rapid connectors to change easily between heads
Rapid connectors to change easily between heads



New head with integrated par cooling
New head with integrated par cooling



MeanWell High Quality Power supply
MeanWell High Quality Power supply



Fleks 3D system for easy part removal - 200mm on prototype
Fleks 3D system for easy part removal - 200mm on prototype



Power switch
Power switch



Genuine RADDS and RAPS electronics
Genuine RADDS and RAPS electronics



Case cooling
Case cooling



MK8 vs TITAN extruders
MK8 vs TITAN extruders



Print Multi-Color : Diamond head (option)*
Print Multi-Color : Diamond head (option)*



source : http://reprap.org/wiki/Diamond_Hotend
source : http://reprap.org/wiki/Diamond_Hotend

 * Diamond head can be add as an add-on, if you are interested in one of the two diamond head, please add this amount to your contribution!

More information about Multi-color Diamond nozzle :


http://reprap.org/wiki/Diamond_Hotend
http://www.reprap.me/diamond-hotend

 Extend the printer capabilities with light milling, laser engraving, clay printing and more.

If we reach our stretch goals, we will add the necessary laser cut parts to allow you to build your own upgraded printer for the functions stated above.

You can then follow our build instructions and get the necessary parts from the supplier of your choice or through our own website.

CLAY extruder from Wasp mounted on TRIUM Build-platform:



An open-source firmware....

                    ... for an open-source printer

we use an open source firmware (MK4DUO), making the printer fully customizable. Additionally, we will share the 3D IGES files of the whole printer after the project ended (once to final stage).

EXTRUDER FEATURES:

  • Single nozzle
  • Color Mixing Extruder compatible
  • Extruder idle oozing prevention
  • Extruder run-out prevention
  • Bowden Filament management
  • Filament Change

MOTION FEATURES:

  • Software endstops
  • Ahead slowdown (reduce the speed if the buffer is half empty or more)
  • Babystepping (correction of the printing position while printing)

 SENSORS FEATURES:

  • Filament diameter sensor (option)
  • Filament Runout sensor (option)
  • Door open sensor (premium or exclusive only)

ADDON FEATURES:

  • EEPROM
  • SDCARD
  • LCD
  • LCD multi-languages (en, fr, it, es, ....)
  • Case Light
  • LASER (for engraving)

ADVANCED FEATURES:

  •  Nozzle Clean Feature
  •  Nozzle Park

We already ran through a first Kickstarter campaign and we had to face all kind of new situations :

  • dealing with suppliers
  • trying to keep delays
  • informing backers and supporting people's question
  • fighting with administration
  • dealing with damaged packages and insurances
  • ...

The main risk in a Kickstarter project, once founded, is to properly use the funds. At the stage of prototype (if a prototype exist), it might easily be that something hasn't been calculated right. And this could possibly leads to complete failure of the project.

At that time and despite our fresh experience, we managed this quite well and went to the end of the project by delivering all promised machines.

We now have a lot more experience with the whole process and an accurate costs control. We also already have the needed tooling to produce the printers, which have been paid during the first campaign. That allowed us to already produce a prototype 95% close to the production version, eliminating the risks of failure.

The prototype showed great results. We are now ready to go in production but to be competitive, we need at least 10 units to be produced.

Our production capacity being around about 50 printers/month, you can calculate your delivery time accordingly to your backer number :

  • backer 1 - 3 (super early bird) : September 2017
  • backer 4 - 12 (early birds) : October 2017
  • backer 12 - 50 -> January 2018
  • backer 51 - 100 -> February 2018
  • ...



complex part with a lot of filament retracts
complex part with a lot of filament retracts



0,1mm layer thickness
0,1mm layer thickness



0.3mm layer -  fast print in vase mode
0.3mm layer - fast print in vase mode







 project video thumbnail
Replay with sound
Play with
sound























If we reach the following targets (in number of printers) we will add some stretch goals to the project :



Stretch goals
Stretch goals

We can not offer you the whole head (clay, laser engraving or light milling) due to the price! But the bakers will have a preferential price!

We will also provide all tutorials.

BQ PLA SPOOL
BQ PLA SPOOL



Touch screen
Touch screen



Fleks3D system
Fleks3D system

More info : https://www.fleks3d.com/

What can a Trium 3D printer 2.0 do ?

  • Print almost everything
  • Repair everyday objects
  • Create prototypes
  • You can use almost every filament material

ABS
PLA
FLEXIBLE (exclusive only with the E3D Titan extruder)
...

The Team

E-MERGIN is composed of 4 engineers, working for different worldwide company in various field (automotive, robotic, building).

With our multiple hobbies we continue to improve our skills. We are proud to use all of our knowledge to bring you new products that aim to achieve the best quality/price.

AUBRY-MICHEL-MATTHIEU-PIERRE
AUBRY-MICHEL-MATTHIEU-PIERRE

No more paperworks

All the administration delay and paperworks concerning the creation of the Startup and all the potential problems are behind us!



The use of the funds
The use of the funds





WE OFFER YOU A FREE INTERNATIONAL EXPRESS SHIPPING *

Once shipped, you will get your product in some working days only, anywhere in the world.

Your reward will be fully insured and sent with our new partner : DHL EXPRESS

*We cannot offer shipping to the following countries: Belarus, Burundi, Côte d´Ivoire, Eritrea, Guinea, Guinea-Bissau, Iraq, Iran, Yemen, Congo, Lebanon, Liberia, Libya, Myanmar, North Korea, Ukraine, Sierra Leone, Zimbabwe, Somalia, Sudan, Syria, Tunisia, Central African Republic and Afghanistan.



Get extra :

  •  News
  •  Information
  •  Videos
  •  Photos

Follow TRIUM 3D V2.0 PRINTER on our Facebook page :https://www.facebook.com/trium3D/  ( Do not forget to like our page!)

And on our website https://emergin.net



Risks and challenges

During first campaign we got delays due to the paperwork and the creation of the company. Now everything is ready for this second edition!

Also the shipment delays announced are longer than what we expect to achieve.

Learn about accountability on Kickstarter

Questions about this project? Check out the FAQ

Support

  1. Select this reward

    Pledge €1 or more About $1.12

    Donation

    We thank you for you support!

    Less
    Estimated delivery
    3 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  2. Select this reward

    Pledge €20 or more About $22

    Spool Holder

    We thank you for you support!
    You will get a spool holder

    Less
    Estimated delivery
    Ships to Anywhere in the world
    0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  3. Select this reward

    Pledge €600 or more About $672

    TRIUM 3D V1.1

    1x KIT TRIUM 3D V1.1

    https://www.kickstarter.com/projects/873464596/trium-delta-3d-printer?ref=user_menu

    Add +200€ for multi color diamond head option (additionally to regular mono color head)

    Add +50€ to get a print height of about 440mm instead of 220mm.

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Limited 0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  4. Select this reward

    Pledge €780 or more About $873

    SUPER EARLY BIRD Trium 3D 2.0 Base

    Limited Edition

    1x KIT TRIUM 3D 2.0 BASE PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Limited 0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  5. Select this reward

    Pledge €880 or more About $985

    EARLY BIRD Trium 3D 2.0 Base

    Limited Edition

    1x KIT TRIUM 3D 2.0 BASE PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Limited 2 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  6. Select this reward

    Pledge €980 or more About $1,097

    Trium 3D 2.0 Base

    Limited Edition

    1x KIT TRIUM 3D 2.0 BASE PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  7. Reward no longer available

    Pledge €1,280 or more About $1,433

    SUPER EARLY BIRD Trium 3D 2.0 Premium

    Limited Edition

    1x KIT TRIUM 3D 2.0 PREMIUM PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Reward no longer available 1 backer
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  8. Reward no longer available

    Pledge €1,380 or more About $1,545

    EARLY BIRD Trium 3D 2.0 Premium

    Limited Edition

    1x KIT TRIUM 3D 2.0 PREMIUM PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Reward no longer available 3 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  9. Select this reward

    Pledge €1,480 or more About $1,657

    Trium 3D 2.0 Premium

    1x KIT TRIUM 3D 2.0 PREMIUM PRINTER
    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  10. Reward no longer available

    Pledge €1,980 or more About $2,217

    SUPER EARLY BIRD Trium 3D 2.0 Exclusive

    Limited Edition

    1x KIT TRIUM 3D 2.0 EXCLUSIVE PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Reward no longer available 1 backer
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  11. Select this reward

    Pledge €2,080 or more About $2,329

    EARLY BIRD Trium 3D 2.0 Exclusive

    Limited Edition

    1x KIT TRIUM 3D 2.0 EXCLUSIVE PRINTER

    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    Limited 2 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  12. Select this reward

    Pledge €2,180 or more About $2,441

    Trium 3D 2.0 Exclusive

    1x KIT TRIUM 3D 2.0 EXCLUSIVE PRINTER
    FREE SHIPPING

    Less
    Estimated delivery
    Ships to Anywhere in the world
    0 backers
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.

Funding period

- (30 days)
