The XensrCase tracks athlete's sports motion and provides exact jump heights, rotations, speeds and full 3D motion stats in realtime. Read more
This project's funding goal was not reached on .
About this project
XensrCase adds the third dimension to GPS.
While our Kickstarter funding didn't happen, we're still moving forward. Read about it here!
XensrCase featured on Engadget!

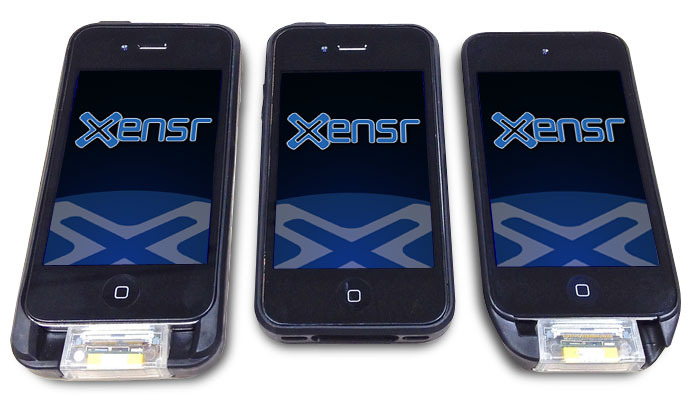

Meet the XensrCase
The XensrCase is the most precise sports motion tracking accessory made for the iPhone 5/4/4S and iPod touch (5G/4G). Measuring 3D motion at a blistering 400 samples per second, the XensrCase is not only capable of capturing speeds, location, and altitude/elevation, but also captures precise jump heights common in high energy sports. No longer is it just about the total mileage, average speed, or estimated calories burned. Now its about stairs climbed, big air jumps, g loading, spin rates, tricks, impact on landings (or crashes) and everything else about your sessions captured with precise scientific measurement where reality trumps perception.
We here at EpicSesh are active extreme sports athletes who really wanted to know how high we and our friends were boosting. Seeing that everyone has a smartphone, we thought that developing an iPhone app to utilize the internal inertial sensors used for phone orientation and game controls could give us the height data that we desired. After preliminary testing we found that not only could we NOT capture jump height with just the internal inertial sensors in the iPhone alone, but that even in simple sports like running we would easily saturate the +/- 2G capabilities of the iPhone's internal, inertial sensors. Without precise motion data, getting accurate jump heights (and other metrics) is impossible with any degree of precision and consistency. When we designed and tested the first prototypes of the XensrCase, we discovered that not only was it possible to get precise jump height data with our robust compilation of inertial sensors, but also that we could capture it in sports like Windsurfing and Kiteboarding which have incredibly hostile environments for GPS acquisition and realtime feedback. While we started this whole endeavor with Windsurfing, we all participate in multiple sports and desired data in Mt. Biking, Snowboarding, Skiing, Running, Wakeboarding, Kiteboarding, Stand Up Paddling and more - including motorsports. What we discovered is that each sport has a unique motion fingerprint, and as such we've designed our motion tracking algorithms to be sports specific. We call this motion sensing technology: TruMotion.
Designed for sports

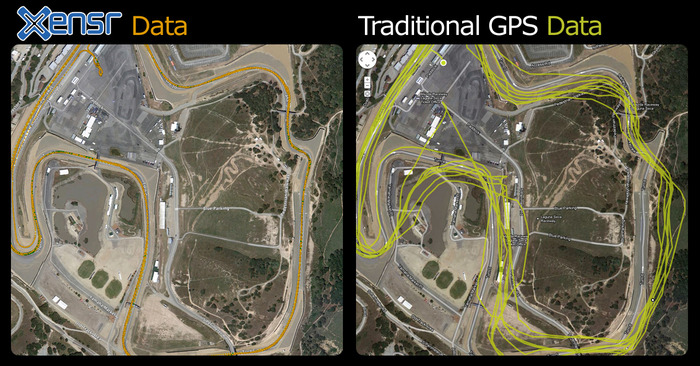

Consumer GPS was made for vehicle navigation but it falls short when applied to tracking sports motion. GPS data updates happen every second but in action sports, a lot can happen in that period of time. Combine this slow data rate with low precision, and GPS combined with the low-g internal inertial sensors in the iPhone can't accurately capture when a snowboarder jumps or track exactly how many stairs a runner is ascending. The XensrCase was designed from the ground up to capture high dynamic three dimensional sports motion. At an amazing 400 data samples per second, captured by it's robust compilation of inertial sensors, the XensrCase "fills in the gaps" between GPS updates to capture your every move. Many sports involve high G loading even in what people think of as smooth motion - the compression before a jump or the smooth looking landing can actually be more than 14G's!
The new state of the art

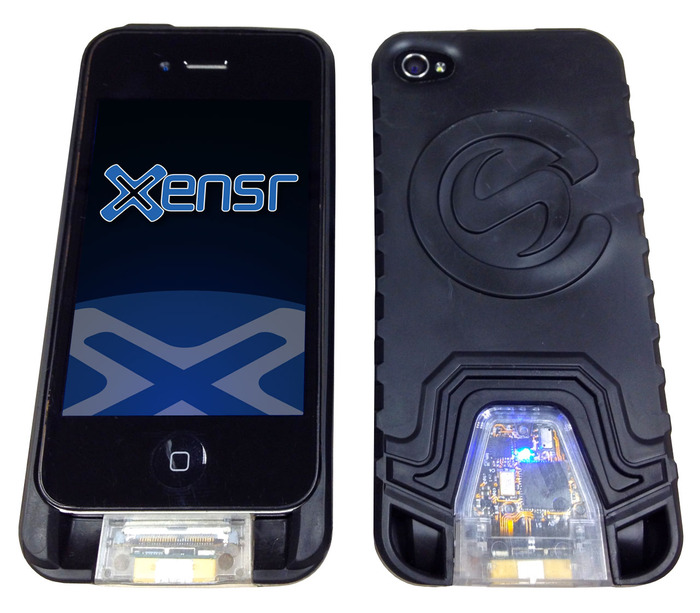

The XensrCase is crammed full of the latest digital high G 3 axis accelerometers, three axis digital gyros, a barometric pressure sensor, a raw data capable GPS module, and CPU all mounted on a state of the art flex circuit. All of this is smartly designed into a tight package that connects to the iPhone 4/4S or iPod touch without making the device bulkier or more cumbersome. These sensors combine to form a single sensor fusion package, and with data processed by our TruMotion Technology, make the XensrCase the most precise sports motion product available. Of course, the iPhone and iPod both bring some capabilities to the party. Mounted properly with onboard video enabled, the EpicSesh app can record your POV sports action video and overlay your motion data right onto the recorded video so that you can post to Facebook about your epic sesh while still out in the field. The app can also monitor your performance in realtime and give you audio feedback cues, lap/split times, and if you hit a personal best or Redline, the app can post to your friends about your achievement.
Check out some video clips from raw test footage with realtime performance data.
You are not a dot on a map
We've all seen the dot on the GPS display, and a dot alone isn't representative of an athlete in motion. We're people, not dots. An athlete has orientation, velocity and other attributes of his/her sports activity. We're runners who's workouts include steps - a simple part of our environment that GPS and other systems cannot accurately measure, but impact our workout greatly. Even simple sports like running are greatly enhanced by the XensrCase.
We're not dots in the forest, we're riders who are boosting, making drops, and soaring over gap jumps. The dot never captured our biking like this. The action looks great on your POV action camera, and now with TruMotion data from your XensrCase, you'll know exact details about your jumps, drops and even track your G-loading pumping on the pump track.
Ride along with the Xensr test team at Laguna Seca with realtime data overlay.
Its all about the jumping
Everyone at EpicSesh does a sport that involves jumping and jumping is the most difficult dynamic movement to capture with any sort of consistent precision. The forces involved in a jump are massive. From the launch to the landing and everything in between, you constantly have forces at work that can act on the athlete to speed up, or slow down, their rate of ascent and descent. With all the variables at play, common solutions like "free fall" that assume zero G for the descent are easily broken with rotational forces and are unreliable even under test conditions in the lab. EpicSesh's TruMotion technology examines the forces of acceleration of each axis to determine the precise velocity vector over time which delivers highly precise jump and 3D positional data time and time again.

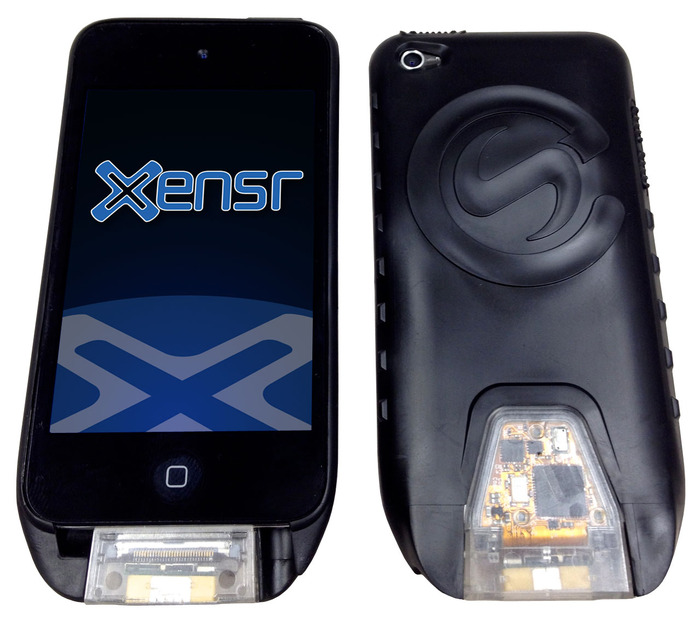

iPod Touch Transformed
We love the iPod Touch. With the XensrCase attached, we REALLY love the iPod touch as its capabilities are extended into not only all of the sport motion tracking that we do, but also it turns the iPod Touch into a full GPS vehicle
navigation system compatible with most of the popular turn by turn navigation apps available. For those of you that are a little gun shy of using your iPhone in high impact sports, this is your solution! The XensrCase is fully compatible with the iPod Touch, and other than the lack of cell network for live data uploads, the app and capabilities are the same as the iPhone. For the kids - this is a great alternative for them to use on the ski hill, on their wakeboard, skateboard, etc. As parents, we see our kids spending too much time playing games on their iPod Touch's and the XensrCase is the best way to get them active with their iPod Touch.
What about the new Iphone5 and iPod Touch?
In 2003, Apple introduced the 30 pin dock connector on the 3rd generation iPod. Since then, it's been incorporated into hundreds of millions of Apple iDevices and now Apple has announced the new Lightning Connector for the new iPhone5 and iPod Touch. We're already working on a Xensr for the new iPhone5 and iPod Touch and expect to release an official version soon after the original XensrCase ships.The innards are the same - only the connecter and layout has to change. If you select an iPhone5 XensrCase, note that the delivery date will be later than the 4/4S XensrCase's by an estimated 6 to 8 weeks due to the recent release of the iPhone5 and lead times of Lightning connector parts from Apple. As soon as we firm up delivery dates, we'll let those who ordered know!
How would you like to add more precise altitude, location and integrate jump data into your app? You've got some great dev tools for iOS, and we want to give you the same experience with our hardware. Our SDK outputs high resolution altitude data into your GPS data (with <1 foot precision) and our TruMotion library will give your app XensrCase data, including jump event height integers, upon the moment of landing, to your app. Sign up today and start integrating TruMotion Technology into your sports tracking app and take your customers to the next level of workout and performance tracking! We are also offering retail opportunities for developers - check out www.EpicSesh.com for more details.
Attention Retailers and Distributors
If you are a sports retailer who would like to carry XensrCase's in your store or a distributor who has the capabilities to help us bring XensrCase's to every corner of the globe, then please hop on over to www.Xensr.com and sign up today!
At EpicSesh, we're all about going big, especially going bigger than anyone else, and the XensrCase lets us know how high, how far, and how fast like never before. No more do we argue about who jumped bigger - now we know. From the very beginning of the XensrCase project, we've been utilizing our TruMotion technology in competitions to measure athlete's performance when bragging rights and more importantly, money, are on the line. XensrCase revolutionizes sports which are subjectively judged into a quantified performance contest of raw skill pushing the limits in terms of jump heights, speeds, spins and g-loading.
Competitors love the XensrCase technology for its brutally honest measurement of their performance and also knowing in the middle of the heat if they are on, or off the podium - and they'll testify that seeing their podium position slip away is an amazing motivational trigger for them to up their game before the end of their heat. Spectators also benefit from Xensr's TruMotion Technology output and its realtime reporting of high G sports measurement. As soon as a competitor lands a jump, their jump height is displayed for all to see. The leader board changes on the fly and everyone knows what's on the line as the clock ticks down.
Even for casual competitions between friends, its game on! with the XensrCase. Challenge your buddy to a who-can-go-faster/higher/farther competition and trash talk gets real with hard data. No more arguing about what you THINK happened, now you'll KNOW who's the king of the hill or the terror of the trails.
Check out the XensrCase in action in competitions that we've done with Red Bull and Oxbow. (DISCLAIMER - the video below is part of an officially released contest video so the jump data graphics shown were added to the video in post production and the graphics on-screen are NOT what the app will add to your action video)
If you are a contest organizer and want to utilize XensrCase's into your competition, please contact us at www.Xensr.com for unique opportunities for organizers like you!
Data is cool, no doubt about it, but integrated with video, it's EPIC!!! With the explosion of POV action cameras, plus the video capabilities of the iPhone and iPod Touch, it's obvious that the XensrCase data needs to be integrated into video. The XensrCase app features a POV video+XensrCase data integration capability in addition to exporting data video clips to be edited into video from your favorite POV camera. Now when you hit that big air, you can immediately add your jump height to the video and export to social media, email, or MMS to your buds to show them just how epic you are.
We set out to change how our sports were captured and quantified and have been working for almost two years on the XensrCase hardware and TruMotion firmware. What XensrCase does is no simple or easy feat of engineering - there's a reason nobody has done this before. We set out with lofty goals and have nailed all of our project milestones for performance and it's been a heck of a ride so far - but now it's time to take this PROJECT and turn it into a PRODUCT. We still have a lot of iOS and server side software to polish up - and the funds from Kickstarter will enable us to hire more coders and also enable us to finish our case molds and get the XensrCase's electronics into production. We're in the home stretch, and we need your backing to get XensrCase onto the store shelf and in your hands.
Seeing the recent changes at Kickstarter and the rationale behind them, we're going to provide EVERYONE who backs our project with a money back guarantee. If we miss our delivery date estimation, and can't cure it in 45 days, we'll give you the ability to get a FULL REFUND. Or, you can stick with us. Its your choice. But in the end, we're confident in our ability to deliver a XensrCase to you that we'll take 100% of the risk. (note - the iPhone5 orders will have later delivery dates due to their recent availability and the lack of availability of parts from Apple).
Thanks for your time, and we're stoked to see where athletes will use the XensrCase once it hits the market. Join the EpicSesh team as a Kickstarter backer. Thanks!
XensrCase Technical Specifications
- 6 axis integrated digital gyro/accelerometer (+/- 16G)
- barometric sensor (10cm resolution)
- GPS with integrated smart antenna
- PIC CPU
Requirements for XensrCase "dock" connector :
- iPhone 4/4S
- iPod Touch (4th Generation)
Requirements for XensrCase "lightning" connector :
- iPhone 5
- iPod Touch (5th Generation)
Risks and challenges
We have challenges and risks with iOS software development, Apple MFI approval, building distribution and retail channels, scaling the organization, continued hardware development and managing our global team riders and ambassadors. We're able to meet these challenges head on with our varied wealth of experience and skills in all areas of need.
Our founder and CEO has over 30 years of software and hardware development experience and this is his 5th successful startup business. He's scaled businesses from just himself to nearly 100 employees in short order all while keeping an eye on profitability and managing growth. He's built companies that manage thousands of clients world wide - servicing millions of end users in 20+ countries.
Our engineering team is amazing - from mechanical design to EE to firmware development and testing. Rock solid in all areas. We've built so many prototypes its hard to keep track of them. We've proven 100% that this product can be built and can work as desired. We have a great relationship with Apple and while that doesn't give anyone a leg up in MFI approval, we wouldn't be on Kickstarter if we were in doubt of our ability to get approved. There are lead times on some of our components - 8-10 weeks. But by being successful on Kickstarter, we can up our initial orders and with volume, lower our delivery dates of components and get better volume pricing from our suppliers and contract manufacturers.
Our field marketing team is out there - literally. They're out in the field working with athletes, competitions, partners and testing for the engineering team. They're working with the end users ultimately and the one thing said by everyone who uses a prototype is, "When can I get one!?"
Most importantly, we're flexible. No matter how on top of things you are, life happens. And you need to be ready to deal with the unexpected no matter if its an opportunity that drops in your lap, or something that negatively effects all the units you've shipped to date. We've got an amazing team at EpicSesh that's a killer foundation for the organization that we're going to build on top of it.Learn about accountability on Kickstarter
Have a question? If the info above doesn't help, you can ask the project creator directly.
Pledge $20 or more
Be a backer of the XensrCase project and be the cool kid with an EpicSesh lifestyle iPhone 5/4/4S case with all the cool ergonomic features of the XensrCase (minus the electronics). Not only will you be cool for funding the XensrCase, but you'll have an EpicSesh iPhone case that speaks to your A list persona. Pick from our available colors. Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $150 or more
26 backers Limited (74 left of 100)
GET A DEAL and get a XensrCase in Blue for iPhone 5/4/4S or iPod Touch (you pick one). Act quick! There's a limited number of XensrCases available at this funding level! Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $170 or more
XensrCase in BLUE for iPhone 5/4/4S or iPod Touch (you pick one). Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $175 or more
XensrCase COLOR for iPhone 5/4/4S or iPod Touch (you pick one) in color! You get to select your color from our available colors - Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $200 or more
0 backers Limited (500 left of 500)
Fantastic February! You'll get your XensrCase before the full production run! Get your XensrCase in Blue for iPhone 4/4S or iPod Touch (you pick one) in February! Act quick because there's a limited number of XensrCases available! Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $250 or more
0 backers Limited (300 left of 300)
Blast off your New Year with a XensrCase! Your chance to get a XensrCase in Blue for iPhone 4/4S or iPod Touch (you pick one) before anyone else! Act quick because there's a limited number of XensrCases available! Free shipping to USA. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
Pledge $550 or more
1 backer Limited (24 left of 25)
XensrCase DEVELOPERS KIT - a XensrCase in blue for iPhone 4/4S or iPod Touch. However, instead of waiting for the full Kickstarter production run, we'll send you a clear cased prototype XensrCase in December. The kit also comes with a sports armband for you to fully develop and test into your apps. You'll get exclusive access to our TruMotion SDK for iOS to add jump and XensrCase data into your app before we open our developers portal in 2013. Free shipping to USA. Note - you must have either an active sports tracking app in the iTunes app store, or a valid Apple iOS developers account to purchase this reward. (Add $15 for international shipping)Estimated delivery:Ships anywhere in the world
