This is a breakout board for the MAX7218A, for use with the YS common-anode 4-digit 7 segment LED displays @ SparkFun
33 backers pledged $1,194 to help bring this project to life.

About

8 Digit 7-Segment Breakout Board (Arduino or MCU with I2C) project video thumbnail
Replay with sound
Play with
sound

$1,194

33

Since we discovered the Arduino platform, we've been busy coming up with ways to DIY our lives.  We found that a lot of our microcontroller(mainly Arduino)-based projects, like "The 1337:Clock", and the Arpegguino have the need for a numeric display.

We also found that where common-anode 7-Segment LED displays were easily available from popular distributors like SparkFun, the widely-available drivers seemed to be for common-cathode displays, and --when it came to multiplexing the displays-- there was no escaping the inevitable "rats-nest" of tangled wires without a breakoutboard. We liked the idea so much, we decided to share our idea with the larger development community, and give something back to the open source hardware development movement. Ergo, the idea for this project was born.

A lot of Highly Caffeinated beverages and empty chip bags later, we had the eagle files drafted for the first revision, We're ready to start cranking these bad boys out as soon as we receive funding.  We can already think of a bunch of projects that would benefit from one or more of these! (They're chainable!)

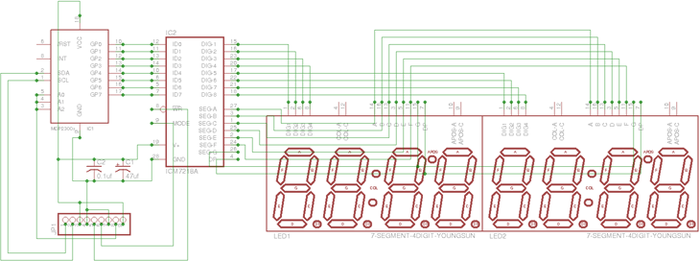

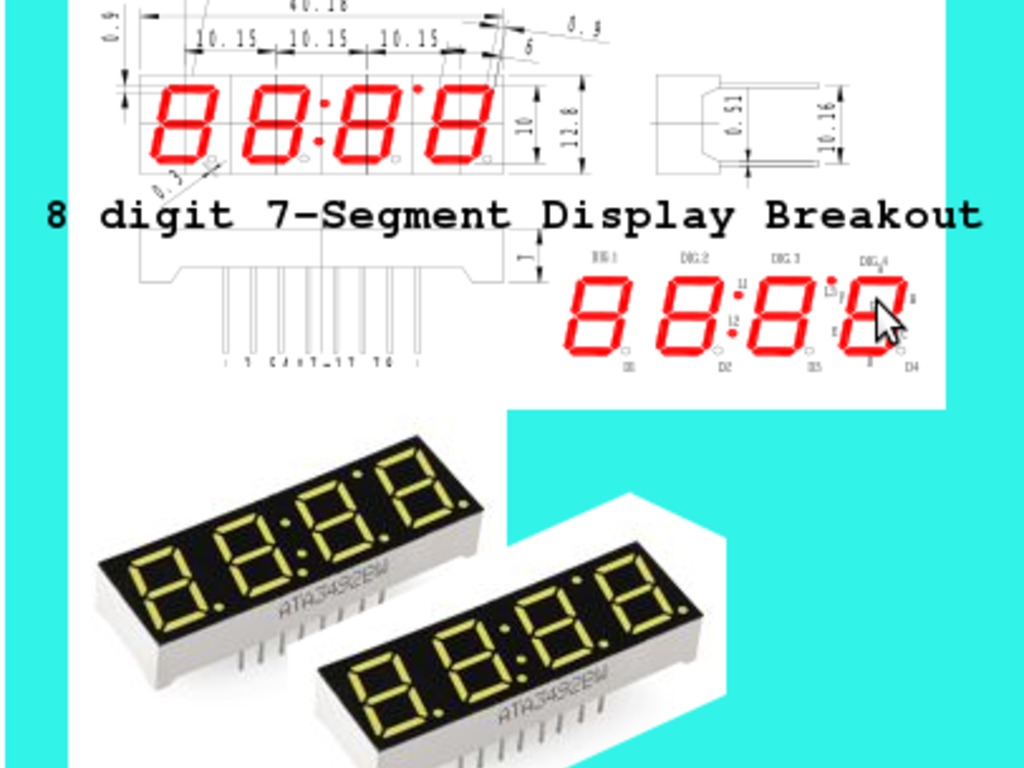

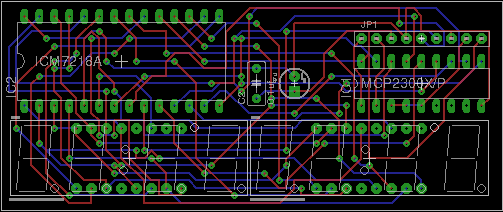

This board has vacant footers for two(2) of the Young Sun style displays, available from sparkfun.com in green, white, blue, red and yellow, the ICM7218A driver chip, and the two(2) capacitors  -which are the only external components required by the chip to operate.  The traces on the board take care of multiplexing the displays for the maximum 8 digits, and the pertinent pins are broken out to headers for easy display-chaining and communication with the microcontroller.  This revision includes space for an MCP23008 I2C I/O expander to reduce the required microcontroller pins from 10 to 4; and the I2C address of the device can be changed with a single jumper that connects the appropriate pins to 5v, or GND depending on your preference, or need!

We wanna change the way you define possible.

Questions about this project? Check out the FAQ

Support

  1. Select this reward

    Pledge $1 or more About $1.00

    Your name will be listed in the Thanks page that will be setup @ GrayMatterForge.com

    Less
    Estimated delivery
    3 backers
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  2. Select this reward

    Pledge $10 or more About $10

    1 board hot off the presses

    Less
    Estimated delivery
    Limited 4 backers
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  3. Select this reward

    Pledge $15 or more About $15

    1 board and a kit containing an MCP23008 I/O Expander, a 47uf Electrolytic Capacitor, and an 0.1uf Disc Capacitor all soldered for you.

    Less
    Estimated delivery
    Limited 2 backers
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  4. Select this reward

    Pledge $25 or more About $25

    1 board and a kit containing the ICM7218A, an MCP23008 I/O Expander, a 47uf Electrolytic Capacitor, and an 0.1uf Disc Capacitor. - Everything but the displays. Perfect if you've got a couple extras just lying around. And again, we'll do the soldering.

    Less
    Estimated delivery
    Limited 1 backer
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  5. Reward no longer available

    Pledge $35 or more About $35

    The whole shebang! 1 board and a kit containing two(2) 4 digit 7 segment displays, in 1 of 5 colors - Red, Green, Blue, Yellow, White, the ICM7218A, an MCP23008 I/O Expander, a 47uf Electrolytic Capacitor, and an 0.1uf Disc Capacitor. Soldered and tested.

    Less
    Estimated delivery
    Reward no longer available 15 backers
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  6. Select this reward

    Pledge $50 or more About $50

    The Whole Shebang(a fully tested, and working board), PLUS a GrayMatterForge T-Shirt that we'll even sign if you want us to!

    Less
    Estimated delivery
    Limited 4 backers
    $
    Kickstarter is not a store.

    It's a way to bring creative projects to life.

    Learn more about accountability.
  7. Select this reward

    Pledge $86 or more About $86

    Backers at this level are our Strongest Supporters! They'll get everything from the previous levels AND a second board fully assembled & tested PLUS shipping is on us. (US & Canadian backers only)
