Spool Spinner Makes Axially Spiraled Wire / Twisted Wire

Ever try to find a service provider for twisting fine film coated electrical wire pairs in any amount less than a 2-thousand pound tub?

Spool Spinner Makes Axially Spiraled Wire / Twisted Wire

Ever try to find a service provider for twisting fine film coated electrical wire pairs in any amount less than a 2-thousand pound tub?

$246
pledged of $4,400pledged of $4,400 goal
6
backers
Funding Unsuccessful
The project's funding goal was not reached on Sun, February 9 2014 1:55 PM UTC +00:00
Last updated April 25, 2014

About

Ok. So, you've made it past the headline and are still interested in reading on.  What's it do?

Twists wires thousands of feet long together without breaking them turning two spools of transformer / choke wire into bifilar windings known for its use in several famous coils like the Smith Coil invented by Wilbert T. Smith at a time when he was unable to find a Marconi Coil to continue his job mapping "tensor fields" that cause airplanes to crash as no-fly-zones.  The bifilar windings are used to transmit and receive scalar wave emissions and many yet-to-be explored anomalous effects.

There are already many practical applications for such coils as demonstrated by Wilbert Smith and many more yet to be put into practice.

Nikola Tesla's United States patent 512,340 has remained state of the art since 1840 although the technology could be very beneficial for practical applications in various industries.  In this patent a bifilar winding is illustrated as being two wires being wound together onto a single air bobbin core to achieve very high capacitance.  By twisting those two wires together the capacitance will be magnified exponentially because twisted wire has capacitance value at nodes where the two wires space vector every 360 degrees of axial spiral.  The potential for discovery seems endless but the tools to axially spiral binary wires in lengths greater than a few feet are completely unavailable.  I hope this tool will open new opportunities for you to make new discoveries in science...

If you want the job done right you have to build the tools yourself or let a retired NASA contractor take care of the problem for you.

Here is my proof of the concept photograph. The production units will be much nicer.
Here is my proof of the concept photograph. The production units will be much nicer.

As a former NASA contractor and electronics design engineer for JPL and others, I love technology and I like using it too - so, I'm giving others a chance to use it with me here on Kickstarter!

Ronald V. Bennett

 project video thumbnail
Replay with sound
Play with
sound

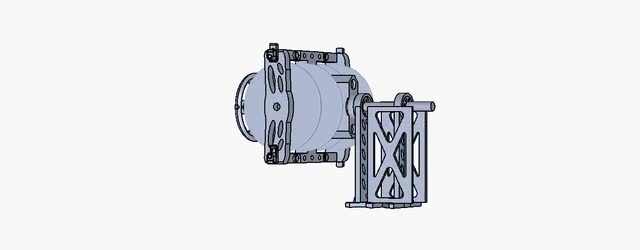

Guided Assembly Video

Risks and challenges

The only risk is not meeting our project goal of 4,400 dollars. If we are unable to meet the goal then this missing production capability could limit us academically from making new discoveries in electronic coil assemblies. Many of the benefits are already published however as a basis to explore bifilar coils further.
