Meet LEDgoes.  It's the simplest, most versatile, least expensive LED Matrix Display system that exists today, with useful features for all experience levels with electronics.  And the software & hardware will be Open Sourced upon successful funding!

You can stack or arrange up to 64 Displayboards together in a single system in any way that you like. Each Displayboard is 1.5 x 2 inches, 5x7 LEDs, and Two Color (can be combined for 3 colors!). *Final Production Boards will have ceramic oscillators for the ATmegas.

Here's a demonstration of how to display animations on an LEDgoes:

We have been working on this project for over a year and are finally ready to push for the final design while preparing the funding to manufacture & sell it. Our Kickstarter seeks to prove that there are people turned off by the cost, complexity, lack of features, and lack of expandability of present-day products -- and that LEDgoes is the answer. We won't exist unless you want us to. (And we appreciate your resounding support & vote of confidence!)

All of the commercial systems we saw on the market are locked into proprietary interfaces and/or have only one color, aren't replaceable nor expandable, have limited means to communicate with or program, and are expensive! The DIY area was not much better as existing systems either cost $45 a character (over twice the retail price we are asking), had a learning curve, are limited to one color, aren't modular, and all of them required expensive external controllers you had to program to get going.

Gen 2 boards
Gen 2 boards

It all started when we went to a local electronics shop and saw these cheap LED Matrix boards. Stevo had always wanted to have a Stock Ticker in his office, but the commercial systems just would not do what he needed. We were inspired. T3am Aw3s0m3 was on the job.

We designed this system for everyone from the Grandma who has trouble hearing her phone and would benefit from having caller ID displayed above the TV or in the Bedroom to the tinkerer who wants to make it drive a giant array of motors!

Displayboards with 3D printed prototype Modular cases
Displayboards with 3D printed prototype Modular cases

LEDgoes are also commercial use friendly.  No longer does a store owner need to throw away a $300-500 LED display because one of the LEDs burnt out or a chip died. Here you simply replace the board if the chip dies and the LED Matrix if an LED goes bad.

LEDgoes uses easy to find, inexpensive parts. You will be able to find LED Matrix' that are compatible for a very long time. You will also be able to make new boards yourself and the chip pinout covers a whole line of very popular microcontrollers : the ATMEGA.

Board Space
Board Space

You can design and connect LEDgoes any way you like. Wrap them around a corner, backpack, back windshield, DJ booth, bar, store, on top of a door, frame, or use your imagination! You can even string together Displayboards vertically to make an LED matrix of ANY SIZE!

The LEDgoes protocol allows you to do Images, Text, Scrolling, and even ANIMATIONS! You can design your own Fonts, Characters, Sprites, whatever! *Imagine Mario on this or LED Pacman!*

It's TOTALLY HACKABLE. LEDgoes Displayboards use the Arduino Bootloader which can be reprogrammed through the same connection interface used to connect the Displayboards together. That means that each Displayboard has 26 GPIO Hackable pins in a ~1.5x2inch board with two chips for less than $20. That is an unheard-of price and size in the DIY Market.

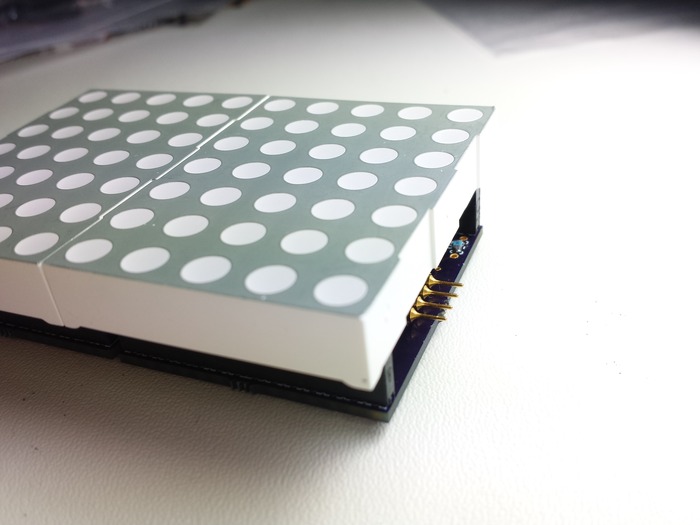

Edge Connector
Edge Connector

We already have apps and code for every level of user. Our code can shout out Twitter #hashtags, display RSS Feeds, runn the matrix from independent Arduino & Netduino code, and we've got some simple standalone apps for typing out messages in different colors and scroll speeds to the board over USB on Windows, MAC, and Linux. The Android application is already underway. iOS will be available too!

Why do you need the Money? Looks like you have a lot of it done. We need the money to fund the first official production run of the LEDgoes Displayboards and to finalize design and build all of the partner boards of the system. We also cannot go to market if the market doesn't exist. It is one thing to do it for yourself and another to do it for the world.

Back - Smooth and No Parts makes for Easy Mounting (Adding Screw holes for Wall Mount)
Back - Smooth and No Parts makes for Easy Mounting (Adding Screw holes for Wall Mount)

*These LED Matrices and all boards are designed for Indoor use. The displays are not bright enough to be read easily outdoors in full sunlight and they are not built for being outside.

T-SHIRT DESIGN

Each T-shirt is a Soft Cotton (Nice shirts you will wear) and come with 3 Washable markers. It is a White silkscreen on a Black shirt and has a picture of a 30x7 inch matrix (equal to 6 LEDgoes) for you to customize, rinse, and customize again!

LEDgoes Modular cases - 3D printed prototypes.
LEDgoes Modular cases - 3D printed prototypes.

Future Work Outside of the initial push: We are also working with some outside friends to manufacture a Modular Case system for LEDgoes which will allow each board to attach to its own case and the cases lock together for a sturdy, one-piece design.

End Caps will also be made for all of the Accessory Boards. ALL CAD DESIGNS WILL BE OPENSOURCE and printable on a 3D printer. Molds for doing injection Molded cases will come much later as the turn around on molds can be as much as 3 months.

LEDgoes Displayboard in the Modular Case prototype.
LEDgoes Displayboard in the Modular Case prototype.
