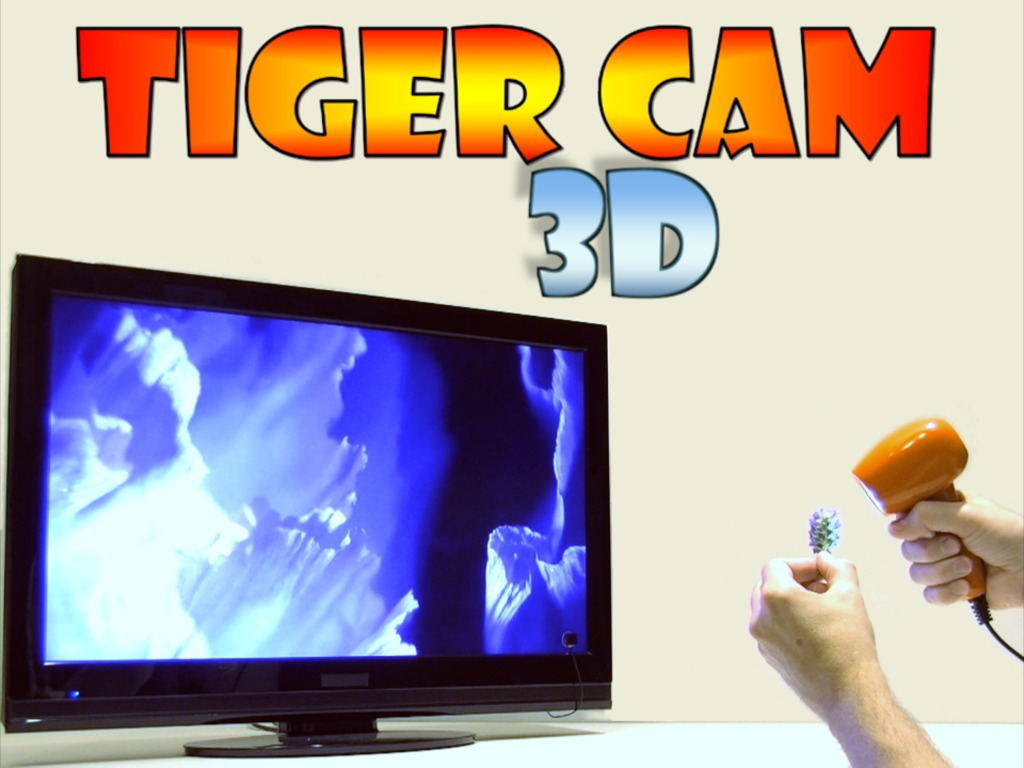

The Tiger Cam 3D microscope lets you explore objects up close in 3D on your digital TV.

Tiger Cam works with your own TV to view objects magnified up close in 3D.

Ordinary objects come to life like you have never seen them before when you view them up close with Tiger Cam.  Seeing this tiny world with a regular magnifier or microscope is fascinating, but wait until you see this amazing world up close with incredible 3D depth.

Tiger Cam and Viewing Base Prototype

The Tiger Cam Viewing Base has 6 degrees of Freedom for viewing objects at different angles.

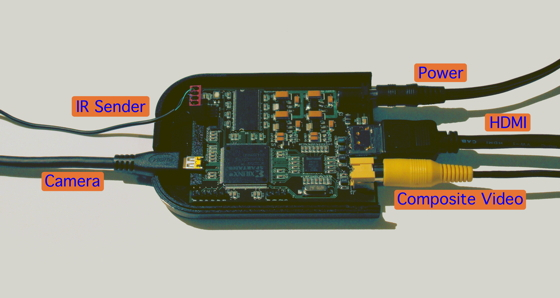

Breakout dongle which connects everything together.  The production version will be smaller and combined with the battery box.

How Does It Work?

Using the included TigerEye wireless 3D glasses, you can view high-definition full color 3D live motion images of any object put in front of the Tiger Cam.

Tiger Cam works with your standard digital television to display vivid 3D images.  You don't need a 3D compatible TV to use Tiger Cam.  The TigerEye 3D glasses work with a standard digital TV!  Tiger Cam connects with an HDMI cable to your digital TV.  You can also use Tiger Cam with CRT analog TVs using a composite video cable.

Since the TigerEye 3D glasses are wireless, the Tiger Cam will work with as many glasses as you want so you and others can view 3D video from the Tiger Cam together.

No Really, How Does It Work?!

The Tiger Cam produces live 3D images on your TV by actually viewing objects in stereoscopic vision at a magnified level.  Tiger Cam works with powered active shutter LCD glasses to let you view 3D images split into both left and right eye perspectives displayed on your TV.  The TigerCaster wireless transmitter signals the TigerEye 3D glasses when to change the view from one eye to the other at the right moment the image for that eye is shown on your TV.  The high resolution CMOS camera inside the Tiger Cam captures images from both eyes' perspective in vivid full color HD video.  Since each of your eyes sees a slightly different HD video image, the perceived image quality is actually greater than that of viewing standard 2D video.  Since Tiger Cam connects to your digital television with a digital uncompressed video link, the images from the camera sensor are preserved and the image quality is very sharp.  If you use a CRT TV, the high resolution image sensor in the Tiger Cam can deliver broadcast-quality images on NTSC and PAL televisions.  The Tiger Cam has its own built in 6 direction illuminator, so objects can be illuminated to provide a wide 3D viewing angle.

Technical Info

Tiger Cam uses our custom designed image processing gate array managed by a soft core CPU.  (We made the CPU a 6502 because what more would anyone need?)  There is also an SDRAM on board for frame buffering and scaling of image frames.  The TMDS digital video signals are driven directly from the gate array.  An external NTSC/PAL encoder chip is used for the composite video output.

Two 720p CMOS image sensors, one for each eye view, capture the live video images and are then multiplexed, enhanced, and sent through to the video output.  Six white LEDs provide illumination.  This consistent lighting allows the cameras to be calibrated to a known light source to provide the best image quality.

We developed our own IR signaling for the 3D wireless glasses to trigger the LCD shutters for each eye.  The 3D glasses have an 8 bit controller to receive the IR signal and control the LCD shutters. (You guessed it- another 6502.)

What we'll include in a Tiger Cam System:

• Tiger Cam hand-held camera head:  The Tiger Cam camera head is used to view objects and has the built-in Tiger Cam video controls.

• Tiger Cam viewing base:  Tiger Cam can also be docked in the viewing base.  This base gives you 6 degrees of freedom to manipulate objects and focus at different viewing depths.

• Tiger Caster wireless transmitter:  This is used to connect the Tiger Cam wirelessly to TigerEye Wireless 3D Glasses.

• Tiger Cam breakout dongle.  This connects all the components together, and has the plugs for composite video and HDMI cables.

• TigerEye Wireless 3D Glasses: Every system will come with TigerEye wireless 3D glasses.  The number of pairs included varies by your pledge amount.  Batteries will be included with all pairs.

• Wall power supply: We will include a wall power supply so you can power the Tiger Cam system when batteries are not used.

• HDMI Cable: An HDMI cable is included to connect the Tiger Cam to your digital TV. (A composite video cable is not included with the system.  A standard RCA video cable can be used for CRT TV users.)

• Specimen Jar and Petri Dish:  You can put your objects for viewing in these  included accessories.

• Tiger Cam Manual:  A full user manual will be included with the system, and will also be available online.
