An Open Source Enigma Replica for all.

About this project

ERRATA: In the video, we mention that the Open Enigma is "exactly the same dimensions" as a German Enigma. What we meant to say is "of similar proportions". We are sorry for the confusion and for any inconvenience.

NEWS FLASH: Kickstarter Project of the day on March 6th.

ATTENTION: We are now fully funded as of March 10th! All pledges will be delivered after the campaign ends as planned. So now, on to our STRETCH GOAL of $50,000 (more on that below) and let's keep the momentum going.

This rapid success would not have been possible without the help of:

cyberarms.wordpress.com infosecnews.org www.theopenforce.com www.hackedgadgets.com www.boingboing.net www.geekerskeep.com www.geeky-gadgets.com www.tomshw.it www.heise.de www.open-electronics.org www.hackaday.com http://techcrunch.com

Now, when we hit our $50,000 Stretch Goal, this will give us the opportunity to focus on and deliver some Enigma Software enhancements (M3 emulation, Telex behavior, Cloud connectivity) and a new hardware version that uses the physical Plugboard. How about a quarter scale unit? Please let us know what you would like to see. We will send a survey at the end of the campaign asking for your vote.

Thank You for your support.

Visit us at the upcoming Charlotte International Cryptologic Symposium in Charlotte, NC on March 21st. http://www.cryptosymposium.com/

Imagine having this iconic device on your desk: You can use it to simply display a scrolling marquee of any text message on its unique LED screen or encrypt/decrypt any information you wish using (still today) a very secure key. This is an ideal device to teach or learn about encryption, history & math. Because of its open software & the community of developers, the possibilities are endless & your reward is bound to increase in value over time as new applications (like e-mail encryption, secure router, etc) are written.

The original (pre-war) Enigma code was initially broken in Poland and subsequently by a team of Bletchley Park cryptologists under the leadership of U.K.'s own Alan Turing who is one of the fathers of computer science. http://en.wikipedia.org/wiki/Alan_Turing Bletchley Park's ability to break the Enigma code is believed to have shortened World War II by about 2 years. Enigma machines are an extremely rare and important part of computing history.  A real Enigma machine sold for $200,000 in 2011. http://www.cnn.com/2011/09/29/world/europe/uk-enigma-machine-auction/

Transforming a prototype into a production unit takes a lot of effort, time & MONEY. This is where you come in! Whether you are brand new to the world of Encryption or a seasoned Cryptologist, whether you know every detail of the German Enigma's story or it's news to you, YOU can help us write it's future.

Not only will your pledge let you enjoy this phenomenal product, but it will also help us continue to develop it's feature set.

Breadboarding the 16Segment display
Breadboarding the 16Segment display

Resulting from a friend's project suggestion, we ended up creating our Enigma Replica as a fun project & what we hoped would be the ultimate end to a complex multi-stage Geocache challenge event we had already planned and were very busy preparing. Turns out the event was a dud, but the Enigma replica Instructable that we had published a week earlier had an amazing success & following. We never expected 15,000 views in 2 days & within 1 week, we were featured around the world on all sorts of web sites in numerous languages: Articles/Reviews from Poland, Germany, United Kingdom, Russia, Canada, Denmark, Italy, Montenegro, Netherlands, Austria, Spain.

Articles from around the World!
Articles from around the World!

We received overwhelming feedback asking us to bring to market our Open Source Arduino based Enigma Replica.

Prototype on Breadboard
Prototype on Breadboard

The prototype we had built is fully functional and can decode any real/historic German messages that were transmitted during World War II, but takes a lot of labor to assemble.

Prototype test fit...
Prototype test fit...

The irony is that while this looks very much like a hardware product/project, it is actually much more the software where the magic happens and where most of the development effort resides. This is in total contrast of course to the original German Enigmas which were all electro-mechanical devices, lacking any type of software (or computer for that matter!).

By participating in this crowd funding effort, you are contributing to write the future of this obsolete iconic piece of equipment.

Completed Prototype
Completed Prototype

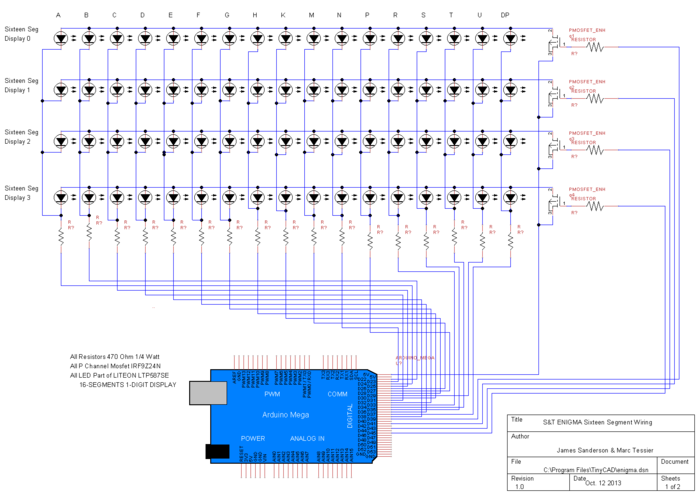

16Segment Display Schematic
16Segment Display Schematic

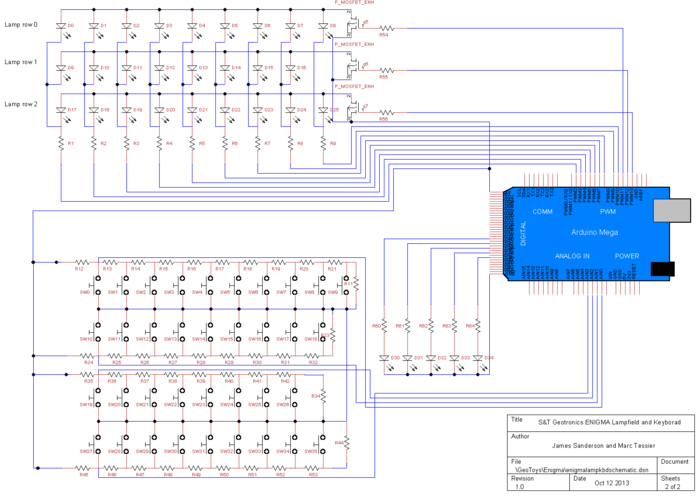

Lamp & Keyboard schematic
Lamp & Keyboard schematic

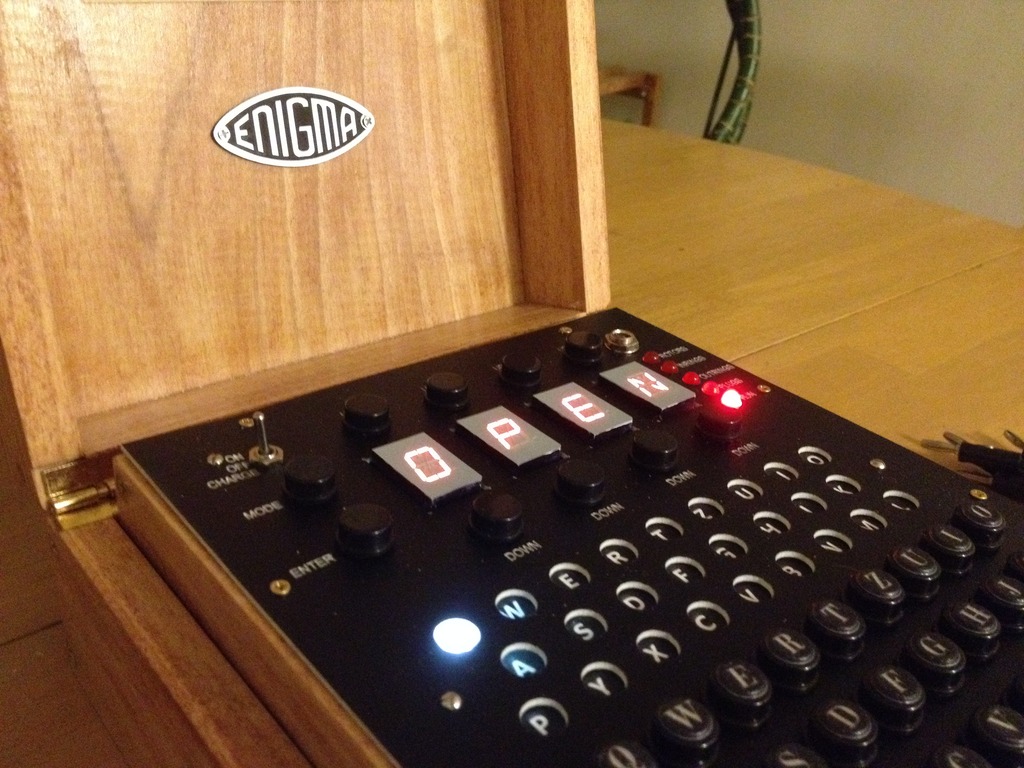

Actual hand-crafted Final design
Actual hand-crafted Final design

Excellent description of contents from a proud client:

Even in today's world of fast computers that can encrypt at exceptional levels like 68 bits, 128 bits, 256 bits, etc used for WEP, WPA, or even AES, the Enigma still offers decent & capable encryption capabilities: Any three of the 8 numbered rotors can be placed in any of the three positions on the shaft. There are therefore 8x7x6 = 336 possible sequences of 3 rotors. There are 26 possible internal settings on each of the three rotors. This gives 26 to the third power = (17,576) possible settings. There are 26 possible external settings for each of the three rotors. This gives 26 to the third power = (17,576) possible settings.     There are anywhere from 0 to 10 plug wires which can be inserted into any of the 26 sockets.
This gives roughly 532,985,208,200,576 possible settings. Combining these possibilities give us a total of 26,672,901,348,424,004,787,290,112 or about 10 to the 26 power possible starting settings. It's not AES but...

Excellent operating instructions from one of our clients:

We are committed to produce ONLY 100 total units by Hand. These are sold first come first served, will ship with a numbered & signed Certificate of Authenticity & when we reach Serial Number 100, there will be no more. With your support, we will then produce the less expensive manufactured units through Factory for all (www.factoryforall.com).

With an Open community of Users, we intend to look into these possible Future developments:  (Possibly stretch goals?)

- USB interface to send/receive settings & messages,

- WiFi activation,

- Encryption of Router traffic,

- Portable version &/or 1/4 scale unit

- Game mode,

- etc.

We can't conclude without paying Homage to WWII vets everywhere.

Many developments born in war eventually meet civilian acceptance (like GPS). Enigma will now (with your support) have that same opportunity (albeit decades later).

Estimated Schedule:

April: Kickstarter Period ends

May: Delivery of Keychains & Enigma Velour carrying bags. Capture addresses, T-shirt sizes, Enigma customization desires

Design of SMT PCB, Find production facility, Order of Components for kits, Order of Coffee Table Books

June: Delivery of T-Shirts, Bare PCBs, Coffee Table Books

Testing of SMT PCB, revise until perfect

July: Delivery of D.I.Y. Kits

Production Assembly of Open Enigma V2, Integration tests

August: Delivery of Ultimate Edition, then Limited Edition, then Full Enigmas

Reward Levels:

$5 VIRTUAL HIGH FIVE: Pledge $5 and keep up-to-date on all things Open Enigma with exclusive updates, Open Enigma availability, etc. and have your name written on the Open Enigma Wall of Fame. http://www.openenigma.com

Estimated delivery: March - April 2014

$15 ENIGMA KEY: Pledge $15 and we will send you your very own Enigma Keychain.

Estimated delivery: May 2014

Add $5 USD to ship outside the US

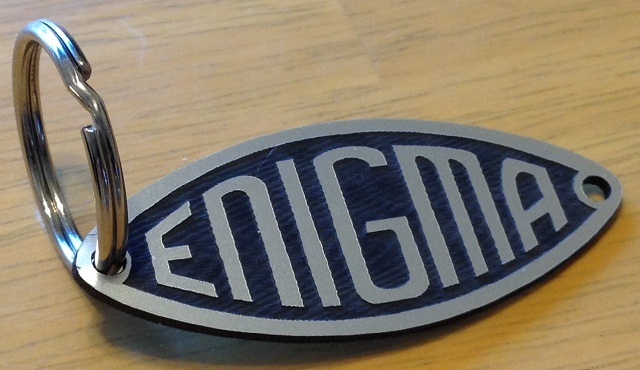

Custom Keychain
Custom Keychain

$20 FELT AN ENIGMA?: For a pledge of $20, we will send you your very own Enigma Mark 4 Velour carrying bag, ready to receive your personal Enigma (when you get one) or a fine bottle of Whiskey. Color may vary from picture below.

Estimated delivery: May 2014

Add $5 USD to ship outside the US

Velours Bag - Color may vary
Velours Bag - Color may vary

$25 OPEN MY ENIGMA T-SHIRT: For a pledge of $25, we will send you our unique "Open my Enigma" T-Shirt. You will get an opportunity to tell us your size(s) when you give us your address after the close of the Kickstarter campaign.

Estimated delivery: Jun 2014

Add $10 USD to ship outside the US

Open Enigma T-Shirt
Open Enigma T-Shirt

$40 ENIGMA MOTHER & DAUGHTER: For a pledge of $40, we will send you BOTH the bare Enigma Motherboard (the one that receives all the LEDS & buttons and connects to the Enigma Daughter card) and the bare Enigma Daughter card (the one that interfaces between the Enigma Motherboard and the Arduino Mega). You also get the 2 Bill of Materials (BOMs) so you can populate them yourself.

Estimated delivery: Jun 2014

Add $15 USD to ship outside the US

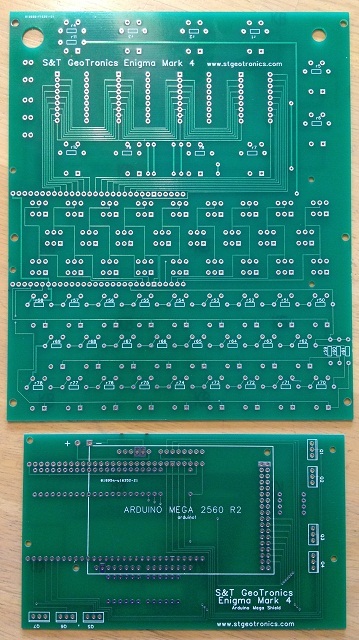

Open Enigma Mother board & Daughter card
Open Enigma Mother board & Daughter card

$50 OPEN THE ENIGMA COFFEE TABLE BOOK: For a pledge of $50, you will receive our unique Coffee Table Book (loaded with color pictures) chronicling our own involvement/journey re-inventing this iconic & historic device using an Open Source Arduino.

Estimated delivery: Jun 2014

Add $10 USD to ship outside the US

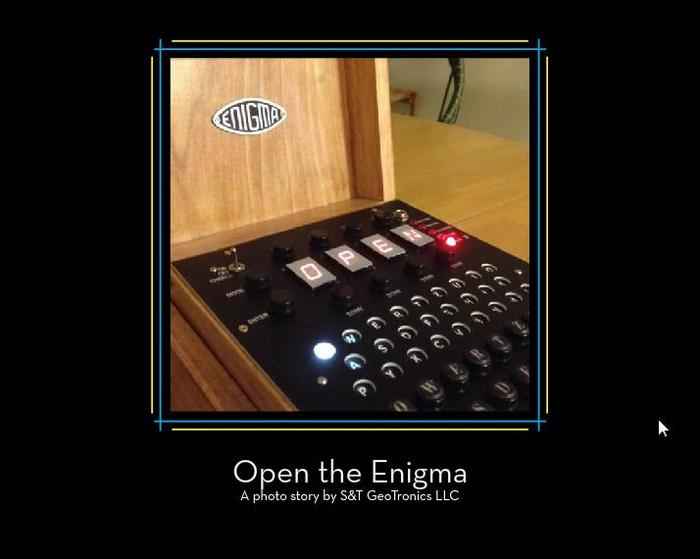

Open Enigma Photo Book
