Product development on an internally edge-lit RGB LED wedding cupcake holder. Freestanding tree-style cupcake display. Read more

1
backer
$100
pledged of $10,000 goal
0
seconds to go

Funding Unsuccessful

This project's funding goal was not reached on July 13, 2012.

Product development on an internally edge-lit RGB LED wedding cupcake holder. Freestanding tree-style cupcake display.

About this project

I'm Andy Livingston, an electrical engineer in the aerospace industry. I've also been a part of the product development, R&D, and LED lighting industry.

Very recently, I started this project for my own wedding. Since I started it, I've wanted to work in weddings. So many people have asked me about, and commented on the cupcake holder, that I am going to make it into a real commercial product.

The first step is developing circuit boards. Using flex circuits, I plan to simplify the LED placement up the base. An improvement over this:

The next step is to refine the controller circuitry, enabling more complex patterns and pattern storage. I will also add a way to control color and pattern output through buttons.

I have drawn up plans for the next version of the physical structure, an improvement that will allow for faster assembly/disassembly, cleaning, and transport.

So much of this is based on laser cutting and etching technology, I will need to purchase a laser cutter to streamline the prototype and assembly process.

Exactly how your donations will be spent:

- Laser cutter

- Prototype and production run of PCBs

- Electronic components such as LEDs and ICs

- Acrylic stock

- Core and base materials

Here are some pictures of the assembly process, and finished first prototype:

LED Current Limit Resistors
LED Current Limit Resistors
Enhancement Mode FET LED Driving
Enhancement Mode FET LED Driving
T1 3/4 Through-Hole LEDs Used
T1 3/4 Through-Hole LEDs Used
Powered by ATX Supply
Powered by ATX Supply
First Full Powerup Test
First Full Powerup Test
Base Assembled and Fully Mocked Up
Base Assembled and Fully Mocked Up

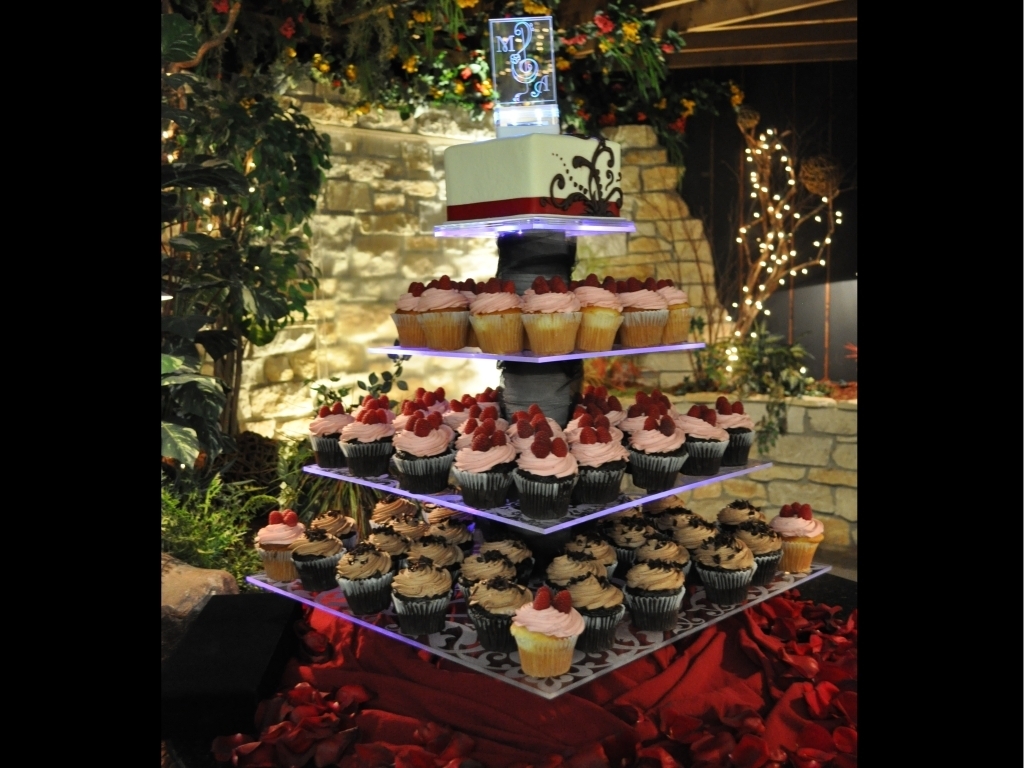

Final Protoype on the Day of My Wedding!
Final Protoype on the Day of My Wedding!

FAQ

Have a question? If the info above doesn't help, you can ask the project creator directly.

Ask a question

Rewards

  1. Select this reward

    Pledge $10 or more
    About $10 USD

    1 backer

    You'll receive a thank you letter from myself and my wife for helping start this project!

    Less
    Estimated delivery:
    Manage your pledge
  2. Select this reward

    Pledge $50 or more
    About $50 USD

    0 backers

    You will receive another of my wedding inventions, the RGB LED edge lit cake topper kit. These can be used as glowing plaques or rewards as well. They consist of an acrylic base with a 3"x5" glass pane on top, which can be custom frosted using craft store frosting stencils and paste.

    Less
    Estimated delivery:
    Manage your pledge
  3. Select this reward

    Pledge $100 or more
    About $100 USD

    0 backers

    For each multiple of $100 (up to a total of 4), you will receive an RGB LED cake topper with custom acrylic laser etching instead of the glass self-etching kit.

    Less
    Estimated delivery:
    Manage your pledge
  4. Select this reward

    Pledge $500 or more
    About $500 USD

    0 backers

    You'll get your own two-tier cupcake holder! They can also be used as any small product display. It would be especially effective for displaying clear or translucent goods, such as blown glass or hard candy. Each of these will be numbered and come with a signed certificate declaring that it is one of the first of these in the world!

    Less
    Estimated delivery:
    Manage your pledge
  5. Select this reward

    Pledge $1,000 or more
    About $1,000 USD

    0 backers

    Not only will you receive your own two-tier cupcake holder, but you will get custom laser etching on the shelves! You decide what you'd like on there. Imagine the logo and advertisement possibilities! These will also come numbered with a signed certificate.

    Less
    Estimated delivery:
    Manage your pledge
  6. Select this reward

    Pledge $2,000 or more
    About $2,000 USD

    0 backers

    Being the largest pledge option, this will be the largest reward. If you pledge $2,000, you will receive the big-daddy of these cupcake holders. Enjoy your own custom etched 4-tier cupcake holder, like the one I had at my wedding!

    Less
    Estimated delivery:
    Manage your pledge
