A small, practical, ultra light & efficient, open source, multi-fuel camping stove charcoal grill made mostly from recycled materials. Read more
This project was successfully funded on January 23, 2014.
About this project
What is the Hobogrill Project?

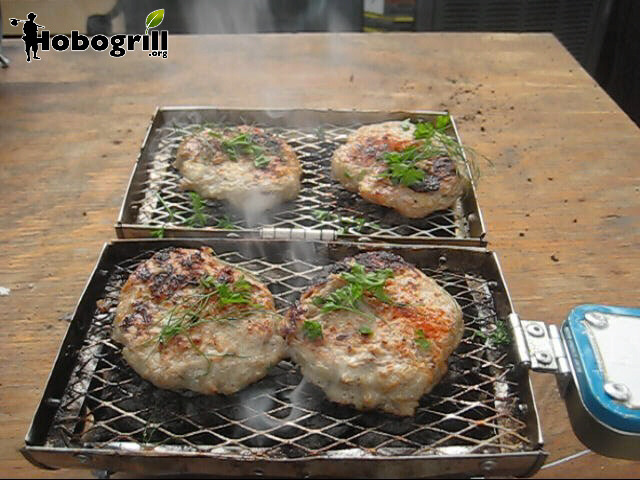

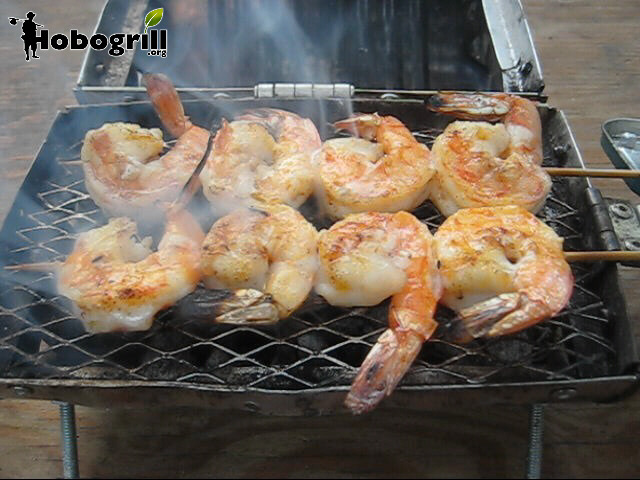

The Hobogrill is small, light weight, durable, portable, practical, environmentally friendly and highly effecient charcoal bbq cooking apparatus that can be made from recycled materials and is itself 100% recyclable. It operates on just 2 charcoal briquets (~90 grams) per side and you can cook on both sides.

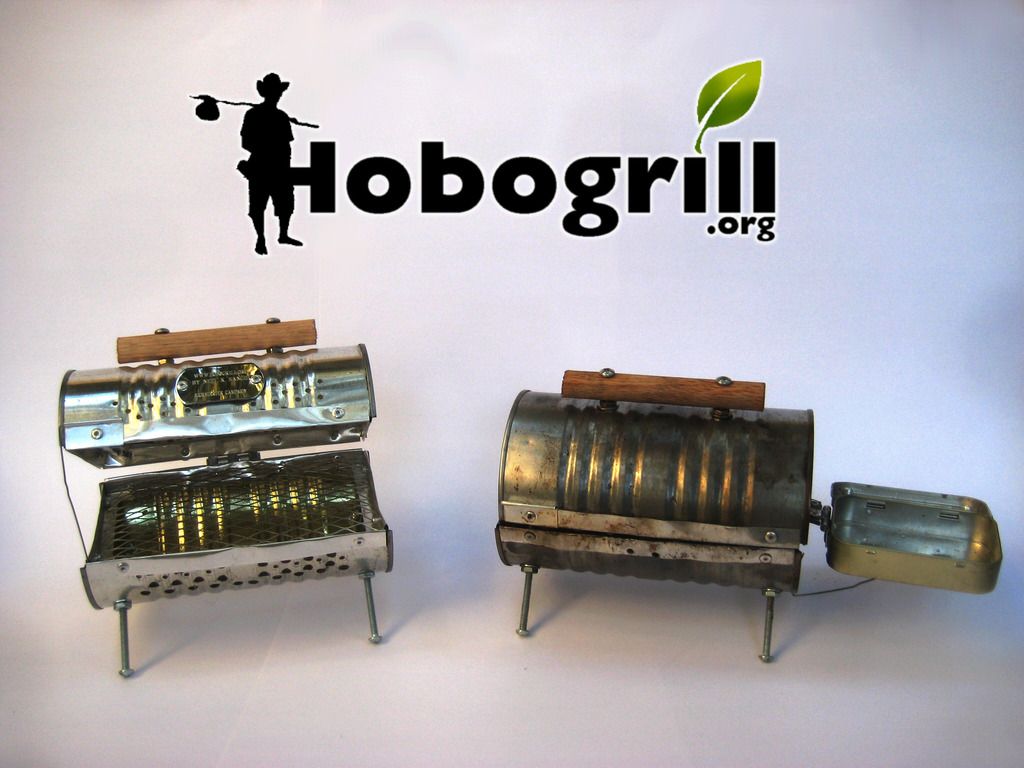

There have been many models and prototypes. This project rewards the HG2 Series. Consisting of the HG2 and the HG2-Deluxe. Specifications listed below.
After full filling all the rewards, I will release instructions as open source under the Creative Commons 3.0 License for non-commercial purposes and requiring author attribution to the Hobogrill.org Project for anyone in the world to be able to build their own Hobogrill.

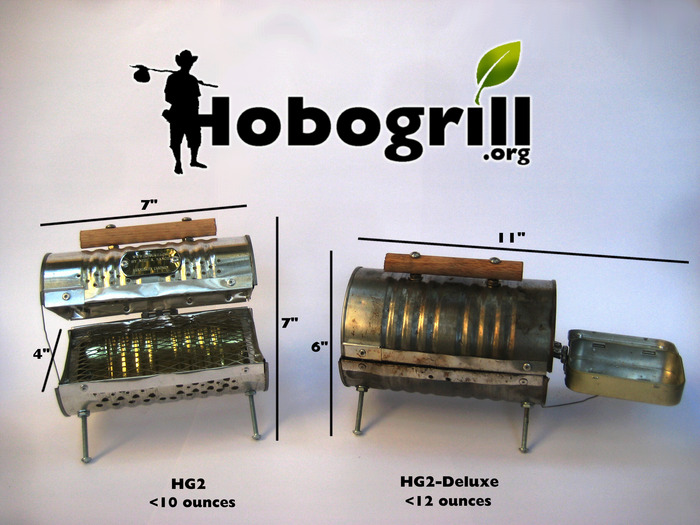

HG2 Series Specifications
Fully Collapsed: 4" diameter, 7" wide, 6" inches tall
HG2: Less than 10 ounces
HG2- Deluxe: Less than 12 ounces
Fuel Usage: ~90grams of charcoal (2 Charcoal Briquets)
Power Output: ~1592BTU = 466Watts
Environmentally Friendly Benefits
- Reduces landfill space by reducing/eliminating waste
- Minimizes carbon emissions by minimizing the fuel required to cook
- Increases awareness of recycling
1. An estimated 100 million steel cans (soup cans, coffee, vegetable, etc) are discarded every single day in the United States alone. This amounts to 36.5 billion cans per year. These cans are taking up massive volumes of landfill space. The hobogrill.org project teaches people how to safely and effectively extract the contents of the can and repurpose the can into a practical portable grill.
2. Most everytime someone uses a conventional charcoal grill, there is wasted charcoal. The charcoal is wasted in the form of unused heat from excess coals, or wasted in the form of impartially consumed charcoals which remain in the grill and are many times discarded in the ground or worse yet into a garbage can where it will end up taking valuable space in a landfill. The Hobogrill HG2 series eliminates this problem by only using the minumum amount of charcoal.
3. Free charcoal. If one is a true hobo, they understand the purpose of traveling light as well as economizing. Anyone can scavenge the grills at a public park for unburnt charcoals and use them to power the hobogrill.
My Journey to Create the Hobogrill
I wanted to create a portable camp stove that I could use while living full time out of a book bag. I recognize that hot food will be required to turn the romance of traveling the world into reality. The store-bought options were limited, heavy, bulky, and proved impractical for book bag living. So after a little brain storming and some experimentation, I came up with the Hobogrill HG1 Prototype in July of 2012.

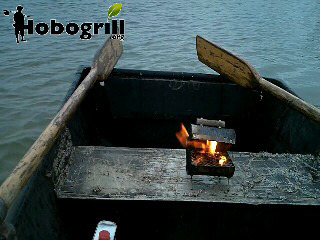

After thoroughly testing the HG1-Prototype, cooking for my friends, wearing it around town, abusing it in marine environments (to test its durability), I wanted to make some modifications. I decided that the grill surface area and volume needed to be increased slightly to create a more satisfying portion size. Also, in the spirit of eliminating waste, I wanted to find a can with liquid contents so the contents could be extracted without damaging the can and the contents would still be fit for human consumption. Hence, the HG2 series was born.

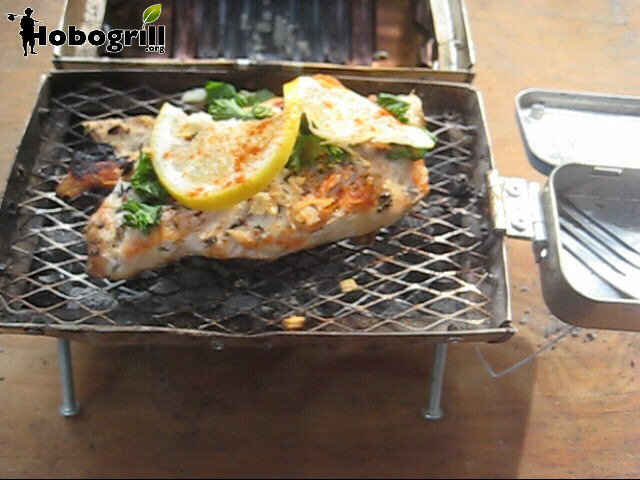

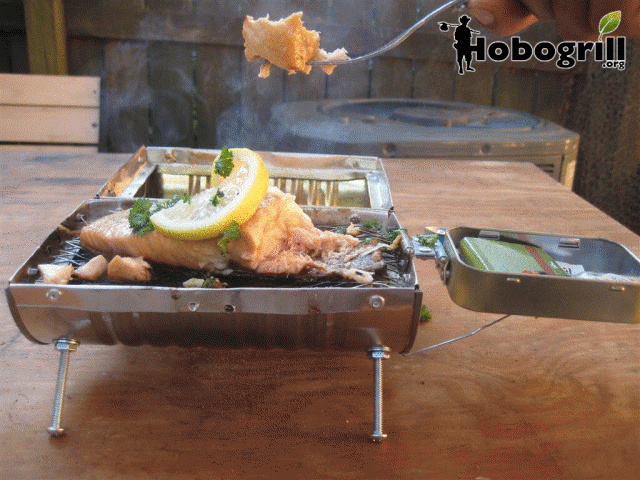

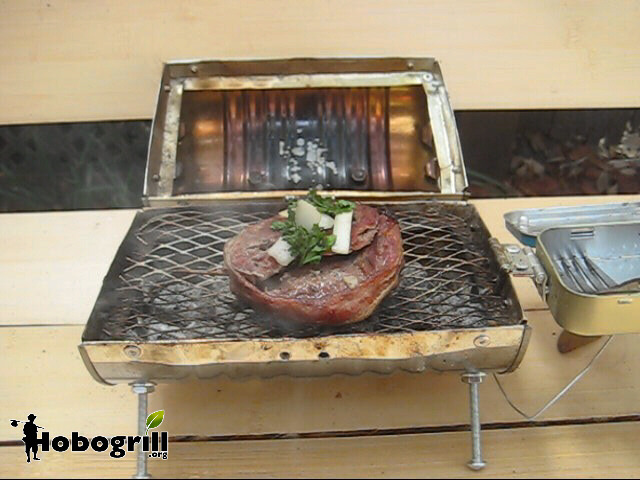

The HG2 Series proved to be the perfect size. However, for the hardcore back pack bag traveler there was one convenience that had to be addressed still: quick access to sanitary storage for cooking and eating utensils as well as to manage the necessary accessories such as matches, condiments, etc (ie the "mess kit/tin"). I wanted the new addition to keep the grill lightweight and quickly and easily collapsible, and still be able to made from recycled materials. So I looked to the classic Altoids [sized] tin container and made it mount the side of the grill and collapse inside with hinges. The mess tin being a metal casing also helped protect the contents from rogue flames/heat. I refer to this model as the HG2-Deluxe.

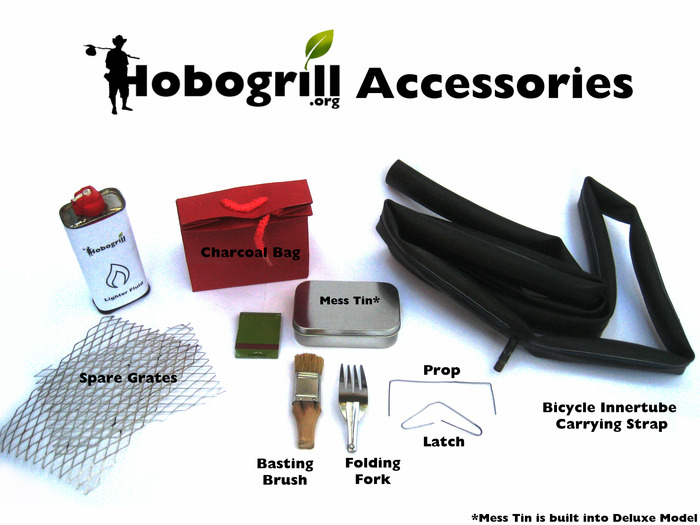

I made a few accessories for the HG2-Deluxe model such as a folding fork and I cut the handle off a pastry brush for basting which are still under the testing phase and therefore will only be included in limited quantities with the HG2-Deluxe Super Kit at the $99 reward level.
What will the funds be used for?
The funds will be used to purchase resources (supplies to build the grills, make tooling/jigging, drill bits, cutting discs, etc) to full fill the rewards and as well maintain the website and content upon the full fillment of the rewards. A portion of the funds will go to facilitate further research and development.
Production Plan and Process:
The prototypes are currently made by hand which is a time consuming process. The only way to make all of grills to meet the reward deadlines is speed up the process through making jigs and special tooling which I have done already to speed up the manufacture of the prototypes. I have limited the quantity of the rewards and set conservative and realistic deadlines to ensure that they can be manufactured and shipped within the estimated delivery time.
I can further increase the manufacturing speed by using CNC automated equipment which would be a viable option provided the campaign were to reach a stretch goal.
July 2012: Design, built and began testing the Hobogrill HG1-Prototypes
October 2013: Designed, built and tested the HG2 Series Prototypes
December 2013: KickStarter Campaign Launch
January 2014: End of KickStarter Campaign
February 2014: Receive funds from campaign. Administrative work. Place order with suppliers (estimated 5 week lead time for tin can factory), and organize backer information for reward fulfillment. Begin tooling and jigging.
March 2014: Tooling and jigging continue to meet production demands
April 2014: All materials for manufacture are expected to have arrived and manufacturing in full swing
July 2014: Early Bird rewards will be shipped.
August 2014: Next batch of rewards are expected to be completed and will be shipped
September 2014: All reward levels are expected to have been completed and shipped to backers
October 2014: Provided all backer rewards were fulfilled, instructions and licensing for the Hobogrill HG2 series will be released on the Hobogrill.org website under the Creative Commons 3.0 License for non commercial use and requiring author attribution.
New 12-29-13: Full Color, Glossy, Hobogrill Postcard $2
Early Bird: Hobogrill HG2 with personalized name plate & serial numbered $29
Early Bird: Hobogrill HG2-Deluxe with personalized name plate & serial numbered $39
Hobogrill HG2 $29
Hobogrill HG2-Deluxe $39
Hobogrill HG2 with personalized name plate $49
Hobogrill HG2-Deluxe with personalized name plate $59
Hobogrill HG2-Deluxe: Kickstarter Edition $99
Note: For sanitary purposes the materials used to make the reward hobogrills will be new.
Personalized Engraved Nameplate for Rewards will be in the following format:
FIRSTNAME LASTNAME 0000
Note on rewards: All rewards depicted here are prototypes, and the final product may differ slightly. For example instead of an Altoids mess tin the actual production model grill will feature a blank unbranded tin as seen above.
Risks and challenges
The greatest challenge for this project is to streamline the production process enough to manufacture and deliver the rewards by the estimated deadline. I am well aware the logistics of fulfilling a great volume of rewards and dealing with potential delays from suppliers. To manage this I have set realistic/conservative estimated delivery dates.
Also, because of the unique nature of this project, there is another design challenge to be met for the how-to build a Hobogrill HG2 instructions to be usable by the widest range of people world wide. Due to the wide variety of resources available or unavailable (mainly tools/rivets/paper clips) to people in different parts of the world, some methods may be more feasible than others. The challenge here would be deciding which variations of making a hobogrill would help the most people while keeping a construction plan simple and straightforward for everyone else.Learn about accountability on Kickstarter
Upon the completion of the reward full fulfillment I will be releasing the plans for the Hobogrill HG2 series under the Creative Commons 3.0 BY-NC license. This means that it will require author attribution to the Hobogrill.org project as well as limited to noncommercial use/production of the grill.
I will be working quickly and diligently to deliver all of the backer rewards. So, hopefully, this date will likely be much sooner than originally anticipated.
The cans for the body of the grill will be new externally fresh cans. I will be repackaging the contents of the tin cans for later use and cleaning out the cans in preparation to make the Hobogrills.
There will be no aluminum cans used as I personally do not want to handle other people's used items where they may have directly put there mouth -- hence for sanitary purposes this part of the Hobogrill will be brand new made from aluminum sheet metal.
The bicycle inner tube carrying straps available for the Kickstarter Editions will be thoroughly cleaned and inspected before being transformed into carrying straps.
The hardwood dowel used for the handle will be brand new, as well as the bolts, rivets, hinges, nameplate and grill grate cooking surface.
The theoretical maximum amount of energy which can be harvested from 90 grams of charcoal is 1592BTU = 0.626hp = 466 watts.
These numbers were calculated from the United States Energy Information Administration (eia.gov) statistic of 19.51MBTU's per short ton of coal.
Pledge $2 or more
Postcard: A full color, high quality, glossy, standard sized, stylish postcard mailed to address of your choice depicting the Hobogrill and personally thanking you for your support.Estimated delivery:Ships anywhere in the world
Pledge $29 or more
67 backers Limited (433 left of 500)
Early Bird Special: You will receive one of the first 500 production models of the Hobogrill HG2 complete with 2 sets of grates for double sided grilling. It will also include a personalized engraved plate with your name, hometown, and the actual production number of the grill.Estimated delivery:Only ships to: United States
Pledge $29 or more
4 backers Limited (496 left of 500)
Hobogrill HG2 complete with 2 sets of grates for double sided grilling.Estimated delivery:Only ships to: United States
Pledge $39 or more
30 backers Limited (470 left of 500)
Early Bird Special: You will receive one of the first 500 production models of the Hobogrill HG2-Deluxe complete with 2 sets of grates for double sided grilling. It will also include a personalized engraved plate with your name, hometown, and the actual production number of the grill.Estimated delivery:Only ships to: United States
Pledge $39 or more
4 backers Limited (496 left of 500)
Hobogrill HG2-Deluxe complete with 2 sets of grates for double sided grilling.Estimated delivery:Only ships to: United States
Pledge $40 or more
1 backer Limited (99 left of 100)
International Edition: You will receive one Hobogrill HG2-Deluxe complete with 2 sets of grates for double sided grilling. It will also include a personalized engraved plate with your name, hometown & country, and the actual production number of the grill for this series.Estimated delivery:Ships anywhere in the world
Pledge $49 or more
0 backers Limited (500 left of 500)
Hobogrill HG2 complete with 2 sets of grates for double sided grilling. It will also include a personalized engraved plate with your name, & hometownEstimated delivery:Only ships to: United States
Pledge $59 or more
0 backers Limited (500 left of 500)
Hobogrill HG2-Deluxe complete with 2 sets of grates for double sided grilling. It will also include a personalized engraved plate with your name, & hometownEstimated delivery:Only ships to: United States
Pledge $99 or more
5 backers Limited (95 left of 100)
Hobogrill HG-2 Deluxe: Kickstarter Edition, includes stocked mess kit (with folding fork & basting brush), empty lighter fluid tin, bicycle innertube carrying strap, charcoal storage bag, and 2 sets of grates for double sided cooking. It will also include a personalized engraved plate with your name, hometown, and the actual production number of the grill.Estimated delivery:Only ships to: United States
