I'm building a photo booth that will spray paint your likeness (or anything else) on paper, canvas, wood and more!

Hi, my name's John, and I like making things that light up.

Edit: You can follow the day-to-day progress of the project at http://tagbot.tumblr.com

My latest venture into robots with whimsy is going to be TagBot, the spray painting machine. It follows my guiding light of electro-mechanical artwork and building things that lie at the crossroads of new media and old.

I've done quite a bit of work on the software part of the installment, and have begun the drawings and schematics for the parts I will have to 3D print and solder to get this running, and have a few parts donations from benefactors, but this is only for the robot itself.

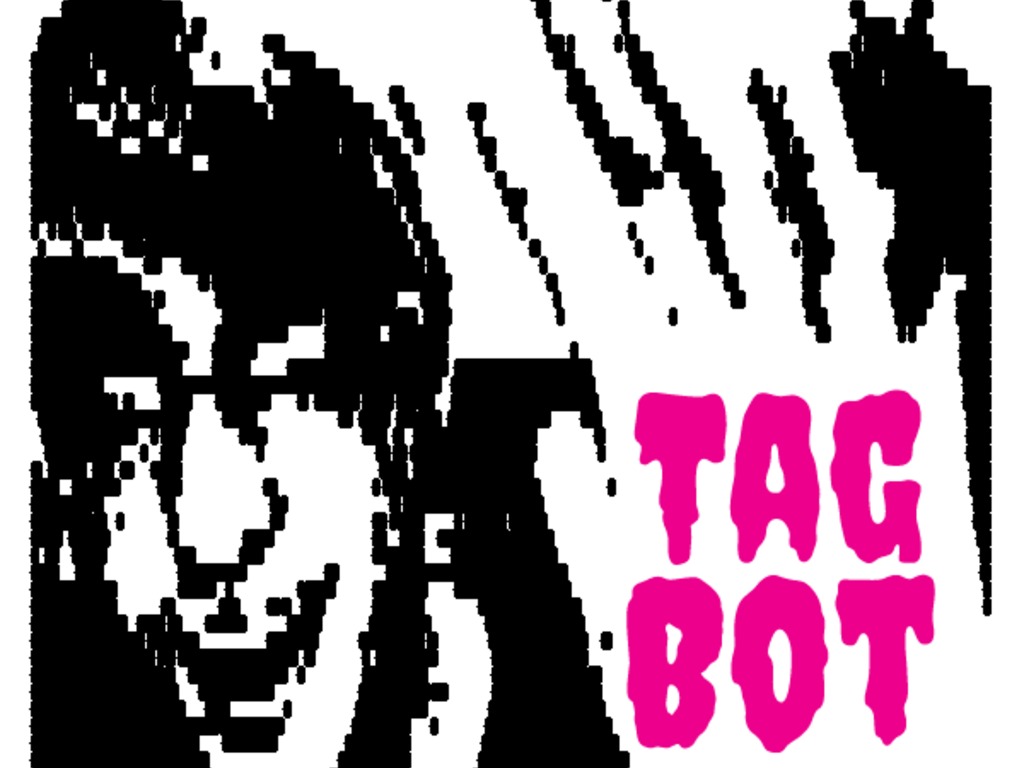

Above is the in-computer preview image of a very large spray taken from the photo booth application.What this software does is access the webcam and shows a preview to the user. Upon hitting a button the stream is paused, the current frame is saved and is converted to an array of sampling points, as the spacing that the printer will use. Once I have this I convert this large array of (X,Y) points into the delta hypotenuse instructions. I'm doing these (X,Y) coordinate conversions for two separate origins, as shown in the diagram below. I also will send to the Arduino the instructions to trigger the spray can simultaneously. I'm basing the code for the control mechanism on G-Code, a well known, and well used, instruction set for controlling CNC machines.

The hardware receiving these instructions is an Arduino, sending out commands to two stepper motors as well as a solenoid controlling the spray can's nozzle actuation. The stepper motors will be pulling long lengths of timing belt using custom-printed pulleys and mounted with 3D printed blocks to hold everything together. These belts will mount to the can on a small bracket that will also hold the solenoid in place. When triggered, the solenoid will apply pressure to the cap like a finger usually would, and paint will then be sprayed on the canvas at that (X,Y) coordinate.

I plan on making the public debut of my tag bot at the Orlando Mini Maker Faire (whose organizers have donated tickets to two of the pledge levels), where it will be running as a photo-booth, taking pictures of people and spraying their likenesses onto paper, for them to take home, or wood, to remain persistent and create a final work of art with the sum of all abandoned portraits overlayed on one another.

The catch to running this booth all day and having people walk up and see what its all about is that I'll need enough paint and paper to last for the crowds to get a taste of what tech/art can really be about. The spray paint I'm using is top-of-the-line stuff. If I'm giving people something to take home, I want it to last as a memento of what they experienced that day. I'd also like to be able to provide multi-color prints and demonstrations, and with spray-paint as the medium, each color must be bought individually.

With your support I can do large, multicolor prints, as well as give people at the faire something to take home, encourage them to join the Orlando (or wherever they're from) technology community, and inspire them to build what's in their minds.

If there's a lot of your help, and I overfund, the money will go directly into designing circuit boards and making kits to allow others to build their own TagBots.

Below is a visualizer written to embed in a larger, music-centric system, and below is myself testing out a linkage I lasercut and assembled as part of my work with a team project in a UCF 3D-design course.

I'm no stranger to open source hardware and software, and much of my design work has been made open source and has also gained much from the open source community.

As software and hardware is developed it is being made open source. You can follow the software part of it here at https://github.com/johnbentcope/tagbot and the hardware part soon at http://www.thingiverse.com/johnbentcope.

At these places you can also check out previous code work I've done for web development and design, machine learning, and visual applications.

Thank you for reading this, and I hope you back the project and I get to see you at the Orlando Mini Maker Faire!
