12 backers pledged £1,530 to help bring this project to life.

About

Modules HAT EDU Learning Kit - V2  for Raspberry Pi  B+  B2 project video thumbnail
Replay with sound
Play with
sound

£1,530

12

In the video:

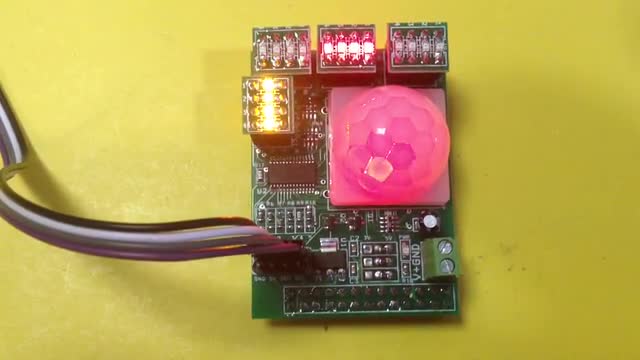

  • RGB Light control
  • 5 x Servo Motor control
  • Step Motor control
  • 1 Servo Motor control
  • Traffic light sequence
  • 84x48 LCD with DS18b20 Temp sensor display
  • 16x2 LCD with Temperature Sensor
  • 20x4 LCD with Temperature sensor
  • SRF05 UltraSonic Sensor with Mini Fan control

We have Pi-Scratch software available to control hardware through scratch using commands, such as G17ON which will turn GPIO17 On. This project is aimed towards teachers teaching Programming in the new curriculum, Hobbyists, and Professionals who want to use their Raspberry Pi.

Our Aim

We are hoping to see a few boards in schools to help kids to learn how software works / how they can control the world around them. There are many scenarios where this board can come into play such as teaching kids the green cross code, teaching Programming, and many more.

What you get

The board is already sold assembled and ready to use ( The real time clock needs a cell battery to work, we can't sell due to shipping restrictions ).

EDU-v2-E01 full support by our Pi_Scractch can easy control by scratch also test in Raspberry Pi B2, A+, B+ all working ,EDU-v2-E02, EDU-v2-E03  all can work in Raspberry Pi A+/B+/B2

Product detail web site   Detail

Pi_Scratch control interface Detail

Delivery UK: First Class recorded with tracking number

Outside UK: Royal Mail International sign for with tracking number

09 May 2015 update   extra gift

If you back the boards EO1, EO2, and EO3 with RFID Reader module we will gift you a extra RFID card

 If you back the boards EO1, EO2, and EO3 we will gift you a free Knight Rider LED kit (Red x3, Yellow x1)   support Scratch & Python

  ** 28 Apr 2015 New update

 project video thumbnail
Replay with sound
Play with
sound

 Knight Rider LED Kit demo

Thanks for all your support we did the first stage,  next will be

If you back the boards EO1, EO2, and EO3 we will gift you a free No1. NRF24L01 RF module if all orders go over 50. If the orders go over 100 then you will also receive a free No2. ESP8266 WiFi module on top of the free NRF24L01.

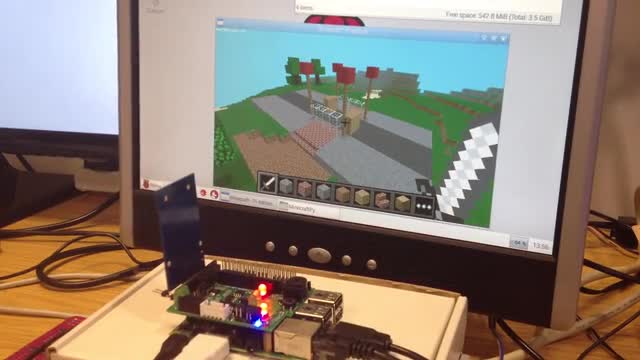

*****      New update 01 - 16 Apr 2015 EDU-V2-E01 control Minecraft Pi - Traffic Light demo

 project video thumbnail
Replay with sound
Play with
sound

What comes with the board are as follows:

1. EDU-Learing Kit-V2    EDU-V2-E01  -- Module /sensor GPIO Learning Kits ( support Raspberry Pi B2/A+/B+)

  • 2 Sets of "Traffic lights"
  • 2 Micro Switches
  • 1 Buzzer
  • RFID Reader Socket
  • RTC real time clock
  • Radio Frequency Reader Socket ( NRF24L01 )
  • 2 i2c Ports for extra devices   (GND,3.3V,SDA,SCL) (GND,5V,SDA,SCL)
  • Temperature Sensor Socket ( DS18B20 )
  • Passive Infra-red Sensor Socket ( PIR )
  • Infra-red receiver Socket
  • 1 x 5V Stepper Motor Sockets
  • one 5V Micro Fan socket ( or SSR AC control device socket)
Below are the new functions we added in V2
  • 2 x R,Y,G LED display set
  • 2 Servo motor socket
  • HAT EEPROM 24c32 support on board
  • 1 DHT22 Temperature & Humidity sensor socket
  • HY-SRF05 Ultrasonic distance sensor socket
  • 16x2/20x4 character LCD socket
  • 84x48 Pixels Monochrome LCD socket
  • ESP8266 Serial WiFi module socket        setting detail
  • Bluetooth 2.0 / 4.0 BLE module socket     console setting detail

 1. 2 x SG90 Micro Servo                               2. RFID Reader

 3. NRF24L01 Radio Frequency Reader       4. 5V 28BYJ48 Step Motor
1. Bluetooth V4.0 BLE   2. Bluetooth V2.0     3.4.  Traffic light stand sets

1. Traffic light set                   2. Bluetooth v4.0 BLE
3. RGB Light E03 module      4. Bluetooth v2.0


1. Ultrasonic distance sensor   2. DHT22 Temperature & Humidity sensor
3. 84x48 Pixels Monochrome LCD  4. 16x2 character LCD

 20x4 character LCD example

1. 20x4 character LCD with DS18B20 Temperature sensor
2. PIR motion sensor with DS18B20 Temperature sensor

 DHT22 & UltraSonic distance sensor scratch code demo

16x2 character command example

Command List

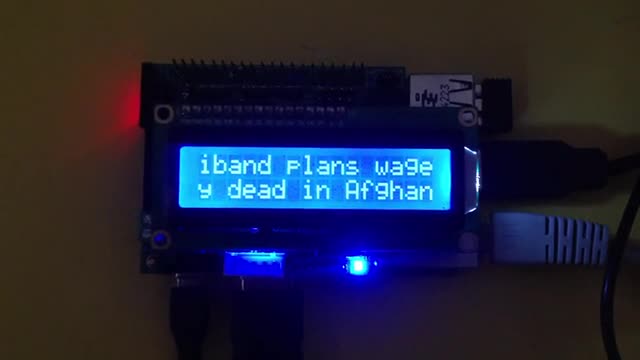

 16X2 character LCD BBC News RSS demo

 project video thumbnail
Replay with sound
Play with
sound

 1. Bluetooth V2.0 serial console to Andriod Tablet

2. ESP8266 Serial WiFi module


HAT EEPROM read/write demo


NRF24L01 RF Module demo -- provides a python program to send a message , You will need two Pi's, one running Mesg.py to send and the other running Recv.py to receive the message.


***   AT command in CuteCom demo for ESP8266WiFi serial module & Bluetooth 2.0/4.0 BLE  (for  EDU-V2-E01 & EDU-V2-E02)

Bluetooth v2.0 HC-05 AT command in CuteCom
 Bluetooth v4.0 BLE HM-10 AT command in CuteCom
 ESP8266 WiFi serial module AT command in CuteCom

ESP8266 WiFi serial module AT command example
** Join Router
AT+RST
AT+CWMODE=3
AT+CWLAP     ---- search WiFi Network
AT+CWJAP="your ssid","password"     join your Router Spot
AT+CWJAP=?      ---- check if connected successfully


Module set E01-M01
1. PIR motion sensor
2. Mini 5V Fan
3. SRF05 UltraSonic sensor
4. DS18B20 Temp Sensor
5. DHT22 Temp & Humidity Sensor
6. RYG LED stand set x2

Module set E01-M02
1.   PIR motion sensor
2.   Mini 5V Fan
3.   SRF05 UltraSonic sensor
4.   RFID Reader Kit
5.   NRF24L01 RF module
6.   DHT22 Temp & Humidity Sensor
7.   ESP8266 Serial WiFi module
8.   Bluetooth V2.0  module
9.   RYG LED stand set x2
10. DS18B20 Temp Sensor
11. IR receiver sensor


Module set E01-M03
1.   PIR motion sensor
2.   5V Step Motor
3.   5V Mini Fan
4.   16x2 character LCD
5.   RFID Reader Kit
6.   NRF24L01 RF module
7.   SG90 Micro Servo
8.   SRF05 UltraSonic sensor
9.   RYG LED stand set x2
10. DHT22 Temp & Humidity Sensor
11. DS18B20 Temp
12. IR Receiver sensor
13. ESP8266 Serial WiFi module
14. Bluetooth V2.0  module
15. Bluetooth V4.0 BLE module


Module E01-V1-2-V2 for customer already have our EDU-V1 board Kits already.
Module set E01-v1-2-v2
1. 16x2 character LCD
2. SG90 Micro Servo
3. SRF05 UltraSonic sensor
4. DHT22 Temp & Humidity Sensor
5. RYG LED stand set x2
6. ESP8266 Serial WiFi module
7. Bluetooth V2.0 module
8. Bluetooth V4.0 BLE module


2.EDU-Learing Kit-V2  EDU-V2-E02 - TX-RX-RS232  Learning Kit

for advance user  ( Enable/Disable serial console Port )                  ( support Raspberry Pi B2/A+/B+)

  • 3.5mm Audio RS232 Serial console port
  • DB9 Male RS232 COM Port
  • USB to TTL console Port socket
  • RFID Reader Socket
  • RTC real time clock   - can be disable
  • Radio Frequency Reader Socket ( NRF24L01 )
  • 2 i2c Ports for extra devices   (GND,3.3V,SDA,SCL) (GND,5V,SDA,SCL) 5V port with logic level converter can connect 5V i2c device safely)
  • ESP8266 Serial WiFi module socket
  • Bluetooth 2.0 /4.0 module socket (Tx,Rx,GND,3v3,X,X)  can be for connect GPS module or other serial port modules.
1. EDU-Kit-V2-E02-ab   for Raspberry Pi Model A/B
2. EDU-Kit-V2-E02-b+   for Raspberry Pi Model B2 / A+/B+

1. 3.5mm Audio Serial console cable
2. USB to TTL/RS232 adapter
3. USB to TTL adapter



1. EDU-Kit-V2-E02-ab for Model A/B -- 3.5mm Audio console port to PC-USB serial Port
2. EDU-Kit-V2-E02-b+ for Model B2 / A+/B+  -- 3.5mm Audio console port to PC-USB serial Port


Modules for EDU-V2-E02  board
E02-M01  modules set
1. Bluetooth V4.0 BLE   2. Bluetooth V2.0   3.ESP8266 Serial WiFi
4. RFID Reader Kit    5.NRL24L01 RF module

1.  Bluetooth V2.0    2. ESP8266 Serial WiFi Module
3. RFID Reader       4. NRF24L01





3. EDU-Learing Kit-V2 EDU-V2-E03 - RGB Light -Servo Learning Kit  ( support Raspberry Pi B2/A+/B+/A/B)

  • RGB - White LED Light control
  • 2 i2c Ports for extra devices   (GND,5V,SDA,SCL) (GND,5V,SDA,SCL)
  • 16 channel 12bit PWM servo Port
  • 2p Terminal block VCC input for Servo motor
Can connect up to 16 Servo Motor,  Demo 5 Servo motor . Power for Servo Motor input from 2p terminal block external power


 1 connect to EDU-Kit-V2-E01     2. connect to Raspberry Pi B2/B+

3. connect  from 4pin cable        4. connect to Raspberry Pi B-V2

1. Command "RGBINIT"  will active RGB function, open a window for         "Colour Chooser"

2. Then select your preferred colour.

3. Choose the colour code from "Colour Name"

 project video thumbnail
Replay with sound
Play with
sound

Reward#1

EDU-V2-E03 x1

Reward#2

EDU-V2-E02-AB x1



Reward#3

EDU-V2-E02-B2 x1

Reward#4

EDU-V2-E01 x1

Reward#5

EDU-V2-E01 + EDU-V2-E02-B2+ EDU-V2-E03 + (20cm 4pin female to female cable)



Reward#6

EDU-V2-E01 + EDU-V2-E02-B2+ EDU-V2-E03 x1

Reward#7 for Pi  A/B

EDU-V2-E02-AB + EDU-V2-E03 + E02-M01 Module set


Reward#8 for Pi  A+/B+/B2

EDU-V2-E02-B2 + EDU-V2-E03 + E02-M01 Module set

Reward#9

EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-M1 Module set


Reward#10

EDU-V2-E03  x5

Reward#11

EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-V1-2-V2 Module set


Reward#12

EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-M02 Module set


Reward#13

Pi-B2 + 8GB Micro SD+ ready use Pi_Scratch install Image + EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-M01 Module set



Reward#14

EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-M03 Module set

Reward#15

Pi-B2 + 8GB Micro SD+ ready use Pi_Scratch install Image + EDU-V2-E01 + EDU-V2-E02 + EDU-V2-E03 + E01-M02 Module set



Reward#16

Pi-B2 + 8GB Micro SD+ ready use Pi_Scratch install Image
+ EDU-V2-E01 +  EDU-V2-E02 + EDU-V2-E03 + E01-M03 Module set
