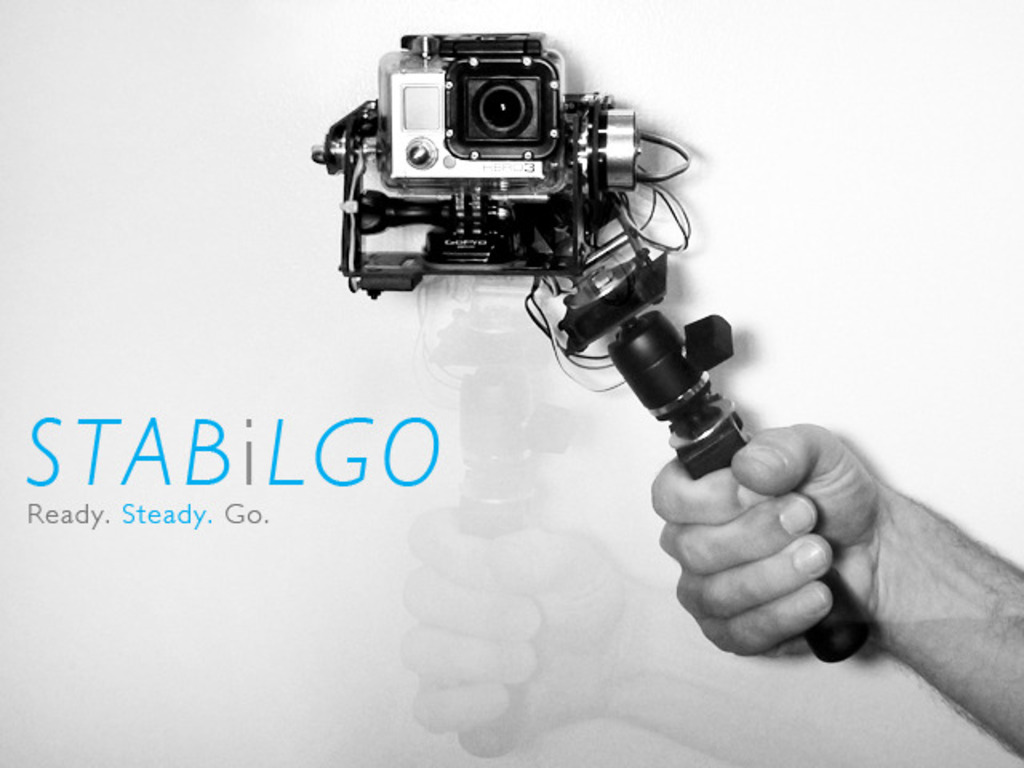

STABiLGO is an affordable, motorized stabilizer for GoPro cameras. Lightweight and consistently steady for active cinematography. Read more
Funding for this project was canceled by the project creator on July 16, 2013.
About this project
CHECK OUT OUR WEBSITE: stabilgo.com
NEW VIDEOS: Side-by-Side Footage: http://youtu.be/QnATuPqmzZQ We hard mounted an additional GoPro to the bottom of the STABiLGO handle so you can truly see the difference. This is raw footage.
East Village Cinematic Shot: http://youtu.be/6DZkjoyR8wU Edited in YouTube. STABiLGO mounted on a tripod to get a larger crane motion.
Moving Time Lapse of Times Square NY: http://youtu.be/dR6mk9232tY Handheld.
We created STABiLGO to help us better film all of the activities we love to do. As cinematographers, we wanted to make a stabilizer that would allow us to film action sports as well as get that all-impressive crane shot. And most important, that it can be achieved with a portable, handheld device. We spent nine months on research and development in our apartment in NYC. The STABiLGO was made using readily available and affordable electronics as well as custom built parts. Over that time, we made the device lighter and more compact with a better range of movement. It was also reprogrammed to attain better response time.
We were excited by the results we were achieving in test scenarios. The next step was to get extreme real world footage from the hands of someone that never saw it before. We put the STABiLGO in a backpack and biked over to the skate park to meet up with a pro-skateboarding videographer. We handed him the device, turned on the camera and told him to go for it. He hopped on a board and followed a skater around the park. The video below is the result of his first time using the device. Not only is the footage stable, but he was able to follow the action effortlessly. He captured a series of action sequences in a crowded skate park: over spines, inverted bowls and other features.
“A Game Changer” –Vic, pro-skatingboarding cinematographer
STABiLGO is an affordable, motorized stabilizer for active cinematography aimed at GoPro users. A high-speed processor and state of the art gyroscopic sensor work in tandem to keep the camera both perfectly horizontal and vertical. The STABiLGO allows for 180 degrees of pitch movement and 270 degrees of roll movement. It frees you to independently capture movement without a crew or cumbersome equipment. You will produce more usable, cinematic footage with a handheld device. Put the STABiLGO on a monopod or tripod for an instant auto-leveling, portable crane. At 1.5lbs, with a GoPro attached, the design minimizes weight making it ideal for active cinematography.
At this point, our goal is to introduce STABiLGO to the community to see how far we can take it. Whether beta testers get to enjoy it or it goes to full production is up to you. We’d love to take this to full production to get it into the hands of cinematographers. We also plan to further develop the easy-to-change, integrated battery before production. We hope our video demos speak for themselves and make you excited to support it. Our long-term goal is to continue to innovate as cameras get smaller with higher resolution.
Aug 2012: Think of the idea.
Sept 2012: Research possibility.
Oct 2012: Purchase various components.
Nov 2012: Assemble, test, and make notes for improvement.
Dec 2012: Invest in more parts and electronics.
Jan 2013: Assemble program and test new design.
Feb 2103: Research additional parts.
Mid March 2013: Buy more parts, redevelop, reconstruct, reprogram.
April 2013: Successful working unit is achieved.
May 2013: Testing and prep for launch.
June 2013: Kickstarter launch.
Having manufactured products in the past we are well-versed in the process of getting a product made. The final design will be better than the current prototype as the STABiLGO will get one final adjustment before a full production run. The battery compartment door will be designed and made of ABS plastic or silicon rubber. This will allow the battery to be changed for a fully charged one for continuous shooting over 90 minutes. We have made contact with vendors and manufactures in China and we will be taking this to full production, or nothing.
First, we will gather the readily available parts and electronic components while we simultaneously manufacture the custom parts. Those two processes will meet for assembly, programming, quality control, and packaging and then be shipped out. They will be assembling the product right along with us. Quality control is important to us and we look forward to making a quality product. We also have access to a small warehouse outside the city; we may ship the units out of there so we can better manage customer service. We only need to make 150 units to get this going. The greater number of people that invest up front, the better the unit will be, with added luxuries like branded retail packaging as well as a more rapid production process. We have invested our own money from the beginning and will be continuing to personally invest to bring this to a retail sales level.
We want to get the patent pending STABiLGO in the hands of a community of cinematographers to help it evolve. We have come far from the first zip-tied model to a point where we can see this being completed. All it takes now is community support to finish it. We are ready for full production with your support.
Here’s where we are:
• Completed concept

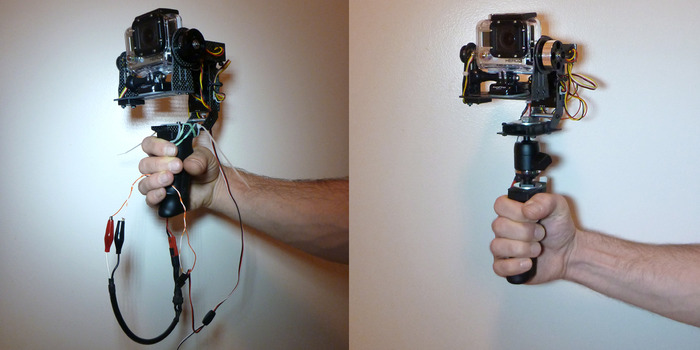

• Built and tested 3 generations of prototypes
• Tested a range of materials
• Redesigned the unit to be mass-manufacture friendly
• Tested an alpha model in the real world
• Optimized code
Here are some dates that we have for production. This should help you to further understand our manufacturing timeline:
• June 2013: Testing on beta prototypes complete.
• June 2013: Design for manufacture complete.
• Mid July 2013: Proto-tooling batch to be manufactured.
• Aug 2013: Start beta build and collecting components from vendors.
• Sept 2013: Ship betas, last revisions for final design.
• Oct 2013: Custom part molds tooled and tested. Test actual production units.
• Nov 2013: Manufacturing and assembly starts.
• Dec 2013: Shipping of 50 early production units
• Jan 2014: Shipping of 100 first production units.
If you decide to pitch in, you’ll get a discount and be one of the first to have our product in your hands. We can’t wait to see what you shoot!
STABiLGO is a high performance, motorized stabilizer for action cinematography aimed at GoPro users. It works seamlessly with your gear and comes complete. All the mounts are standard 1/4-20 threads and the unit quickly attaches to your existing equipment; standard GoPro mounts, a tripod, etc. Every unit comes with a battery and a charger.
The full production models will be factory-made and come completely packaged.
Beta testers will receive a handmade and hand-assembled device. This tier is for people who want to offer real world experience and feedback to the project or are just excited to have it first, even if it’s a handmade model. It will be sent preprogrammed and hand packaged.

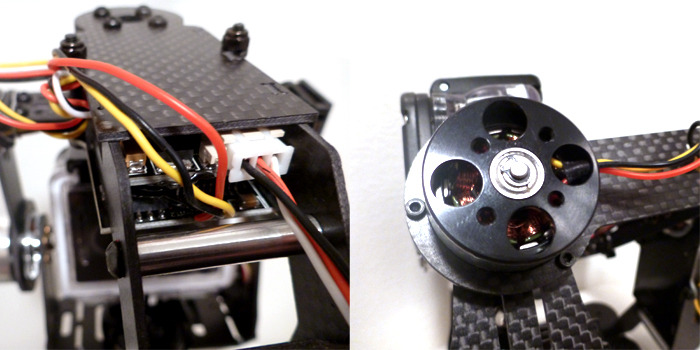

Features: The unit utilizes two brushless motors controlled by the 32-bit MCU flash microcontroller. The gyro unit feeds data to the mini CPU to keep it level. Lightning fast response time is achieved with a high-speed processor and state of the art gyroscopic sensor working in tandem to keep the camera perfectly horizontal and vertical. The gimbal is cut from carbon fiber plates. The handle is ABS plastic. High flex silicon wires allow for free movement. Like any gimbal, you attach your camera and set the center of gravity (COG).
• Weight: 470g/16.5oz (670g/23.5oz with a GoPro)
• Run Time: 90+ minutes on full charge, continuous usage
• Roll angle limit: 270 degrees
• Pitch angle limit: 180 degrees
• Suitable payload: 120g-400g; width: 79mm max
• Cameras known to fit: GoPro* HERO2, HERO3
• Power: LiPo battery- 7.4v 1000Mah 20c
• Current: 160mA ~ 400mA
• COG adjustment range: X: 27.5mm Y: 11.5mm Z: 35.5mm
Product Demonstration Video:
Michael and Christine live on the Lower East Side in NYC. Michael is a Technical Producer and Video Editor. Christine is a Photography Director. We have over 15 years of photography and video experience where we’ve had the opportunity to work with some talented people on music videos, stop-motion animations and feature films. Between Michael’s technical skills and Christine producing, our creative focus and ability to produce and direct our own projects has led us on many adventures. We both enjoy snowboarding, biking and visual arts. We set out to build a device that would help us better shoot the action sports we love to do. We didn’t imagine this as a mass produced product until friends and bystanders saw us using it and encouraged us to share it with the community. It’s just the two of us working on this and putting all of our free time into its development. We hope that you will join us in making the STABiLGO project a reality.
Special thanks to Vic, skateboard cinematographer; Cam, skateboarder; Andrew sound mix.
*GoPro is not included. We are not affiliated with GoPro, but we think their products are awesome!
Risks and challenges
As soon as our full production goal is reached, we’ll be actively working with vendors and manufacturers. Quality control is a major focus of ours and we will oversee it at every level. The project could possibly face challenges or delays if the quality of the product or packaging does not meet our requirements. The number of backers on Kickstarter will help determine how we handle production. The more support we receive from the community the higher level of quality product we will be able to produce.Learn about accountability on Kickstarter
Yes! Weather-proof looks doable with a silicone sleeve over the electronic area and an adjusted bell for the brushless motor that is sealed. We will invest as much work and design into in the final product as we can depending on how much community support we get. Waterproof? No.
We love shooting DSLR too. Right now, we are focusing on the GoPro. We believe that cameras will continue to decrease in size and increase in resolution and frame rate. We are also focusing on action cinematography and sports, but also consider reality-style tv and how they would benefit from a rig like this.
STABiLGO can fit any cameras that are GoPro size or smaller: 120g-400g; width: 79mm max.
If funded, the production model will have the design refined from the final stage prototype you see in the video. Exposed power wires will be incorporated into the design and casting of parts. The ball socket will be better integrated within the handle to shorten the overall height.
