About





Created by DynaLab, NoBike is a project that will change the bike world by altering production technology to create a special bike with your likes and style.

Compared to the traditional bike, NoBike provides the utmost potential and possibility for a personalized bike.

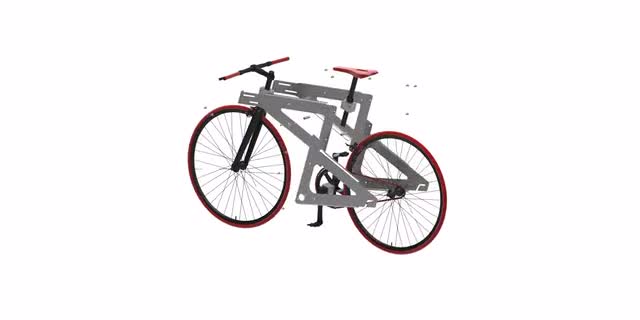

NoBike’s frame consists of four triangular shaped forms that create the top and lower parts of the bike.

On a regular bike, the frame is constructed by tubes welded together; our design avoids this process entirely.

Our design of NoBike is created for lightness; it’s made out of aluminum, 4 mm thickness, and completely laser cut.

The triangular forms that make up the frame are connected by three aluminum joints and cylinder spacers that give the structure extra sturdiness.













 project video thumbnail
Replay with sound
Play with
sound

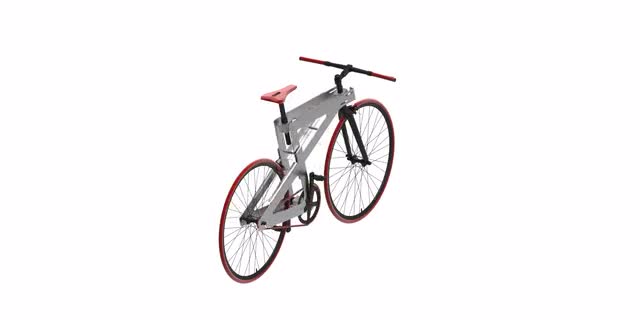

The Lightness of NoBike: only 14 kg (30 lb - 494 oz)

PERSONALIZATION

The versatility of NoBike can be understood from its ergonomic design and aesthetic personalization by the user.

ERGONOMIC PERSONALIZATION



The personalization of the frame is possible thanks to NoBike’s adjustable slot design found on the triangular shaped forms.

Riders can adjust the slots according to their height and needs.





LIMITED EDITION

An unique number will be assigned to each bike frame and this precious information will be jealously kept in Dynalab' log.

S1 means that these are the first precious and unique models of NoBike only available for Kickstarter. A serial number will be assigned to each singular piece of NoBike.

 S1 = SERIES 1



ESTETIC PERSONALIZATION

Aesthetically, NoBike can be customized using various colors or covers.

COLOR FRAME NoBike







COVER

Cover colors are: white, black, red and neutral.





The application of the cover

COVER NEUTRAL

It can also be left neutral giving the riders the possibility of adding stickers of their choice. It can be used also for advertising aims.





BIKE FRAME SPECIFICATIONS

The frame is composed of:

- 4 triangular shaped forms made out of 4mm thick slabs of aluminum, laser cut

- 3 special pieces milled and outlined from a 50 x 50mm rectangular piece of aluminum

- 5 cylinder spacers with screws of M8 length, 4 pieces of 50mm and 1 piece of 58mm

- 1 tube for the handlebars held on by a special internal piece

- 1 rear brake spacer









 project video thumbnail
Replay with sound
Play with
sound











TIMELINE - NoBike





REWARDS

THANKS

Name mention.

Donor will be mentioned at the NoBike event.



GADGET NoBike

(180 gadgets available)

Gadget tablet carrier made from the aluminum used to produce the NoBike frame for sustainable reuse of material.

Shipping cost according to the country of dispatch.

COVER NoBike

(80 covers available)

Shipping cost according to the country of dispatch.

NoBike FRAME
(30 frames available)

Each frame will be numbered.

LIMITED EDITION

30 pieces numbered: N° S1 AL-F 00 to 30



Shipping cost according to the country of dispatch.



Complete NoBike

(45 bikes available)

LIMITED EDITION

Every NoBike will be serial numbered and have 4 ranges.

















Shipping cost according to the country of dispatch.



OFFICIAL COPYRIGHT NoBike

(only 5 frames available)

LIMITED EDITION
Every NoBike will be serial numbered.

For these five special NoBike, the frames will be realized by famous writers or artists. During the campaign their names will be announced.



This image is only an example. Special and unique drawings will be realized by famous artists.

Shipping cost according to the country of dispatch.

OUR TEAM

The NoBike project was created by Dynalab, an innovative startup from Reggio Emilia.



NEXTUP

Nextup, set up in Reggio Emilia in 2016, wants to play the role of an incubator of ideas giving support and services to startups and to everyone who wants to give life to proper ideas. Dynalab is an example of this. NextUp supports Dynalab and its NoBike project.



EVENTS

Lucca Comics
Lucca Comics and Games is an expo fair dedicated to comics, animations and games.
It’s considered the most important Italian exhibition of its kind, first in Europe and second in the world, after the Comiket in Tokyo and the NoBike.

https://www.orgoglionerd.it/news/2016/10/nobike-la-bici-ufficiale-di-orgoglionerd

Innova 2016
Innova is an important event about innovative ideas. Dynalab took part to Innova 2016 showing the first prototype of NoBike. It was ridden by many visitors. Feedbacks were extremely positive.



TUTTORUOTA Exhibition
A bicycle exhibition where both traditional and innovative bike models were displayed.
NoBike was shown at the innovative section of the Exhibition.



Concept by Arch. Francesco Bombardi.



Risks and challenges

The risks and challenges

PROMISES
Goal €40,000

Dynalab has the objective of producing and launching on the market the first complete 50 NoBike + 30 NoBike frames thanks to the contribution of the Kickstarter campaign and the addition of €40,000 or more.

PRODUCTION
Dynalab is aware of the challenges they may face during production of the NoBike. However,thanks for the great collaboration of all the companies involved in the production of the frames and components of the NoBike we are able to guarantee and respect all deadlines.

SHIPPING
The NoBike is shipped in a giant container.
L 950mm x H 750mm X Depth 330mm.
Inside are all frames and components (previously described above) disassembled.
