The First $300 10 GHz Bandwidth USB Sampling Oscilloscope!

Pittsburgh, PA Hardware
Share this project

About this project

I started developing high bandwidth oscilloscopes in 2007. The main goal was to develop a high bandwidth, low cost, oscilloscope hardware and PC software with USB interface.

Initial bandwidth target was 1 GHz. The only remaining proto is shown in the picture below.

1 GHz Bandwidth was achieved, but since speed of electronics circuitry continues to rise, I realized that 1 GHz bandwidth is not that useful as it used to be.

Second proto have gradually achieved Bandwidth of 4, 8 and finally 11 GHz.

Second proto board of DS800 oscilloscope
Second proto board of DS800 oscilloscope

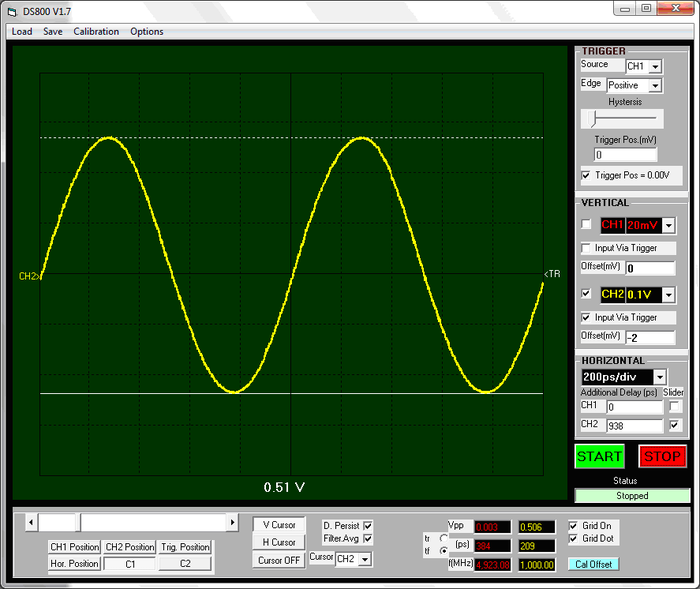

DS800 series 11 GHz scope manual is available at: http://www.fastsampling.com/Products/DS800/DS800Manual14.pdf

 DS 800 is expensive to make, and due to low volume production, it is mainly out of stock and lead time is several weeks.

I believe that product like that should be in stock with price tag around $500. Now, after finding out about kickstarter platform, I have designed and built proto of even lower cost, small footprint oscilloscope, while keeping the key performance intact.

Picture below shows final look of DS100, low cost 10 GHz oscilloscope.

DS100 series 10 GHz scope manual is available at:http://www.fastsampling.com/Products/DS800/DS100Manual.pdf

The final version will have holes for air flow and labels.

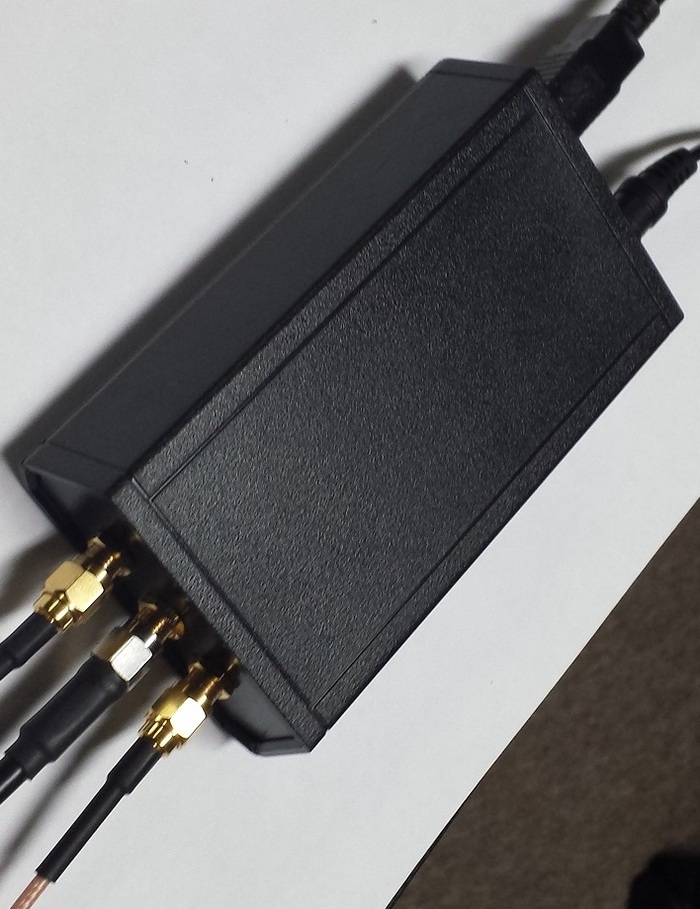

DS100 10 GHz scope prior to vent holes being drilled and labels being added
DS100 10 GHz scope prior to vent holes being drilled and labels being added

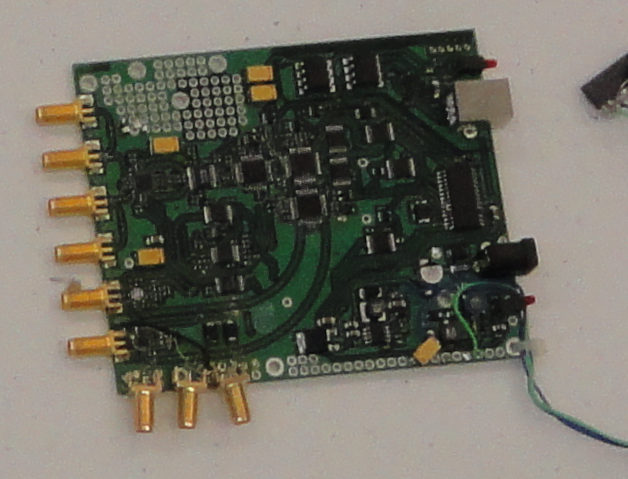

Picture below shows working proto od DS100 scope with one wire placed to fix one schematics error. The wire will not be on the final production unit.The production unit will have slightly different and cleaner look.

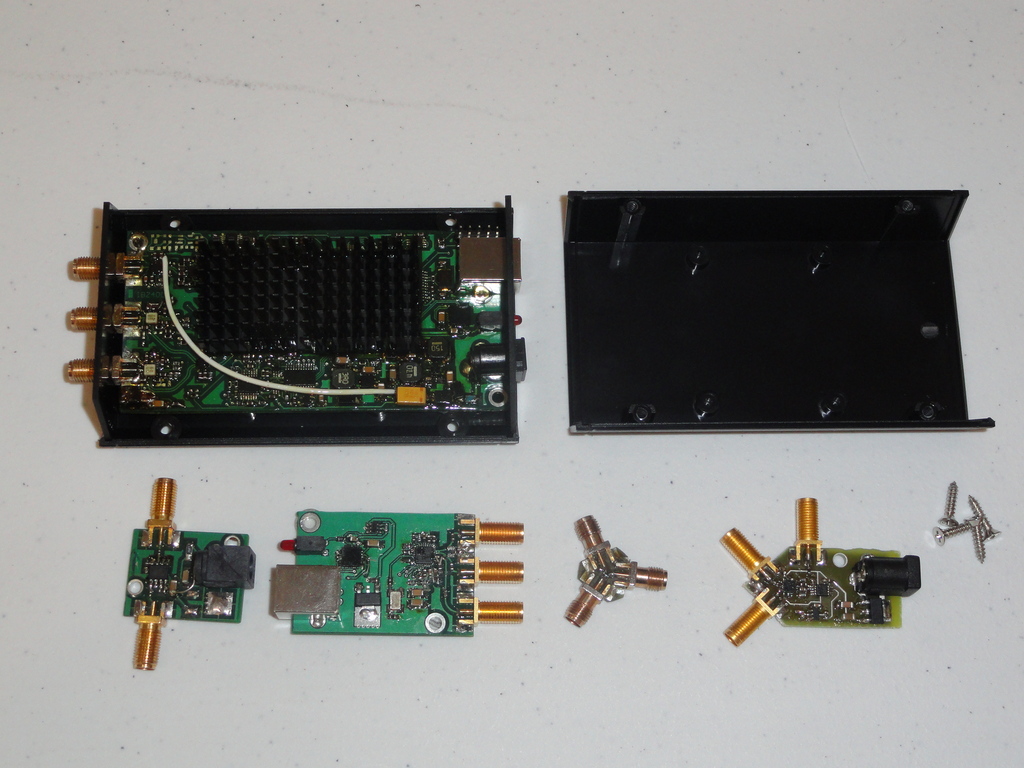

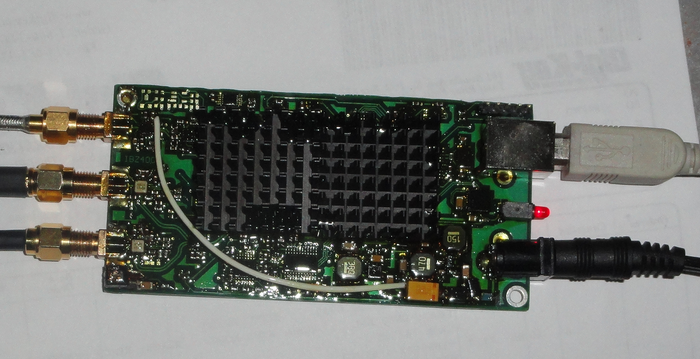

DS100 scope under the hood
DS100 scope under the hood

I have also designed several small accessories to this scope and they will be offered as rewards. Picture below shows 4.4 GHz synthesizer based on ADF4350. We will use newer and better performing ADF4351 for production.

This simple hardware comes with a simple VB application, and it is great to be used for scope time base verification and calibration, but also can be used as stimulus for various test in combination with DS100 scope.

4.4 GHz Synthesizer based on ADF4350
4.4 GHz Synthesizer based on ADF4350

The frequency divider shown below is useful to divide high frequency to extended trigger input frequency range or it can be used to extend frequency range of the frequency counter.

12 GHz Frequency divider by 8
12 GHz Frequency divider by 8

The image below shows resistive power divider made of SMT 15 GHz power divider, a small PCB, and 3 SMA connectors. This is very useful hardware whenever the high frequency signal have to be split in 2 equal power outputs.One good example is dividing one signal to generate one signal for trigger and one for input oscilloscope channels.

RF Power Divider
RF Power Divider

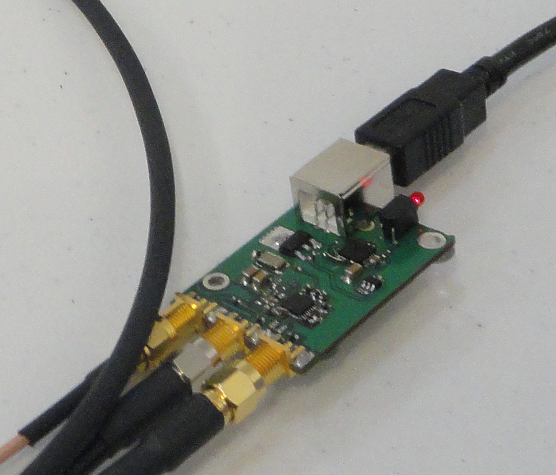

Picture below shows 35 ps rise time edge generator, based on ONET8501. This fast edge can be used as stimulus for impedance measurement using TDR method. Production unit will have a clean PCB with green solder mask.

35 ps edge generator
35 ps edge generator

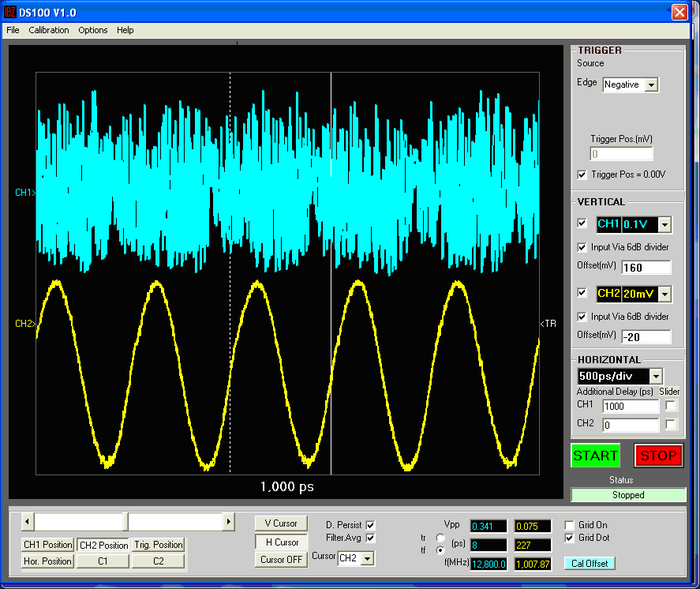

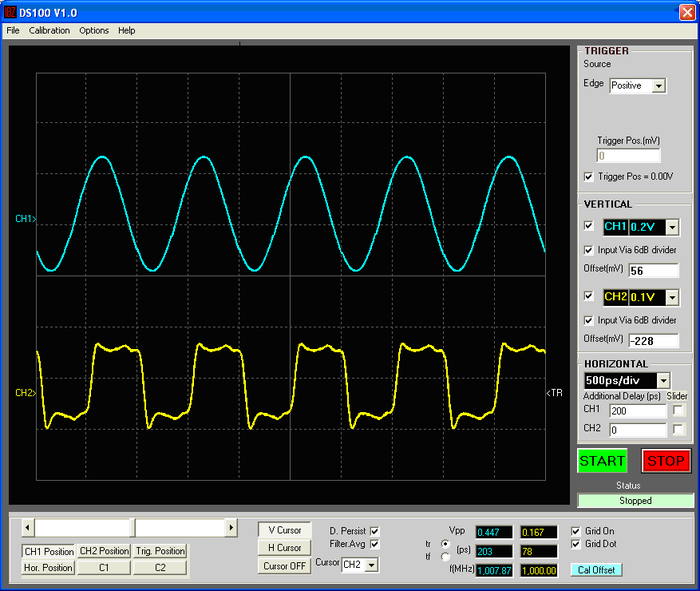

DS100 Windows application GUI, showing 1 GHz sine generated by low noise SAW oscillator and output of ONET 8501 edge generator on second channel
DS100 Windows application GUI, showing 1 GHz sine generated by low noise SAW oscillator and output of ONET 8501 edge generator on second channel

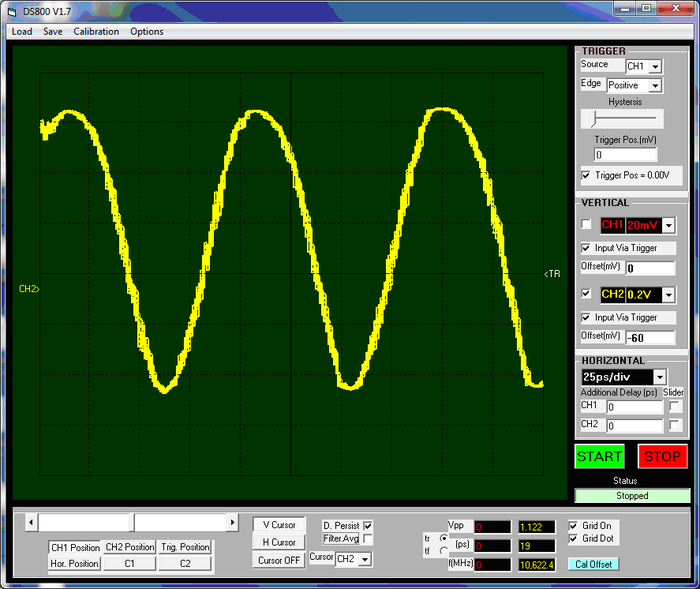

Free runing VCO 10 GHz 1.1 Vpp
Free runing VCO 10 GHz 1.1 Vpp

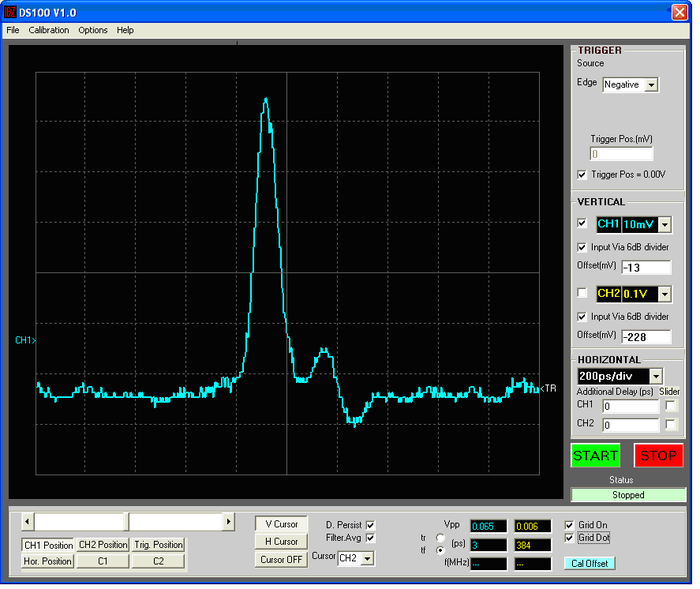

100 ps pulse
100 ps pulse
Time Base jitter pp with 1 GHz sine from SAW oscillator
Time Base jitter pp with 1 GHz sine from SAW oscillator
1 GHz 0.5V pp sine sourced from low noise SAW oscillator
1 GHz 0.5V pp sine sourced from low noise SAW oscillator

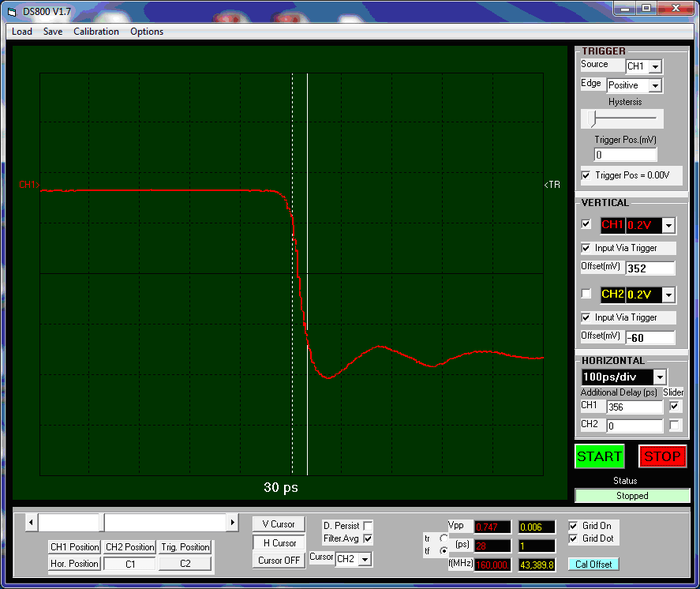

30 ps 0.7 Vpp edge
30 ps 0.7 Vpp edge

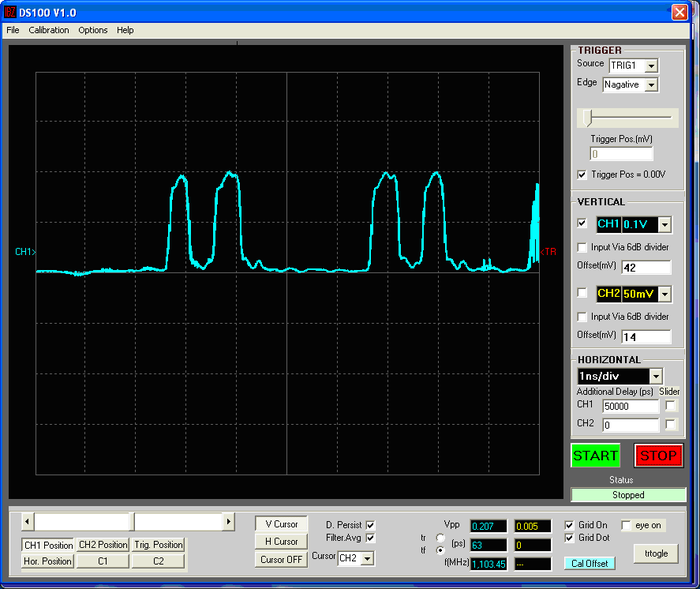

DS100 can reconstruct repetitive pattern if trigger on pattern start is available
DS100 can reconstruct repetitive pattern if trigger on pattern start is available
DS100 can not reconstruct signal in syhronouse data trasmision systems, if scope is triggered on clock
DS100 can not reconstruct signal in syhronouse data trasmision systems, if scope is triggered on clock

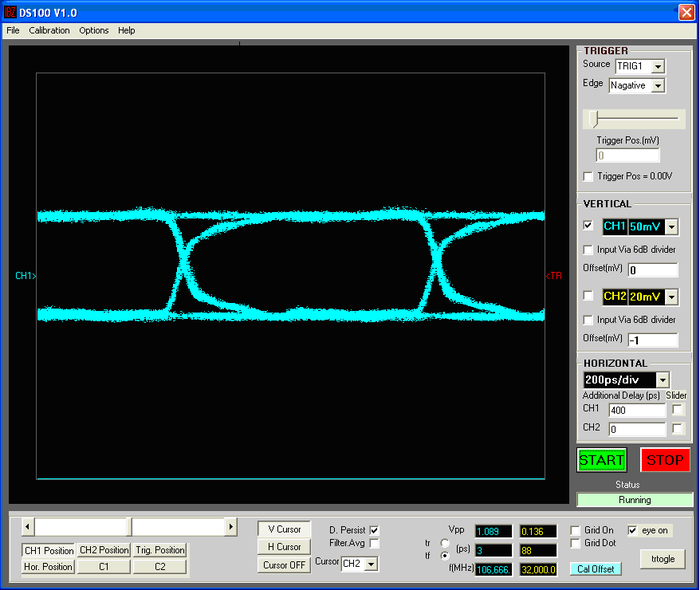

eye diagram wit 1Gb/s PRBS, using both channels for sampling
eye diagram wit 1Gb/s PRBS, using both channels for sampling
It is possible to measure eye width and height in asynchronous data transmission system.
It is possible to measure eye width and height in asynchronous data transmission system.
DS100 can measure the clock to data timing relationship and the signal amplitude in a synchronous data transmission system if the scope is triggered on data.
DS100 can measure the clock to data timing relationship and the signal amplitude in a synchronous data transmission system if the scope is triggered on data.

Video below shows the GUI interface with 1GHz 0.5Vpp sine sourced by a SAW oscillator.

Why support is needed?

There are two main reasons.

First one is real simple, to reduce cost of any product, the production quantity must be significant. My goal is to build at least 500 units.

Second reason is about building the momentum; it is about giving a new life to this product; it is about making this product a bigger, more exciting adventure.

Developing this product was an exciting, challenging and fun adventure. Now, I invite you to support this project and soon you will have a nice tool for exploring fun world of high speed circuitry.

Thanks For Your Support!

Darwin Sabanovic

Risks and challenges

Designing analog and digital circuitry operating at several GHz and controlling timing with picosecond resolution is challenging project, but this phase was over about 3 years ago, and since then i have designed several versions of pretty much the same product.
This product is basically just a lower cost flavor of something already designed an tested in filed.

The only significant challenge I may have is the one I would actually love to have, and it is taking care of production and shipment of a high qty of products as rewards.

The plan is to use a Contract Manufacturer based in USA (4pcb, screaming circuit...etc) to produce and inspect the boards.
I will test and calibrate every board in case that the quantities are up to 300.
In case of greater quantities, I will make automated test and calibration system and test procedure, and contract task of testing and shipping to the the CM service provider in USA.
The majority of components will come from qualified suppliers like Digi Key and Mouser.

I can handle this project by myself with collaboration of Electronics Contract Manufacturer.
However, I can also engage few coworkers (engineers) and technicians to help me on a part time base, in case that support exceeds all of my expectations.
