Offering one of the largest 3D build volumes with multiple extrusion/materials and an outstanding print quality!

About this project

Order from Boots Industries
Order from Boots Industries

 The Boots Industries BI V2.0 is a delta style 3D printer featuring widely available and self-replicating 3D printed components. Innovation is at the forefront of the reinforced frame and triple pulley system, allowing for a large build volume and high quality 3D printed pieces.

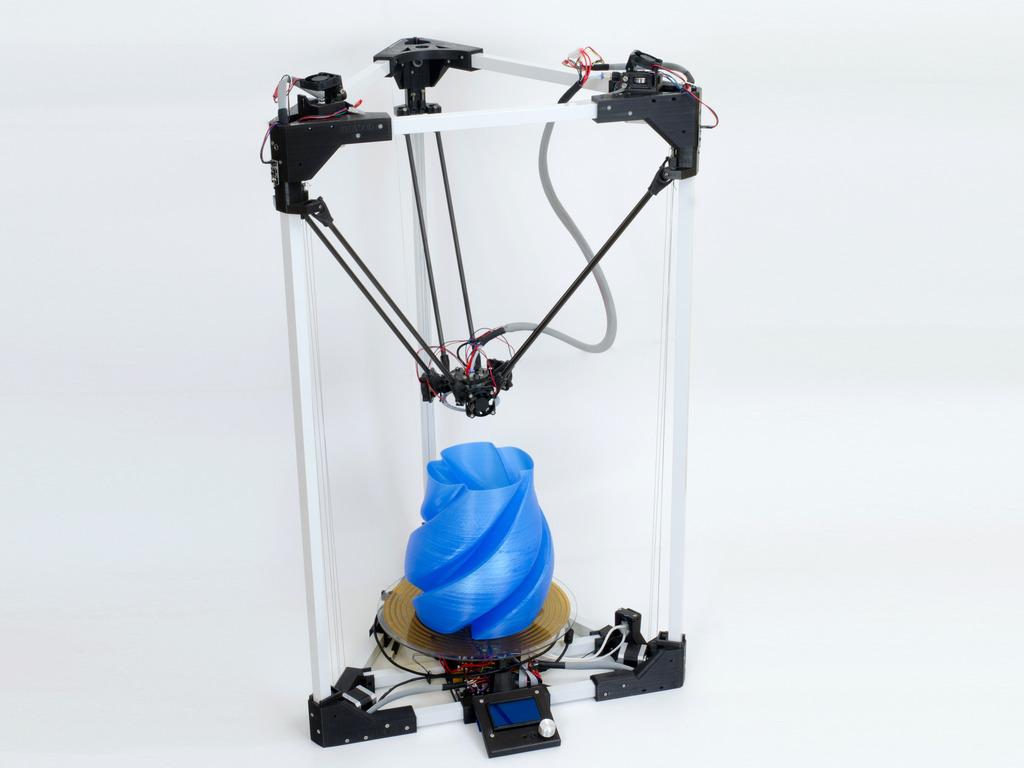

Production ready BI V2.0 prototype
Production ready BI V2.0 prototype

Kickstarter printers will be the first to ship before we open the BI V2.0 on our online store. Act now and be the first to get your hands on it!

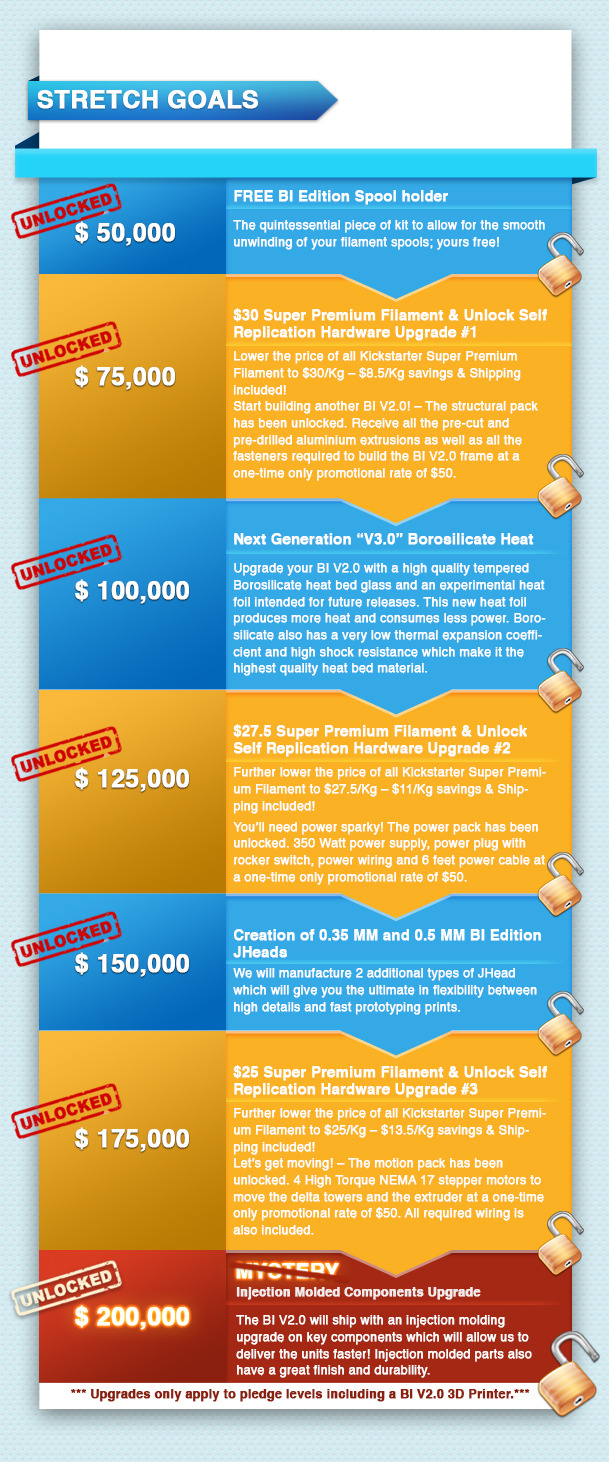

Help us reach our stretch goals to unlock improvements and one-time only discounts on additional BI V2.0 hardware components!

 The "Self-Replication Hardware Upgrades" included in the stretch goals are only intended to offer additional hardware components at a very low promotional cost for backers who intend to create new BI V2.0 by 3D printing the components themselves. Reaching the stretch goals allows us to buy in larger bulk and offer these hardware components as part of the campaign at the lowest possible rate.

What is 3D printing?

3D printing is an exciting technology that allows the everyday user to create 3 dimensional objects from various plastics. Nearly any object you can imagine is built layer by layer by continuously pushing plastic through a ''hot end'' with a narrow tip that positions the molten plastic on the build surface of your BI V2.0.

Why BI V2.0?

The BI V2.0 capably produces very large 300 mm diameter X 300 mm height prints and features an amazing print quality (Be sure to read more about the definition of a true delta build volume below). Our design can support up to triple extrusion and can print virtually any 1.75 mm filament extruding at up to 240 degrees Celsius (PLA/ABS/Nylon etc.). The most unique aspect of the BI V2.0 is our innovative approach towards a self-replicating design which permits the simple creation of extremely precise movement. The end result: the highest standards of print quality. The self-replicating design of the BI V2.0 empowers you to create your own machine and share this technology with your family and friends. Once you receive the BI V2.0, you can print, improve upon and share components so that anyone can build their own printer at a very low cost.

Our assembled components remove the longest and trickiest steps from the equation (i.e. stringing the pulleys, wiring the towers etc.). With our simple to follow instructions the partial assembly will take between 30 minutes and an hour of work.

How did the BI V2.0 come about?

Boots Industries was founded in 2012 by Jean Le Bouthillier, MSc and François Crête, BEng with a goal of making 3D printing more accessible by offering high quality at an affordable price. After the successful concept development and creation of the BI V1.0 (As well as the sale of many kits and fully assembled versions), a significant amount of positive feedback, suggestions and feature requests were received. The team welcomed a new marketing lead, Simon Le Bouthillier, and decided to design a better 3D printer. The BI V2.0 represents the evolution of our work considering these facts on delta style printers and reinforces our core belief that with the right components and a little bit of ingenuity there are no limits in terms of the creation of a high precision, large build volume 3D printer at a relatively low cost.

Thanks to several key design features, the BI V2.0 is capable of producing high quality prints in either PLA, ABS, Nylon or a variety of materials extruding at up to 240 degrees Celsius.

Propellor vase by jameswood - Scaled up to a height of 250 mm
Propellor vase by jameswood - Scaled up to a height of 250 mm
High quality setting - 0.22 mm @ 2400 mm/min
High quality setting - 0.22 mm @ 2400 mm/min

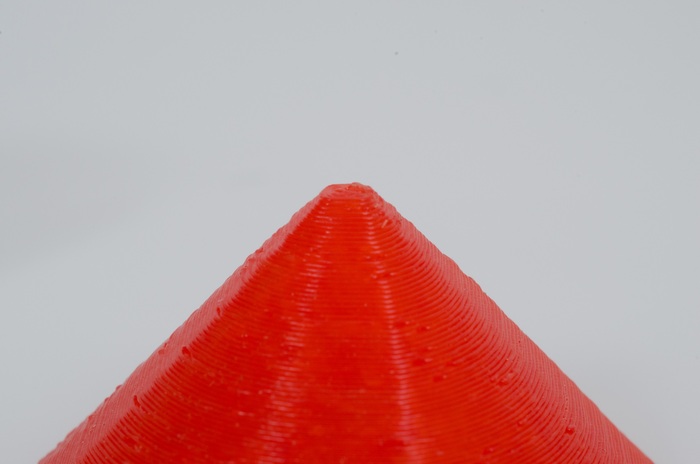

Conical Cooling Test - Red PLA
Conical Cooling Test - Red PLA

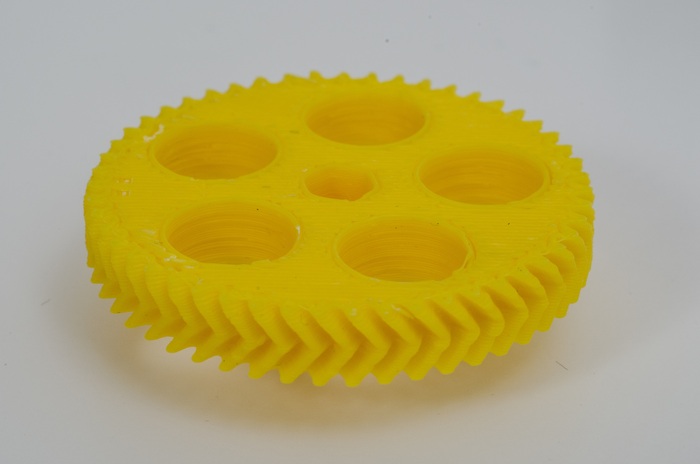

Herringbone gear by ScribbleJ - Yellow ABS
Herringbone gear by ScribbleJ - Yellow ABS

The entire structure of the BI V2.0 is made of steel reinforced 3D printed corners and 3/4 inch anodized aluminium extrusions. The vertical aluminum extrusions serve a dual purpose, acting as structural and linear motion components. Within the context of a delta robot, the most important precision factor is the vertical displacement of each tower. The combination of vertical displacements moves the delta platform around the build volume. This particularity of delta robots allows us to use 3D printed linear bearings without sacrificing any precision. 3D printed linear bearings are also more silent than their ball bearing counterparts. The final result is a clean, practical and dual purpose design.

All corners are steel reinforced for maximal rigidity
All corners are steel reinforced for maximal rigidity
Linear motion component closeup
Linear motion component closeup

To ensure maximum precision during vertical displacement of the delta towers we use high powered NEMA 17 motors with 32x Microstepping (This delights the user with the highest possible resolution). We also use a non-stretch, 50 lb test spectra line which, unlike traditional drive belts, will never stretch during accelerations prompted by your print requests. Finally, we use a triple pulley system which automatically keeps the delta arms of each tower level. The result is a high precision motion accomplished with low cost and widely available components.

Triple pulley system - Top Corner
Triple pulley system - Top Corner
Triple pulley system - Bottom Corner
Triple pulley system - Bottom Corner

This project also features a redesigned 0.4 mm JHead for the extruder hot end (This will be called the Jhead BI Edition). This hot end comes with a modified 4 mm push fitting that allows the PTFE tube to lock in place. Our modifications allow you to print at higher speeds and clogging is virtually non-existent, because our design doesn't allow backflow. The filament is only capable of moving in one direction - out the nozzle towards the creation of everything you can imagine!

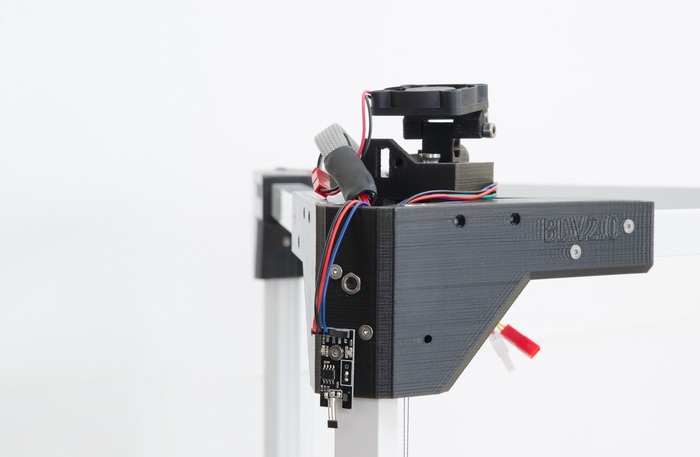

BI V2.0 extruder mounted on top of delta tower
BI V2.0 extruder mounted on top of delta tower

The BI V2.0 can be controlled without a computer through the use of a conveniently positioned LCD controller. With its large LCD screen, this controller provides the user with a unique and remarkable computer free experience. All the key functionalities are found on the LCD. The user has the ability to move the printer, set speeds, temperatures and start prints when their G Code is stored on the SD Card. The Bi V2.0 comes standard with the LCD controller and a 4 GB SD card which can contain an average of 2500 print files.

Large LCD controller for standalone operation
Large LCD controller for standalone operation

It should be obvious that warp prevention and proper adhesion of your parts to the build surface are truly critical features. For this reason, all BI V2.0 3D printers will ship out with a heat bed as a standard feature as opposed to a cost option. Our heat bed comprises a heat foil, glass and a magnetic fastening system. In addition, the bed features a triple point adjustment mechanism to make macro adjustments.

Short warmup times with our high performance heated bed
Short warmup times with our high performance heated bed

Our delta platform is built with carbon fibre rods, 3D printed PLA, a laser cut acrylic tooling insert and is ready for multiple extrusions with a capacity of up to three hot ends. At present, we continue to fine tune the settings and procedures (Retraction settings, hot end vertical alignment) to accomplish high quality dual extrusion. We have previously accomplished this on several experimental models and are confident that delivery of this feature under quality control is more than within our capabilities. We will continue work in this area and we plan to publish an update video featuring double extrusion in the future. A second extruder kit is available as an upgrade option for any pledge level above including a BI V2.0 Kit.

Delta platform closeup (wires will be shortened in final delivery version)
Delta platform closeup (wires will be shortened in final delivery version)

The purpose of an auto-level probe is to measure the height of your print bed at various points and automatically adjust the height of the print nozzle depending on current location. We feel that this is another critical feature since the probe not only measures the height of the print bed, but also resolves discrepancies in the system as a whole. The result is a consistent layering across the entire 300 mm diameter. Printing at such a large diameter without the assistance of the auto-level probe would be very tricky and frustrating - near impossible. As such our printers come standard with the auto-level probe!

The electromagnetic auto-level probe comes standard on every unit
The electromagnetic auto-level probe comes standard on every unit

Our goal is empowerment of the user to create their own printers and improve our design with their ideas. For this reason, all of our 3D models will be made open source in the Sketchup format. We chose the Sketchup format because you won't need to unnecessarily dedicate resources towards CAD software that isn't readily accessible or affordable.

Every component is modelled in Sketchup and will be released after the campaign
Every component is modelled in Sketchup and will be released after the campaign

Concerning the build volume of a Delta printer

 In the context of delta printers there is an important distinction that must be made between the volume contained inside the towers, defined by the print bed, and the actual size of objects the printer is capable of producing. Indeed, in order to offer a true 300 mm diameter X 300 mm height build volume certain clearances must be designed into the printer. Due to the geometry of delta printers and the size of the delta platform it is not possible to print directly to the edge of the circular print bed without leaving a clearance equal or greater than the delta platform dimension between the tower and the heat bed. This means that when a delta design features a circular print bed with no clearance from the towers there will always exist an unreachable zone on the outermost perimeter. Likewise, a vertical clearance must be left above the delta carriages when printing at the maximum height. Without this clearance, the carriages would hit the top structural corners and would never be able to reach the full diameter when printing at the maximum height. An important feature of our design pertaining to the geometry is that our build area is contained within the equilateral triangle created by the three towers. This is due, in large part, to the fact that the team found that this configuration offered the highest precision during the prototyping phase.

Characteristically, the BI V2.0 is built to offer a true 300 mm build volume
Characteristically, the BI V2.0 is built to offer a true 300 mm build volume

 Additional features of the BI V2.0 include:

  • Sleeved electrical wiring for a clean look.
  • Quick disconnect wires in the most convenient places to facilitate maintenance and reconfiguration.
  • Triple fan assembly to maintain consistent temperatures.
  • Powerful LED ring to see the printer in action.

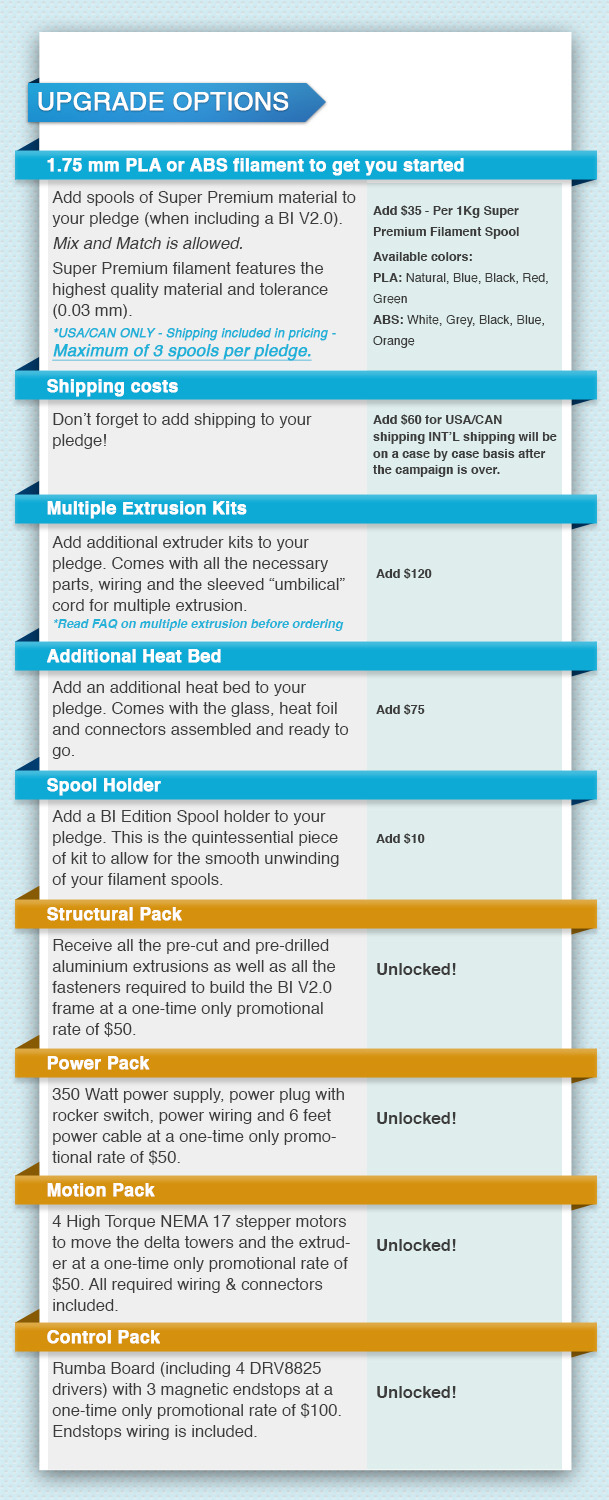

What's in the BI V2.0 kit?

Our kit will ship partially assembled with the following components:

  • Fully assembled X, Y and Z towers pre-wired with NEMA 17, cable drive system and carriages
  • Fully assembled delta platform with arms, fans, hot end and auto-level probe
  • Extruder electrical/PTFE tubing "umbilical" cord
  • Pre-cut and pre-drilled aluminium extrusions
  • Rumba board with DRV 8825 drivers
  • 12V/29A Power supply
  • Hardware bag (nuts, bolts, spare parts etc.)
  • LCD control panel assembly
The assembled components you will be receiving
The assembled components you will be receiving



Thank you Notes

We would like to thank Mr. Johann Rocholl for his work on the Rostock 3D printer.

We would like to thank the Marlin firmware contributors.

We would like to thank the Repetier Host team for their excellent software.

We would like to thank all of customers and the Rostock BI V1.0 adopters for their input.

3D models for all parts (source files) will be released once our Kickstarter Campaign comes to an end! The company currently plans to start and regularly contribute to an online Wiki to further knowledge and research into this promising design.

Industry Partners:

Are you looking for an affordable, high-resolution, full color and texture 3D Scanner that can automatically create 3D models of every day objects? Boots Industries recommends the Robocular project:

http://www.kickstarter.com/projects/robocular/robocular-the-3d-scanner-for-everyone

Are you looking for a larger 3D printer in the 1300$-1500$ and capable with a large production capacity? Boots Industries recommends the gMax which is a new and very large personal desktop FDM 3d printer with an incredible 16” x 16” x 9” (2,304 in3) build volume!

http://www.gmaxprinter.com/

Risks and challenges

We've spent a lot of time preparing the BI V2.0 for production and we also have experience designing and producing our anterior version the BI V1.0.

Careful Delivery Schedule:

We've created an initial Kickstarter delivery schedule that is reasonable, leaves room for adaptation and won't exceed our current production capability. If demand increases we will look at ways to manufacture a greater number of units and add additional pledges.

Acquiring the components:

We are already printing all the 3D printed components and have the ability to scale our production (by using more printers) to meet any demand. We are already one of the top Canadian supplier of PLA and ABS filament and also offer other electrical components for 3D printing. We have secured new contracts with our electronics manufacturers to produce the electronics in bulk. We also have a new supplier for the 3/4 inch aluminium extrusions.

Final modifications:

Although our BI V2.0 is definitely ready for production, we still plan to make several last minute "cosmetic" improvements. For example we will be tweaking the lengths of electrical wires and sleeving around the delta head. These modifications will not impact the delivery schedule of the BI V2.0, but we felt it was important to mention that we will tweak a few details to make your printers look even better!

Assembling the kits for delivery:

Our kits will be shipped partially assembled and we want to ensure that the kits are built in a consistent and accurate way between runs. Our goal and challenge will be to train employees to complete the pre-assembly perfectly every time. Having spent a lot of time with prototypes and anterior versions we designed a final assembly which is very simple to put together.

Shipment packaging:

Although the BI V2.0 components are quite rigid and won't break easily, we want to explore ways to package the kit in a way that result in the lowest footprint and the highest safety during shipping. We will be working with local providers specialized in product packaging.

Your satisfaction:

We want to make sure that you receive all the required information on how to assemble, calibrate and use the software to it's full potential. We feel that we will accomplish this by providing online videos, articles, a wiki and dedicated support on all aspect of the BI V2.0. Although we won't rely on it; we also think that a community of users will develop around the V2.0 and that users will be able to help each other and share tips and tricks.

Learn about accountability on Kickstarter

FAQ

  • It is not possible for us to estimate all the different international shipping costs in advance. Therefore, we will be calculating and settling international shipping on a case-by-case basis after the Kickstarter Campaign. Payment will be available from our website.

    The approximate international rates in USD are as follows:

    Country Cost Carrier

    Germany $97.01 USPS
    France $97.19 USPS
    China $139.96 USPS
    Australia $199.37 DHL
    The Netherlands $95.55 USPS
    United Kingdom $92.60 USPS
    Indonesia $109.03 DHL
    Portugal $78.71 USPS

    Keep in mind that if you add more hardware and filament to your package the weight and cost will go up. These are estimated pricing, the final pricing will be calculated for each international backer before shipping and will have to be settled before shipment.

    These rates are now found in the FAQ section of the project. Please send us a message if you want us to add an estimate for your country.

    Last updated:
  • The BI V2.0 delta print head can accommodate up to three tools (Hot-ends or auto-level probe combinations). The electronics and power supply can also support up to triple extrusion.

    Dual Extrusion:
    This feature is functional and we are updating news videos and images as they become available. A video featuring double extrusion is also available in the project description.

    Triple Extrusion:
    Untested experimental feature - In this configuration, you would have to remove the auto-level probe to place the third extruder. We believe that leveling the bed would become a challenge without the auto-level probe. Also, the firmware hasn't yet been modified to support the third extruder.

    Last updated:
  • Yes, you can still use a standard USB cable with the desktop control software to control the BI V2.0 (USB cable included).

    The desktop software provides a richer interface than the LCD/SD card. The advantage of the LCD/SD card combo is that you can have standalone operation.

    Last updated:
  • We definitely didn't want to throw a simple box of components at the user, but we needed to find a way to ship such a large unit without breaking the bank. As such, the main reason for separating the towers is to dramatically reduce the shipping footprint.

    We're taking care of the longest and trickiest operations (i.e. stringing the towers, electrical wiring, etc).

    The result is a simple to assemble printer once you receive it with steps that are mainly mechanical in nature (i.e. assembling the frame and connecting wires).

    Last updated:
  • We've decided to offer a really low promotional pricing to thank the earliest of backers and the Kickstarter community. It's definitely not economically possible to offer this 3D printer at these low prices.

    But hey, it's Christmas and we wanted to make the first backers really happy ;) We'd love to offer these "highly limited early bird specials" prices to everyone, but we'd have to make thousands of them to be able to reach that pricing.

    That being said, we currently have a discounted offering of 699$ CDN (around 655$ USD).

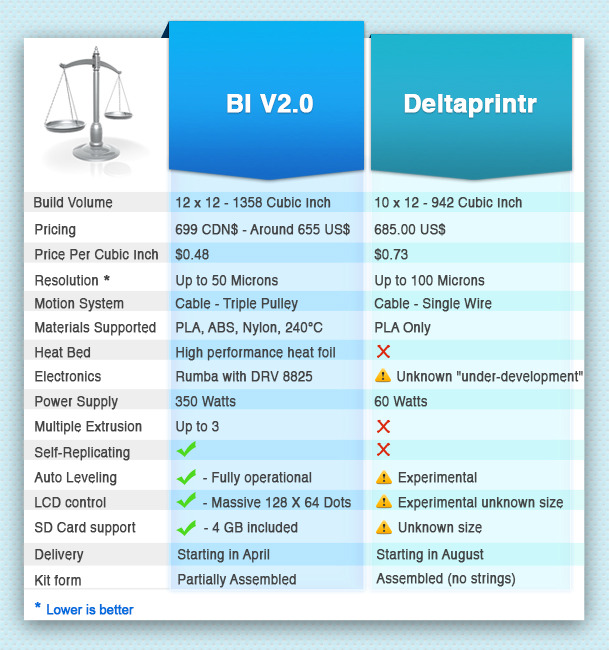

    This pricing is on par with other offers (i.e. "deltaprintr") and we have also shown truly functional elements such as the auto level probe and LCD controller. Our printer also offers standard features such as self-replication, ABS support, heat bed and multiple extrusion capability that are not on offer by the competition.

    If we can sell a larger volume of units, we would love to explore a stretch goal that would pass additional savings to all BI V2.0 backers.

    The printer is set to retail at 799$ CDN once the kickstarter is complete.

    Last updated:
  • You can find pictures and a description of the spool holder on our store:

    http://bootsindustries.com/shop/filament-spool-holder/

    The final version that will ship with the BI V2.0 may include modifications intended to allow for the installation of the spool holder on top of one of the delta towers.

    Last updated:
  • We are an established company and we've already been producing the Rostock BI V1.0 3D printer. This project is different in that this time we have to deliver more units, however we are sticking to a conservative delivery schedule to give us time to iron out any problems along the way.

    Our team has a great deal of experience with 3D printers and other fields. We will also hire additional help to set up the production line for the BI V2.0. Preparations are already underway.

    Last updated:
  • We've developed what we call the "triple pulley system" to keep the carriage from swaying left to right on the axis tangent to the delta circular build area (from the vertical tower center). There are two wires coming to each side of the carriage, these wires automatically keep the carriage parallel to the ground at all times. If you look at our video again you might see that aspect of the carriage.

    We found that this new system greatly enhances the quality of 3D printed parts (on a delta printer).

    3D printed linear motion components aren't new and we've got the idea from others who converted their own machine to use 3D printed linear bearings.

    Here is an example:

    http://www.youtube.com/watch…

    Last updated:
  • The BI V2.0 will be open source, but the designs will be released once the Kickstarter campaign is complete. We will release all Sketchup files containing the 3D printed parts as well as information on the build.

    Last updated:
  • The bed is round as result of the delta geometry. Indeed, if you examine the assembly carefully you'll see that any given arm can only trace an arc away from it's tower.

    When all the motions are combined the resulting print area is better encompassed in a circular area.

    Here is an interesting article we found to help visualize the work-space of a delta robot:

    http://doublemind.de/…

    On the BI V2.0 you can print a full 300 mm diameter which is fully contained inside the delta build area.

    Last updated:
