Back Story:

A few months back I started hearing people who had google glass complaining about a few problems.

The provided case that comes with glass does not accommodate the design very well. The prism might be covered but it isn't very well protected. The temple part of glass might be covered but it does not protect glass from snapping in two. So we thought how could we make a case that you can carry around easily and store glass safely.

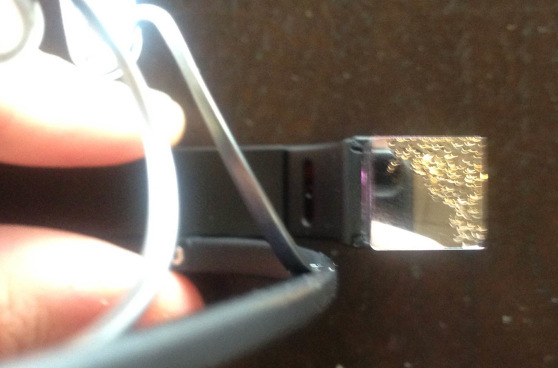

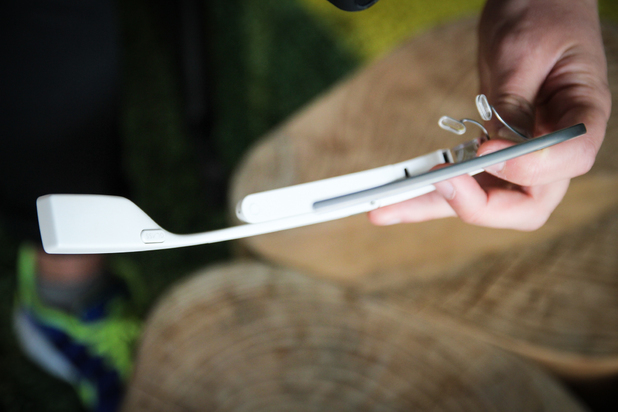

1. The google glass prism getting damaged

Ugh its broken! (Credit to venturebeat)
Ugh its broken! (Credit to venturebeat)

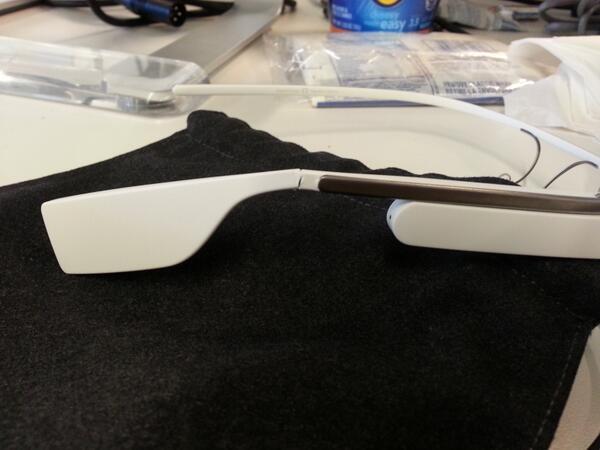

2. The google glass snaps in two at the temple. (Credit to Tim Stevens Twitter)

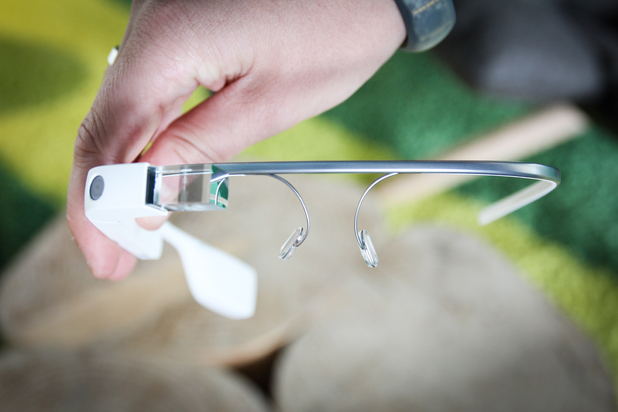

3. Google glass can only be held delicately and/or awkwardly in your hand. (Credit to digitalspys.com google glass review)

Holding very awkwardly
Holding very awkwardly
Hands are not evolved enough to hold Google Glass!!
Hands are not evolved enough to hold Google Glass!!

An actual Case:

We knew that we wanted to cover the prism, temple, and a way to carry it comfortably. Unfortunately we knew there was one thing we couldn't cover, the titanium band. Since the titanium band is the most durable part we took a risk by leaving it exposed.

Through our testing of this case we have found it makes it very easy to store glass for the times when it might not be appropriate or when you'd rather store or carry it inside a jacket, pocket, or bag.

Its about the size of a regular glasses case but includes a groove in the top part of the case to accommodate the band exiting the case. As a result of this design you can now carry it comfortably in your hand and prevent stress on the most expensive part.

Prototype:

No kickstarter is complete without the prototype stage!

First we sketched out an idea of what we wanted to create. Some kind of a box that encased glass.

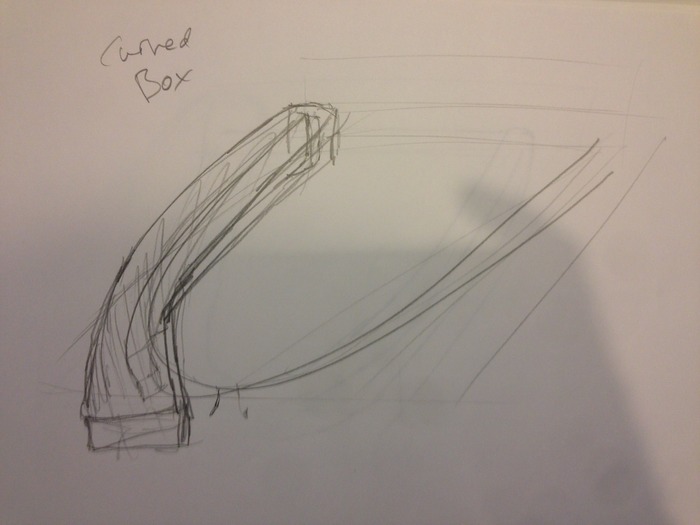

Early Prototype Sketch
Early Prototype Sketch
Early Prototype Sketch of a similar design we wanted to move to
Early Prototype Sketch of a similar design we wanted to move to

We felt then we should see how it might feel to have glass in a case that is covered on one side. So with a little model magic we had some fun!

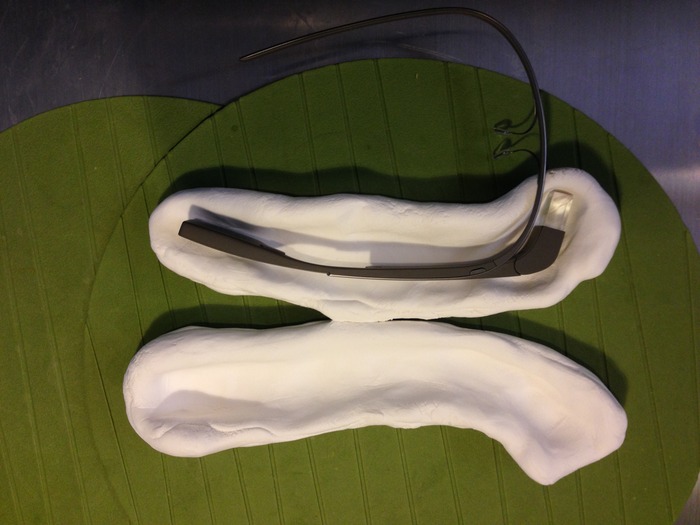

Model Magic Case
Model Magic Case

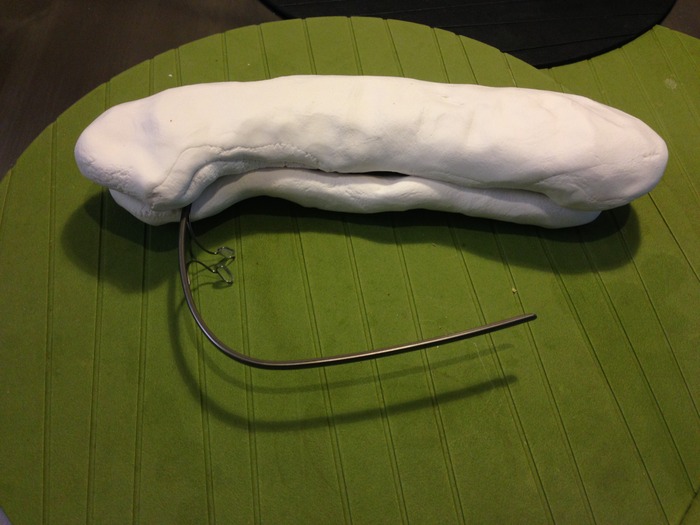

Model Magic Case Closed
Model Magic Case Closed

We found that the model magic was big and bulky but we liked the idea of enclosing glass on one side and played with the titanium band that was exposed, and found it to be more resilient then the temple part.

We started building a foam model but...

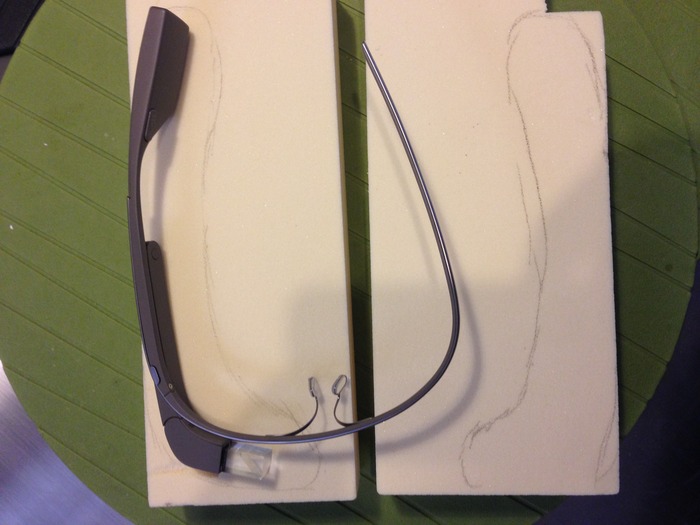

Starting with foam model
Starting with foam model

Feeling like we should jump into the 3D world and skip the foam mess for now we started building our model based on a digitized model of google glass and a our own google glass. This became a critical point where we could see exactly how a finished case would accommodate glass.

We then took our idea and modeled it in a 3D CAD modeling program called Solidworks where we modeled the top, the bottom and the hinge to be placed in the case.

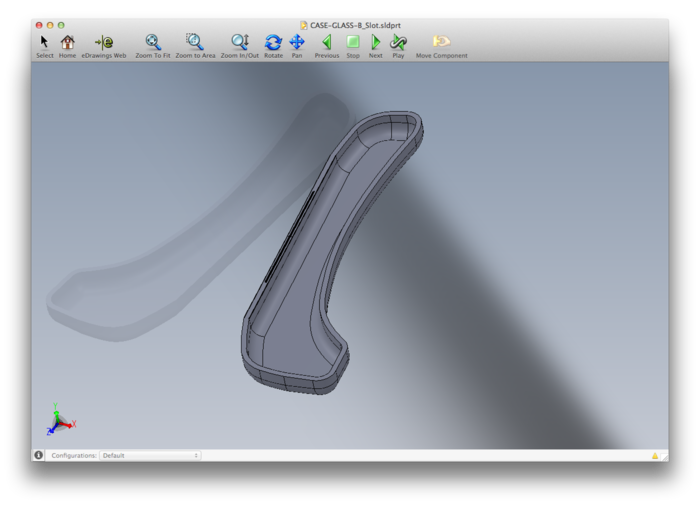

3D CAD Model of bottom Piece
3D CAD Model of bottom Piece

We also needed to model the hinge piece which we had salvaged from a sunglasses case

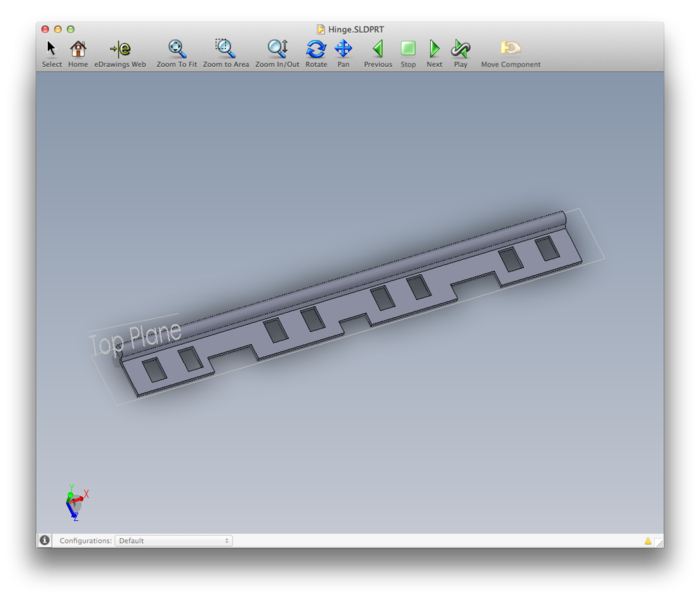

Solidworks Modeled Hinge
Solidworks Modeled Hinge

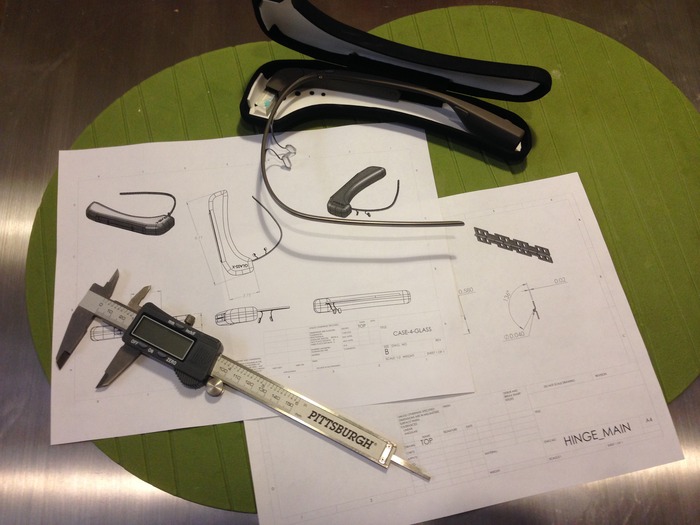

CAD Drawings of hinge and main case
CAD Drawings of hinge and main case

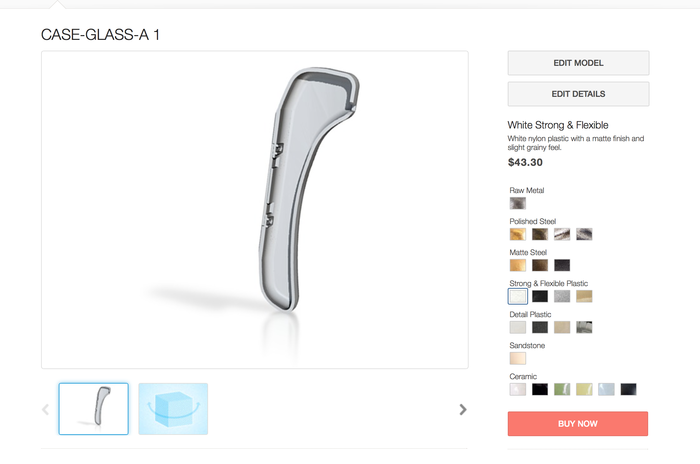

After creating a 3D CAD model in SolidWorks we sent our model off to shapeways to be fabricated in a Nylon material. After receiving the model a couple weeks later we cleaned up the parts to fit the screws, nuts, and hinge. After adding the foam it was ready for glass. Placing glass inside this case made it feel like it had a new home!

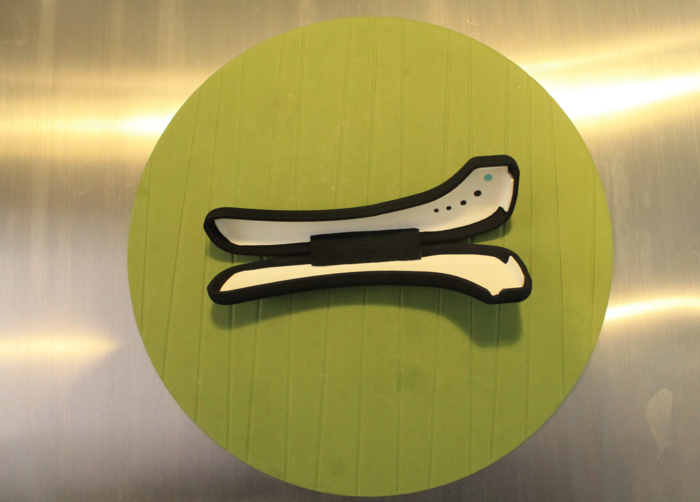

First Shapeways prototype
First Shapeways prototype
OOo Shiny!
OOo Shiny!
Rear view Case4Glass w/ Google Glass
Rear view Case4Glass w/ Google Glass
Case4Glass w/ Glass inside
Case4Glass w/ Glass inside
A firm grip!
A firm grip!
Case4Glass Open
Case4Glass Open

Production Plans:

Once we are funded we will begin making our latest revisions to the prototype to fully accommodate the latest version of Google Glass Version 2.

After we have our prototype and CAD Model modifications finalized we will finalize the order and send to our vendor in Rochester, who will manufacture the cases out of sturdy ABS Plastic. We will then place our order for hinges.

Once we have picked up our parts locally we will evaluate them for their quality and begin our assembly and start filling reward orders!

We will be assembling and manufacuring Case4Glass in the USA in Rochester, NY

Key People:

Tom Pierce:

Tom Pierce: Owner Pierce Design
Tom Pierce: Owner Pierce Design

 Designer/Manufacturer/Engineer

I have made hundreds of concepts and prototypes over the past 25 years and have the opportunity to create and manufacture hundreds of products to be sold directly to customers, and brought trade shows. Some of my customers have included: Fisher-Price, Kodak, Xerox, LeapFrog, Matel, Hasbro, and many other well known brands.

Thank you for your support on this project and we hope to create a fantastic accessory for this new technology.

Risks and challenges

Our biggest risk in the project is whether or not Google will stay with the same design for the final product version of Glass. We are also concerned with how the case will accomodate the rumored prescription frames once they become public. In the meantime, we will design to accommodate the latest version of Google Glass Version 2.

When getting the ABS molds created and ordering the hinges we hopefully will not suffer from delays with our vendors.

Assuming that the design changes are not too significant to Google glass we will make the case more widely available to people once we have finished and finalized our product.
