URUK (Arduino Compatible) Network Development Board!

Announcing URUK  b/g/n router WiFi Module , a complete router in small package with built in Arduino  compatible MCU (Atmega32u4),  the WiFi setup , security and the entire network stack is handled by the URUK router module so it will take all the heavy lifting from the MCU , no external library required for the setup it all can be done through any web browser or through Serial command from the MCU, the wife chip used on the router is Ralink-rt5350f , the user can adjust the TX power setting based on the project requirement and the router module support auto channel selection based on the channels utilization and noise floor   the WiFi router module is FCC and CE approved .

* The final product will have an EMI board level shielding cover the RF section of the wireless module .

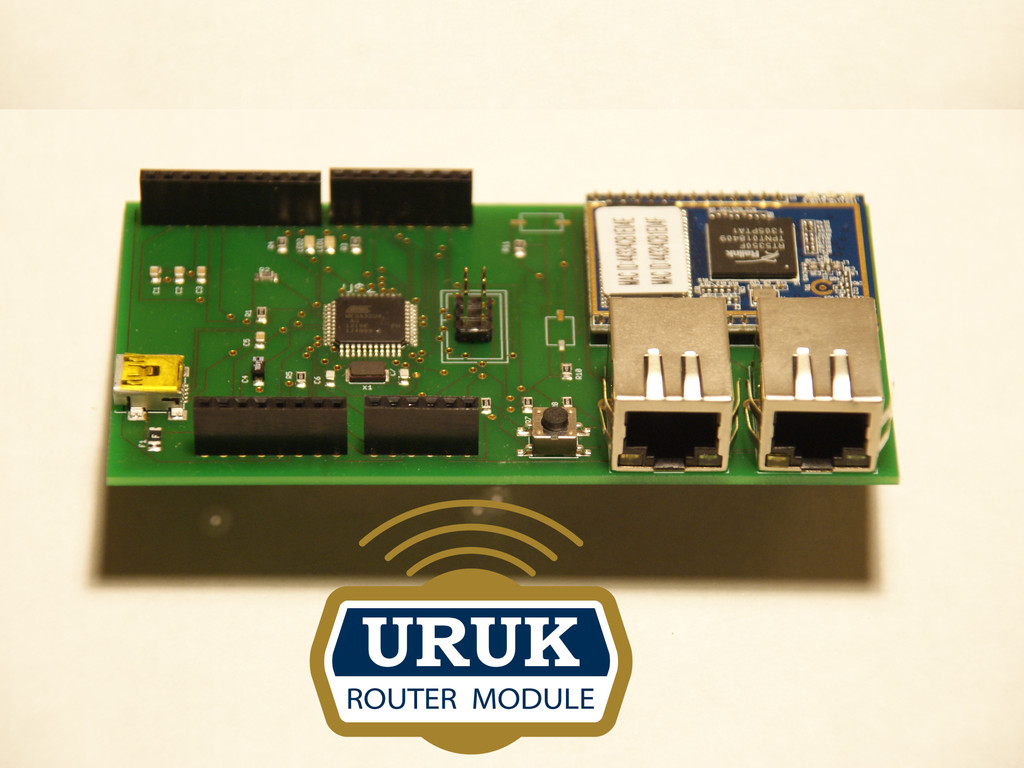

URUK WiFI Router , as you can see Arduino form factor
URUK WiFI Router , as you can see Arduino form factor

URUK router module support the following operation mode :-

Access point :  when the router module is in the  mode it will be acting as an Access point multiple devices can connect to it on the same time ( any WiFi enabled device ) and all of these devices can speak to the MCU ,in this mode you can use the router module to share Internet connection through the WAN port just like normal WiFi router and still can talk to the Arduino compatible MCU from all devices on the wireless side and the LAN side , the MCU can use the WAN connection to connect to the Internet on the same time (the Router module support static WAN IP address or DHCP it also supports PPPoE , L2TP , PPTP).

WiFi Client : in this mode the URUK WiFi router can connect to any wireless access point , and act as a client allowing the MCU to connect to any resources on the network.

Ethernet Client : in the mode the URUK WiFi router will act as an Ethernet client allowing the MCU to connect to any resource on the network .

URUK WiFi router Module & URUK WiFi router Shield
URUK WiFi router Module & URUK WiFi router Shield

Security.

One of the most complected task when developing a project that utilize wireless network is security , the URUK module support all WiFi security standards like 64/128/152 bit WEP encryption , WPA-PSK/WPA2-PSK、WPA/WPA2 , the module is also support Wireless MAC address filtering and WPS , URUK router module also got built in firewall that allow the users to customize access to any resource all from an easy to use web based configuration GUI .

URUK WiFi router module shield

The URUK shield is for the users who already have an Arduino board and like to add WiFi or Ethernet connectivity , the URUK WiFi Router Shield is compatible with all Arduino boards ( UNO , MEGA , DUE , Leonardo ) and it utilize UART to communicate with Arduino or any other Microcontroller that support UART , the form factor of the shield is stranded Arduino shield , if you like to connect it to any other micrcontroller you just need 5V , UART and you can have WiFi and Ethernet connectivity with complete router and firewall for added security .

URUK Shield plugged in to an Arduino Mega
URUK Shield plugged in to an Arduino Mega

100% Arduino Compatible

the microcontroller used by the URUK WiFi router module is %100 compatible with stranded Arduino IDE we used the Atmega32u4 to have better compatibility with stander Arduino shields and libraries the module can be programmed just like stranded Arduino Leonardo it also provide USB host support , so the USB connector on board is not just for Programming it can be used to developed stranded USB HID devices .

Setup

URUK router module can be configured through any web browser , all of the features that the router module support can be accessed through the web GUI

URUK WiFi router  configuration using web browser
URUK WiFi router configuration using web browser

URUK router module features

  • ATmega32u4
  • 20 Digital I/O Pins .
  • 7 PWM channels .
  • 12 Analog input channels .
  • 5V operating voltage ( for the MCU Pins ).
  • 32KB flash memory ( 4KB used by the bootloader ).
  • 16MHz Clock Speed .
  • USB Host .
  • b/g/n WiFi .
  • 2 Ethernet Port , WAN and LAN .
  • The router module can work as an Access point / Router / WiFi client / Ethernet client .
  • Full Network stack support ( TCP , UDP , DHCP , PPPoE , DNS , L2TP , PPTP )
  • Built in firewall .
  • NAT / port forwarding .
  • The router module can be configured to be a Server or client all handled by the Ralink SoC not the Microcontroller .
  • Easy to use GUI interface and serial commands .
  • Wireless security ( WPA-PSK/WPA2-PSK、WPA/WPA2 , 64/128/152 bit WEP , WPS ).
  • Configuration file import and export ( you can save your configuration as a file and import it in different router module to have the same network configuration .
  • UART connection to the Microcontroller (230.4Kbps maximum ).
  • Router configuration can be controlled through the microcontroller using serial command  .
  • The Transmit power on the router is adjustable through the user configuration.
  • On board antenna and a connector for external antenna .



Adding more features


we are planing on adding  6-20 V power supply support , the prototype module was powered through USB , the final product will have the option to be powered through USB or external power supply .
also we are adding a break out header on both the URUK router Module and the Shield that allows the user to use the router module with any external microcontroller that's support UART .
