Da Vinici ornithopters are flapping wing vehicles designed for hobbyists and researchers alike. They are rugged, agile and easy to fly.

International orders please send a message.

Introduction

Flapping wing, small un-manned air vehicles (SUAVs) also known as ornithopters can revolutionize the civilian marketplace. Ornithopters have the potential to combine the agility and maneuverability of rotary wing aircraft with excellent cruise performance. At Da Vinci Classic Ornithopters, We have developed rugged, agile and easy to fly ornithopters. We are inspired by the great Renaissance figure Leonardo Da Vinci. He possessed a genius which went far beyond simply being a remarkable artist. Applications for our ornithopters include but are not limited to:

  • Recreational Vehicles
  • Research Platforms
  •  Border Patrol
  •  Crop Surveying
  •  Atmospheric Data Collection
  •  Firefighting
  •  First Responders

SUAVs that can currently perform these application require a lot of man power , training, and expense. Our ornithopters provide a low cost, rugged , and easy to fly alternative which makes them suitable for enthusiasts, hobbyists, and researchers.

A) Researchers: Da Vinci Classic Ornithopters are excellent research platforms. They can carry their own weight in additional payload. With this payload capability, our vehicles are ideal for performing airborne experiments in a wide range of fields.These vehicles have been used by the University of Maryland Morpheus Laboratory researchers to investigate wing shape morphing, guidance and control, aerodynamic modeling and simulations. They have also set several flight test records and research breakthroughs.

B) Bird, SUAV Hobbyists and Enthusiasts: You will be able to fly with and like birds using our ornithopter flight platforms. During flight tests, birds will typically come and fly along side of you. You will be able to fly this vehicle in parks, open fields or just about anywhere. Unlike other SUAV’s, you will not require a runway or a FAA license to fly them. Also our vehicles are highly customizable. Feel free to change the wing design or make a new tail with a vertical stabilizer. Your options are limitless!!

At Da Vinci Classic Ornithopters we are seeking to become one of the best suppliers of bird scale flapping wing SUAVs in the marketplace. Our flight vehicle is a result of 8 years of in depth research in the areas of modeling and simulations, aerodynamics, structures, and control.

DaVinci Classic Ornithopter Fully Assembled
DaVinci Classic Ornithopter Fully Assembled

Vehicle Specs General Specification

  • Mass: 0.94 lbs
  • Wing Span: 42”
  • Speed 9-30 ft/sec
  • Flapping Frequency: 4-6 Hz
  • Max Chord: 11”
  • Wing Area: 1.18 Sq. ft
  •  Aspect Ratio: 4.92
  •  Wings Material:   Rip-Stop fabric , carbon fiber spars for reinforcements
  • Tail Material: Rip-Stop fabric , carbon fiber spars for reinforcements
  • Fuselage Material:  1/16” carbon fiber

Technical Upgrades

We are committed to bringing strong engineering principles to the design of our ornithopters. We have spent a considerable amount of time and money analyzing the basic Kinkade architecture. This includes Finite Element models of the frame/wing structure and associated modal analysis. We also investigated the flow field over the wings during flight using Computational Fluid Dynamics. Finally we have modeled the Aerodynamics of flight using Lifting Section theory. We concluded that the basic Kinkade design was indeed a good one but one that needed engineering design mods for more efficient flight.

We found for example that the transmission impedance was quite high making it difficult to turn and thus requiring substantial battery current. We've improved that now such that the gears are easily turned by hand. This means more flight time and less work for the batteries. Also there was significant body twist or "tail wagging" during flight. You can even see this in the SDrone models. If you tap the body it will resonate for quite a while with very light damping. We've modified the body moment of inertia to reduce this as much as possible. We also replaced the motors with high quality brushless motors.

Aerodynamically the triangular region of the wing or Luff region is responsible for lift in forward flight and its tension properties are crucial for best lift. This is the so called circulation lift. We use rip stop material that is properly tensioned for good lift. The rear flap produces the forward thrust and must move up and down efficiently to produce forward motion, much like a Mermaid tail. All of these engineering concerns have been taken into account in this upgrade. We fly an on board avionics package that contains tri-axial accelerometers, three axis gyros, magnetometers etc. to observe these parameters during flight . We have published much of the data collected in technical journal papers. We've tried to made as many improvements as possible while keeping the price low. If we can establish a market position then we will gradually add new components like an advanced solid state transmission and wing morphing. Our passive wing morphing additions have resulted in a 45% reduction in power required for straight and level flight.

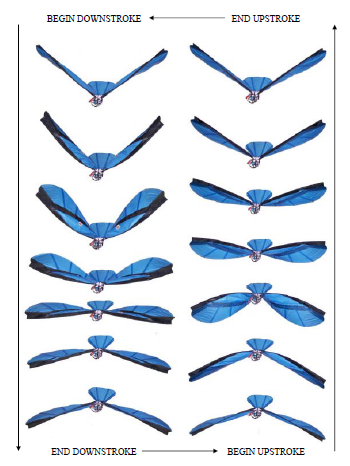

A Typical  Flapping Cycle
A Typical Flapping Cycle

Which Reward Should I Pick?

  • T-shirt

Share our  Da Vinci inspiration. T-shirts available in S, M, L and Xl

Also available in white. Please leave your size and color selection in the comment section.

T-shirt Front
T-shirt Front
T-Shirt Back
T-Shirt Back
  • Wings
Need more wings? You can choose from many different colors to find what is perfect for you and your vehicle. Our wings are made out of rip stop fabric and carbon fiber spars so they are light and strong. Get your wings in your favorite color. Contact us with your sail and linings colors after ordering. They also work great as Kinkade wing replacements.

  • Sail Colors:White,  Black,   Red,   Blue,   Green, Yellow,   Orange
  • Lining Colors: White,  Black,  Red,  Blue,   Yellow

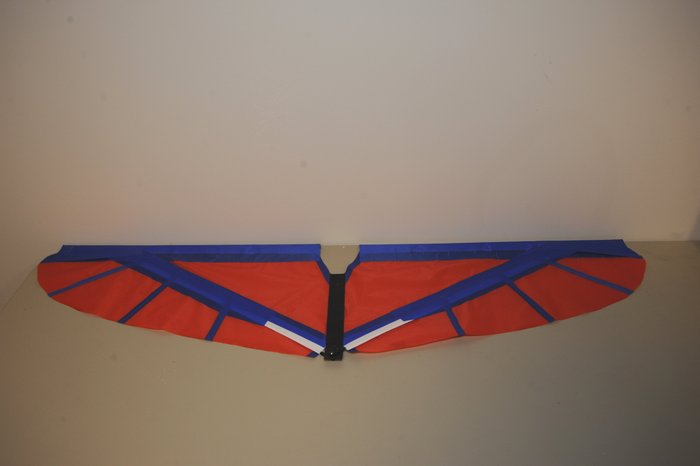

Da Vinci Ornithopter Wings (Red Sail with Blue Lining)
Da Vinci Ornithopter Wings (Red Sail with Blue Lining)
  • Wing and Tail

What if flying in a straight line isn't enough? What if you need to turn or pitch? Then you will need a matching tail to go with your wings. Our wings and tail are made out of rip stop fabric and carbon fiber spars so they are light and strong. Get your wings and tail in your favorite color. Wings are available in the colors above. They work great as Kinkade wing replacements


Pick you tail color from: White ,  Black ,  Blue , Green , Red , Yellow,  Orange

Wings and Tail Set
Wings and Tail Set
  • Frame Only

Nothing is more important than a strong body! This package include a strong yet light rugged carbon fiber ornithopter fuselage. The body includes the flapping transmission system, the full gear train and all the necessary mounts for the flight motor and servos. Note: You will still need to provide your own wings, tail, motor, and servos.

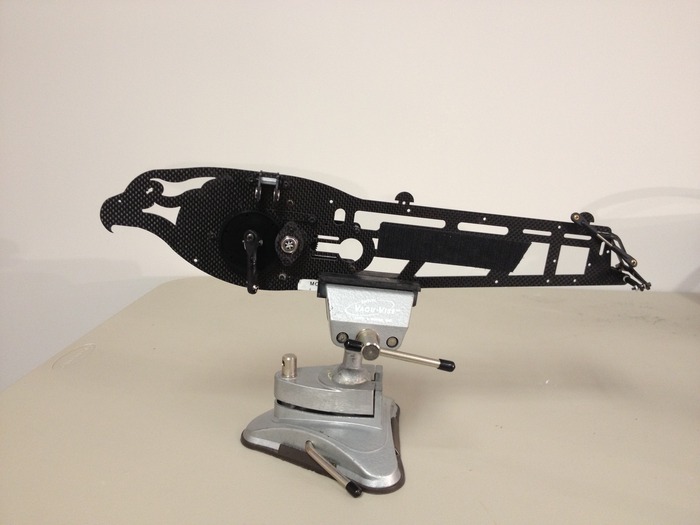

Frame
Frame


  • The Do-it Yourself Kit (DIY)

This package includes the fuselage (body), wings, tail and all the linkages, gears and hardware that you need to mount the wings and tail. This kit comes with instructions and recommendations for motors, servos, and batteries.


Note: You will still need to provide your own motor, and servos.
Frame, Wings and Tail (Spars and Wing-Frame Joint included)
Frame, Wings and Tail (Spars and Wing-Frame Joint included)

  •  Frequent Flyer Kit (FFK)

 If you are familiar with the world of R/C SUAVS and have your own share of batteries, speed controllers and transmitters, then this kits is for you. This is our best value package, it includes the fuselage (body), wings, tail, motor, servos and all the joints, gears and hardware that you need for assembly. (Minimal assembly is required for this kit.) This kit also comes with instructions and recommendations for batteries and speed controllers.

 Note: You will still need to provide your battery, speed controller, receiver and transmitter.

Frequent Flyer Kit
Frequent Flyer Kit
  • Ready to Fly Kit (RTF)

This package has everything you will need including the receiver and transmitter. Very minimal assembly is required for this kit and you are ready to go. This kit also comes with instructions.

4 Channel Transmitter
4 Channel Transmitter
Side View (3 Cell 11.1 V Li-po Battery)
Side View (3 Cell 11.1 V Li-po Battery)

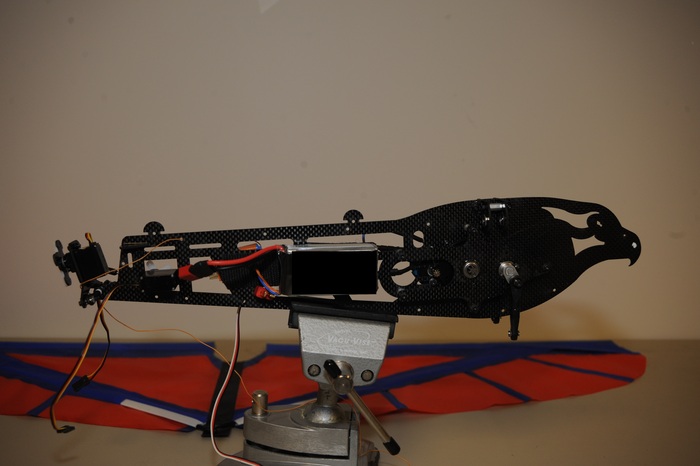

Side View (Motor, Speed Controller, and Receiver)
Side View (Motor, Speed Controller, and Receiver)
Ready to Fly Kit
Ready to Fly Kit

Risks and challenges Learn about accountability on Kickstarter

The University of Maryland’s Morpheus Laboratory has been studying bio-inspired flapping wing flight for the past 8 years. It was hard in the beginning to get repeatability and consistency of flight in commercially available ornithopters. With the help of graduate students, post graduate engineers, and Post Doctoral Fellows, a fleet of 5 custom modified research ornithopters, and many flight tests,the Lab becaome very successful at producing high quality ornithopters for its research programs. Subsequently the Morpheus Lab has set many precedents using flapping wing air vehicles including in-flight acceleration and aerodynamic load data collection, passive wing morphing and modeling and simulation algorithms. All of this experience results in a greatly reduced risk, high production reliability and minimum delays to the community. Morpheus Lab’s ornithopters have proven over time to be rugged, agile and easy to fly. There is a clear need in the market for such vehicles as demonstrated by increasing customer demand. Da Vinci Classic Ornithopters (DCO) has approached the Morpheus Lab in an effort to mass produce their ornithopters and service the commercial market demand. The average ornithopter that the Morpheus Lab produced in limited quantity cost them $1200. This was clearly not a commercially viable price, so we at Da Vinci Classic Ornithopters came up with a plan and worked with many potential OEM suppliers to greatly reduce the cost per vehicle.

Now you are the final step to this process. We need a bulk order of 50 or more to keep the price low and make these ornithopters affordable.

DCO is uniquely qualified for this project because we are building on 8 years of Morpheus Lab research and flight experience in the areas of aerodynamics structures and control. We have wide access to a ranging pool of resources through consultants, graduate students, professors and engineers. We have access to manufacturing space for fabrication. We also have design templates for repeatability as well as a flight test range for quality control.
