A gas powered quadcopter capable of autonomously picking up and delivering a payload of 50 pounds.
211 backers pledged $11,538 to help bring this project to life.

We did it, and then some!

WOW! What an incredible funding campaign! Thank you to every single person who helped push our campaign to be so incredibly successful! We have a number of updates for you all, as well as couple stretch goals for the remaining 5 or 6 days of our campaign.

Design Progress

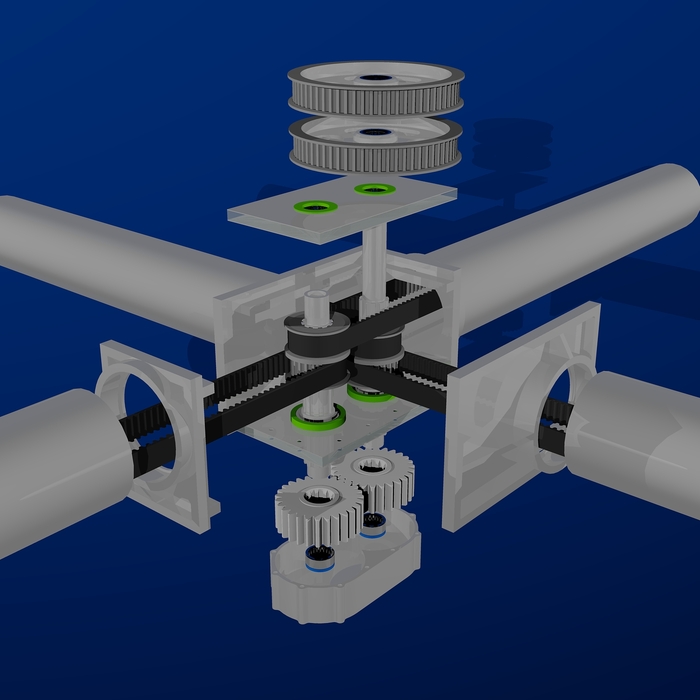

Work has been progressing steadily on the design phase of HLQ and we have very nearly finalized our design. We are pending some optimizations to ensure that we have reduced the mass of HLQ as much as possible while still maintaining the material and structural integrity of it's various components. We are close enough, however, that we can release this rendering of our current, and likely final drivetrain design. Below is an exploded view of the drivetrain which details how power is transferred from the engines to the rotor heads and blades.

In the spirit of remaining as "off-the-shelf" as possible, we decided to go with a belted drive system. The large pulleys on the top connect to the engines using toothed belts. This doubles as a dampening system which reduces the cyclical loading of the engine which can cause accelerated wear and premature failure of the drive gears. Based on the results of FEA analysis, the gears and drive shafts will be hollowed out a bit to reduce weight, as will the largest of the pulleys.

We are to the point where we are starting to source and purchase parts and you can expect to see some major fabrication and assembly going on over the next month and a half or so. We will do our best to provide updates and videos of the entire process.
