Our E Ink Circuits Have Arrived!

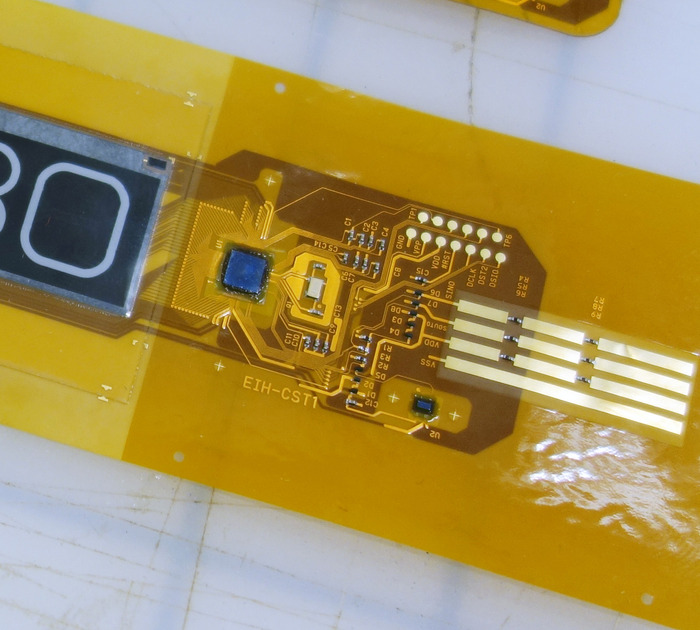

First of all, we’d like to thank E Ink for all their hard work to date. We’re excited to announce we received the first 150 fully integrated circuits a week ago! A major milestone to completing delivery of these watches to our backers.

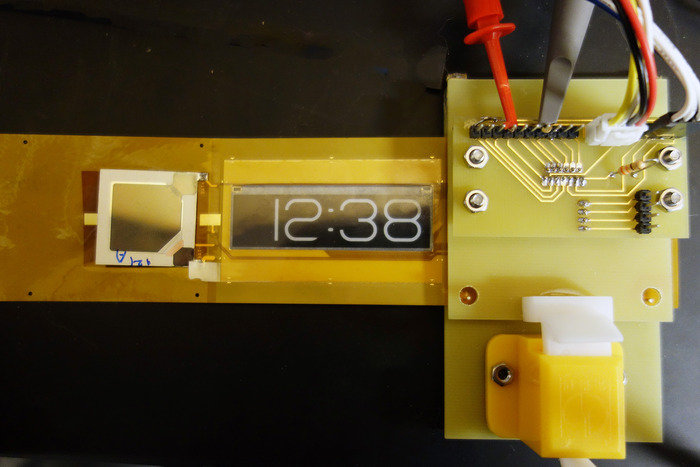

We’ve spent all week testing these circuits and everything is looking good. All the segments are behaving correctly and the circuitry is behaving as expected. We’ll continue testing these for a few more days to make sure everything is okay before we pull the trigger on the final production line. Flextronics is advising us on top-priority testing procedures. (A looong list of tests for at least 75 of these units means gallons of Red Bull and coffee are in our near future.) It’s an important and nerve-wracking activity: we have to be sure the circuits are perfect, as there’s no going back from this point.
We’ve fabricated a programming head to run these tests while Flextronics works on the mass-production solution for programming all the watches.
Mechanically Testing the Circuit

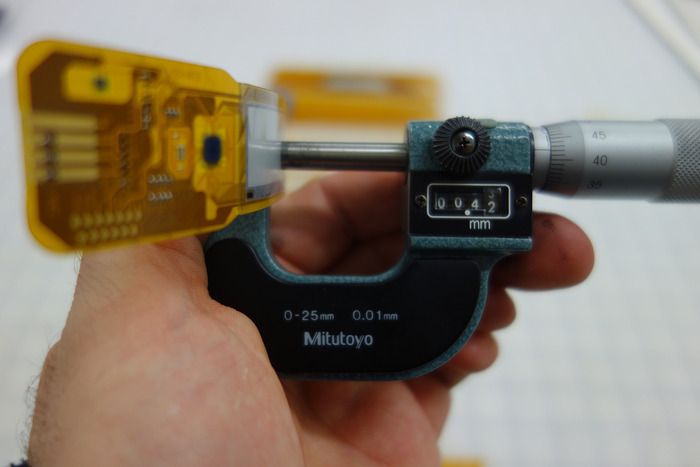

The circuits passed our first test with flying colors: they’re dimensionally accurate! Approximately 0.425mm maximum thickness. The perfect size for the world’s thinnest watch.
In parallel to all the electrical tests we’re performing on the circuits, we’re also doing mechanical tests on them. We’re making sure the circuits still work when bent and applied onto the band, and we’re confirming that when we do trim the circuits to different sizes, it doesn’t damage any of the components.

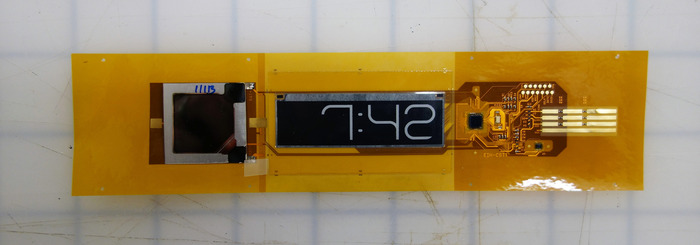

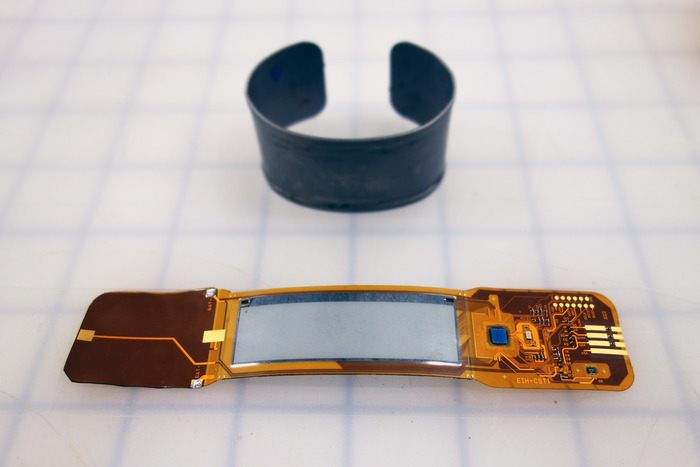

In the image below, you’ll see a flexible circuit trimmed to the smallest size with a newly formed “small” band in the background.
Base Station Development
We’re well into tooling and assembly-strategy reviews with Flextronics. We also have initial injection-mold tooling drawings. It’s been a challenging month with many rounds of revisions to ensure a really robust enclosure.
But, after all that work, we’re poised to meet the final tooling-release deadline we’ve set for ourselves: about a week from now. (A small victory.)
After testing the last iteration of the base station over an extended period of time, it became clear that we needed to refine the mechanism to get a good, reliable connection to the watch itself while not damaging the connector. We now have that final, refined, mechanical architecture that gives great electrical contact to the watch when charging and changing the time.

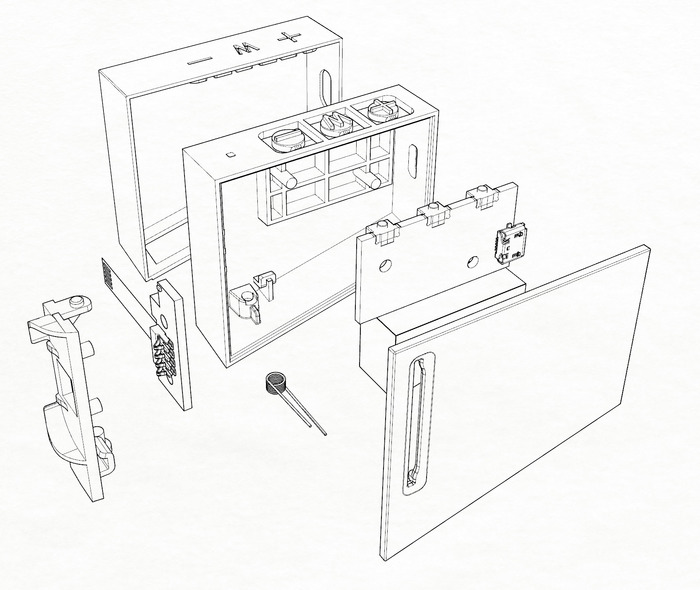

The latest iteration of the base station has a completely custom mechanism inside. When the watch is inserted, a small plastic part rotates into place to hit the charging contacts accurately. Because the connectors are rotated into place, there’s no risk of scraping past the connectors and damaging them. We’ve managed to do this while still retaining the small package (about 20% the size of the original charger).
Here’s an image of the initial injection-mold tool drawings. This is for the main part of the Base Station—it’s a complicated tool. :)
This part is injection molded first, then the tool swings out to another platen to begin the rubber overmolding process. The purple, blue, and orange sections show parts of the tool that slide to mold button details, USB details, and a window for CE and FCC labelling.
All the plastic parts have to be analyzed for plastic mold flow. Here’s an example of one type of analysis for the top plastic part:
This Coming Month of Activities
We’ll be spending all our waking hours this month getting the above parts fabricated and assembled so that we can embark on certification testing.
Making all the parts, assembling them, and testing them should take about 2-3 weeks, which leads us into accelerated wear, thermal, moisture, ESD, CE, FCC testing, which takes another 3-4 weeks. We have printed circuit boards for the Base Station arriving this week and next, so we’re on plan for this build phase. It’s important we pass all these tests so we can ship worldwide and we are confident our product will perform well.
This month is going to be a busy one… :)
On a Less Technical Note: CST is Now Our Full-Time Job
On a recent call with E Ink, the team was surprised to discover we’re doing CST full time now: all day, every day. And it struck us that even with all the updates, we hadn’t told any of you either! Our bad.
We left our jobs at IDEO about 6 months ago. We had to: the design and development of the CST-01 is requiring our full attention. We want you all to know that we’re fully committed to this and only this right now. Our job is to deliver high-quality watches. Period.
Okay, that’s about all for now. Thanks again to all our backers and thanks for reading this mini update..
We’re expecting more parts of the puzzle to arrive over the next few weeks, and we’ll share pictures when we have them, in the style of mini updates like this one.
Dave, Jerry & the CST team
