A project to create a human sized animatronic character from only laser cut mechanics and off the shelf hobby servos.

Thank You for all your support.

For more information and to get involved with the Roy project please visit:

www.roytherobot.com

The Project

In the beginning Roy did not start out as this crazy Animatroncs project he has become. My initial idea came to me a couple of years ago. I was inspired by all the amazing micro controller projects I was seeing online. These small extremely affordable Arduinos were being used by makers everywhere. But I started to notice that many of the projects were lacking cool mechanical hardware. That's when the thought hit me. Let the electrical guys build the circuits, let the programmers write the code and just do what I do best. Build cool mechanical creations. Since my greatest passion will always be  building mechanical puppets for films, I decided to head in that direction.

My first task was to decide on a design style that would be affordable and easy to produce. I had used laser cutters before and was familiar with the incredible things they could create. So I made the decision to see just how far laser cut mechanics could be taken.

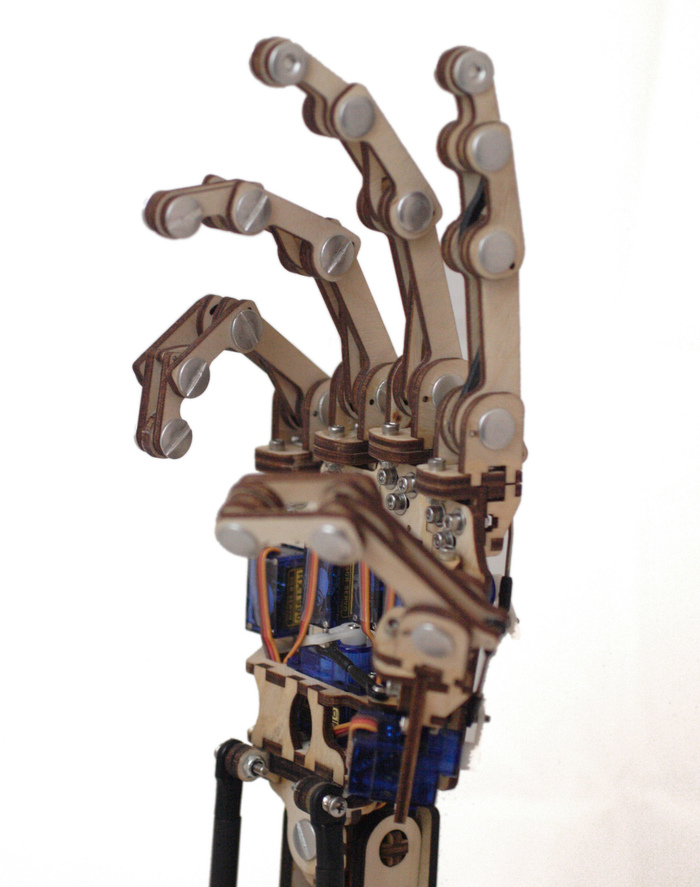

With a used laser cutter and a stack of servos, I started my journey. First was a finger. Then that finger became a hand. That hand needed an arm and that arm needed......But wait, I wonder if I could do a full eye mechanism. Those eyes needed a place to go, so onto a skull I went. That skull needed a jaw to talk..... Well you can see where this is going. That brings us to the state Roy is in right now. He has two completed lower arms and a completed set of eyes. The skull and jaw still need some work. Everything else in the video is just some painted drain pipe assembled to hold all the parts where they go.

The Plan

Because Roy has turned into a much more complicated project than I had ever imagined (he is sporting 28 servos in the video with countless more to go). I have decided to break his offering into pieces. The idea has always been to get cool stuff into the hands of other people. I think a series of projects is my fastest way to do that. We are going to start with his hands and arms. If funding is successful, then we will move onto his eyes, from there it will go upper arm, shoulder and chest. When we are all said and done you will have a life sized Animatronic character to do your bidding.

The community

One of the most important parts of this project for me is the community I hope we can build. While this stuff is fun to build and interact with, the experience becomes so much better if you can share your work with like-minded people. Lets get some of those electrical guys/gals to build better servo controllers and the programmer guys/gals to write better animation software. I would love feedback on my designs. Maybe you know of a better servo controller than the one I have chosen. How can I improve my mechanisms? Let's get a dialog going.

The Funding

I decided to come to Kickstarter with this project because of the broad range of technical and creative people it seems to draw. There is no better place to offer such a unique project to such a large group of like-minded people. The funding that this project will generate will be used to help out the laser cutter I had mentioned. The laser tube in these machines have a limited life span and mine is unfortunately at its end. I would also like to stock up on materials and servos for the next stage of the project.

The Rewards

Here are some images to go with the listed rewards.

Roy's Electronics Package ****NEW****

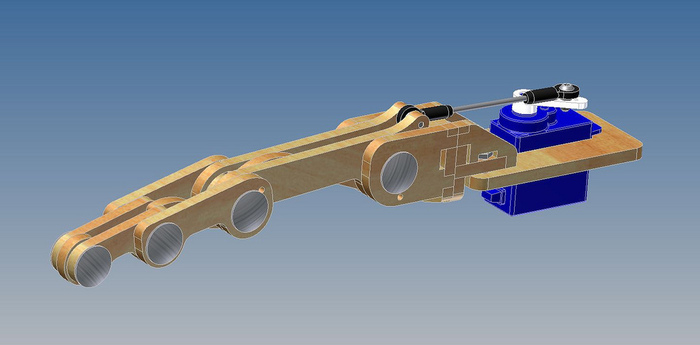

Roy's Finger

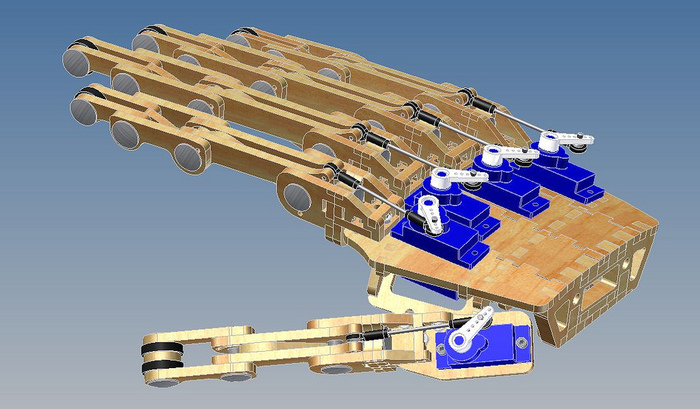

Roy's Hand

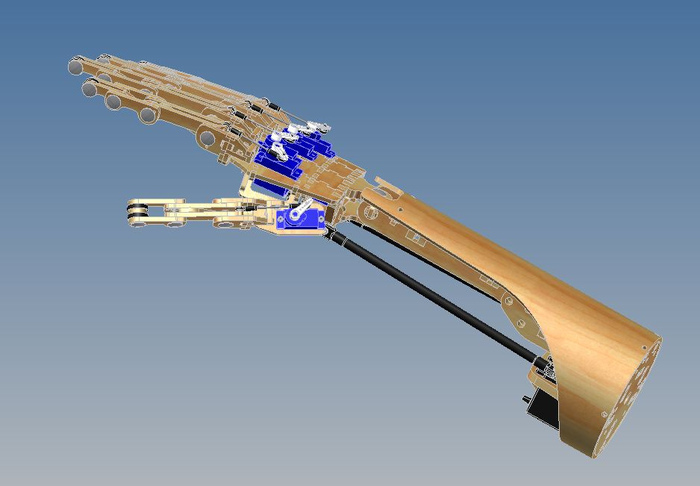

Roy's Arm

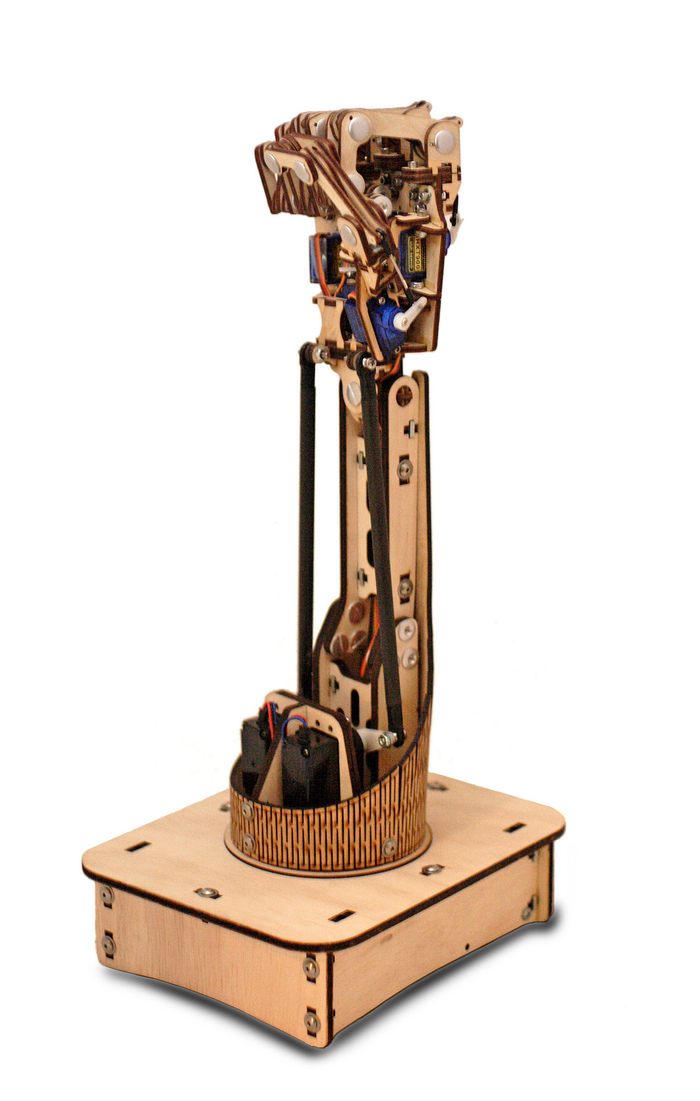

Roy's Arm Display

With the exception of the Roy's Ultimate Arm Display, all rewards come in kit form and do not include any control electronics. Why have I chosen not to include any control electronics? It goes back to my initial concept of the project, Supply cool mechanical systems for people to use with whatever controller they wish. For those of you who are not working with any particular electronics now or have never before, I will supply detailed descriptions to everything I used to get Roy moving like he is. Servo controllers, Wiring diagrams, Control software and so on.

The Construction

Since most of the rewards come as kits, I would like to talk a little about the construction techniques. Building one of Roy's kits will be very similar to building a wooden model airplane kit. Some parts will be glued, some will be bolted and others are captured in place free to rotate. Lets take the palm of the hand as an example:

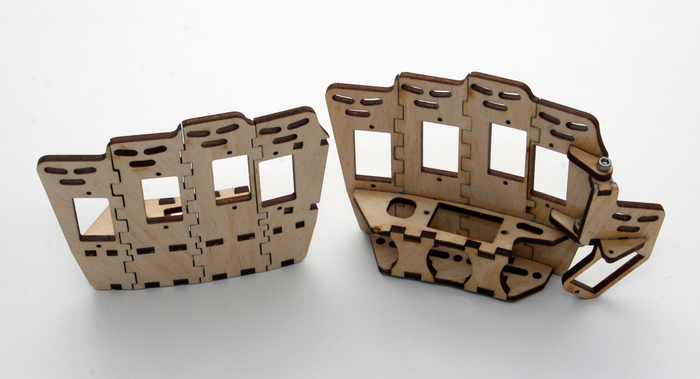

As you can see in the picture above the palm is made up of 10 individual laser cut pieces. How these pieces are assembled determines if you are building a right or left hand. Because we use a tab and slot design, the pieces automatically align when joined. The palm on the left has not been glued, but it holds together nicely because of the interlocking joints. The palm is the largest glued structure in the arm, it is amazingly strong and light.

I will be creating a Lego style building instructions, along with video tutorials to help you along the way. Because of the self-aligning style of theses kits, the building is fairly easy. The most important part of the building process is patience. The full arm kit has over 100 laser cut pieces.

Only simple tools required:

  • Standard Hex keys
  • Small Screw Drivers
  • Needle Nose Pliers
  • Your Preferred Glue

International Shipping

I have been working on international shipping and have come up with the following:

USPS Priority Mail International Small Flat Rate Box - $12 additional Shipping.
This box will ship the Roy's Finger reward or the Roy's Hand Reward.
Tracking is not available for the small box.

USPS Priority Mail International Medium Flat Rate Box - $37 additional Shipping.
This box will ship the Roy's Finger, Roy's Hand, Roy's Arm or Roy's Arm Display reward.
Tracking is available for the Medium box.

The Link

Here is a link to one of the first animatronic hand projects I worked on about 10 years ago. http://youtu.be/_rGQZDYNpa4?t=54s  Unfortunately the film was cancelled before we finished.

The Thank You

Thank you for taking the time to explore my project. If there is anything I may have missed, please feel free to ask.

Happy Building

-Brian

FAQ

Have a question? If the info above doesn't help, you can ask the project creator directly.

Ask a question
113
Backers
$15,232
pledged of $8,000 goal
0
seconds to go
Dsc00988.medium

See full bio

  • Pledge $1 or more
    You selected

    29 backers

    Support Roy - Every dollar helps! All backers will get our sincere thanks and their name proudly displayed on Roy's upcoming web page www.roytherobot.com. THANK YOU!!!

    Estimated delivery:
  • Pledge $20 or more
    You selected

    19 backers

    Roy's Finger - Backers will get a kit to build Roy's index finger. This kit will include everything needed to build the mechanics of one finger. Laser cut pieces, all necessary hardware and one hobby servo. It will include a simple base plate to hold the servo along with a downloadable digital template so you can incorporate the mechanism into you own design. Includes shipping within the USA - Why not grab 3 and build your own alien hand.....

    Estimated delivery:
  • Pledge $100 or more
    You selected

    0 backers

    Roy's Electronics Package - Backers will get all the electronics needed to get any of the rewards up and running similar to the video. The package contains:1 Parallax Propeller Servo Controller, 8 Servo Extensions 30cm, 1 Mini USB Cable, 1 Panel Mount or Cable Mount Female Power Connector and 1 Power Supply 5v 2amp (See image in project). You will still need to purchase the Animation software.

    Estimated delivery:
  • Pledge $100 or more
    You selected

    12 backers

    Roy's Hand - Backers will get a kit that can be assembled into Roy's right or left hand (you choose). This kit will include everything needed to build the mechanics of one hand from the wrist plate up (no wrist mech included). Laser cut pieces, all necessary hardware and six hobby servos. The wrist plate will incorporate a hole pattern for attachment purposes. Includes shipping within the USA - This would make a great addition to that art project you have been working on.....

    Estimated delivery:
  • Pledge $120 or more
    You selected

    1 backer

    Roy's Finger + Electronics - Backers will get everything listed in Roy's Finger reward plus everything listed in Roy's Electronics reward.

    Estimated delivery:
  • Pledge $180 or more
    You selected

    7 backers

    Roy's Arm - Backers will get a kit that can be assembled into Roy's right or left hand and forearm (you choose). This kit will include everything needed to build the mechanics of one hand and forearm. Laser cut pieces, all necessary hardware and eight hobby servos. The forearm base plate will incorporate a hole pattern for attachment purposes. Includes shipping within the USA- Now you can make that slot machine of yours a real one armed bandit....

    Estimated delivery:
  • Pledge $200 or more
    You selected

    1 backer

    Roy's Hand + Electronics - Backers will get everything listed in Roy's Hand reward plus everything listed in Roy's Electronics reward.

    Estimated delivery:
  • Pledge $240 or more
    You selected

    18 backers

    Roy's Arm Display - Backers will get a kit that can be assembled into Roy's right or left hand, forearm and the display base. The display base adds an additional rotation around its vertical axis. This kit will include everything needed to build the mechanics of one hand, forearm and display. Laser cut pieces, all necessary hardware, eight hobby servos with extensions (to bring the plugs into the base) and one large 1/4 scale servo. Includes shipping within the USA - You will need to supply the control electronics and power. This is the perfect companion to your Arduino Mega micro controller. (Note: For those of you not familiar with control electronics. I will be detailing everything I used to get my display up and running.)

    Estimated delivery:
  • Pledge $280 or more
    You selected

    0 backers

    Roy's Arm + Electronics - Backers will get everything listed in Roy's Arm reward plus everything listed in Roy's Electronics reward.

    Estimated delivery:
  • Pledge $340 or more
    You selected

    16 backers

    Roy's Arm Display + Electronics - Backers will get everything listed in Roy's Arm Display reward plus everything listed in Roy's Electronics reward. This will also include cut outs on the back panel of the box for the power and USB, along with the necessary hardware to mount the electronics in the base.

    Estimated delivery:
  • Pledge $850 or more
    You selected

    2 backers

    Roy's Ultimate Arm Display FULLY ASSEMBLED - Backers will get everything included in Roy's Arm Display pledge plus all the control electronics, powers supply and animation software. Everything you need to pull the arm out of the box and be up and running in no time. The animation software will be VSA Hobbyist (Visual Show Automation) by Brookshire Software. Includes shipping within the USA- I will include instructions on how to configure the software for your arm along with a sample animation for you to load and get moving. This is the perfect option for those of you who love the technology but don't have the time do do all the assembly work.

    Estimated delivery:
