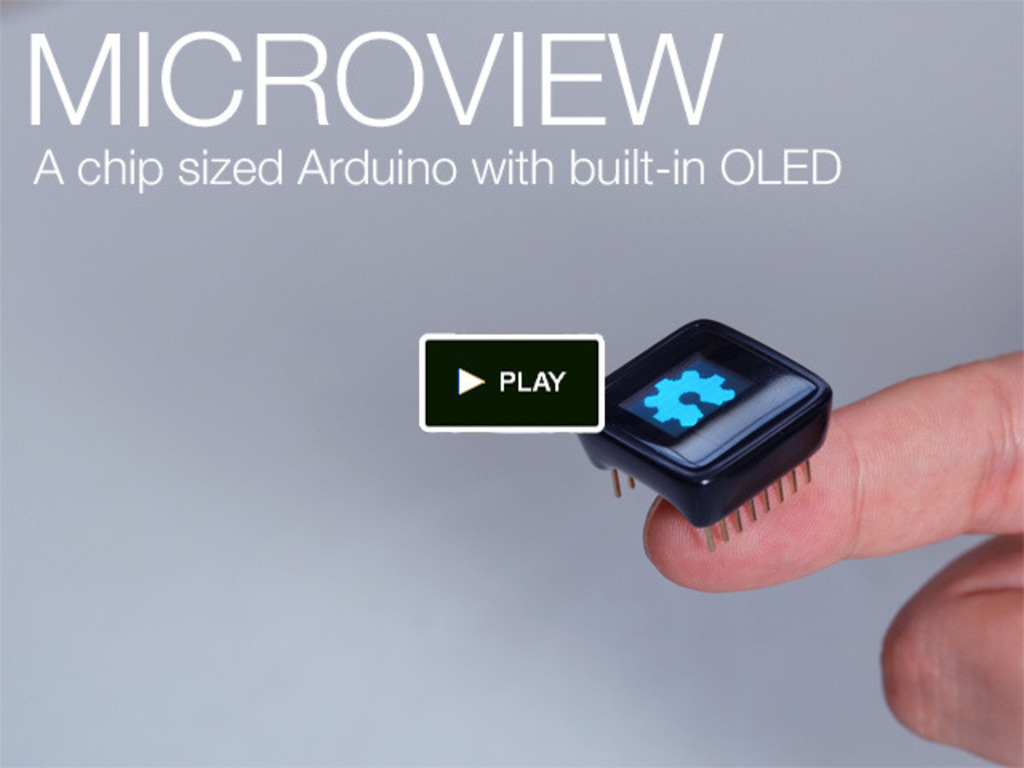

The MicroView is the first chip-sized Arduino compatible that lets you see what your Arduino is thinking using a built-in OLED display. Read more

6,972
backers
$573,760
pledged of $25,000 goal
0
seconds to go

Funded!

This project was successfully funded on April 17, 2014.

The MicroView is the first chip-sized Arduino compatible that lets you see what your Arduino is thinking using a built-in OLED display.

Geek Ammo
Project by

Geek Ammo

First created  |  8 backed

See full bio Contact me

About this project

Click here to visit http://microview.io/kickstarter
Click here to visit http://microview.io/kickstarter

You've never seen an Arduino™ compatible like this. With a built-in OLED (Organic Light Emitting Diode Display) you can see what your Arduino is thinking without having to connect it to your computer.

No more cryptic "Hello World" LED blink sequences or shoehorning oversized displays onto your tiny Arduino™. Development is much easier when you can see what's going on.



In addition to the built-in tutorials, we've also built a cross platform course that runs on iPad, Microsoft Surface and modern Web Browsers on Windows, Mac and Linux

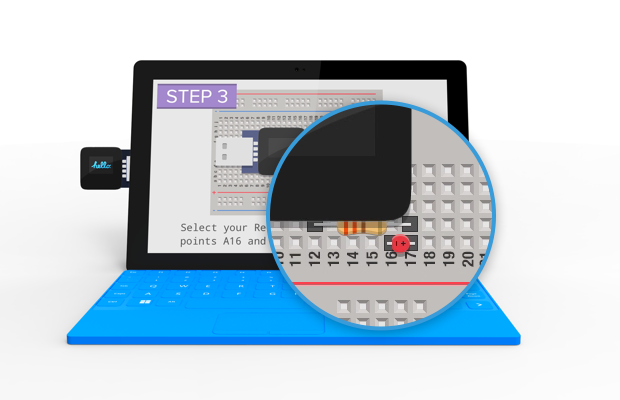

The course takes you step by step through building a 11 different circuits including:

  • Blinking LEDs and creating different colors on an RGB LED.
  • Getting readings from a potentiometer (a fancy name for a knob).
  • Taking the input from a push button.
  • Sensing Temperature and Light
  • Controlling actuators relays, motors & servos
  • Making sound

The interactive course is included within the "Learning Kit" and "Educators Kit" rewards tier.

If you already know Arduino™, you will love the Arduino Library we've made that allows you to quickly display text, sprites, graphs and gauges.
If you already know Arduino™, you will love the Arduino Library we've made that allows you to quickly display text, sprites, graphs and gauges.

WIDGETS

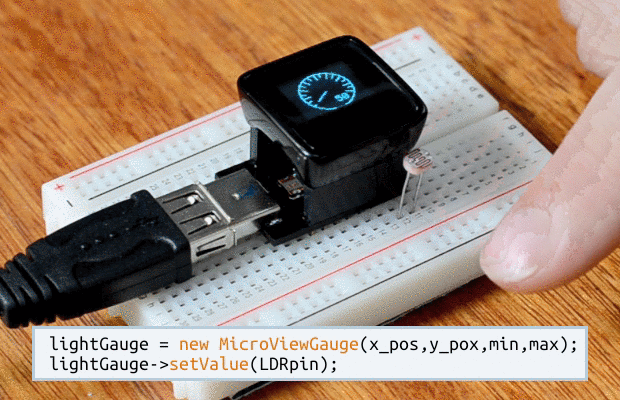

Gauges, like this gauge showing the reading of a Light Sensor are easy to display with 2 lines of Arduino™ Code.
Gauges, like this gauge showing the reading of a Light Sensor are easy to display with 2 lines of Arduino™ Code.

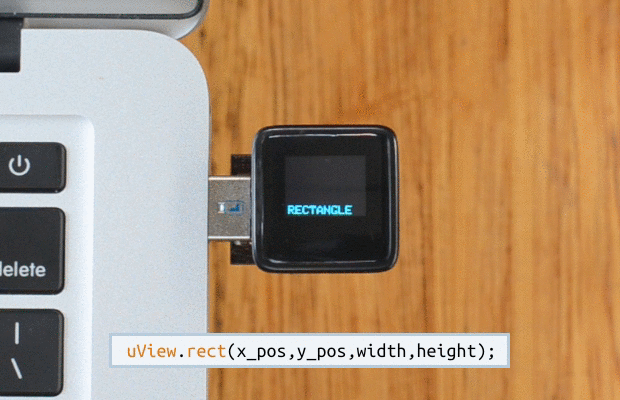

Drawing primitives on the MicroView is super easy!
Drawing primitives on the MicroView is super easy!

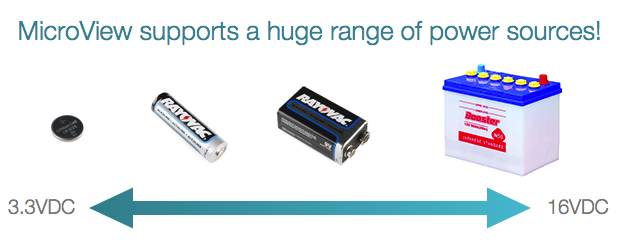

FLEXIBLE POWER OPTIONS

The MicroView can be powered from a Coin Cell Battery, AA or AAA Batteries, USB Power, 9V Square Batteries and 12V Car Batteries and beyond!
The MicroView can be powered from a Coin Cell Battery, AA or AAA Batteries, USB Power, 9V Square Batteries and 12V Car Batteries and beyond!

Note: 6-16VDC is the manufacturer's recommendation for a stable 5V 16Mhz operation.  Voltages below 6VDC are for hackers that wish to drive the ATmega328P and LDO beyond the datasheet's limit.

EXAMPLE PROJECTS

We've already started making projects with the MicroView, here are some of our favorites:

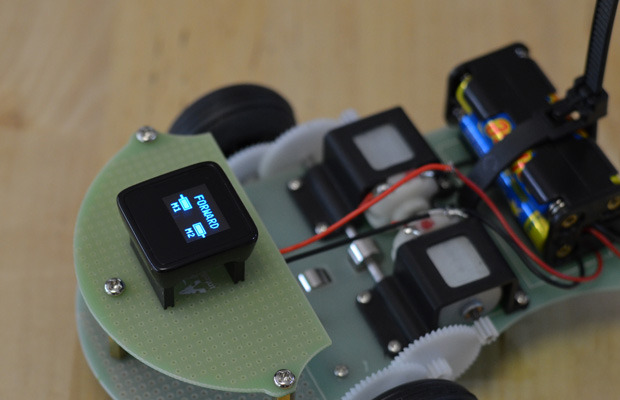

The MicroView can be the brains of your next Robot!
The MicroView can be the brains of your next Robot!

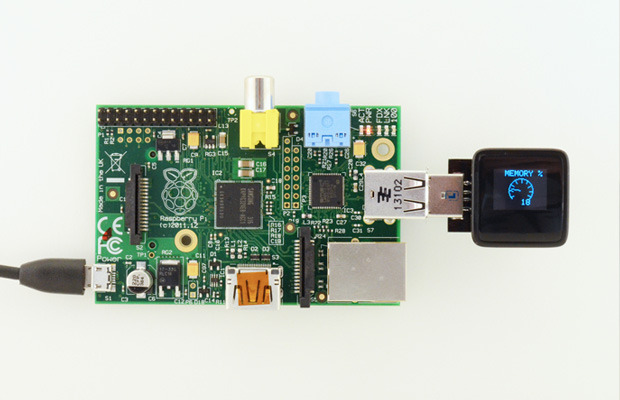

The MicroView can display your Raspberry Pi's Stats!
The MicroView can display your Raspberry Pi's Stats!

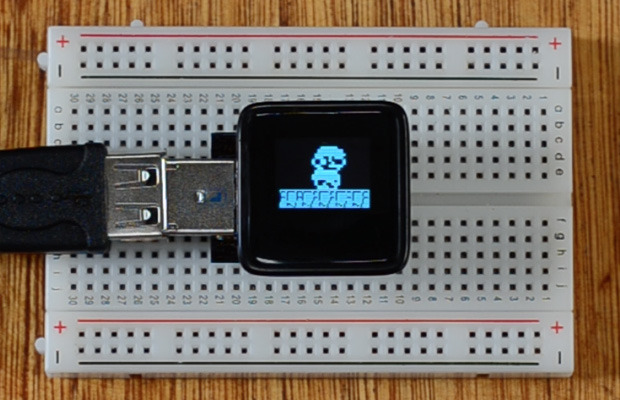

Create a game on MicroView's beautiful OLED Display!
Create a game on MicroView's beautiful OLED Display!

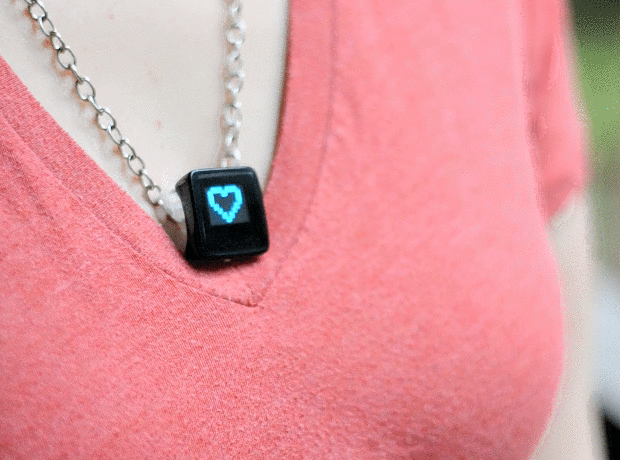

The MicroView's tiny size makes it perfect for Wearable Computing Projects!
The MicroView's tiny size makes it perfect for Wearable Computing Projects!

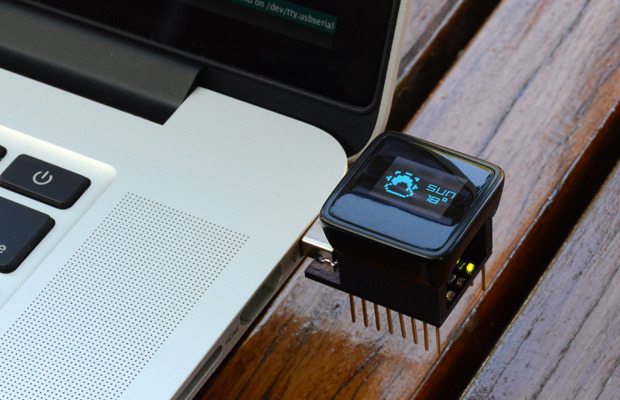

Use the MicroView to make a project that displays your local weather!
Use the MicroView to make a project that displays your local weather!

Here are some other project ideas we've had:

  • Mini Oscilloscope
  • Gas Sensor
  • Games
  • Sports Results
  • Email
  • Pong
  • Clock
  • Weather
  • CPU Status
  • Build Monitor
  • Github Checkin Status
  • Sales
  • Heart Sensor
  • Mini-piano
  • Car Temperature / Fuel levels.
  • Brains for a Robot
  • Display Kickstarter Pledges
  • A Hackable Watch
All Kickstarter rewards tiers include FREE worldwide shipping!
All Kickstarter rewards tiers include FREE worldwide shipping!


What do backers get straight away?

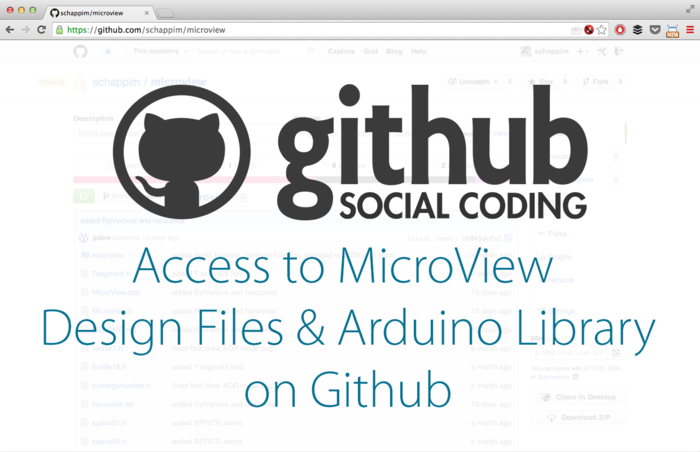

Backers get instant access to the MicroView design files on Github.
Backers get instant access to the MicroView design files on Github.

GENERAL SPECS

  • Support for the Arduino™ IDE 1.0+ (OSX/Win/Linux)
  • 100% Arduino™ Compatible
  • Built-in 64x48 OLED display
  • Direct 3.3VDC - 16VDC power input, no power regulator needed
  • Standard DIP Package
  • Breadboard friendly or direct solder

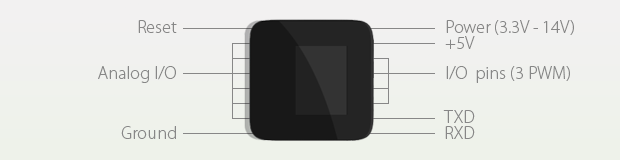

HARDWARE SPECS

  • Display: 64x48 OLED Display
  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Input Voltage: 3.3VDC - 16VDC
  • Digital I/O Pins: 12 (of which 3 provide PWM output)
  • Analog Input Pins: 6
  • Flash Memory: 32 KB
  • SRAM: 2 KB
  • EEPROM: 1 Kilobyte
  • Clock Speed: 16 Mhz
  • No other components required
's video poster
Play

“A great little product! I like it!” - Dave Jones, from the EEVBlog.

 “This is such a kickass project, I can't wait for it to come out.” - Carl Altschul, Teacher at Redlands School.

The MicroView is going to change the way I teach Arduino.” - Justin Clayden, Lecturer of Arduino™ at the University of Sydney, University of New South Wales and University of Western Sydney.

We've got real working prototypes, (everything you've seen in the video was real, no CGI) and we're ready to take the next step.

By raising $25,000 on Kickstarter we will be able to do a large first production run. By doing a big run we'll be able to get the cost of the MicroView down to $45 (including worldwide shipping).

Lowering the price of the MicroView is important to us because we want the MicroView to be accessible to artists, designers, educators, inventors/makers, engineers, and anyone else regardless of income.

Kickstarter is more than about selling a product - it's a journey. We want to invite all of you to be a part of the journey of creating a whole new world where anyone can learn the magic of making things with Arduino™!

  • Marcus Schappi. CEO of Geek Ammo. Founded the successful open source hardware company Little Bird Electronics and the Internet of Things startup Ninja Blocks. Loves long walks on the beach.
  • JP Liew. CTO of Geek Ammo and the electronics engineer and creator of the MicroView. JP has previously lent his electronics expertise to Ninja Blocks, Durex Fundawear and the Foxtel Alert Shirt.
  • Maddy Schappi. COO of Geek Ammo. Maddy spends her time coordinating with suppliers to make sure JP and Marcus have the multitude of parts needed to build MicroView.
  • Zhaoyi Xuan. Zhaoyi is a marketing genius! She has previously provided marketing support for Ninja Blocks and now the MicroView!
  • Cocreators. The team at Cocreators have been our goto guys for Industrial Design and Engineering. Cocreators previously collaborated with Maddy and Marcus to create enclosures for Ninja Blocks.

Whilst sharing the same core founding team, electronics engineer and industrial designers as Ninja Blocks, this project is being run by Geek Ammo and is not part of Ninja Blocks Inc.

The AWESOME SparkFun team!
The AWESOME SparkFun team!

For manufacturing and shipping the MicroView at scale we are collaborating with the amazing team at SparkFun. We've worked with SparkFun for the past 6 years to distribute their open source hardware throughout the world, so when it came to looking for a partner to manufacture the MicroView, SparkFun was the logical choice!

SparkFun also have a proven track record,  they manufactured and shipped over 11,000 units on time for the Makey Makey Kickstarter project!

The products SparkFun make are safe, and environmentally responsible (RoHS compliant).

The bulk of SparkFun's products are manufactured in the USA (Boulder, Colorado) with US workers who are paid a generous wage with benefits. We've gone out of our way to make sure the MicroView isn't being made in a sweatshop!

What's our manufacturing timeline?

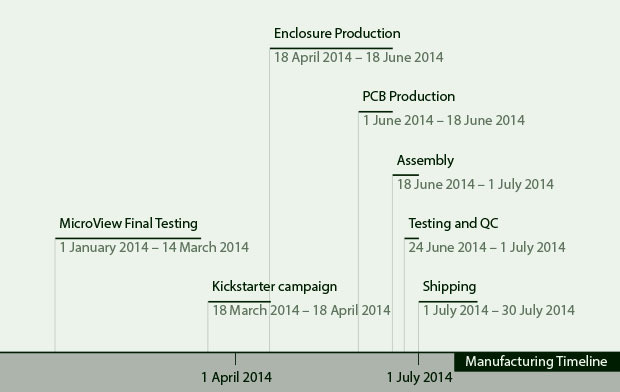

This is our conservative timeline estimates.
This is our conservative timeline estimates.

We've been working on the MicroView for 6 months now.

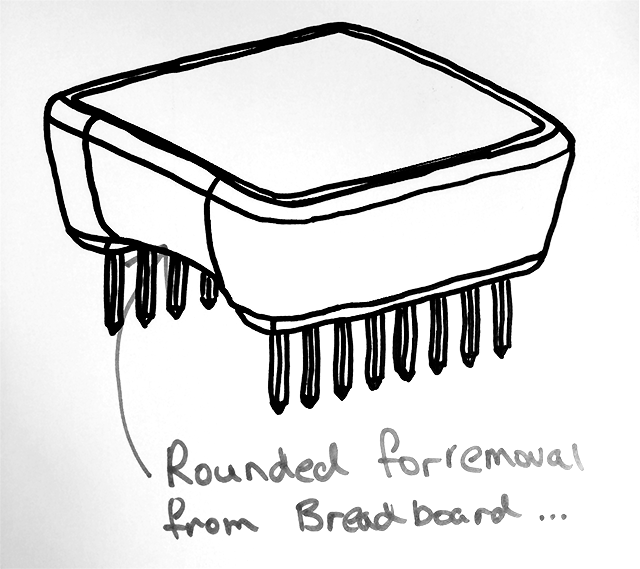

Our initial whiteboard sketch of the MicroView.
Our initial whiteboard sketch of the MicroView.

We know from our experience with Ninja Blocks that getting the injection moulding done is going to be the bulk of the manufacturing timeline. There can be up to three iterations required to get the mould "just right".

Whilst the enclosure of the MicroView demoed looks like a finished injection moulded piece, it actually is a solid piece of plastic that has been milled down in a CNC machine and polished by hand for eight hours!

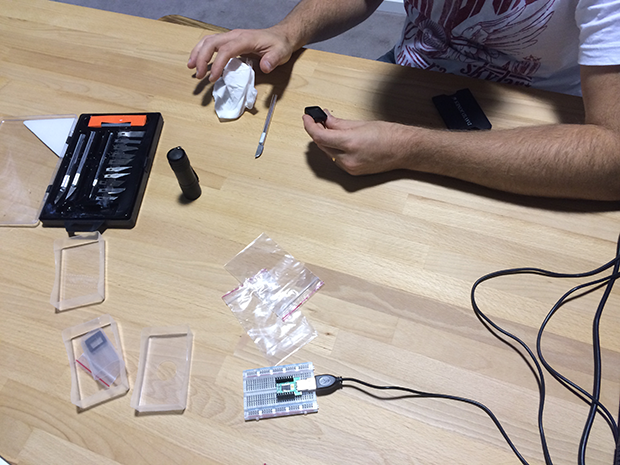

Ted polishing by hand one of our prototype MicroView enclosures. Each prototype enclosure took 8 hours to polish by hand! You really need a beer after that!
Ted polishing by hand one of our prototype MicroView enclosures. Each prototype enclosure took 8 hours to polish by hand! You really need a beer after that!

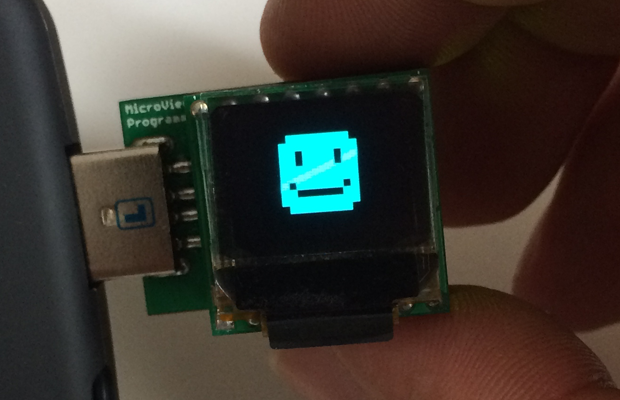

MicroView prototype without enclosure. Doesn't it look a bit naked?
MicroView prototype without enclosure. Doesn't it look a bit naked?

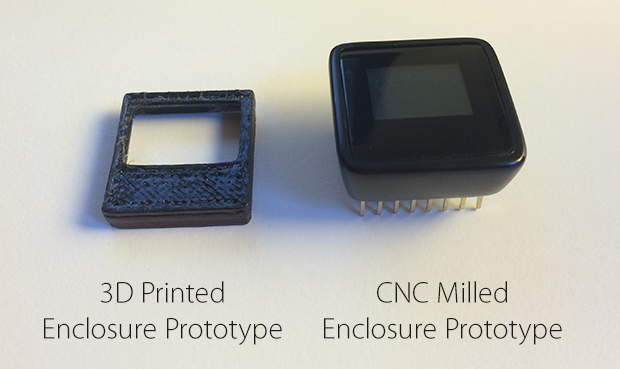

The huge difference between our 3D Printed and CNC Milled Prototypes.
The huge difference between our 3D Printed and CNC Milled Prototypes.

The MicroView is being made and will ship from the USA in Boulder, Colorado.

We've built the cost of shipping into the price of the Kickstarter Rewards Tiers. As with all Kickstarter Projects, this price does not include the customs fees, duties and/or taxes you might incur when importing products into your state or country. We cannot pay these fees for you. For obvious reasons we are not allowed ship to Iran, Cuba, North Korea, Sudan, Syria, the Moon, and Middle Earth.

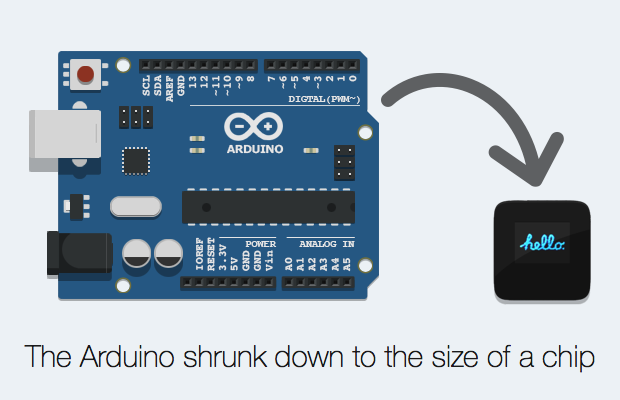

The MicroView is the first chip-sized Arduino™ compatible with a built in display. You can see what it's thinking making it the easiest Arduino™ to get started with.

Media Contact

Marcus Schappi - CEO, Geek Ammo, media@geekammo.com, +1 (415) 992-7455

Download our Media Kit

You can access our entire Media Kit on Dropbox here.

The Arduino Logo, Arduino@Heart, and Arduino name are trademarks owned by Arduino LLC. For more information on Arduino trademarks visit this link.

Risks and challenges

Our team has already shipped products on Kickstarter and from our experience the biggest potential obstacles we'll face centre on production and logistics.

To minimize these risks we are collaborating with the amazing team at SparkFun Electronics who have proven experience in providing manufacturing and logistics to other Kickstarter Projects. Their latest collaboration, the Makey Makey, was manufactured and shipped on time to over 11,000 backers!

To make things extra safe we're limiting our initial run to only 5000 units.

Learn about accountability on Kickstarter

FAQ

  • Whilst sharing the same core founding team, electronics engineer and industrial designers as Ninja Blocks, this project is being run by Geek Ammo and is not part of Ninja Blocks Inc.

    Last updated:
  • We only have blue at the moment. We have searched for a few months and were unable to find an OLED of this size in other colors.

    Last updated:
  • We will make public the source as soon as the funding period for the Kickstarter is over.

    Last updated:
  • KickStarter by default does not support multiple pledges, many projects workaround this limitation by asking backers to increase the amount and manually determine how many multiples should be shipped.

    We will not be doing this as we have arranged an automated way to pass the pledges to our manufacturers (SparkFun) and the manual pledge workaround would be a recipe for tears!

    Last updated:
  • It's against Kickstarter's policies to offer multiples of a reward in a tier. However as pointed by backers, there are many projects with this type of tier, we will be looking into what we can do.

    Last updated:
  • We're working with educators to make teaching materials that extends beyond the interactive course. Think powerpoint slides and teaching notes.

    Last updated:
  • Yes!

    We've built the cost of shipping into the price of the Kickstarter Rewards Tiers. As with all Kickstarter Projects, this price does not include the customs fees, duties and/or taxes you might incur when importing products into your state or country. We cannot pay these fees for you. For obvious reasons we are not allowed ship to Iran, Cuba, North Korea, Sudan, Syria, the Moon, and Middle Earth.

    Last updated:
  • The MicroView is a tiny 26mm x 26mm x 16mm .

    Last updated:
  • Like any modern business we use online services to store company (and customer) data. This includes hosted services like Dropbox, Shopify, MongoHQ and Google Apps. We may use other hosted services in the future.

    As SparkFun will be handling the logistics of the MicroView, we'll be providing them with your order and contact details for shipping. SparkFun will provide these details to their shipping providers (E.g. FEDEX, UPS, USPS etc) as required.

    Last updated:

Rewards

  • You selected
    Pledge $20 or more

    10 backers

    Early access to MicroView Source Code & Design Files

    Estimated delivery:
  • You selected
    Pledge $45 or more

    143 backers All gone!

    Just the MicroView

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $45 or more

    20 backers

    Just the MicroView

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $55 or more

    2,332 backers All gone!

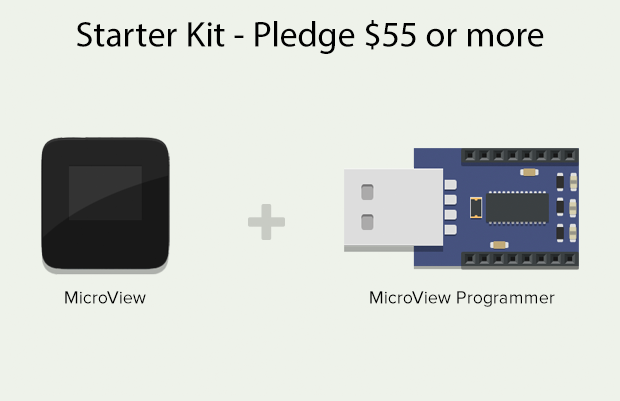

    [Starter Kit] The MicroView + USB-Serial Programmer

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $55 or more

    153 backers

    [Starter Kit] The MicroView + USB-Serial Programmer

    Estimated delivery:
    Ships anywhere in the world
  • You selected
    Pledge $95 or more

    3,150 backers All gone!

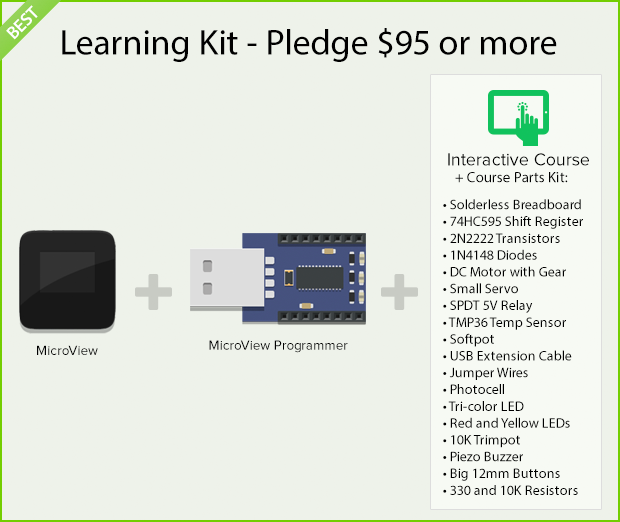

    [Learning Kit] MicroView + USB-Serial Programmer + Learning Kit + Cross Platform Interactive Course + FREE Worldwide Shipping!
