SoundsCape - Analog and Bluetooth Audio for BeagleBone's video poster
Play

SoundsCape is a BeagleBone Cape that adds analog audio I/O and bluetooth I/O for limitless audio possibilities. Read more

24
backers
$1,955
pledged of $10,000 goal
0
seconds to go

Funding Unsuccessful

This project's funding goal was not reached on .

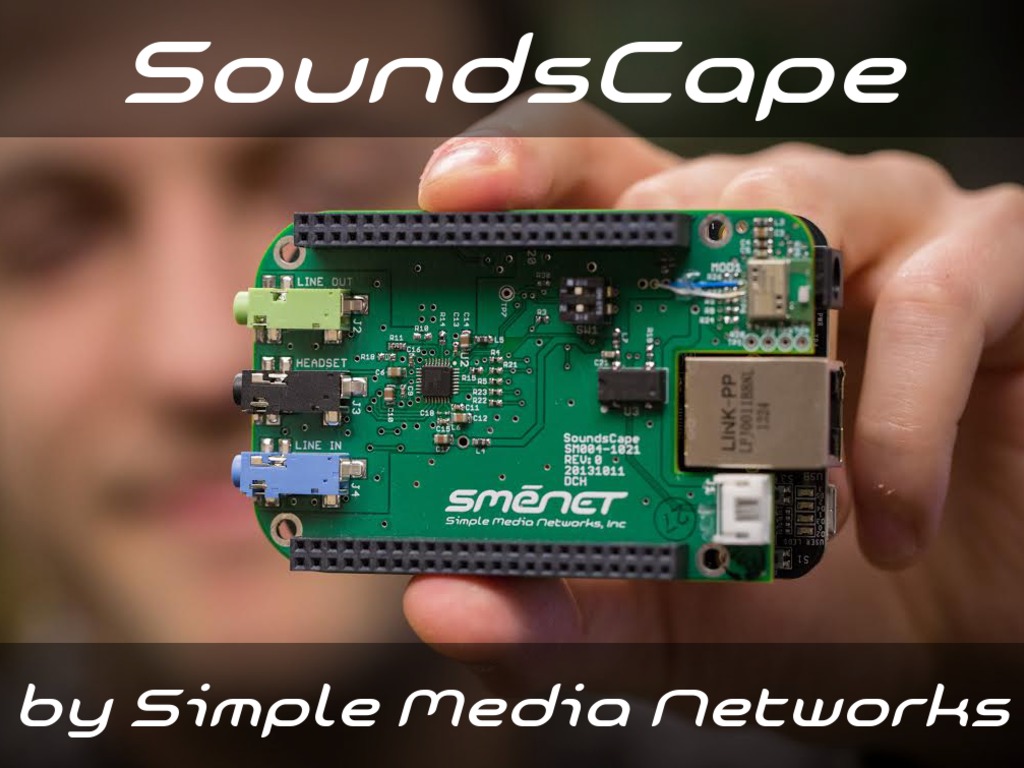

SoundsCape is a BeagleBone Cape that adds analog audio I/O and bluetooth I/O for limitless audio possibilities.

About this project

Simple Media Networks is a networking technology provider.  We love audio and we live, eat, and breathe embedded systems.  With this project we plan to fund software development and production of  the SoundsCape: our current audio & bluetooth solution for the BeagleBone.  This development platform provides a better solution for developers of connected audio devices.

The SoundsCape is perfect for:

  • Developers using the BeagleBone for systems that will benefit from high quality audio performance and/or Bluetooth connectivity.
  • Audio enthusiasts who would like an audio hacking platform.
  • Audio enthusiasts who would like to connect their existing speakers to the internet for audio streaming.

Features of the SoundsCape include:

Audio Codec - The included ADAU1361 codec from ADI includes Stereo Line Input, Stereo Line Output, and Headset I/O (stereo headphone out + mono mic in).  Each output is supported with a 3.5mm stereo jack.  This Codec provides >98db SNR on both input and output.  The codec includes a comprehensive mixer with analog volume controls.  As an added feature, the codec on the SoundsCape is compatible with Beaglebone systems using the LCD display interface (e.g. official BeagleBone LCD capes).

BlueTooth - In addition the cape includes a Bluetooth 4.0 Interface featuring the PAN1323 module from Panasonic (based on the TI CC2567).  This hardware enables development of Bluetooth Streaming via A2DP, Headset via HFP, and controls via BLE.  Firmware available on our website will demonstrate A2DP streaming.
**Sadly the BT interface is unavailable on systems which use the LCD touchscreen interface due to GPIO limitations of the BeagleBone.

Applications -

  The SoundsCape board enables several applications including those shown in the following diagrams:

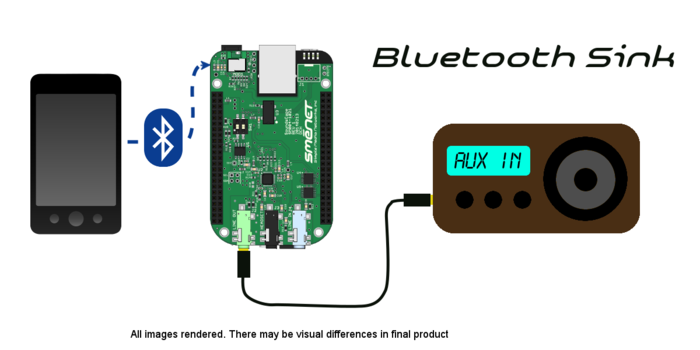

Bluetooth Sink Configuration: Phone (or other BT device) -> SoundsCape -> Speaker Aux In
Bluetooth Sink Configuration: Phone (or other BT device) -> SoundsCape -> Speaker Aux In

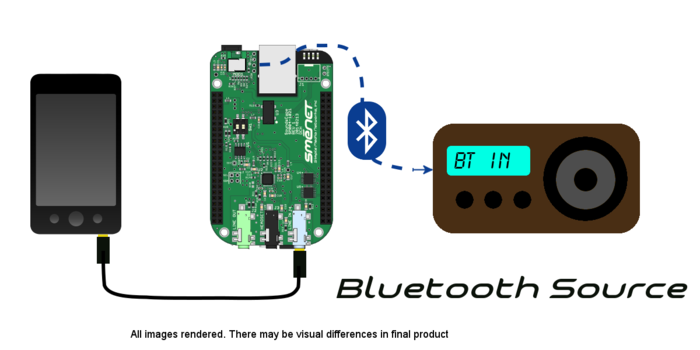

Bluetooth Source Configuration: Phone (or other line out device) -> SoundsCape -> Bluetooth Speaker In
Bluetooth Source Configuration: Phone (or other line out device) -> SoundsCape -> Bluetooth Speaker In

Audio Bridge - The Audio Bridge is our showcase application for the SoundsCape.  The Bridge Module can be used to turn your Bluetooth or Aux input speaker system into an ethernet connected speaker system and dlna endpoint.  dlna allows you to send music to your speakers via an app on your mobile device or computer.  You can queue up music from the cloud, your other dlna devices, or your NAS based music collection.  No more music dropouts when you move your phone away from your bluetooth speaker!

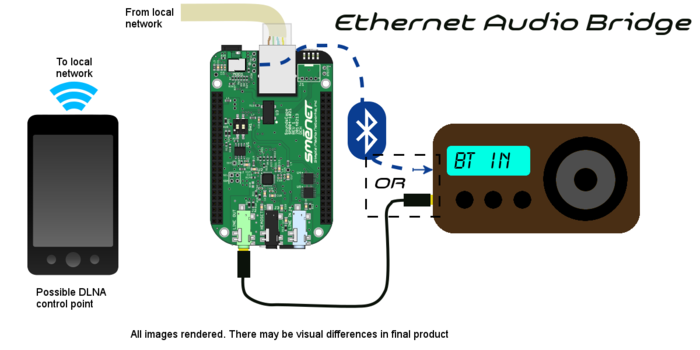

Audio Bridge Configuration: Phone is control point, BBB renders audio media, SoundsCape -> Bluetooth or Lineout
Audio Bridge Configuration: Phone is control point, BBB renders audio media, SoundsCape -> Bluetooth or Lineout

Enclosure -  The Audio Bridge reward will include a custom plastic enclosure for the BeagleBone & Soundscape.  A 3D model for that enclosure is currently being developed as shown in the following rendering.  The final shape & colors of the enclosure are not yet determined.  The final enclosure will also include slots to allow for cooling of the device.

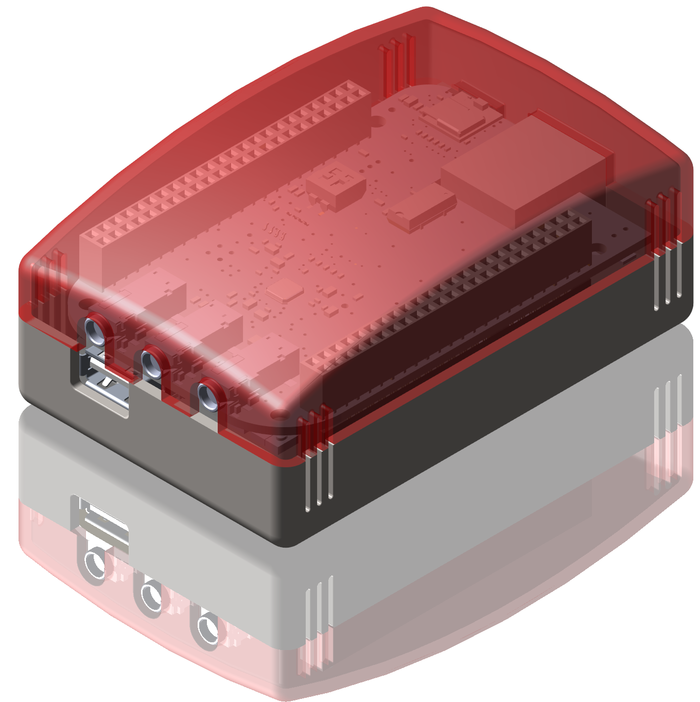

Rendering of Audio Bridge Enclosure - Not an actual photo!
Rendering of Audio Bridge Enclosure - Not an actual photo!

Additional Possibilities - Developers will appreciate the many options which are possible with the SoundsCape.  The board is capable of supporting a variety of audio connections.  Many Bluetooth profiles can be developed for the board including HFP, SPP, A2DP, HCI.  The bluetooth interface is capable of supporting BLE for remote controls and low power BT sensors.  Full schematics for the SoundsCape will be posted on our website.

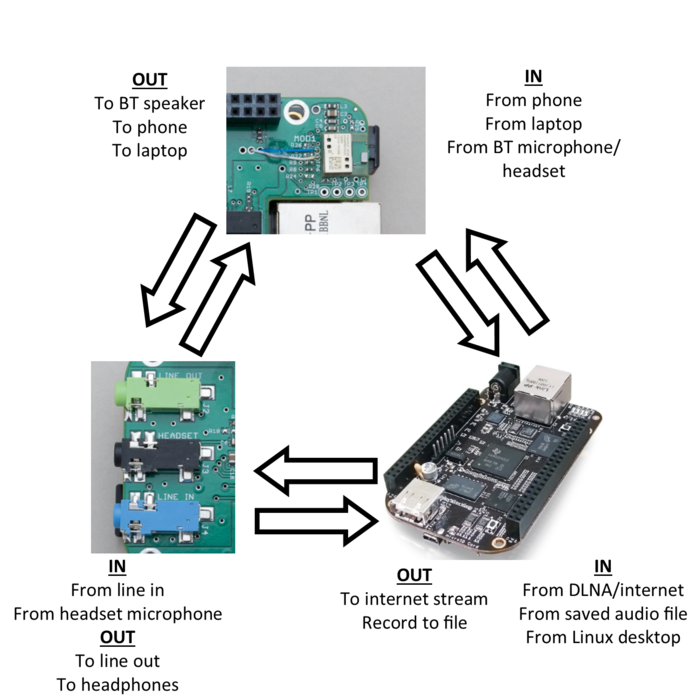

This drawing shows the I/O possibilites with SoundsCape hardware. ***Not all configurations are supported with the demo software.
This drawing shows the I/O possibilites with SoundsCape hardware. ***Not all configurations are supported with the demo software.

Applications Firmware - The SoundsCape firmware is based upon a minimal Ubuntu build.  In addition to the drivers the images include the following: BlueZ Bluetooth stack.  The Audio Bridge image also includes the Platinum uPnP stack, and gstreamer.  As part of this project we will create at least 3 SD Card images to demonstrate the capabilities of the SoundsCape which will be downloadable via our website.

Developer SD Card - The Developer SD Cards contain a minimal build Ubuntu image for the BeagleBone Black with supporting drivers for the SoundsCape Board.

Project Status - The SoundsCape is currently in functional prototype stage with a few rework wires.  We have functional drivers supporting codec configuration & controls and Bluetooth A2DP streaming on an Ubuntu based system.  We also have a functioning dlna endpoint based upon Platinum UPNP and gstreamer.

Funding for the project will be used to build revised PCBs, manufacture the enclosure & complete software development for the modes described & for configuration apps & tools.

Our Team - The SMN development team is based in Northborough, MA.

Cory -

Cory
Cory

Cory is the SMN electronics wizard!  He holds a BSECE from THE Ohio State University, and is responsible for all of our schematics, PCB layouts, board bringup, & managing production.  Cory also helps with low level firmware and a variety of marketing and business issues.  When he is not developing awesome hardware at SMN Cory can be found playing bass & keyboards in local bands.

Stu -

Stu
Stu

Stu is SMNs very own software Guru.  He holds both  BS & MS degrees in Telecommunication Technologies from the Technical University of Sofia in Bulgaria.  Stu is responsible for software and embedded firmware development.  He also helps with board bringup and systems level design.  In his down time Stu is often hacking his DJ equipment to get the best sound possible.

The SMN development team is supported by Beth Bomarsi and Matt Moser for operations & marketing.

Production Plan - SoundsCape PCBs will be manufactured in USA by AMI.  Rewards for the project will be bundled and shipped from our facility in Northborough, MA.

Partners - It takes many supporters to make any project go.  We would like to thank the following companies and individuals who have helped to bring this project to life:  Analog Devices, Texas Instruments, Panasonic, CircuitCo, AMI, Plutinosoft, Engineering MicroSystems, Ubuntu, Jonathan Sachs.

Risks and challenges

While the primary challenges have been resolved, development of a hardware project is always subject to many variables. The major risks to the project are:

BeagleBone Black is currently in short supply - We could have difficulty obtaining these boards for our bundles. We have plans to purchase these boards directly from CircuitCo, and will advise supporters as we get confirmation of delivery on the BBB. Should CircuitCo not be able to supply boards, we have a backup plan in place for boards from a China based supplier.

Components could become unavailable. All parts in our design have been selected based in part upon availability. While we don't anticipate any problems, vendors could discontinue critical components. In such a case we will do our best to modify the design and find suitable alternates.

Learn about accountability on Kickstarter

FAQ

  • SD card images of each configuration will be available for free on our website by then end of the project.

    Last updated:
  • The SoundsCape is hardware compatible with the BeagleBone (White) and the BeagleBone Black, all hardware versions. Software support is not included in official builds yet, but we will supply Ubuntu based SD card images for free.

    Last updated:
  • The AM335x processor on the BeagleBone can support audio rates up to 192kHz. The limiting factor becomes the connected devices (ADAU1361 and/or PAN1323).

    The ADAU1361 Codec can run audio at up to 96kHz and 24bits.

    The PAN1323 Bluetooth link runs at either 44.1kHz or 48kHz in A2DP profile using SBC codecs. The effective wordsize is dependent upon the codec configurations

    Our demo apps run the I2S configurations at 48kHz sample rates and 24 bit data.

    Last updated:
  • We have been testing with the following software:

    Android:
    BubbleUPnP - both Server and Control Point (our favorite choice)
    Kinoma Connect - both Server and Control Point
    Pixel Media Server - as Server
    Media House - as Control Point

    iOS:
    AirMusic - as Server
    AudioRemote - as Control Point
    Media:Connect - Server and Control Point
    Kinoma Connect - Server and Control Point

    Windows:
    fooBar2000 (with UPnP/DLNA plugin) - Server and Control Point

    Last updated:
  • A "sink" just means that it is an input connection. Bluetooth speakers function as a bluetooth sink, taking their input signal from a bluetooth connection. Other devices can function as a sink as well, televisions, radios, clocks are typical examples.

    Last updated:
