Not only a prototyping shield for Arduino, but also an Arduino-compatible, prototyping board for your next stand-alone project.

CLICK HERE FOR ALL THE PLEDGE AND REWARD OPTIONS

FULL KITS ARE NOW AVAILABLE AS AN ADD-ON

For an extra $20, you will receive three add-on kits that allow you to build the stand-alone version of the White (or Wheat) Bread Shield for Arduino.  All backers who choose this option will receive their rewards after the board-only rewards are shipped.  Please see The Rewards section below for more details.  The risk of this reward is any unforeseen part shortages in the market.

Updates

A few design improvements have been made to the White Bread Shield.  Please use the Updates link at the top of the page to review these design changes.

See Added Stretch Goals Below

The Story

Almost all of my Arduino based projects start right here, with an Arduino board and a couple chunks of breadboard.

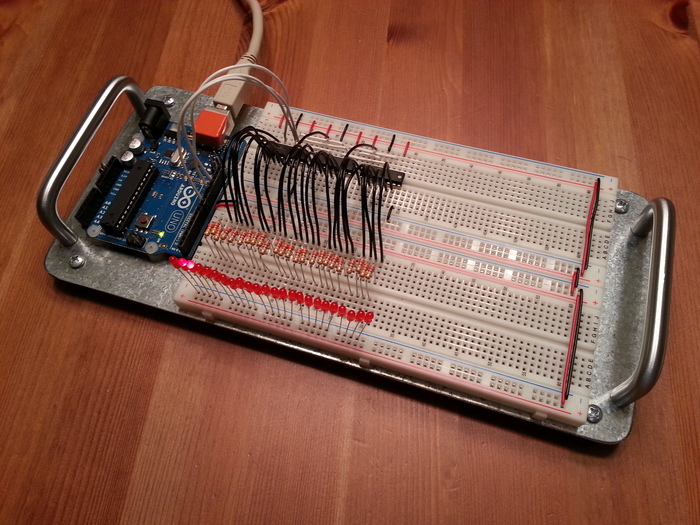

Arduino UNO + Breadboard Prototyping
Arduino UNO + Breadboard Prototyping

This works perfectly for exploring new ideas and concepts, but not if your working on something to keep and use over and over again.  To build something to keep, I've used Vector/perf boards or designed custom printed circuit boards in the past.  To help myself when building a project, I also designed a prototyping board with the microcontroller components designed into the board layout.

3" x 5" Prototyping Board (Arduino-Compatible)
3" x 5" Prototyping Board (Arduino-Compatible)

The prototyping boards work great, but I also wanted a design that worked as an Arduino shield.  I initially thought that a shield would offer a better form factor for prototyping.  I laid out the shield design and took a look.

The obvious realization was the amount of wasted board space.  To make the shield more functional, I laid out the microcontroller components in the empty space.  This allowed the board to be used as a shield or stand-alone.

With the design in hand, I sent it off to my board manufacturer for a small prototype run.  The boards shown below are those prototype boards.

The White Bread Shield for Arduino

The White Bread Shield for Arduino is a 2.1" x 6.0" prototyping board that's compatible with the Arduino UNO style boards.  The White Bread Shield is designed to be used as either an Arduino Shield or a stand-alone board.  This gives you more flexibility to build projects the way you want them.

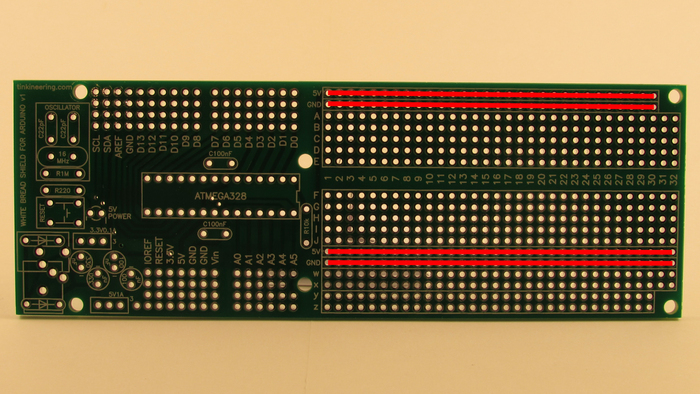

The left end of the White Bread Shield includes the shield connections and component locations for building a stand-alone board.  The right end of the White Bread Shield includes a breadboard-like, prototyping area.

Some of the features of the prototyping area:

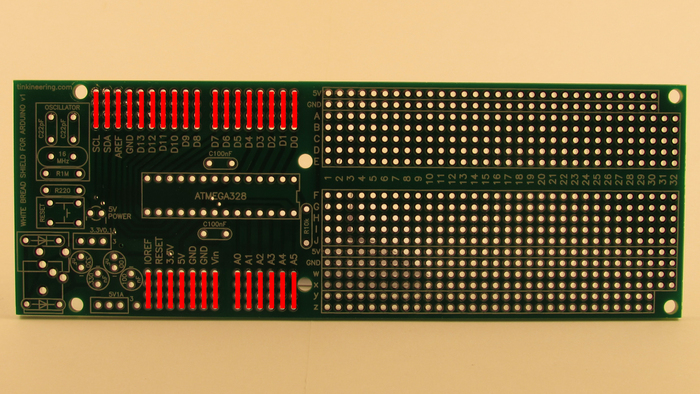

Shield Pin Connections
Shield Pin Connections

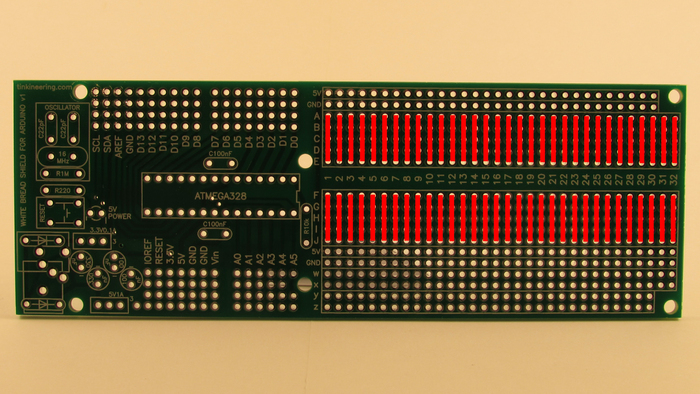

5-Tie-Points
5-Tie-Points
Power & Ground Buses
Power & Ground Buses
2-Tie-Points
2-Tie-Points

The left end of the White Bread Board allows you to mount everything you need to make the board completely stand-alone.

Power Jack (The Power Jack can be configured off the end of the board as shown or off the side of the board.)
Power Jack (The Power Jack can be configured off the end of the board as shown or off the side of the board.)
5 Volt and 3.3 Volt Power Supplies
5 Volt and 3.3 Volt Power Supplies

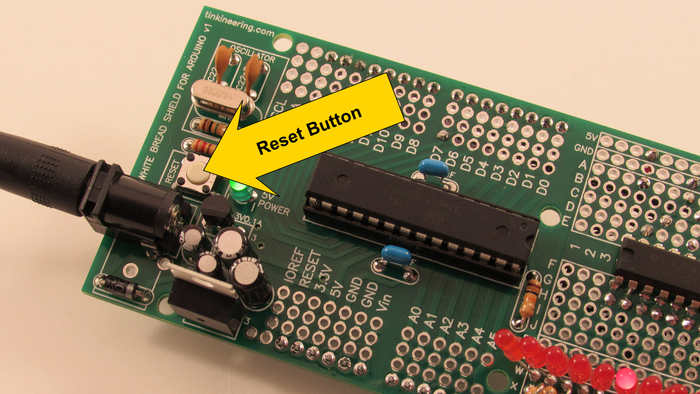

Reset Button
Reset Button

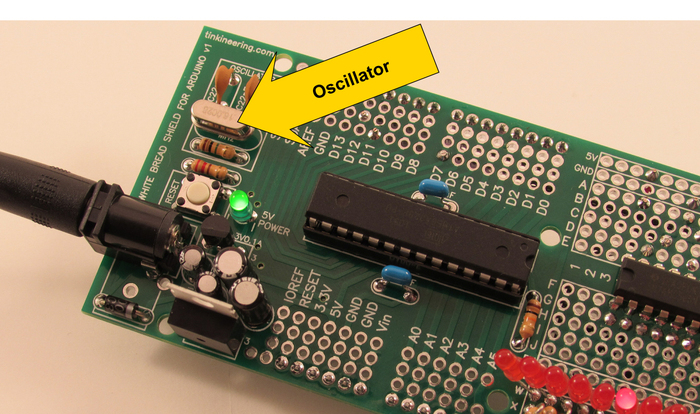

Oscillator
Oscillator

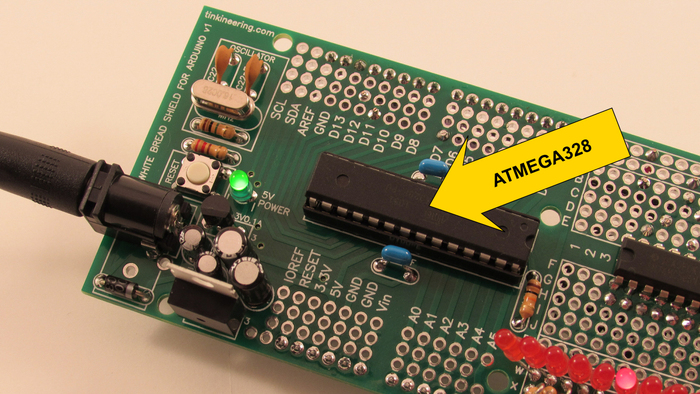

ATMEGA328
ATMEGA328

The White Bread Shield uses all through-hole components and connections to allow for easy construction and modification.

The License CC BY-SA

The White Bread Shield for Arduino is licensed under the Creative Commons Attribution Share-Alike license.  Credit is given to the Arduino Team and their documentation for help completing the White Bread Shield design.  You can find more information about the license on the Creative Commons website.

The Rewards

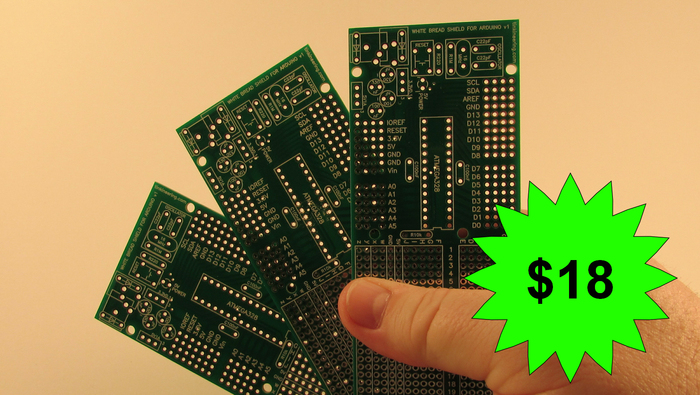

For the first one hundred backers, I'm offering a set of three White Bread Shields for a pledge of $12.

After the early bird specials are gone, I'm offering the same set of three White Bread Shields for a pledge of $18.

All international pledges from outside the US will require an additional $15 for shipping.

Full Kit Add-On Option

The Full Kit Add-On is an extra $20.  The Full Kit Add-On provides all the components to build three stand-alone versions of the White (or Wheat) Bread Shield for Arduino.  The following components and quantities are included in the Full Kit Add-On.

  • Atmel ATMEGA328P-PU with Arduino Bootloader Pre-Loaded (3)
  • 28-Pin DIP Socket (3)
  • 16MHz Crystal (3)
  • 22pF 50V Capacitor - Ceramic (6)
  • 1M-Ohm 1/4W Resistor (3)
  • 2.1x5.5mm Power Jack (3)
  • 1N4001 Diode (3)
  • 5VDC 1A Voltage Regulator (3)
  • 3.3VDC 100mA Voltage Regulator (3)
  • 0.1microF 50V Capacitor - Aluminum (6)
  • 0.33microF 50V Capacitor - Aluminum (6)
  • 0.1microF 50V Capacitor - Ceramic (9)
  • SPST Tactile Switch (3)
  • 10k-Ohm 1/4W Resistor (3)
  • 3mm Green LED (3)
  • 220-Ohm 1/4W Resistor (3)
  • 6-Pin Header (FTDI) (3)

All board-only rewards will be shipped according to the original schedule below.  All rewards that include the Full Kit Add-On are scheduled to be shipped by March 15, 2014.

The Plan

The White Bread Shield for Arduino has been designed, prototyped, and tested.  Here's the schedule for getting the rewards to all the backers.

Through January 12, 2014 - Kickstarter Funding!!!

January 12, 2014 to January 25, 2014 - Receive Funding Payment

January 26, 2014 to February 15, 2014 - White Bread Shields Manufactured

February 16, 2014 to March 1, 2014 - Prepare and Ship All Board-Only Rewards!!! UPDATE

March 2, 2014 to March 15, 2014 - Prepare and Ship All Rewards that Include the Full Kit Add-On!!! UPDATE

The Stretch Goals

I would like to introduce the Wheat Bread Shield for Arduino. It only makes sense that if there's a White Bread Shield, there should be a Wheat Bread Shield. The 3.1" x 6.5" Wheat Bread Shield has twice the 5-tie-points of the White Bread Shield.

Wheat Bread Board for Arduino v1x
Wheat Bread Board for Arduino v1x

The Wheat Bread Shield has all the same features of the White Bread Shield with more prototyping area and buses that extend near the I/O pins.

The stretch goals are based on the number of backers at the end of the Kickstarter campaign.

500 BACKERS: Each backer will receive TWO Wheat Bread Boards for Arduino in addition to their original reward.

1000 BACKERS: Each backer will receive THREE Wheat Bread Boards for Arduino in addition to their original reward.

Risks and challenges Learn about accountability on Kickstarter

I have used my board supplier many times over the last couple years with very good results. The boards are always of high quality and delivered on time. However, there is always the risk I will have to change board suppliers. If so, I will have to do a prototype run to verify quality before ordering the final run. This could push the schedule back a couple weeks. I feel this risk is very low and I will deal with it if it occurs.

Otherwise, I feel confident that with your support I'll get the rewards out on time and into everyone's hands. I can't wait to see what projects people use the White Bread Shield for. But, before that can happen, I need your support. If I don't reach my goal of $600, I won't be able to send out the rewards.

FAQ

  • All the design files, build instructions, and related documentation will be released on GitHub at the close of the Kickstarter funding.

    Last updated:
  • The original White Bread Shield design has been revised to include an FTDI header connection. I'll do all I can to make sure this is part of the final shipped design.

    Last updated:
