Egg Design Updates
From @albertchao via Air Quality Egg Google Group :
No glue. No bolts. No screws.
This is the concept for the latest iteration of the Air Quality Egg industrial design. The form is composed of a series of interlocking planes that hold together without additional adhesives or fasteners. Again, this approach is open source. Anyone with flat stock materials will be able to lasercut the templates and build, tweak, or replace their own parts.
The attached images show one of the first prototypes.

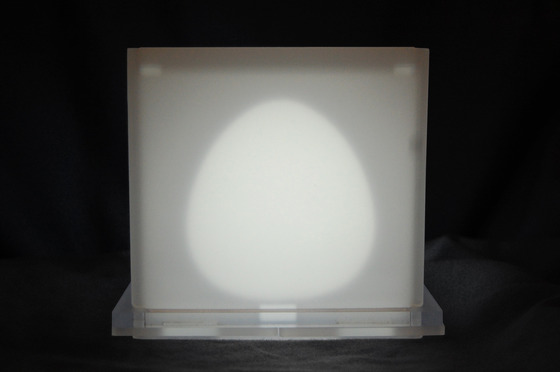

Egg_01 shows the silhouette of the Egg profile from the front which simulates an LED light shining through. The image looks blurry, but this is the effect of the frosted plexiglass.

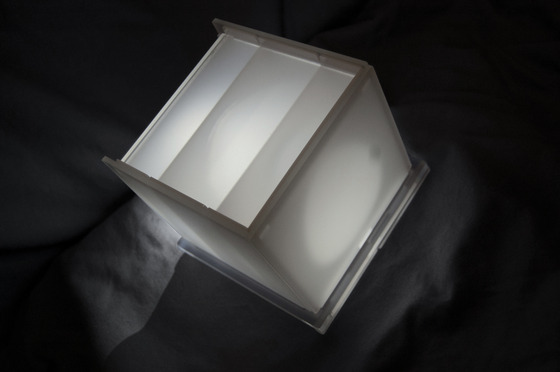

Egg_02 gives a glimpse of the dividers with the outline of the Egg form.

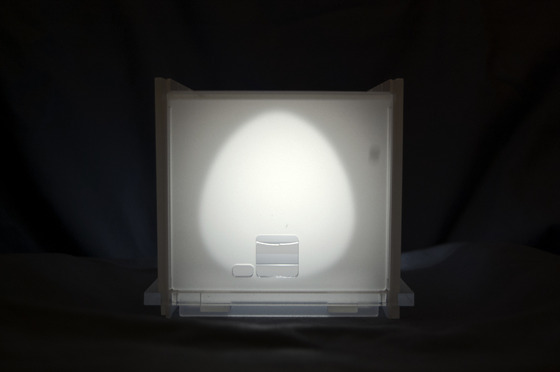

Egg_03 shows the back with the power cord and ethernet plug area for the PCB.

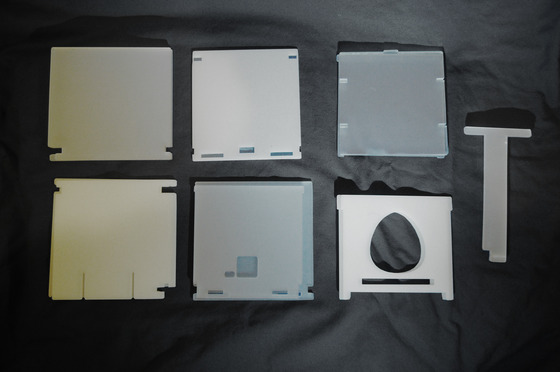

Egg_04 unpacks the box into flat pieces.
There have been some more refinements to the design which will be lasercut later this week. This will include focusing on how to keep the PCB in place. I will also have the vector file up on the wiki soon in case anyone wants to play with the design. Any comments or suggestions would definitely be appreciated. Stay tuned!
Albert
Updates: The Sensemaker team is working and pushing super hard to get these Eggs to you. There have been many exciting developments for the PCB and sensors. There has also been A LOT of discussion on the Google Group. Unfortunately, these do not often result in pretty pictures. However, we are putting together some PCBs and sensors and will have some images and updates soon!
