Status: Ballista Factory
Hello backers! Just a quick note on where we are.
I was very disappointed that we did not receive the shipment of wood to start production by this past weekend. However, we were not idle. Below are some photos of the gang hard at work. We completed the following:
- 350 sets of nylon string (2 skein and 1 bowstring lengths)
- 1400 dowel rod segments, 2.5 inches long to make foam tipped darts
- 1,391 foam tipped darts
- 650 dowels, length .75 inch (for assembling the ballista)
- 1800 dowels, length 1.25 inch
- 650 dowels, length 1.75 inch
- 525 steel rods, length 1 inch (these hold the skein rope in place)
- 30 sets of horsehair rope for deluxe kits
So we're ready to go for when the wood gets here and we light it up with the "laser".

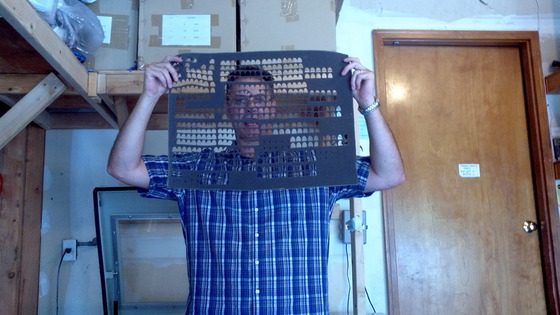

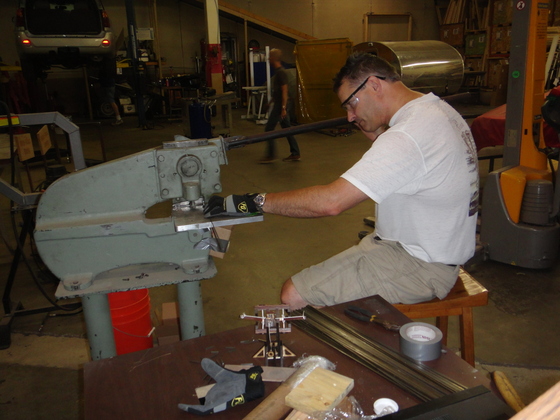

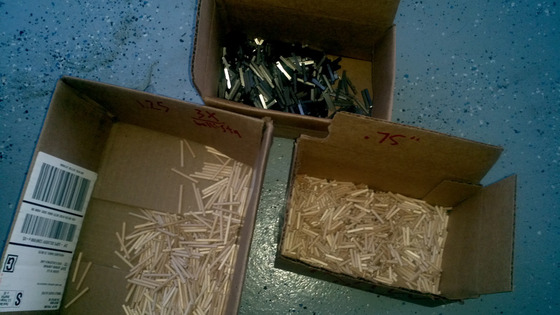

Some things to note in photos. a) In the string making photo notice my wife's patented system of using a napkin holder to keep a spool of string in order. b) The photo of the darts in formation was my son's attempt to make an extremely dull job creative (there are about 200 darts there, and we made over 1300 of them). c) I'm holding up a section of foam that has a few hundred foam tips laser cut out of it. d) A photo shows some of the dowels and steel parts in boxes after cutting. e) me operating a heavy duty shear at Club Workshop to cut the steel rods (raw ones on desk in front of me next to duct tape). I crunched a finger on piece number 522, did 3 more and called it quits for the day. I iced it and f) played golf with my wife and sister in-law later that day.
So it wasn't all work this weekend. Just about 15 hours worth. I shot a 53 on 9 holes. I blame it on the finger.
Club Workshop is a great makerspace in Denver (www.clubworkshop.com) with a full woodworking shop, metal shop, auto bay, laser cutter, automated embroidery machine, etc. If you're ever in Denver area, check it out. I did the prototyping of the ballista (and many other projects) there.
