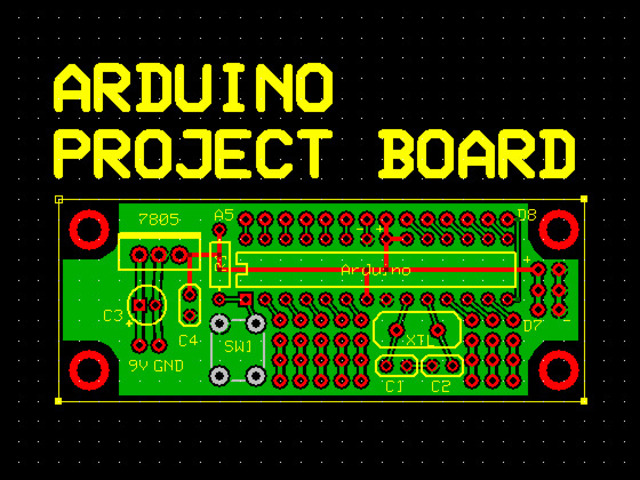

The Arduino Project Board allows you to easily use Arduino-programmed chips in your finished electronics project.

The Arduino Project Board is a bare bones solution for using Arduino-programmed Atmel chips in finished electronics projects.

Huh? Why?

I make a lot of stuff using the Arduino. It is not practical to include an entire Arduino development board into each finished project that I make since they are big, expensive, and have functionality that I don't need. When I finish a project, the only part of the development board that I really care about is the programmed chip. Fortunately, the standard Arduino is designed with a socket so that after the on-board Atmel chip is programmed, it can be removed.

What this means is that every time that I finish a project, I find myself removing the chip and building a circuit for it on perfboard. Since the circuit is more or less always the same, it would be more convenient to have an easy to assemble printed circuit board for finished projects. The Arduino Project board is just that.

The Arduino Project Board is small, inexpensive, easy to assemble, and perfect for using in finished projects.

Specs:

  • ATMEGA168/328 compatible
  • All standard chip connections
  • 5V and ground connections
  • Reset button
  • 5V regulator
  • 8 3-point terminals
  • 1" x 2.6" size
  • Corner mounting holes

FAQ

Have a question? If the info above doesn't help, you can ask the project creator directly.

Ask a question
89
Backers
$2,785
pledged of $180 goal
0
seconds to go

Funding period
May 8, 2011 - Jun 5, 2011 (28 days)

30423_10100179028437393_2209936_56594733_3592536_n.medium

See full bio

  • Pledge $5 or more

    1 backer

    Receive the Arduino Project Board layout file in .pcb format.

  • Pledge $10 or more

    7 backers

    Receive an Arduino Project Board.

  • Pledge $15 or more

    2 backers

    Receive an Arduino Project Board kit (bootloaded ATMEGA328 not included).

  • Pledge $20 or more

    37 backers

    Receive an Arduino Project Board kit with a bootloaded ATMEGA328 chip.

  • Pledge $35 or more

    8 backers

    Receive 3 Arduino Project Board kits (bootloaded ATMEGA328 not included).

  • Pledge $50 or more

    31 backers

    Receive 3 Arduino Project Board kits with 3 bootloaded ATMEGA328 chips.
