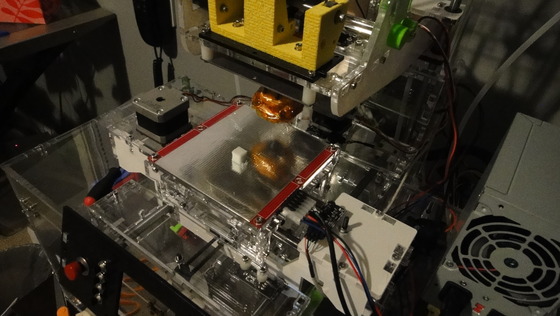

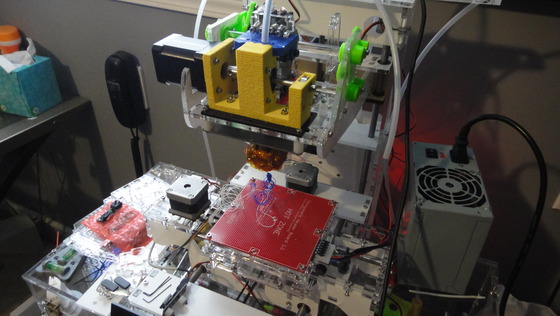

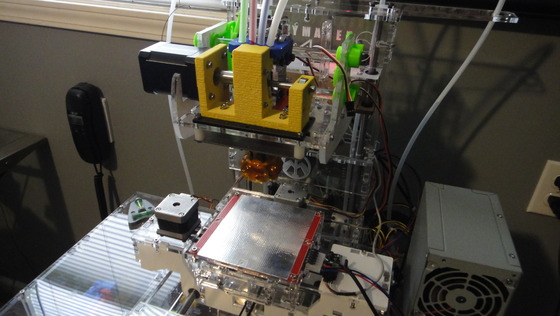

Z-axis calibration
Endstops installed and tested. First thing the machine needs to know before a print is how far it can move in any direction. This calibration test starts with the extruder nozzle right at the printing surface. It then moves all the way up and records the distance. Design goal was 60mm, measures 64.7mm. The reinforcements on the frame work as expected, it's quite sturdy.

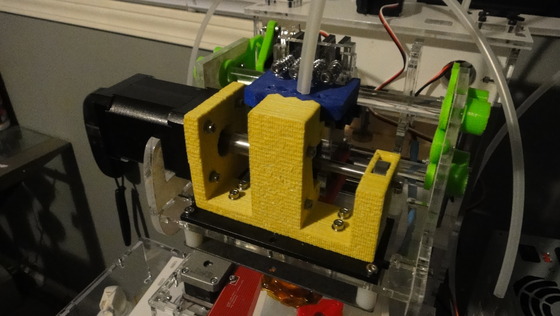

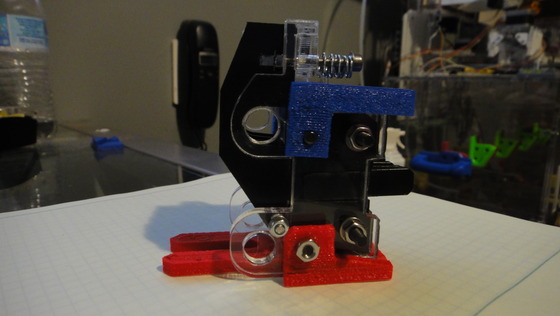

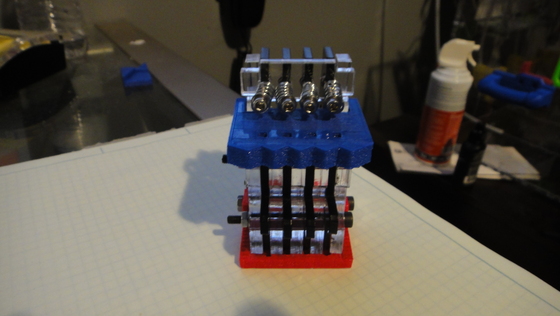

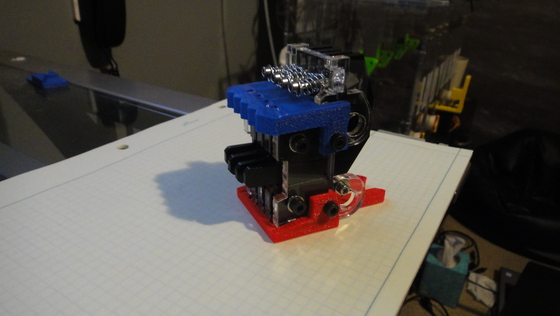

Filament Tension Springs
Pressing the filament into the extruder drive wheel. The leverage of those control arms is enormous, just a tweak on tiny springs produces a wide range of pressure.
I need to cut some new plungers (currently installed are way too long, just placeholders) and install the assembly. Then it should print!
15
Backers
$2,289
pledged of $20,000 goal
0
seconds to go
Funding Unsuccessful This project reached the deadline without achieving its funding goal on March 23, 2012.
Funding period
Feb 22, 2012 -
Mar 23, 2012
(30 days)
- 4 created · 6 backed
- Doug Keenan 201 friends
- Website: indymake.com
Pledge $1 or more
10 backers
Our thanks and your name posted on our website supporters page.
Estimated delivery: Mar 2012Pledge $25 or more
1 backer
Custom 4-color keychain with Indymake logo
Estimated delivery: Apr 2012Pledge $50 or more
0 backers
Two-color business card holder with name
Estimated delivery: May 2012Pledge $100 or more
1 backer
Four-color 3D printed US flag
Estimated delivery: Jul 2012Pledge $250 or more
0 backers
(up to) four-color business card holder with your name and custom icon
Estimated delivery: Aug 2012Pledge $500 or more
0 backers
"For All Mankind" 3D printed statuette http://www.thingiverse.com/thing:7883
Estimated delivery: Jun 2012Pledge $999 or more
2 backers

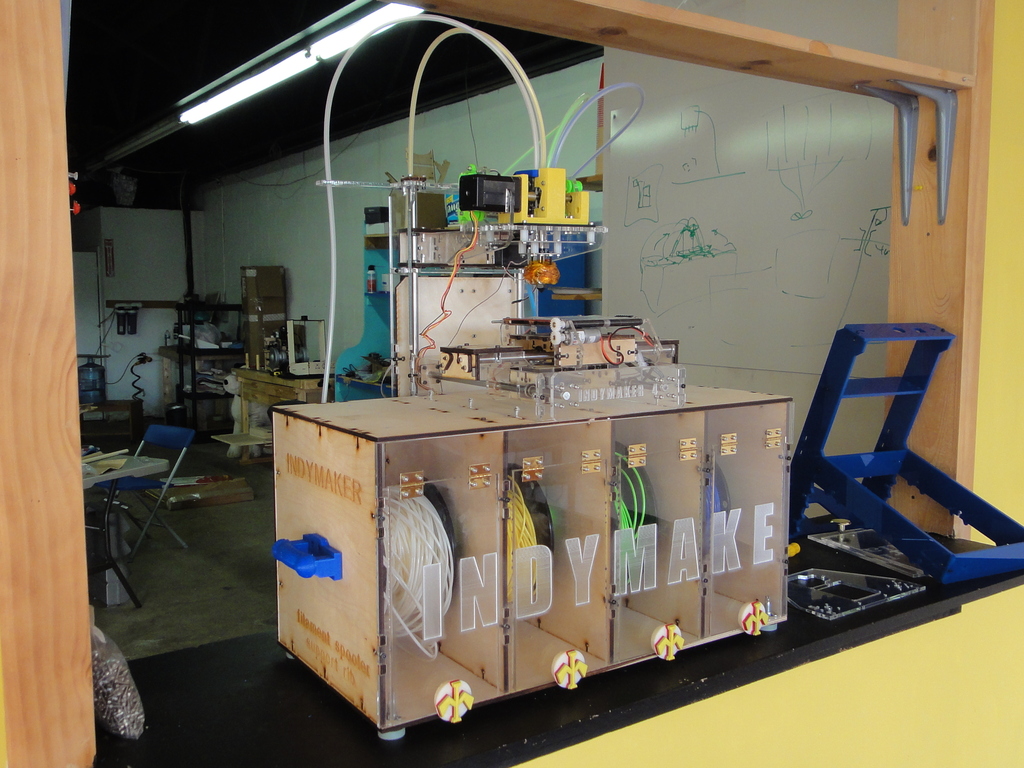

Indymaker four-color 3D printer, available assembled & tested or as kit. Kit orders will be serviced first. All acrylic case, with choice of colors, available for extra $100.
Estimated delivery: Sep 2012
