Update #7 Prototype Photos!

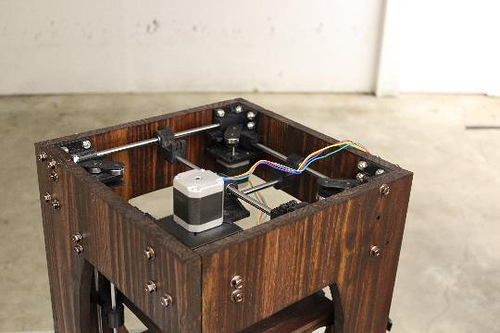

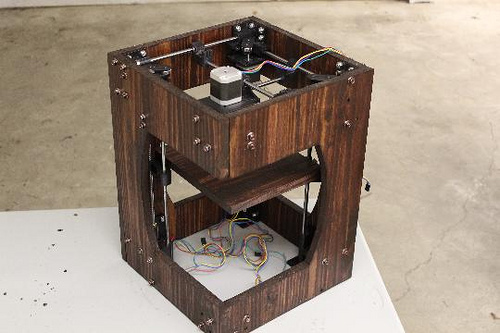

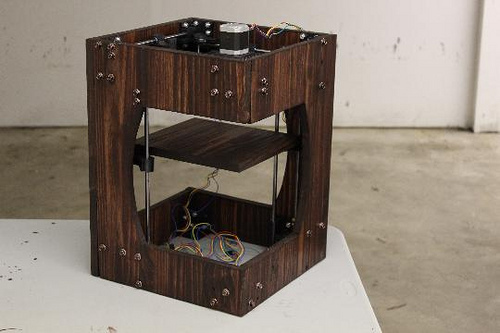

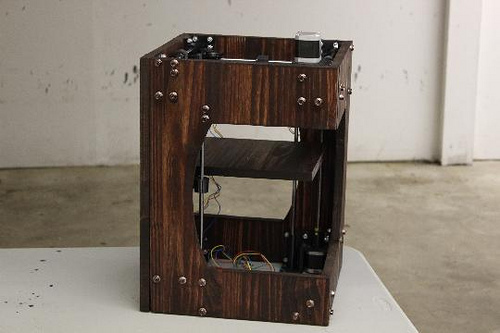

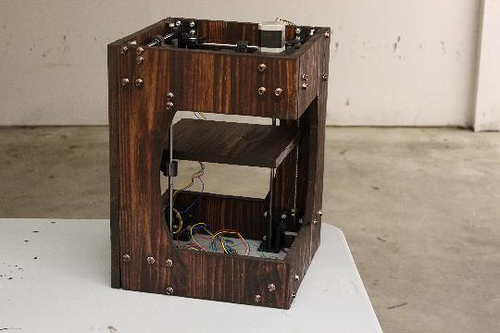

I've recieved a lot of questions about whether or not we'll have a running model or if there are photos or video to show. Well there will be photos and video of the running model and here is the prototype as it stands.
The prototype differs from the kit in that the kit will come with phillips or socket head screws rather than hex head bolts, and the wood will not be 3/4 pine but 6mm birch plywood (1/4 approx) The differences on the prototype are due to the fact that these screws we had already and the wood was also on hand. Otherwise this is very representative of the Maxifab printer, however your plywood won't be stained :) .
My partner in this process remarked that building his ultimaker felt like building a birdhouse, but the Maxifab was more like building furniture. Its an order of magnitude simpler to build but just as accurate. Simple, tough, and versatile were my design goals and I think we hit it on all counts.
Left to do on the prototype are install the electronics (on their way), the hot end, and the filament feed drive as bell as the belts. Then Its tidying up the wires and that's about it. All told its about 75 percent of the way to completion. Expect more updates as the build progresses.
And as always I want to thank everyone that has contributed to this project so far! You guys are the best!
Ryan
61
Backers
$24,393
pledged of $5,000 goal
0
seconds to go
Funding period
Mar 16, 2012 -
Apr 15, 2012
(30 days)
- First created · 0 backed
- Ryan Robinson 106 friends
- Website: maxifab.blogspot.com
Pledge $5 or more
11 backers
A thank you card and your name immortalized on the contributors page both here and at the Maxifab official Site.
Estimated delivery: Apr 2012Pledge $15 or more
2 backers
A 3D Printed chopstick rest designed by our good friends at carbonbasedlifestyle.com and 3d printed by us. Shipping is included.
Estimated delivery: Jun 2012Pledge $80 or more
1 backer
A full set of plastics for a Reprap Prusa Mendel. Shipping is included.
Estimated delivery: Jul 2012Pledge $100 or more
9 backers
Full Set of plastics for the Maxifab printing framework. This will be the most up to date version of the plastics once the design is optimized.
Estimated delivery: Jul 2012Pledge $350 or more
1 backer
Complete Maxifab kit but without motors, electronics, and hot end. This will include all the plastics, bearings, precision rods, threaded rods, walls lasercut from wood with all mounting points predrilled, as well as the screws and nuts needed to fully assemble the kit. US Shipping is included. International shipping is extra.
Estimated delivery: Jul 2012Pledge $650 or more
9 backers
Complete kit with all parts necessary to build the standard size Maxifab printer. This includes motors, electronics, hot end, plastics, walls, rods, bearings nuts bolts etc. US Shipping is included. International shipping is extra.
Estimated delivery: Jul 2012Pledge $750 or more
18 backers
Complete kit with all parts to build the Maxifab XL size printer. This includes motors, electronics, hot end, plastics, walls, rods, bearings nuts bolts etc. US Shipping is included. International shipping is extra.
Estimated delivery: Jul 2012Pledge $900 or more
2 backers
Fully assembled and tested Maxifab Printer. This is the standard size 12x12.5x18 case model. This has a build area of approx 8x8x8. US Shipping is included. International shipping is extra.
Estimated delivery: Jul 2012Pledge $1,300 or more
1 backer
Fully assembled and tested Maxifab This is the XL size with a build area of 8x18x8. This is a large item. US Shipping is included. International shipping is extra.
Estimated delivery: Jul 2012
