Maxifab is a project to develop a 3D printing framework. Build a 3d printer your way. No Limits.
What is a 3D Printer?
A 3D printer is a computer peripheral just like a normal printer, but instead of printing a picture of an object, 3D printers can actually print the object themselves! They can do this because the “ink” inside of a 3D printer is actually plastic and it creates the object layer by layer by responding to commands given by the software.The end product is produced by a process called additive manufacturing.
Any solid plastic object that fits within the printer's build envelope can be made. The build envelope is the printable space of the machine. For example, if a machine has a build envelope is 4x4x4 then that means the largest object that a machine can build is 4x4x4.
Until recently this amazing technology was only available to large companies and their rapid prototyping departments or sub contractors, but now these exciting machines are becoming available and affordable to the average public. There are several very good hobby level machines like the Thing-o-matic, the Ultimaker, and the Reprap project available now. Unfortunately, most of these machines are only available as complex build-it-yourself kits and have a set, limited build envelope. So right now you can have one of these fantastic machines, but only if you don't mind tediously toying with fiddly parts, and at the end of it realizing that it is too small to handle your ideas.
3D Printing Framework rather than just another Printer kit.

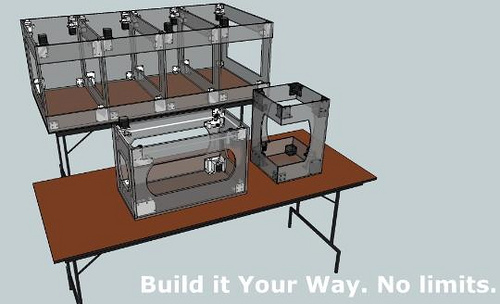

Realizing that designing a case may not be for everyone, we have designed a complete 3D printer kit with a choice of either laser-cut wood or plexiglass. It has a footprint of 12” x 12.5” x 18”, which is slightly smaller than the Ultimaker but with a similar build volume of 8” x 8” x 8”. We are also designing a larger kit with a build volume of 8” x 18” x 8” to accommodate larger prints.
Maxifab Design Details

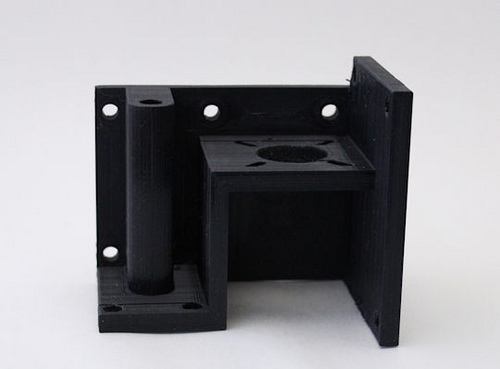

The Maxifab 3D Printing Framework builds on the RepRap project's ideals, but not its design. The Maxifab is probably closest to the Ultimaker in its general principles of design, but not in its mechanics. The Maxifab 3D Printer Framework was designed with a focus on multifunction parts, and a low distinct part count. For example, there are only two parts that make up the “upper gantry support” but each part functions both as a structural corner support for the case as well as a mounting point for key printer components.

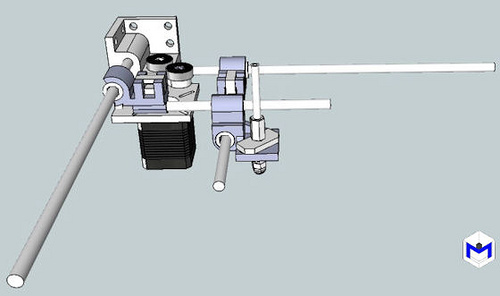

The Maxifab Framework utilizes an XY gantry and floating print head design with a separate hot end and a remotely mounted filament feed mechanism connected via a Bowden tube. The build base moves only in the Z direction, which eliminates any wobble associated with a build base that moves in either the X or Y direction and thus allows for reliable printing of tall parts. The separation of the extruder motor and the print head allows for a lighter print head, which correlates into faster motion and therefore faster prints. This design also reduces wear and tear on the Maxifab's novel belt-drive system and its motors.
More design details and a overview of the Maxifab can be found at http://maxifab.blogspot.com/2012/02/what-is-maxifab.html
Why 3D Printing?
Accessible, affordable 3D printing will allow everyone to turn their ideas into tangible products with ease. Hacker spaces exist in many cities and even some libraries. We feel that, while this is a good start, we would like to have printers available in every school. Not just one or two, but however many are necessary to truly get this into the hands of children and let them experience the feeling of holding in their hand something that only ever existed in their mind. Libraries with 3d printers available to the public are another great way to expose this technology to the masses.
Let’s take this further, imagine 3d printers available on demand at any Kinko's or Staples. Design a part at home, bring the file to them on a thumb drive, and have it printed for a nominal fee. These companies already do large scale printing, copying and even offer computer rental for internet access etc. Imagine being an engineering student who can't afford a 3d printer, being able to flesh out his inventions by simply going and having the part printed at his local office supply store.
While this may sound a bit farfetched, this could easily happen. Not necessarily 3d printers everywhere but the ability to easily go from thought to design to finished product in a cost effective way. Imagine the flood of creativity this could usher in. The next generation of kids need not be limited to just wood shop and metal shop. Let’s add desktop manufacturing and the necessary tools to the curriculum.
That kind of future is what we envision, and with your help, perhaps we can make some impact on the future and the future of our kids. Let’s bring into being the next generation of kids that don't just want to buy what they want, but can make the things they want. Let’s help them become Makers and not just consumers.
Plus, 3D Printers are just cool.
What I need and how you can help
Designing in 3D only takes time, but converting those plans to reality takes money. Once a part is designed it must be tested, modified, and tested again several times to optimize the part before releasing it into production. To do this we need, ironically, a 3D printer to be able to manufacture prototype parts. We also need to purchase the other components such as the control electronics, motors, and bearings to test the system as a whole.
Once the plastic components are production-ready, we eventually intend to have tooling made to allow for the parts to be injection molded to drastically reduce cost and production times. Doing it this way will allow us to sell the kits at a very affordable price so that everyone can enjoy 3D printing at home.
Have a question? If the info above doesn't help, you can ask the project creator directly.
pledged of $5,000 goal
seconds to go
Mar 16, 2012 - Apr 15, 2012 (30 days)
Pledge $5 or more
A thank you card and your name immortalized on the contributors page both here and at the Maxifab official Site.Estimated delivery: Apr 2012
Pledge $15 or more
A 3D Printed chopstick rest designed by our good friends at carbonbasedlifestyle.com and 3d printed by us. Shipping is included.Estimated delivery: Jun 2012
Pledge $80 or more
A full set of plastics for a Reprap Prusa Mendel. Shipping is included.Estimated delivery: Jul 2012
Pledge $100 or more
Full Set of plastics for the Maxifab printing framework. This will be the most up to date version of the plastics once the design is optimized.Estimated delivery: Jul 2012
Pledge $350 or more
Complete Maxifab kit but without motors, electronics, and hot end. This will include all the plastics, bearings, precision rods, threaded rods, walls lasercut from wood with all mounting points predrilled, as well as the screws and nuts needed to fully assemble the kit. US Shipping is included. International shipping is extra.Estimated delivery: Jul 2012
Pledge $650 or more
Complete kit with all parts necessary to build the standard size Maxifab printer. This includes motors, electronics, hot end, plastics, walls, rods, bearings nuts bolts etc. US Shipping is included. International shipping is extra.Estimated delivery: Jul 2012
Pledge $750 or more
Complete kit with all parts to build the Maxifab XL size printer. This includes motors, electronics, hot end, plastics, walls, rods, bearings nuts bolts etc. US Shipping is included. International shipping is extra.Estimated delivery: Jul 2012
Pledge $900 or more
Fully assembled and tested Maxifab Printer. This is the standard size 12x12.5x18 case model. This has a build area of approx 8x8x8. US Shipping is included. International shipping is extra.Estimated delivery: Jul 2012
Pledge $1,300 or more
Fully assembled and tested Maxifab This is the XL size with a build area of 8x18x8. This is a large item. US Shipping is included. International shipping is extra.Estimated delivery: Jul 2012
