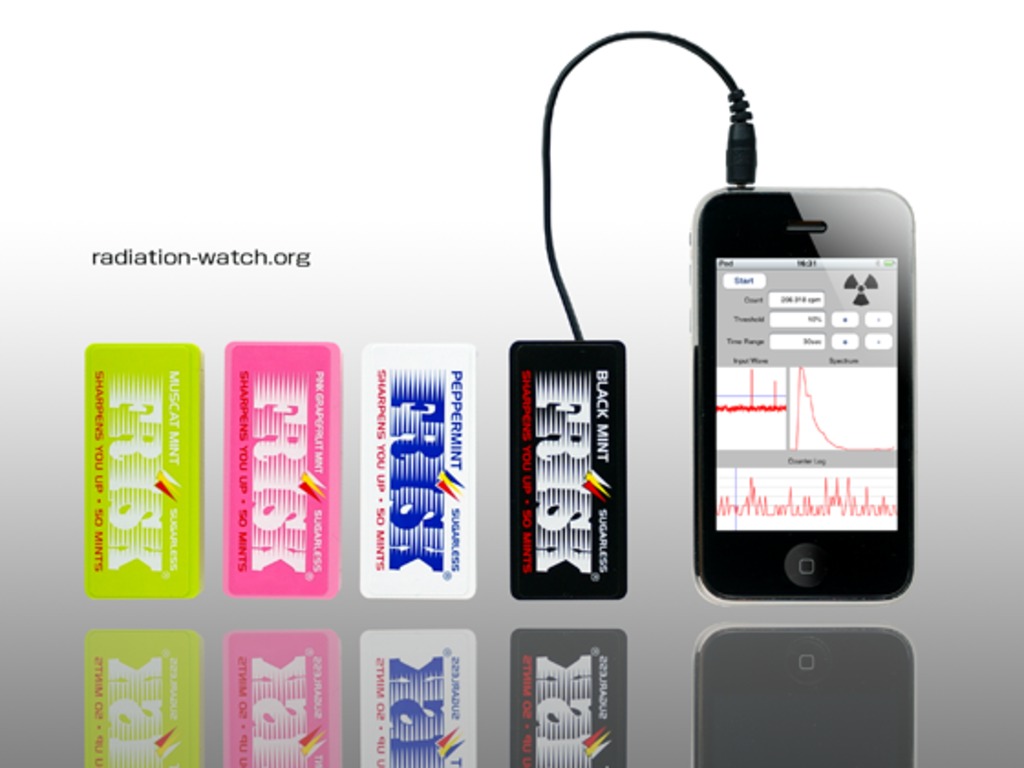

Mint-case-sized Radiation Detector connected with iPhone via microphone input, at a low price by using cheap PIN Photo-diode.
Smart Radiation Detector
We are going to manufacture and sell the Smart Radiation Detector connected with iPhone / iPod Touch / iPad via microphone input, at a low price less than fifty dollars by using cheap PIN Photo-diode instead of expensive Geiger-Muller Tube to detect beta and gamma radiation. For more information about the Detector, please visit our project website (http://www.radiation-watch.org).
The actual electronic circuit is so simply it fits inside a match box or a FRISK mint-box, except battery. The applications for iPhone / iPod Touch / iPad is available in App Store. The Lite-version is free and the Pro-version is $5.
Early lot 1000+ production is possible, if we can get Kickstarter's $4375+ support as the initial cost of circuit development and calibration testing.
Please ADD following fees to get the gadget.
Add $20 for International shipping (to USA, UK, Canada, Australia, etc.)
Add $10 for Domestic shipping (to Japan)
Add $3 if you need FRISK-BOX * (RECOMMENDED)
* We recommend that you should purchase a FRISK (Dutch mint) because the device was designed to be right fit for it, unless you can buy it in your area.
We are international, volunteer team of engineers, designers and scientists. We believe that everyone – children, students, mothers, senior citizens, anyone – has the right to know the correct radiation level especially in and around nuclear power plants. Information regarding radiation should be readily available, just like the temperature outside or the weather.
Sensor: PIN photo diode x8 (reverse biased and shielded)
Detectable radiations: Beta and Gamma radiation
Sensitivity: 0.5uSv/h -> 124cpm (without beta radiation shield)
Software features: CPM, uSv/h (currently under development) and Oscilloscope
Dimensions: about W55mm x H28mm x D8mm (except case, battery, DC line and phone plug)
Power consumption: about 1mA
Battery: 006P/9V (outside of the case)
* Those specifications are non-guaranteed and may be changed without notice for the backers.
Have a question? If the info above doesn't help, you can ask the project creator directly.
pledged of $4,375 goal
seconds to go
Jul 8, 2011 - Jul 31, 2011
Pledge $1 or more
Your name will appear in our project web page as a personal sponsor with appreciative words.
Pledge $5 or more
Receive a file of circuit diagram, for hackers.
Pledge $20 or more
Receive files of circuit diagram and garber data, for hackers.
Pledge $100 or more
Get one Silicon Radiation Detector per $100 via airmail from a factory in Tohoku, Japan. Please add $20 shipping fee. Please add $3 if you want a FRISK mint-box .
Pledge $120 or more
Get one Silicon Radiation Detector per $100 via airmail from a factory in Tohoku, Japan. And receive files of circuit diagram and garber data, for hackers. Please add $20 shipping fee. Please add $3 if you want a FRISK mint-box .
Pledge $400 or more
1 backer Limited (9 of 10 left)
Get one Silicon Radiation Detector per $80 via airmail from a factory in Tohoku, Japan. Please add $20 shipping fee. Please add $3 if you want a FRISK mint-box .
